A soffit panel roll forming machine uses a constant cold-forming method to take flat metal coils and turn them into perfectly shaped soffit panels. This specialized machinery shapes raw materials like PPGI or GI steel into the right soffit design by bending the metal in a number of making stations and not using any heat. The machine uses a single, streamlined production line to combine cutting, punching, and shaping processes. This makes it vital for makers who want to make soffit panels quickly while ensuring consistent quality and minimal waste.
Understanding Soffit Roll Forming Technology
Roll forming technology has changed the way metal shapes are made by makers so that they are always the same. Progressive folding is the idea behind the soffit panel roll-making machine. This means that each station adds a small part to the final shape. This method makes sure that the thickness is even all over and gets rid of areas of high stress that could make the end product weaker.
Uncoiling materials that are usually 0.3 to 0.8 mm thick is the first step in the process. Aluminum soffit roll forming machines from today can work with different materials, like galvanized steel, aluminum, and custom finishes. The uncoiler feeds material at controlled speeds while keeping the right strain on the making process.
Advanced servo control systems monitor every aspect of production. These systems adjust forming speed, cutting length, and pressure automatically based on material properties and desired specifications. The result is exceptional consistency across thousands of panels with minimal operator intervention required.
Key Components of Soffit Roll Forming Equipment

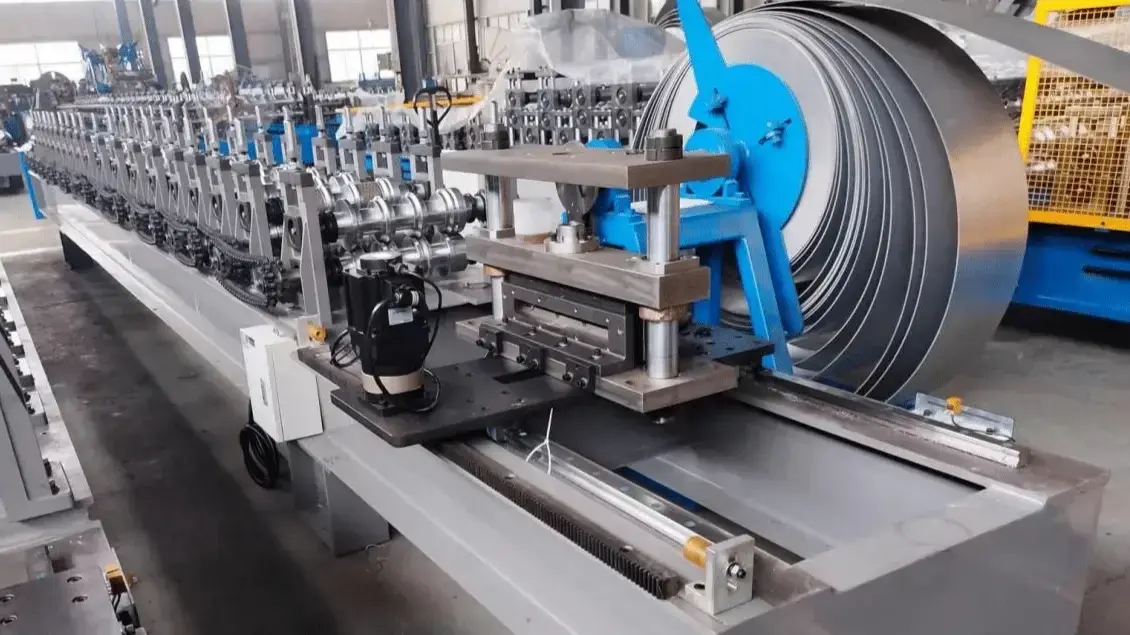

Professional soffit roll-forming equipment consists of several critical components working in harmony. The machine frame typically features a vertical arch structure with 35-45mm steel plate thickness, providing the rigidity necessary for precision forming operations.

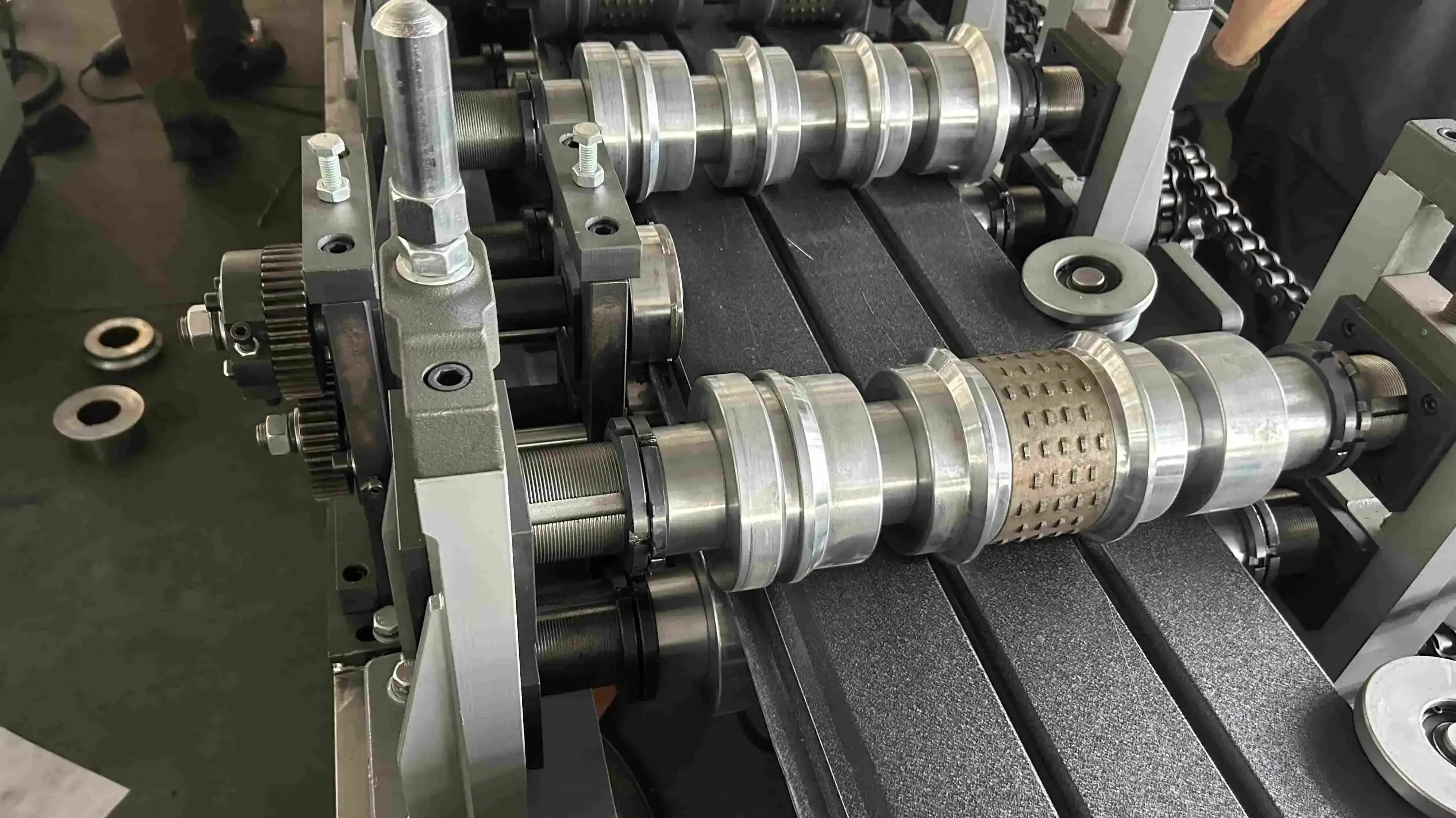

Rolling stations form the heart of the system. A typical steel soffit panel roll forming machine incorporates 18 forming stations, each precisely calibrated to achieve specific bend angles. The rollers utilize D2 tool steel with quenched treatment, ensuring longevity and maintaining dimensional accuracy throughout extended production runs.
The rolling shaft system deserves particular attention. Quality manufacturers employ 45# steel shafts with 75mm diameter, processed through quenching treatments and precision machining. This construction provides the strength needed to maintain alignment under heavy forming loads while ensuring smooth operation.
Drive systems typically utilize chain transmission for reliable power transfer. Premium bearings from established manufacturers like Harbin ensure smooth operation and extended service life. These components collectively enable the automatic soffit roll forming machine to maintain consistent output quality.
Step-by-Step Operation Process
The soffit sheet roll forming machine follows a systematic production sequence. Material preparation begins with loading coils onto the uncoiler, followed by threading the leading edge through guide systems. Operators set cutting length parameters based on project requirements, with modern machines offering adjustable lengths for maximum flexibility.
Once production begins, the material advances through progressive forming stations. Each station applies specific bending forces to gradually shape the profile. The soffit profile roll forming machine maintains constant material flow while monitoring for potential issues like material buckle or dimensional drift.

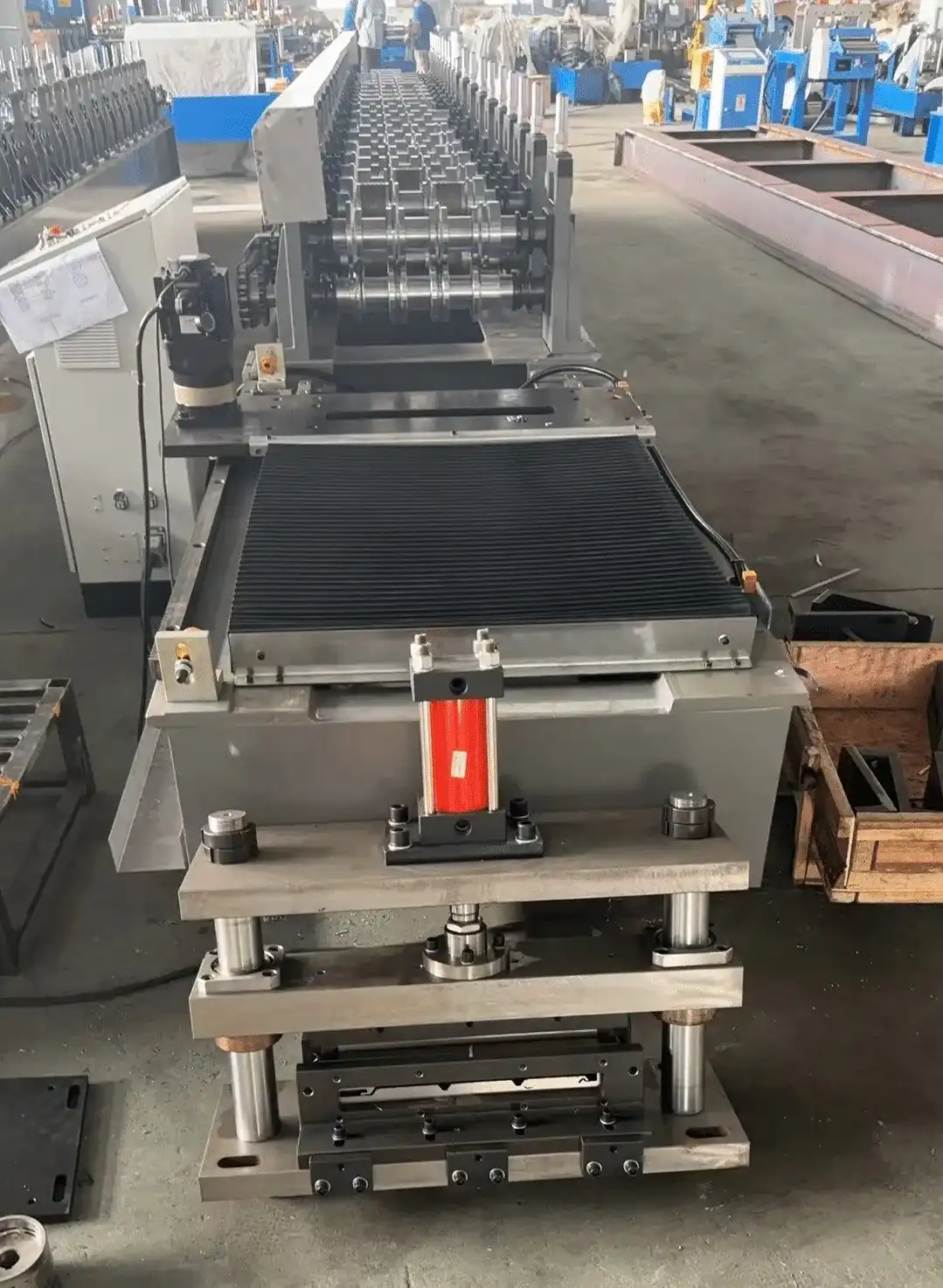

Cutting operations occur downstream of the forming stations. Hydraulic cutting systems provide clean, square cuts without material distortion. Some configurations include integrated punching capabilities for mounting holes or ventilation slots, eliminating secondary operations.
Quality control systems continuously monitor output dimensions. Advanced metal soffit panel roll forming machines incorporate inline measurement systems that detect variations immediately, allowing rapid adjustments before defective panels are produced.
Material Specifications and Capabilities
Modern soffit roll former systems accommodate diverse material requirements. Standard configurations handle PPGI and GI materials within the 0.3-0.8mm thickness range, though specialized setups can process materials up to 550 MPa yield strength with advance notification for proper tooling selection.
Material handling capabilities extend beyond basic steel products. Aluminum soffit applications require specific roller materials and forming sequences due to the metal's different mechanical properties. The soffit roll forming line can be configured with appropriate tooling to handle these variations effectively.
Coating preservation represents a critical concern during forming operations. Quality soffit cladding roll-forming machines utilize roller materials and surface treatments that minimize coating damage. This attention to detail ensures finished panels maintain their corrosion resistance and aesthetic appearance.
Temperature considerations affect material behavior during forming. While roll forming operates at ambient temperatures, seasonal variations can influence material ductility. Professional operators adjust machine parameters accordingly to maintain consistent quality throughout varying environmental conditions.
Applications Across Different Industries

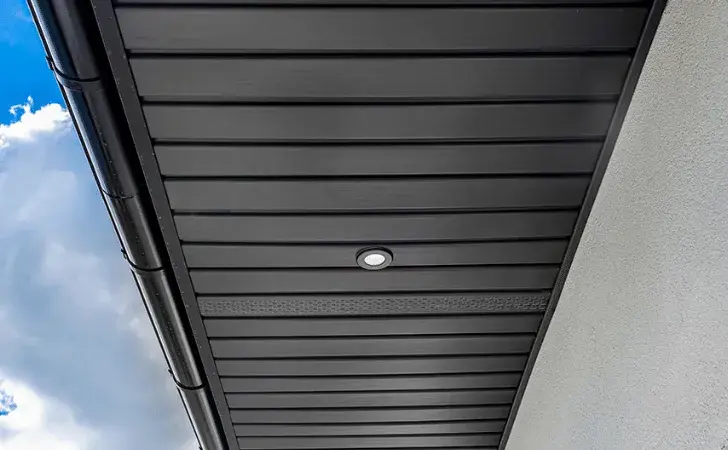

Building roofing system manufacturers represent the primary users of soffit siding roll-forming machines. These companies require high-efficiency equipment capable of producing thousands of panels daily while maintaining strict dimensional tolerances. The technology enables rapid changeover between different profile designs, supporting diverse project requirements.
Light steel structure manufacturers utilize this technology for architectural applications. The soffit roof panel machine produces components that integrate seamlessly with broader structural systems. Precision forming ensures proper fit-up with adjacent components, reducing installation time and improving overall system performance.
Commercial construction projects demand high-volume production capabilities. The roll forming machine for soffit panels delivers the throughput needed for large-scale developments while maintaining cost-effectiveness. Automated operation reduces labor requirements while improving consistency compared to traditional fabrication methods.
International engineering companies value the standardization possible with modern forming equipment. The soffit panel manufacturing machine produces identical components regardless of geographic location, supporting global project requirements with consistent quality standards.
Quality Control and Precision Standards
Precision manufacturing demands rigorous quality control protocols. High-speed soffit roll forming machines incorporate multiple measurement points throughout the production line. These systems monitor critical dimensions, including web width, flange height, and overall straightness to ensure compliance with specifications.
Tooling maintenance plays a crucial role in sustained accuracy. Regular inspection schedules identify wear patterns before they affect product quality. The custom soffit panel roll forming machine benefits from predictive maintenance programs that minimize unplanned downtime while preserving dimensional consistency.
Statistical process control methods track production trends over time. This data reveals gradual changes in machine performance, enabling proactive adjustments that prevent quality degradation. Modern soffit roll-forming equipment includes integrated data collection systems that simplify this monitoring process.
Calibration procedures verify machine accuracy at regular intervals. These protocols include dimensional checks of finished panels against engineering drawings, ensuring continued compliance with customer specifications. Documentation of these verifications provides traceability for quality assurance purposes.
Maintenance Requirements and Best Practices
Preventive maintenance schedules maximize equipment reliability while minimizing unexpected failures. The soffit panel production line requires regular lubrication of moving components, particularly bearing assemblies and drive chains. Established maintenance intervals based on production hours ensure optimal performance.
Tooling inspection represents a critical maintenance activity. Rolling stations experience gradual wear that can affect product dimensions if left unchecked. Regular measurement of roller profiles identifies when replacement becomes necessary, preventing quality issues before they impact production.
Hydraulic system maintenance ensures reliable cutting and clamping operations. The soffit panel bending machine relies on consistent hydraulic pressure for proper function. Regular fluid changes and filter replacements maintain system cleanliness and prevent premature component failure.
Electrical system maintenance includes verification of sensor calibration and drive system performance. Modern machines incorporate diagnostic capabilities that identify potential issues before they cause production interruptions. This predictive approach reduces maintenance costs while improving overall equipment effectiveness.
Cost-Benefit Analysis for Manufacturers
Investment evaluation requires careful consideration of production requirements and market conditions. The soffit panel cutting machine offers significant advantages in labor efficiency compared to traditional fabrication methods. Automated operation reduces direct labor requirements while improving consistency and reducing waste.
Material utilization improvements contribute substantially to cost savings. Roll forming minimizes waste compared to stamping or brake forming operations. The continuous process eliminates individual blank preparation, reducing material handling and associated labor costs.
Production flexibility provides additional value through rapid changeover capabilities. Modern equipment allows profile changes within minutes rather than hours required for alternative methods. This agility enables manufacturers to respond quickly to market demands while maintaining efficient operations.
Quality improvements reduce downstream costs associated with rework or warranty claims. Consistent dimensional accuracy eliminates field adjustment requirements, reducing installation time and improving customer satisfaction. These benefits often justify equipment investment through improved competitive positioning.
Conclusion
Soffit roll forming technology represents the pinnacle of efficient metal panel manufacturing. Understanding the operational principles, component relationships, and maintenance requirements enables manufacturers to make informed equipment decisions that drive long-term success. The combination of precision engineering, automated operation, and flexible production capabilities makes this technology indispensable for modern metal fabrication operations.
Success with soffit roll forming equipment depends on proper specification, installation, and ongoing support. Partnering with experienced manufacturers ensures access to proven designs, comprehensive training, and reliable technical support throughout the equipment lifecycle.
