A Beginner’s Guide to Roofing Sheet Making Machine Systems

Getting started in the world of making metal roofs can be scary, but it's easier than you think to understand how roofing sheet-making machines work. Cold roll forming technology is used in these industrial devices to shape flat metal coils into precisely shaped roofing profiles. The R101 Roofing Sheet Making Machine is a great place for beginners to start because it makes the popular R-101 trapezoidal profile R101 Roofing Sheet Making Machine that is used in building markets all over the world. This guide tells you everything you need to know, from how to operate the machine to choosing the right tools for your production needs.

Why Metal Roofing Manufacturers Choose Roll Forming Systems

Manufacturers of building roofing systems are always under pressure to meet high standards of quality at fast industry speeds. Traditional ways of making metal, like press braking or bending by hand, aren't nearly as efficient as automated sheet metal forming tools. Roll forming technology solves three important problems at the same time: it keeps the same dimensions across thousands of sheets, it cuts down on waste with controlled cutting systems, and it can work nonstop without the tiredness that comes with doing things by hand.

When you figure out how much it costs to make, the economic edge becomes clear. A high-speed roll former can make 15 meters of finished roofing per minute, while manual ways might only be able to make two or three sheets per hour. This efficiency directly leads to lower prices and faster order fulfilment for companies that make composite sandwich panels and metal structures.

Roll rolling is a gentle way to work with materials that is especially helpful when making galvanised steel roofs. When stamping, protective coatings are stressed. Progressive bending, on the other hand, protects zinc layers and painted finishes, which makes the finished product last longer.

Understanding Core Components of Roofing Sheet Production Lines

Every system for making roof panels is made up of stations that are all linked to each other and work in a specific order. A decoiler holds the raw material coil, which usually weighs between 3 and 7 tonnes, at the entry point and feeds it easily into the forming section. For smaller jobs, manual decoilers work well. Motorised ones with tension control keep the material from slipping during fast runs.

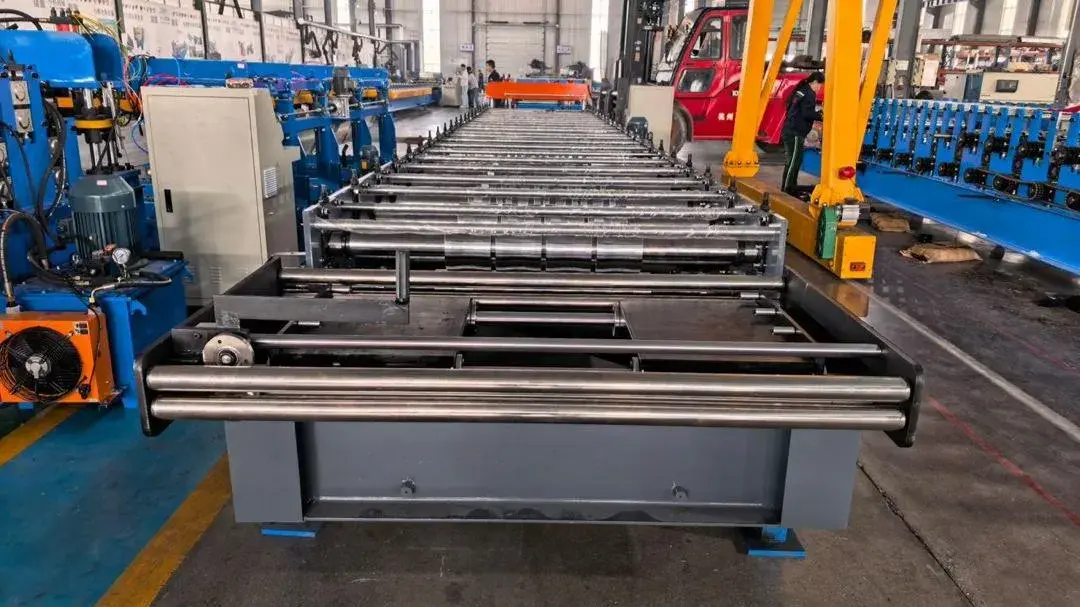

The making stations are the most important parts of any metal roof sheet roll former. The R101 Roofing Sheet Making Machine has 18 making stations with 70 mm diameter shafts. Each pair of rollers bends the metal slightly closer to the final shape. By doing the bend slowly, you avoid the stress fractures that would happen if you tried to do the whole thing at once.

Power delivery needs to be carefully thought out. Through a chain-and-sprocket or gearbox system, a 5.5 kW main motor moves the making rollers. The cutting mechanism is powered by a separate 4 kW hydraulic unit. Hardened Cr12MoV steel blades on the hydraulic shear cut through 0.8 mm thick material cleanly, with a cutting accuracy of ±2 mm. This is important for building projects, such as roofing sheet-making machines, where panels need to be perfectly lined up when they are put together.

Material Selection and Thickness Capabilities

Sheet metal fabrication machines must handle diverse material specifications to serve varied market segments. The standard thickness range of 0.3 to 0.8mm accommodates most commercial roofing applications. Thinner gauges (0.3-0.4mm) suit agricultural buildings where budget constraints are tight, while 0.6-0.8mm materials provide the structural integrity required for industrial warehouses spanning 30 meters or more.

Material composition affects machine setup significantly. Galvalume—a steel core coated with aluminium-zinc alloy—offers superior corrosion resistance in coastal environments but requires roller gap adjustments due to its slightly different forming characteristics compared to standard galvanised steel. Prepainted materials demand extra care; rollers must be perfectly clean and polished to avoid scratching the decorative finish.

Yield strength ratings present another consideration. Soft steel grades (G250-G300) form easily with standard equipment, while full-hard G550 steel resists bending and may cause spring-back issues unless you upgrade to reinforced forming stations and higher motor power. This technical nuance matters tremendously for light steel structure manufacturers producing structural components that must maintain precise angles under load.

Profile Types and Application Scenarios

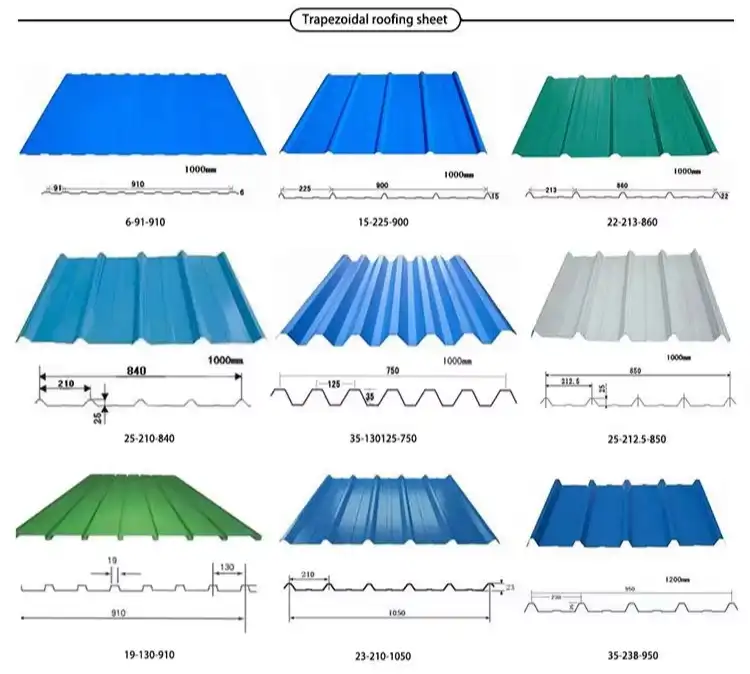

Different roofing profiles serve distinct architectural and functional purposes. The R-101 trapezoidal pattern features deep ribs that channel water efficiently, making it ideal for regions experiencing heavy rainfall or snow accumulation. The rib geometry also provides excellent load-bearing capacity with minimal purlin support, reducing overall construction costs for pre-engineered buildings.

Corrugated sheet machines produce the classic wavy pattern familiar in agricultural infrastructure. This profile is simpler to manufacture—typically requiring only 12-14 forming stations—but offers less structural strength than trapezoidal designs. Small metal product manufacturers often start with corrugated profiles before investing in more complex systems.

Tile-profile machines create aesthetic patterns that mimic traditional clay or concrete tiles. These designs appeal to residential markets where homeowners want the appearance of classic roofing without the weight penalty. The forming complexity increases substantially, often requiring 22+ stations and specialised roller designs to achieve the interlocking ribs and decorative embossing.

Installation Setup and Spatial Requirements

Planning your production floor space requires understanding the physical footprint of the roofing sheet making machine and the physical footprint of roll forming equipment. A typical R101 Roofing Sheet Making Machine measures approximately 6,200mm in length, 850mm in width, and 1,500mm in height, with a total weight of around 3.5 tons. However, you must allocate additional space for coil loading at the entry (at least 2 meters) and finished sheet stacking at the exit (3-4 meters minimum).

Foundation requirements depend on production speed and material thickness. Machines processing 0.8mm steel at maximum speed generate significant vibration. A reinforced concrete pad at least 150mm thick with embedded anchor bolts prevents gradual machine movement that would misalign forming stations over time.

Electrical infrastructure must match the machine's power supply specifications. The standard 380V/50Hz/3-phase configuration requires a dedicated circuit breaker and emergency stop system complying with local electrical codes. Startups with limited technical capabilities should verify their facility can supply stable three-phase power before ordering equipment; voltage fluctuations above ±5% can damage PLC components and motors.

Quality Control and Dimensional Verification

Maintaining consistent output quality separates professional roofing sheet production from amateur operations. Dimensional accuracy starts with proper machine calibration. Measure the effective cover width—typically 1,010mm for R-101 profiles—at regular intervals during production runs. Deviations beyond ±1mm indicate roller wear or loose shaft bearings requiring immediate attention.

Rib height consistency affects both aesthetics and structural performance. Use a profile gauge to verify that peak heights match the engineering drawing specifications within 0.5mm tolerance. Inconsistent rib height usually points to uneven material thickness in the incoming coil or incorrect gap settings between forming rollers.

Surface finish inspection protects your reputation with architectural clients. Run your hand along both the painted surface and the backside of the formed sheets, feeling for scratches or roller marks. Any roughness indicates either contaminated rollers that need cleaning or misaligned stations causing excessive friction. Roof tile roll forming operations serving premium residential markets must achieve mirror-smooth finishes on visible surfaces.

Maintenance Protocols and Longevity Optimisation

Industrial roofing equipment requires disciplined maintenance to deliver the 10-15 year service life buyers expect. Daily tasks include cleaning roller surfaces with soft brushes to remove metal dust and checking hydraulic oil levels in the sight glass. Low oil causes pump cavitation and valve damage, often resulting in costly repairs that could have been prevented with simple monitoring.

Weekly maintenance involves lubricating the chain drive and gearbox according to the manufacturer's specifications—typically using #46 anti-wear hydraulic oil or lithium-based grease for bearing points. Over-lubrication attracts dirt that accelerates wear, so precision matters. Apply just enough grease to see a thin bead appear at the bearing seal edge.

Monthly inspections should focus on electrical components. Tighten all terminal connections in the control cabinet, as vibration gradually loosens screws and creates resistance heating that degrades wire insulation. Check PLC battery voltage; a failing backup battery causes program loss during power interruptions, forcing time-consuming reprogramming.

Cost Analysis: Investment vs. Operating Expenses

Balancing investment costs and operating costs requires understanding both upfront R101 Roofing Sheet Making Machine equipment pricing and long-term expense categories. Entry-level roofing sheet-making machines suitable for startups typically range from $15,000 to $28,000, depending on automation level and brand reputation. The R101 Roofing Sheet Making Machine with manual decoiler and basic PLC control represents an economical starting point, while fully automated systems with servo cutting and profile changeover capabilities can exceed $50,000.

Operating expenses break into four main categories: electricity consumption averages 35-45 kWh per operating hour based on the combined motor and hydraulic loads. Material costs dominate the expense structure—galvanised coil prices fluctuate with global steel markets but typically represent 70-75% of total production costs. Labour remains surprisingly low once operators gain proficiency; one skilled person can supervise equipment producing 120-180 linear meters per hour.

Maintenance and consumables constitute the final cost category. Budget approximately $800-1,200 annually for hydraulic oil changes, roller refurbishing, and replacement cutting blades. Manufacturers offering comprehensive training and technical guidance help minimise this expense by teaching proper adjustment techniques that extend component life.

Selecting Suppliers: Certification and Support Factors

Equipment reliability stems directly from the supplier's manufacturing standards and after-sales commitment. International engineering companies prioritise vendors holding ISO 9001 quality management certification and CE safety compliance. These certifications indicate systematic production control and electrical safety testing—not mere marketing claims.

Delivery experience matters tremendously for businesses operating in remote regions. Suppliers with proven logistics networks in 150+ countries understand customs documentation, voltage adaptation, and shipping container optimisation. ZTRFM's decade-long track record demonstrates this capability, having installed roofing material machinery across six continents with minimal transit damage or delay issues.

Technical support responsiveness prevents costly downtime. Evaluate suppliers based on their communication channels and response commitments. Email-only support with 48-hour response times proves inadequate when production stops unexpectedly. Look for manufacturers providing direct engineer contact via messaging platforms and offering remote video diagnostics to troubleshoot issues in real time.

Partner with ZTRFM—Your Trusted R101 Roofing Sheet Making Machine Supplier

ZTRFM combines 10 years of specialised expertise in cold roll forming technology with R101 Roofing Sheet Making Machine's comprehensive support that transforms first-time buyers into confident producers. Our R101 Roofing Sheet Making Machine comes with complete operator training, detailed maintenance manuals, and lifetime technical consultation via zhongtuorollforming@gmail.com. We customise voltage configurations, add automated stacking systems, and provide OEM/ODM solutions matching your exact production requirements—backed by ISO9001 and CE certifications recognised in over 150 countries.
