How to Choose the Best Hat Channel Roll Forming Machine for Your Supply Chain Needs

You need to carefully think about technical specs, production needs, and long-term operating goals when picking the right hat channel roll forming machine for your supply chain. Through a constant pressing process, these specialized hat channel roll forming machines turn flat metal strips into precise hat-shaped shapes. This makes them necessary for use in building, car, and industrial settings. As part of the decision process, you should look at the machine's capacity, amount of automation, compatibility with materials, and help from the maker to get the best output and return on investment for your industrial needs.

Understanding Hat Channel Roll Forming Machines: Definition and Process

Hat channel roll forming machines are high-tech pieces of production equipment that constantly shape metal strips into unique hat-shaped cross-sectional profiles. These machines use a sequential making process where metal coils move through several roller stations, each one bending the material more and more until the final hat channel shape is reached. The process starts with unwinding the raw material and ends with cutting it precisely to the right lengths.

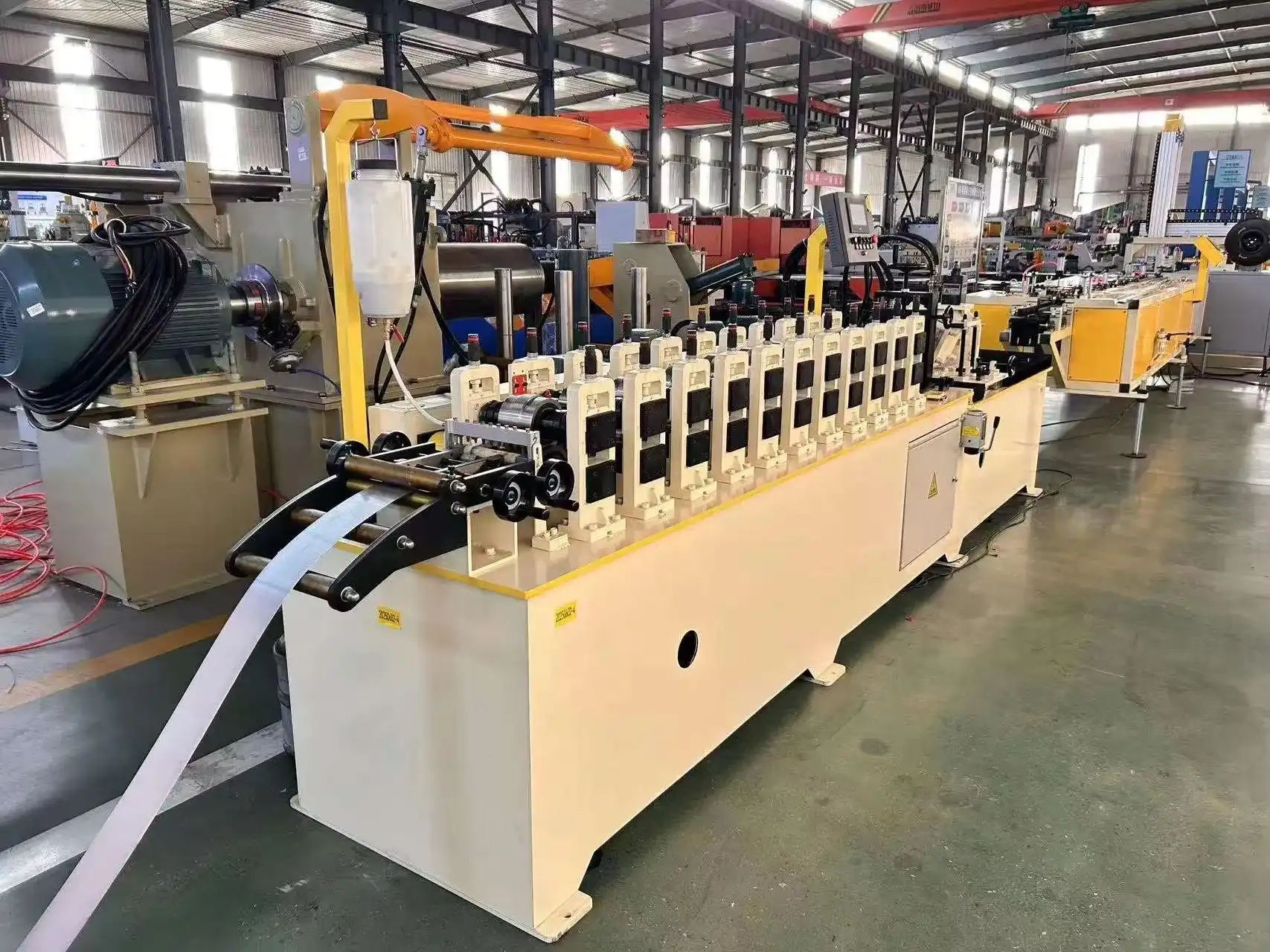

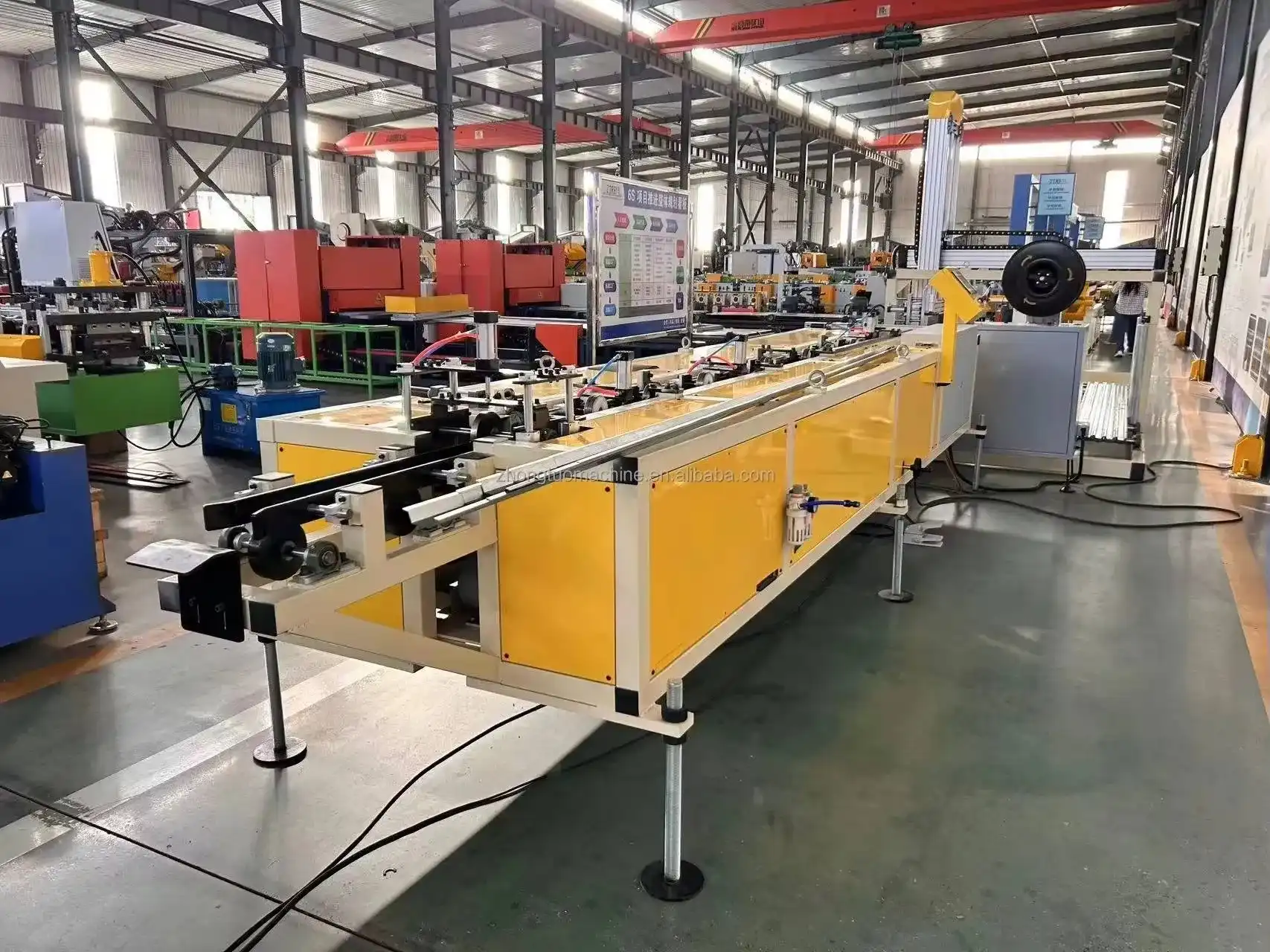

The Fundamental Design and Operational Process

Galvanized iron (GI) material with a width of 0.3 mm to 1.0 mm is fed through a number of carefully designed roller units to make up the main mechanism. Most modern machines have 14 roller stations, and each one has 50 mm strong rods and rollers made of 45# steel that have been hard chrome plated to make them last longer. This setup makes sure that the quality of the making is always the same and that the material doesn't stretch or bend too much.

The process starts with either hydraulic automatic decoilers or human decoiling systems, based on how much is being made. Next, the metal strip goes through a series of stages where it is shaped. At each point, a roller slowly bends the material into the hat shape. This orderly technique keeps the material from cracking and the dimensions accurate while it is being formed.

Key Applications Across Industries

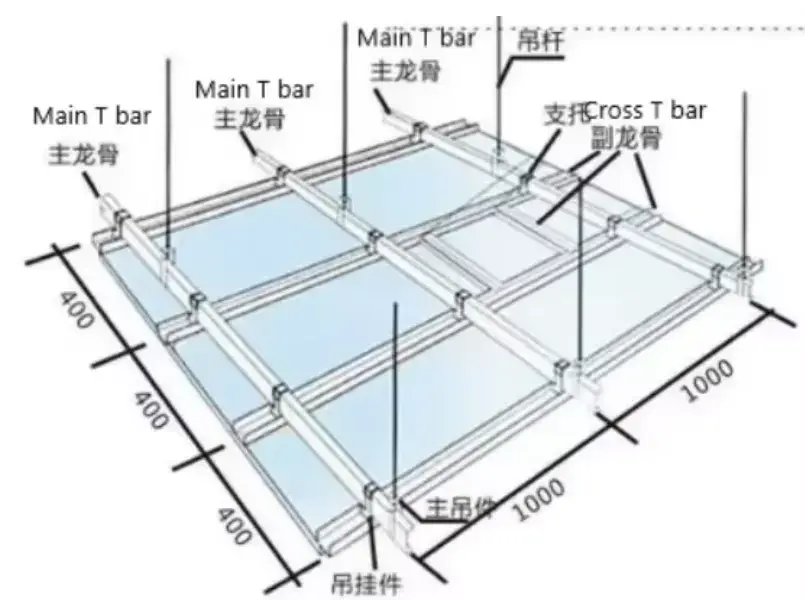

When it comes to building, hat channels are very important for supporting structures, roof systems, and wall frames. Profiles like these are used in the car business for structural and strengthening parts. Hat channel profiles are also used a lot in storage and shelf systems because they are strong for their weight and easy to put together.

The speed of the production process has a direct effect on the performance of the supply chain because it cuts down on waste and improves the regularity of output. Modern tools are very accurate, with margins of only 0.1 mm. This makes them compatible with automatic assembly processes and lowers the risk of quality problems later on.

Key Criteria for Choosing the Best Hat Channel Roll Forming Machine

To choose the best roll-making tools, you need to look at all of your output factors and operating goals, such as for a hat channel roll forming machine. Making smart choices about equipment that fits your supply chain goals starts with knowing your exact number needs, product complexity, and connection needs.

Production Capacity and Volume Assessment

The amount of production has a direct effect on the factors used to choose a machine. Automated systems with hydraulic decoilers and built-in cutting tools are better for high-volume makers. Smaller businesses, on the other hand, may value freedom and the ability to operate the system by hand. Industry standards for medium- to large-scale businesses call for machines that can make up to 100 pieces per hour.

Specifications for materials are very important when choosing tools. Processing GI with a thickness range of 0.3 mm to 1.0 mm meets a wide range of application needs while keeping quality. Think about what materials will be needed in the future to make sure that the equipment can be expanded and isn't thrown out too soon.

Technical Specifications and Automation Levels

The standard of how a machine is built has a big effect on its long-term performance and upkeep needs. Welded metal steel frames provide the structural support needed to keep the accuracy of the making process going for long periods of time. When compared to straight drive methods, gearbox transmissions are more durable and require less upkeep.

Both the quality of the making and the speed of production are affected by the number of roller units. Fourteen-station setups offer the best mix between precision forming and line length, meeting the needs of most hat channel profile standards while keeping a suitable overall size for facility integration.

Installation and Support Considerations

How well the new equipment works with the old system affects the total cost and time needed for implementation. When looking at different machine choices, you should think about the electricity needs, the base needs, and how the material handling will work with the machine. Logistics for transportation and the availability of installation help can have a big effect on project costs and plans.

Access to local expert help affects the ability to keep operations going and the effectiveness of upkeep. Manufacturers whose service networks and parts are well-known and easy to get make sure that there is little downtime during normal maintenance or fixes that come up out of the blue.

Comparing Different Types of Hat Channel Roll Forming Machines

Knowing the differences between the different ways a machine can be set up helps match the equipment's skills with the needs of the business and the budget. Depending on the amount of work that needs to be done and the cost of staff, manual and robotic methods have different benefits.

Manual vs. Automatic Systems

For smaller companies or businesses that don't have a lot of money to start with, manual decoiling devices are a cost-effective option. Although a user is needed to add and place the material, these systems are flexible enough to handle a range of coil sizes and materials. A lot of makers offer hand decoilers to go with their automatic systems, which gives you more options for how to run your business.

Automatic hydraulic decoiling systems raise output by reducing the need for human input and making sure that the material is fed consistently. These methods keep the right tension and placement of the material, which leads to better making quality and less waste. The technology also makes it possible to keep working even when shifts change, which cuts down on the need for workers.

Heavy-Duty vs. Standard Configurations

Heavy-duty tools are built to last and work well in hard production settings. They have stronger construction and better specs for their parts. For higher production rates and longer working cycles, these systems usually have shafts with a bigger diameter, better bearing systems, and better frame construction.

Standard setups offer dependable performance for average production rates while keeping costs low. These machines use tried-and-true part specs that are good enough for most industrial needs without adding the extra complexity or cost that comes with heavy-duty features.

Manufacturer Selection and Quality Benchmarks

Manufacturers who have been around for a while and have ISO9001, CE, and CAS certifications show that they are committed to quality standards and making great products. Companies that have delivered goods to more than 150 countries show that they are good at shipping and can work with customers in other countries.

OEM and ODM service choices give you the freedom to make changes that are needed for certain applications. Manufacturers who offer complete solutions that include raw materials, tools, and extras make it easier to buy things and make sure that all of the parts work together on the production line.

How to Ensure Long-Term Performance and Reduce Risks？

Maintaining consistent machine performance requires systematic maintenance approaches and adherence to established operational protocols. Preventive maintenance programs significantly extend the hat channel roll forming machine equipment lifespan while minimizing unexpected downtime and repair costs.

Preventive Maintenance and Operational Best Practices

Regular roller inspection and lubrication schedules prevent premature wear and maintain forming accuracy. The hard chrome-plated surface on 45# steel rollers provides excellent wear resistance, but proper maintenance ensures optimal performance throughout the service life. Monitoring roller alignment and adjustment mechanisms prevents material tracking issues and dimensional variations.

Gearbox maintenance involves regular oil changes and inspection of internal components according to manufacturer specifications. Proper lubrication extends component life and maintains smooth power transmission essential for consistent forming quality.

Safety Standards and Risk Mitigation

Compliance with established safety standards protects personnel and equipment while ensuring regulatory adherence. Emergency stop systems, safety guards, and proper lockout procedures prevent accidents during operation and maintenance activities.

Quality control systems, including dimensional monitoring and material tracking, help identify potential issues before they affect production quality. Regular calibration of cutting systems and forming dimensions maintains product consistency and customer satisfaction.

Warranty and Service Support

Comprehensive warranty coverage provides protection against manufacturing defects and component failures during initial operation periods. Understanding warranty terms and coverage limitations helps establish realistic expectations and budget planning for potential repairs.

Service support availability, including technical assistance and parts availability, affects operational continuity. Manufacturers with established service networks provide faster response times and reduced downtime during maintenance or repair activities.

Making the Final Decision: Matching Solutions to Your Supply Chain Needs

The final equipment selection process involves balancing multiple factors, including initial investment, operational costs, and long-term strategic objectives. Comprehensive evaluation of total cost of ownership provides accurate comparison between different equipment options and manufacturers.

Cost-Benefit Analysis and ROI Considerations

Initial equipment costs represent only one component of total ownership expenses. Operating costs, including energy consumption, maintenance requirements, and labor needs, significantly impact long-term profitability. Machines with higher initial costs often provide better value through reduced operating expenses and improved reliability.

Production efficiency improvements directly affect supply chain performance through reduced lead times and improved delivery consistency. Enhanced forming accuracy reduces material waste and downstream processing requirements, contributing to overall cost reduction and quality improvement.

Customization and Scalability Options

Equipment configurability enables adaptation to changing production requirements and market demands. Machines supporting multiple profile configurations provide flexibility for diversified product offerings without requiring additional capital investment.

Future expansion capabilities, including additional roller stations or automation upgrades, protect equipment investment and enable growth accommodation. Modular designs facilitate incremental improvements and capability enhancements as business requirements evolve.

Long-Term Partnership Considerations

Supplier relationships extending beyond initial equipment delivery provide ongoing value through technical support, parts availability, and potential future expansions. Manufacturers with proven track records and established customer bases demonstrate reliability and commitment to long-term customer success.

Customer testimonials and case studies provide insight into real-world performance and satisfaction levels with the hat channel roll forming machine. Companies serving diverse industries and applications indicate versatility and adaptability are essential for meeting evolving market requirements.

Conclusion

Selecting the optimal hat channel roll forming machine requires careful evaluation of production requirements, technical specifications, and long-term operational objectives. Key considerations include material compatibility, automation levels, manufacturer credibility, and support capabilities. The investment decision should balance initial costs with operational efficiency, reliability, and future scalability needs. Proper equipment selection enhances supply chain performance through improved productivity, consistent quality, and reduced operational risks, ultimately contributing to business growth and competitive advantage.

FAQ

1. What material thickness can hat channel roll forming machines handle?

Modern hat channel roll forming machines typically process galvanized iron (GI) materials with thickness ranging from 0.3 mm to 1.0 mm. This range accommodates most standard construction and industrial applications while maintaining optimal forming quality and dimensional accuracy.

2. How many roller stations are required for quality hat channel production?

Standard hat channel roll forming machines utilize 14 roller stations to achieve proper profile formation. This configuration provides adequate forming progression while maintaining reasonable machine length and ensuring consistent quality throughout the production process.

3. What maintenance requirements should be expected for roll forming equipment?

Regular maintenance includes roller lubrication, alignment checking, and gearbox oil changes according to manufacturer specifications. The hard chrome-plated rollers on 45# steel construction provide excellent durability but require periodic inspection to maintain optimal performance and forming accuracy.

4. How do automatic and manual decoiling systems compare?

Automatic hydraulic decoilers provide consistent material feeding and reduced labor requirements, ideal for high-volume production. Manual decoilers offer flexibility and lower initial investment, suitable for smaller operations or variable production requirements. Many manufacturers provide manual decoilers as complementary equipment with automatic systems.

Ready to Transform Your Production with ZTRFM Hat Channel Roll Forming Machines?

ZTRFM combines decade-long expertise with cutting-edge technology to deliver superior hat channel roll forming machine solutions for global manufacturers. Our ISO9001, CE, and CAS certified equipment serves over 150 countries with proven reliability and exceptional performance. Contact our technical team at coo@zhongtuocn.com to discuss your specific requirements and discover how our customized roll forming solutions can optimize your supply chain efficiency and productivity.
