Key components of a slitting machine: unwind, blade, rewind

Slitting machines play a crucial role in the metal processing industry, allowing manufacturers to efficiently cut large coils of metal into narrower strips. Understanding the key components of these machines is essential for anyone involved in metal fabrication or looking to invest in slitting equipment. In this comprehensive guide, we'll explore the main parts of a slitting machine, their functions, and how they work together to create precise, high-quality metal strips.

What are the main parts of a slitting machine and their functions?

A slitting machine consists of several interconnected components that work in harmony to transform wide metal coils into narrow strips, ensuring precision, efficiency, and consistent output. The three primary sections of a slitting line are the unwind station, the slitting section, and the rewind unit, each containing specialized sub-components that contribute to the overall functionality and performance of the machine.

• Unwind Station: The unwind station serves as the entry point for the metal coil and is responsible for feeding it smoothly into the slitting line. This section typically includes a decoiler or uncoiler, which holds the coil and allows controlled rotation, and tension control systems that prevent slack or excessive stretching of the metal during unwinding. Some machines also feature automatic coil loading mechanisms, which improve productivity and reduce manual labor. Proper functioning of the unwind station is critical because uneven feeding can result in misalignment, improper slitting, or damage to the metal.
• Slitting Section: The slitting section is the heart of the machine, where the wide coil is cut into narrower strips. This section generally comprises circular rotary knives, either mounted on arbors or shafts, which can be adjusted to achieve precise slit widths. The knives are often supported by bearings and equipped with quick-change features for efficiency. In addition, this section may include guiding rollers, edge trim removal systems, and inspection stations to maintain accuracy and product quality. Some advanced slitting lines incorporate computer-controlled positioning and tension adjustment systems to optimize cut quality and minimize waste.
• Rewind Unit: Once the metal has been slit, the rewind unit collects the narrow strips and winds them into new coils, ready for downstream processing or shipment. This section includes mandrels or shafts to hold the individual strips, a tensioning system to ensure uniform winding, and sometimes a flying knife or cutting device to separate individual coils automatically. Accurate winding is essential to prevent coil deformation, wrinkling, or overlapping, which could compromise product quality.

Unwind station, slitting blade section, and rewind unit explained

Unwind Station

The unwind station is where the slitting process begins. Its primary function is to hold and feed the master coil of metal into the slitting section. Key components of the unwind station include:

• Mandrel: An expandable shaft that holds the metal coil
• Brake system: Controls the tension of the metal as it unwinds
• Dancer role: Helps maintain consistent tension throughout the unwinding process
• Edge guides: Ensure the metal stays aligned as it enters the slitting section

The unwind station plays a crucial role in maintaining proper tension and alignment of the metal sheet, which directly impacts the quality of the slitting process.

Slitting Blade Section

The heart of the slitting machine is the slitting blade section, where the actual cutting of the metal takes place. This section consists of several key components:

• Slitting blades: Circular knives that cut the metal into strips
• Arbors: Shafts that hold the slitting blades in place
• Spacers: Used to set the desired width between blades
• Stripper rings: Prevent the cut strips from wrapping around the arbors
• Scrap choppers: Cut excess material into manageable pieces

The precision and quality of the slitting machine blades are paramount to achieving clean, accurate cuts. Regular maintenance and replacement of these blades are essential for optimal performance.

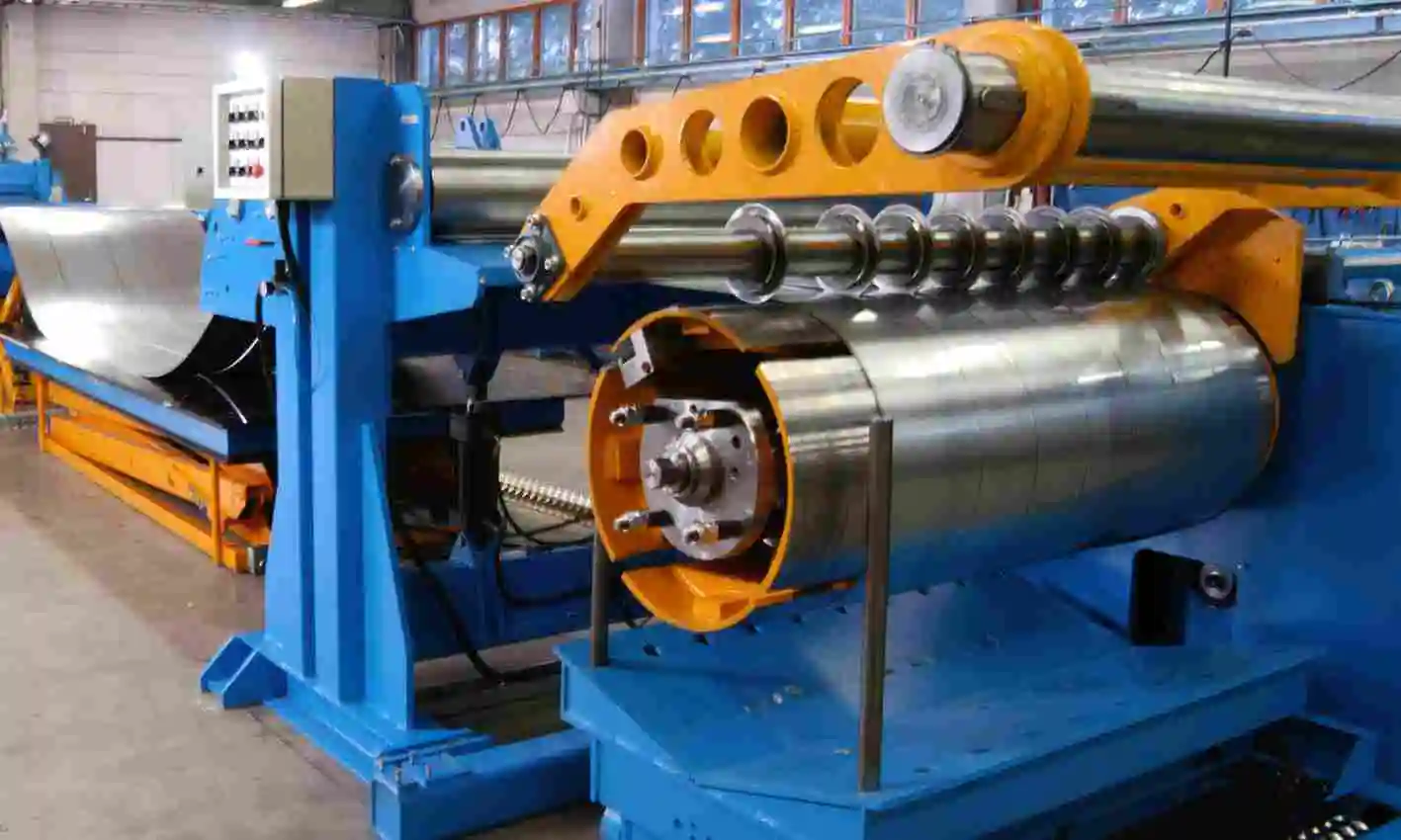

Rewind Unit

After the metal has been slit, the rewind unit takes over. This section is responsible for collecting the newly cut strips and winding them into separate coils. The main components of the rewind unit include:

• Rewind mandrels: Shafts onto which the slit strips are wound
• Tension control system: Ensures proper tightness of the rewound coils
• Separator arms: Keep individual strips separate during rewinding
• Traversing mechanism: Helps distribute the strips evenly across the mandrel

The rewind unit must operate in perfect synchronization with the unwind station and slitting section to maintain consistent tension and ensure high-quality output.

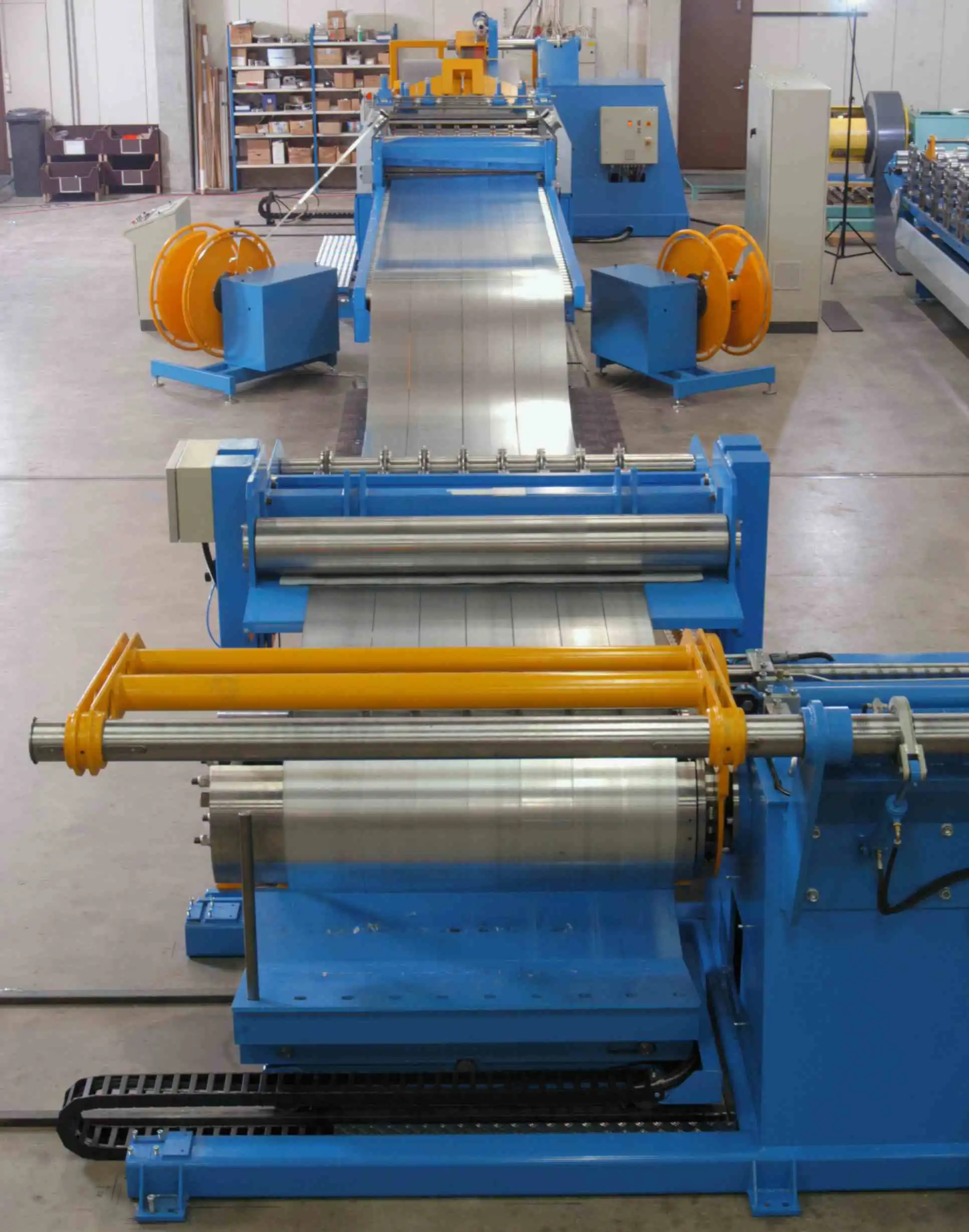

Major components of a slitting line and how they interact

While we've covered the three main sections of a slitting machine, there are additional components that contribute to the overall efficiency and precision of the slitting process. These include:

Leveler or Flattener

Located between the unwind station and slitting section, the leveler helps remove any coil set or waviness in the metal sheet. This ensures that the material entering the slitting section is flat and uniform, resulting in more accurate cuts.

Loop Control System

This system maintains a constant loop of material between the unwind station and the slitting section, allowing for continuous operation even when changing coils at the unwind station.

Slitting Head

The slitting head houses the arbors, blades, and related components. It's designed for quick and easy blade changes, minimizing downtime during production runs.

Scrap Winder

For certain slitting operations, a scrap winder is used to collect and wind any excess material or trim from the edges of the coil.

Control System

Modern slitting machines are equipped with sophisticated control systems that monitor and adjust various parameters such as speed, tension, and alignment throughout the slitting process. These systems often include touchscreen interfaces and can be integrated with broader factory management software.

Safety Features

Safety is paramount in slitting operations. Components such as emergency stop buttons, light curtains, and interlocked guards are essential for protecting operators and maintaining a safe working environment.

Interaction of Components

The seamless interaction between these components is crucial for the efficient operation of a slitting line. Here's a brief overview of how they work together:

• The unwind station feeds the metal coil into the leveler, which flattens the material.
• The flattened sheet enters the loop control system, ensuring a constant supply of material.
• The metal then passes through the slitting head, where it's cut into strips of the desired width.
• Any scrap or trim is directed to the scrap winder or chopper.
• The cut strips are guided to the rewind unit, where they're wound into separate coils.
• Throughout this process, the control system monitors and adjusts various parameters to maintain quality and efficiency.

Understanding how these components interact is crucial for optimizing the performance of a slitting machine and troubleshooting any issues that may arise during operation.

Conclusion

The unwind station, slitting blade section, and rewind unit form the core of a slitting machine manufacturer, working in concert to transform large metal coils into precise, narrow strips. By understanding these key components and their functions, manufacturers can make informed decisions about equipment selection, maintenance, and optimization.

As the metal processing industry continues to evolve, so too do slitting machines. Advances in automation, precision control, and materials science are driving improvements in slitting technology, enabling faster speeds, tighter tolerances, and greater versatility.

For businesses looking to enhance their metal processing capabilities, investing in a high-quality slitting machine can significantly boost productivity and product quality. Whether you're in the automotive, construction, or electronics industry, the right slitting equipment can give you a competitive edge in today's fast-paced manufacturing landscape.

Are you ready to take your metal processing capabilities to the next level? Look no further than Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. As a national-level high-tech enterprise with over a decade of export experience, we offer cutting-edge slitting machines and a wide range of roll forming equipment to meet your specific needs.

Our ISO 9001 certified quality management system, along with CE and CAS certifications, ensures that you receive equipment that meets the highest international standards. With successful exports to over 151 countries and regions worldwide, we have the expertise to provide tailored solutions for your unique requirements.

Don't settle for less when it comes to your metal processing equipment. Contact us today at coo@zhongtuocn.com to discuss how our advanced slitting machines can revolutionize your production line and give you a competitive edge in the global market.
