Precision Roll Forming for Trapezoidal Sheet Metal: Enhancing Quality and Efficiency

Precision roll forming for trapezoidal sheet roll forming machine trapezoidal sheet metal is a new way to work with metal that combines accuracy with high efficiency on an industrial scale. A machine called a trapezoidal sheet roll forming machine continuously turns flat metal strips of galvanized steel, pre-painted steel, or aluminum into structurally strengthened panels with the unique trapezoid shape. These tools make sure that the dimensions are always the same for roofing, wall covering, and building projects by gradually bending the material over several roller stations. This technology solves long-standing problems in manufacturing by getting rid of shape inconsistencies that happen when working by hand, speeding up production to meet tight project deadlines, and making structures more rigid so that building projects can use wider purlin spacing.

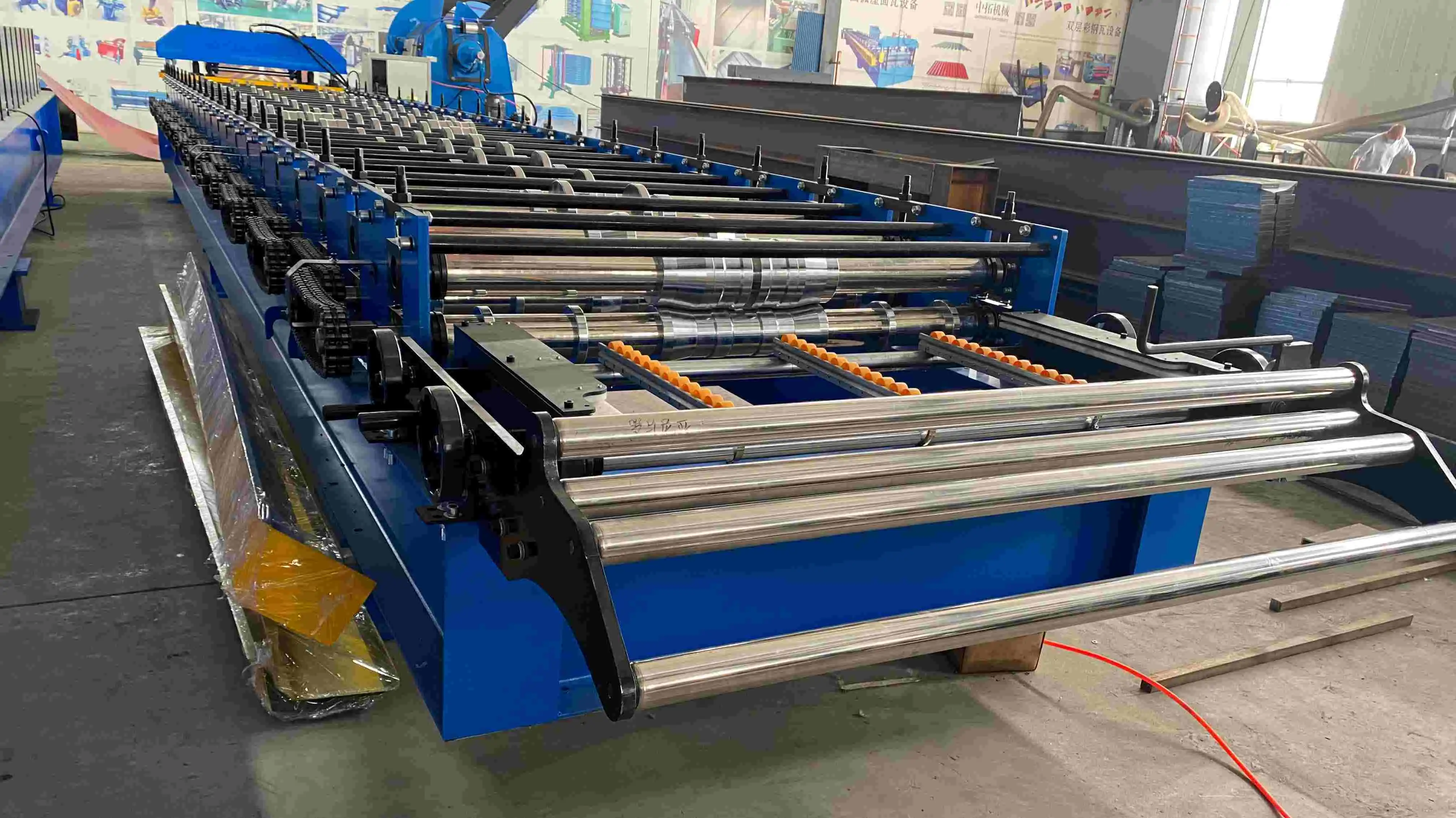

Understanding the Precision Roll Forming Process for Trapezoidal Sheets

Core Components and Their Functions

The structure of a high-performance roll forming system shows that it is made up of three main parts that work together. The feeding system uses pneumatic pinch rollers and customizable guide bars to keep the material in the same place as the coils unwind. At the same time, the forming stations—which usually have 18 to 26 progressive roller pairs—make small turns in the flat stock to get it to the right trapezoid shape without reducing its thickness. The cutting system uses CR12MoV blades that are driven by hydraulics and have edges that are free of burrs within ±1mm tolerance. This is important for proper placement in the field and weather sealing. The material goes through decoiling stands with electromagnetic brakes before entering the machine at a controlled tension level. As the strip moves forward, 45# steel wheels that have been precisely cut are hard chrome-plated to protect the surface from wear and keep the accuracy of the profile. Each pair of rollers moves at the same time, which keeps the material from buckling or stretching, which would change the end size. The PLC programs the length factors that tell the hydraulic cutting system what to do. This makes sure that the cuts are always accurate, even after thousands of them.

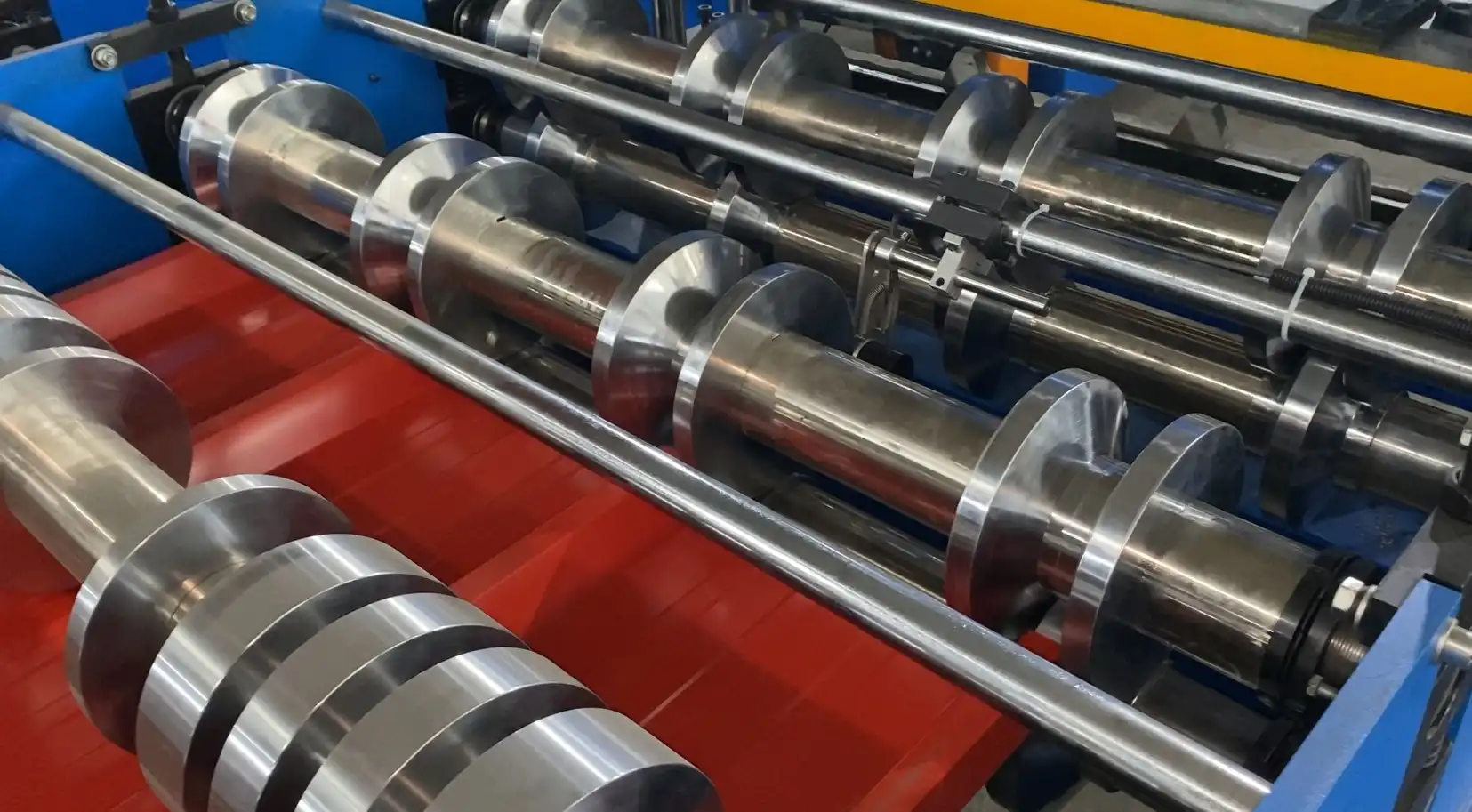

The Cold Forming Transformation Process

Cold roll forming is very different from pressing and brake forming in how it works. Instead of adding force at one point, this constant process spreads stress evenly across successive stages. This makes the material stronger while protecting the coating on surfaces that have already been painted. For a common IBR (Inverted Box Rib) shape, the metal strip goes through stages that make the bottom pan, set up the top flanges, make vertical ribs at exact angles, and finish the edge profiles. It does all of this while going at speeds of up to 60 meters per minute. Keeping track of the temperature is very important during high-speed activities. Too much friction creates heat that can harm PPGI coatings, so the right lubricant systems and roller surface treatments are needed. Modern machines have sensors that check the temperature in real time and change the line speed automatically if they find any problems. Professional-grade equipment pays attention to temperature dynamics, a trapezoidal sheet roll forming machine, which sets it apart from cheaper options that skimp on quality at first.

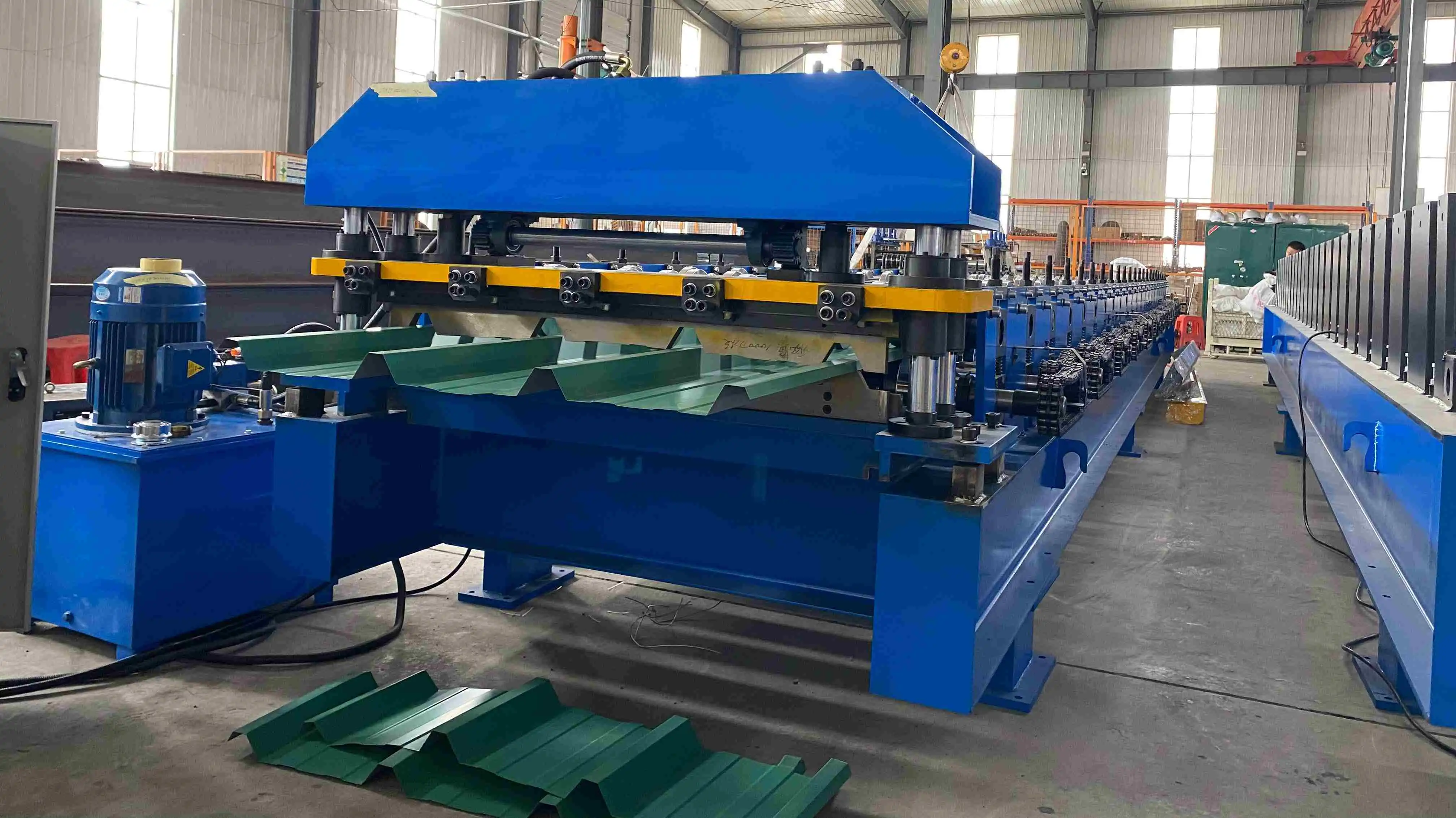

Key Features and Maintenance Tips for Optimal Machine Performance

Technical Attributes of High-Performance Systems

Levels of automation have a big effect on how flexible operations can be and how much work is needed. Fully automatic machines have servo-driven systems that measure length, hydraulic cutting systems that don't need any help from a person, and automated stacking systems that put finished panels in order by batch. Semi-automatic versions need a person to start the cut and move the material, but the quality of the forming stays the same. The decision relies on the amount of work that needs to be done. Facilities that make more than 200,000 square feet of goods every month should invest in full automation, while seasonal manufacturers can save money by using semi-automatic configurations. Different things happen when you use hydraulic or mechanical control methods. When cutting with hydraulics, the force stays the same no matter how hard the material is, and the gauge can change from 0.3 mm to 1.0 mm without having to adjust the blade. Although mechanical systems are easier to build, they need to be calibrated on a regular basis because their parts wear out. Modern hydraulic stations have proportional valves that change the pressure on the fly. This makes the blade last longer by lowering the shock loads when the cut starts.

Preventive Maintenance Protocols

Systematic inspection routines keep production plans from being thrown off by unplanned breaks. Checking the position of the rollers every day with gear indicators and making sure that run-out stays within 0.02mm tolerances is important. Misalignment causes surface marks to appear over time and speeds up bearing wear, both of which get worse quickly when the machine is running all the time. Different parts need different amounts of lubrication at different times. For example, chain drives need oil every day, while protected bearings only need grease every three months. Operators should keep logs of when they oiled things, because not doing regular maintenance can void many manufacturer warranties. The state of a roller surface needs to be checked every month. Even small scratches or rust spots can damage the coating on already-finished materials, which can lead to complaints from customers and warranty claims. Roller reconditioning should be done every six months in places that work with rough materials like Galvalume. This means that surfaces are re-chromed to get them back to their original smoothness. This preventive method costs around $3,000 to $5,000 per machine but saves the $40,000 or more needed to replace all the rollers.

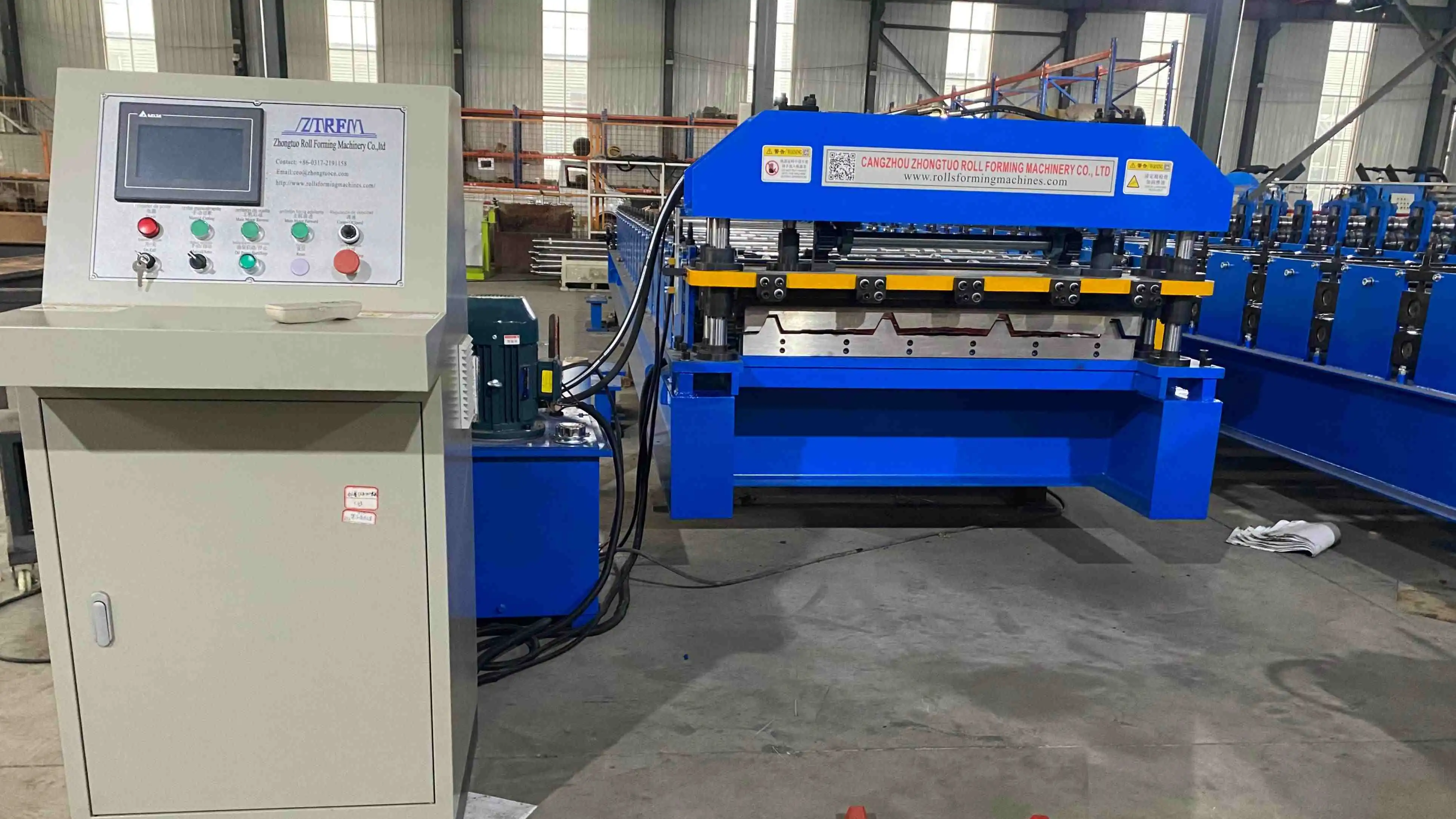

Comparing Roll Forming Equipment: Making the Right Choice

Profile-Specific Applications and Output Quality

When it comes to structure and style, trapezoidal and corrugated profiles are used for different things. The flat pans between the slanted ribs in trapezoidal panels give them a higher section stiffness for load-bearing uses. This shape makes it possible to span more than 6 feet between supports, which means that factory and farm buildings don't need as many purlins. With their sinusoidal wave pattern, corrugated profiles are flexible and easy to build, making them perfect for uses that need curved surfaces or a lot of panel overlaps. Metrics for output quality go beyond how something looks. Structural panels need exact rib angles—differences of just 2 degrees can mess up the load estimates that engineers use to get building permits. Protocols for testing should make sure that panels can withstand certain wind lifting forces without deforming. Manufacturers with a good reputation give third-party test certifications that show they meet ASTM E1592 standards for structural performance. This is important paperwork for EPC companies working on controlled trapezoidal sheet roll forming machine projects. The grade of the surface finish is especially important for building uses.

Operational Modes and Economic Considerations

Specialty fabricators who make unique flashings and trim pieces can use manual work for low-volume jobs. Cut length is controlled by foot pedals, which let operators quickly switch between measurements without having to wait for the setting to finish. This adaptability makes it possible to build projects that need a lot of different pieces. Manual settings, on the other hand, can only make about 15 to 20 meters per minute and allow for mistakes in length uniformity. Semi-automatic configurations find a good mix between capital investment and output. Touchscreen interfaces on PLC controls let you enter lengths. The controllers then automatically index the material and start hydraulic cuts at set times. One person can manage production at 35 to 45 meters per minute while operators focus on adding materials and moving final panels. This business model works for regional metal building providers that serve customers within a 200-mile radius and need production freedom more than maximum throughput demands. Fully automatic systems use robotic stacking, which reduces the need for workers to perform managerial jobs while maintaining a steady output of 50 to 60 meters per minute. Panel counters and group dividers that are automated plan production by customer order, which cuts down on mistakes made while shipping. Full automation usually adds 35–40% to the base cost of the machine, but for businesses that run two shifts a day, the extra cost is worth it within 18–24 months.

Procurement Guide for Global B2B Clients

Supplier Credibility Verification

The first part of due diligence is evaluating the production site. Well-known companies have quality control teams that use coordinate measuring machines (CMM) to make sure that the roller dimensions match the engineering plans to within a few microns. Video views of factories show how they make things and how they make sure they use quality systems. Companies that don't want to be open about their manufacturing skills raise questions about whether they are really selling companies. Testimonials from satisfied customers are more convincing than marketing materials. Asking for the contact information of three recent buyers in related industries lets you have open conversations about how well the equipment works, how quickly support responds, and any hidden costs. Questions should be asked about how accurate the shipping timelines are, how good the commissioning help is, and how easy it is to get parts. Delivery delays or poor technical help are signs of organizational weaknesses that new buyers are likely to notice. Third-party inspection services give investors more peace of mind when they are making big purchases. Companies like SGS and Bureau Veritas do pre-shipment checks to make sure that the equipment meets specs, test it to see how it works, and create thorough photographic records that show the quality of the build. This $1,500 to $2,500 investment guards against getting equipment that doesn't match approved models or has parts that have been switched out, which could affect how well it works.

Logistics and Installation Considerations

Lead times for custom-configured machines are usually between 60 and 90 days from the time the deposit is paid. This includes finalizing the planning, getting the parts, putting the machine together, and testing it in the plant. Buyers should make sure that the wait times they are given are for when production is finished or when the ship leaves the port, since shipping takes an extra 4 to 6 weeks for trans-Pacific paths. There are usually 15-20% extra costs for expedited production, so planning ahead is very important for projects with set start dates. Shipping procedures are more than just the cost of the freight. Specialized rigging is needed to unload and place equipment that weighs between 8,000 and 12,000 pounds inside buildings. Buyers should make sure that the ceiling heights are high enough to fit machine frames that are usually 6-7 feet tall and that the floor can hold heavy loads. In older buildings, reinforcements may be needed. The electrical system must be able to handle three-phase power, and only trained electricians should make the final connections to keep the warranty from getting messed up. Installation support includes everything from phone help to having factory workers come to your site and set up your equipment.

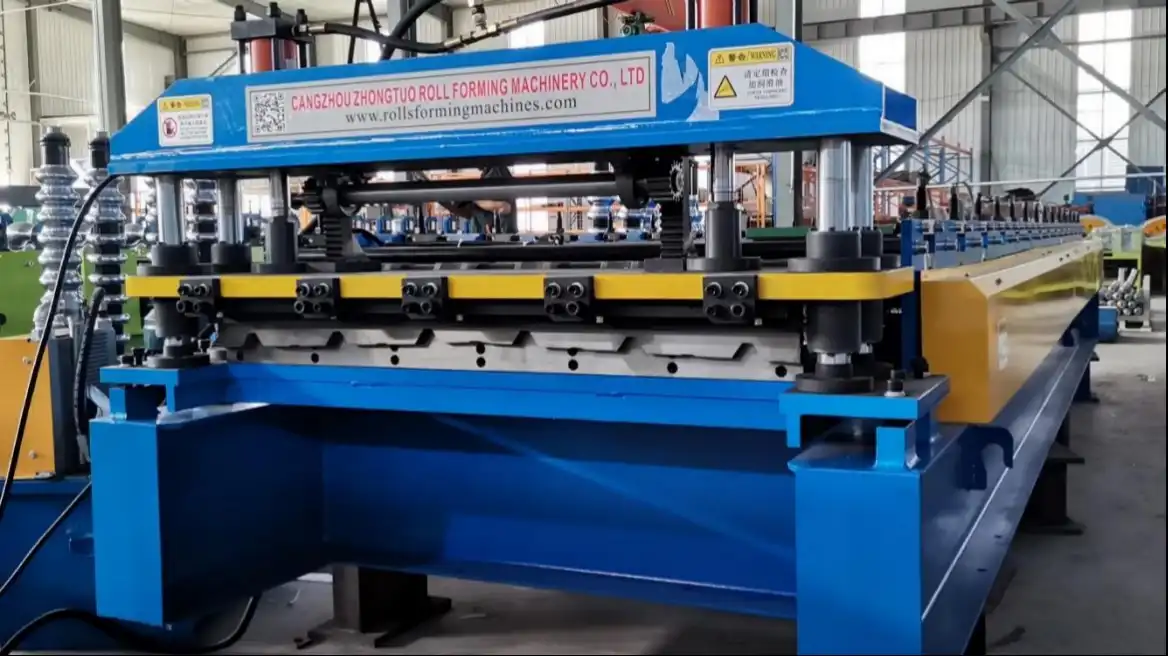

Enhancing Manufacturing Efficiency Through Precision Roll Forming

Identifying and Eliminating Production Bottlenecks

Finding and getting rid of production bottlenecks begins with a trapezoidal sheet roll forming machine, addressing material handling problems and delays during changeovers. Using pre-staging systems, where coils wait to be loaded next to stands for decoiling, cuts down on the time between runs. Color-coded coil labeling makes it easier to choose the right material and stops mistakes that require changeovers in the middle of a run. Quick-change cassette roller systems help facilities that work with a lot of different profiles because they cut the time it takes to switch between profiles from 4 hours to less than 45 minutes. Handling materials is another problem that comes up in high-volume processes. When you build panels by hand, the machine can only go as fast as one person can run it, which is usually 25 to 30 meters per minute. This problem is solved by automated stacking systems with servo-controlled building devices, which let machines work at their full 60-meter-per-minute speed. Automated stackers add $15–25k to the cost of the system, but they quickly pay for themselves by increasing the amount of work that can be done each day and reducing the need for workers. Adding quality control during production stops problems from happening later. Every 10 meters, inline measurement systems with laser scanners check the panel width and rib height. This lets workers know if there is any drift before they make a lot of material that doesn't meet the standards. This real-time feedback process lowers the rate of scrap from the usual 3–5% to below 1%. Over the course of a year's production, these savings add up to a lot.

Lean Manufacturing and Continuous Improvement Implementation

Value stream mapping shows where waste is hidden in roll forming processes. By looking at the flow of materials from getting coils to sending finished panels, you can find activities that don't add value but use up time and resources. A lot of the time, people find that things are moving too quickly between storage and production, that quality checks are being done twice, and that batch processing is causing inventory gaps. Cycle times are cut by 20–30% with targeted changes like pull-based ordering and optimizing the layout of the production line. Standard work paperwork makes sure that the quality is the same no matter how experienced the person is. New operators can become proficient in just a few days thanks to detailed instructions that include setup steps, quality checks, and troubleshooting methods. Visual management boards that show real-time production data compared to daily goals make people more accountable and quickly show managers what's not going right so they can fix it. Kaizen events with machine operators, repair techs, and production managers lead to real-world changes that come from experience on the job. Focused improvement projects that target specific problems, like cutting down on the time it takes to change blades or getting rid of mistakes in tracking materials, show real results within weeks. Companies that have a mindset of continuous growth usually see their productivity go up by 15 to 20 percent every year through small improvements that add up over time.

Conclusion

In conclusion, metal building component manufacturers can get measurable economic benefits from precision roll forming technology as the market gets tougher. Modern equipment solves important practical problems, like making sure that installations are done correctly in the field and that production speeds are fast enough to meet tight project deadlines. Instead of just looking at the original buy price, strategic equipment selection involves figuring out how well the capabilities match up with production needs, the infrastructure for supplier support, and the total costs over the equipment's entire life. Companies that use thorough repair plans and ongoing improvement methods get the most out of their equipment purchases and set themselves up for long-term success in the building materials industry, which is always changing.

FAQ

1. How does material thickness variation affect roll forming quality?

Consistency in material thickness has a direct effect on the correctness of profiles and the wear patterns on equipment. If there are changes bigger than ±0.05mm within a single coil, they cause unequal springback, which makes it so that panels don't nest properly when they're being installed. High-quality machines have automatic gap control systems that take into account differences in thickness and keep the forming pressure the same across the width of the material. When buying tools, buyers should be clear about the tolerances they need. Standard machines can handle differences of up to 0.1 mm, while precise models can handle smaller tolerances by using servo-controlled roller positioning. Processing materials that aren't within certain thickness ranges speeds up roller wear and could void the warranty on the equipment.

2. What differentiates professional-grade from economy machines?

Precision-machined parts made to micron-level standards are used in professional equipment to make sure that it works the same way over millions of production runs. Induction hardening, not just surface processes, is used on roller wheels to stop them from deflection under load, which causes profile differences. Instead of simple on-off solenoids found in cheaper versions, hydraulic systems have proportional valves that let you finetune the pressure. The quality of the build stretches to the structural frames. Professional machines have heavy-gauge welded steel frames that stay in place even when they are vibrating continuously, while cheaper models may have bolted frames that can come loose. These differences can be seen in the service rates of production: professional equipment is available 95% of the time or more, while cheap options are only 75 to 85% of the time.

3. Can one machine produce multiple trapezoidal profiles?

How versatile a profile is depends on how similar the designs are and how the rollers are set up. Through adjustable roller placement, machines can handle differences in profiles within the same family, such as different rib spacing, while keeping the same rib height. But making completely different profiles with different pan widths or rib heights needs a full roller changeover, which for experienced techs usually takes 3–4 hours. Some companies make quick-change cassette systems that put full roller sets on frames that can be taken off and put back on. This makes switching faster, taking less than an hour. If a buyer is making a lot of different profiles, they should think about whether they would be better off with one flexible machine or separate machines for each profile.

4. How do coastal environments affect equipment selection?

Salty air speeds up rust on machine parts that are exposed to it, especially electrical cabinets and hydraulic systems. Instead of powder coating, marine-grade paint finishes and hydraulic pistons made of stainless steel work better for installs near the coast. Electrical parts should have at least an IP65 grade for ingress protection, which keeps salt from getting into control screens and motor housings. Regular cleaning plans that get rid of salt buildup greatly extend the life of equipment. Facilities within one mile of beaches should use light detergent solutions to wash their equipment once a week. Choosing the right materials is also important. For example, when making panels for seaside buildings, processing Galvalume or aluminum gives them better corrosion protection than normal galvanized steel.

Partner with ZTRFM for Superior Roll Forming Solutions

With precision-engineered trapezoidal sheet roll forming tools, trapezoidal sheet roll forming machine, and a decade of manufacturing success behind them, ZTRFM is ready to change the way you work with metal. Since our start in 2014, we've provided customized roll forming solutions to makers in more than 150 countries, making us a nationally recognized high-tech company that values quality and innovation. Our ISO9001, CE, and CAS certifications show that we always follow international standards. We also offer full OEM and ODM services to make sure that the specs of your tools perfectly match the needs of production. Whether you're a company that makes building roofing systems and needs fast equipment or an EPC company that needs solutions that can be used anywhere in the world, our engineering team can help you from the beginning of the project's specifications all the way through installation, testing, and ongoing technical support. Get in touch with our experts at zhongtuorollforming@gmail.com right away to talk about your specific needs and find out why top manufacturers choose ZTRFM as their reliable roll forming machine source for long-term partnerships based on performance, responsive global support, and confidence.

References

1. American Iron and Steel Institute. (2023). Cold-Formed Steel Design Manual: Specification for the Design of Cold-Formed Steel Structural Members. Washington, DC: AISI Committee on Specifications.

2. Halmos, G.T. (2021). Roll Forming Handbook: Manufacturing Engineering and Materials Processing. Boca Raton: CRC Press.

3. Metal Construction Association. (2022). Technical Guidelines for Metal Roof and Wall Panel Systems. Glenview, IL: MCA Publication Series.

4. Bhattacharyya, D., Smith, P.D., Yee, C.H., & Collins, I.F. (2020). "The Prediction of Deformation Length in Cold Roll Forming." Journal of Materials Processing Technology, 153-154, 266-271.

5. Lindgren, M. (2019). Experimental and Computational Investigation of Cold Roll Forming: Process Modeling and Optimization Strategies. Stockholm: KTH Royal Institute of Technology Press.

6. Society of Manufacturing Engineers. (2023). Fundamentals of Tool Design: Cold Forming and Roll Forming Technologies. Dearborn: SME Technical Publications.
