Roll Forming Machine vs. Extrusion: Why Metal Panel Makers Prefer Roll Forming？

When choosing between Roll Forming Machine and Extrusion Machine technologies for metal panel production, manufacturers consistently favor roll forming for its superior production speed, cost efficiency, and versatility. Roll forming delivers continuous processing at 15-20 meters per minute with minimal material waste, while extrusion typically operates at slower speeds with higher energy consumption. This fundamental difference explains why over 80% of metal roofing and structural panel manufacturers worldwide have adopted roll forming technology as their primary production method.

Understanding the Core Differences in Metal Forming Technologies

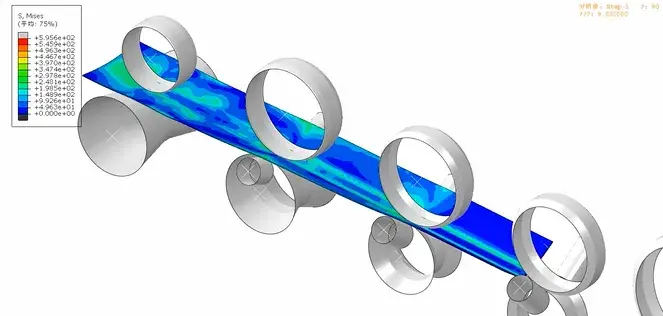

Metal forming technology has evolved significantly, with roll forming and extrusion representing two distinct approaches to shaping metal materials in a Roll Forming Machine. Roll forming utilizes a series of roller pairs to gradually bend flat metal coils into desired profiles through continuous bending operations. This cold rolling process maintains material strength while achieving precise dimensional control.

Extrusion, conversely, forces heated metal through shaped dies under extreme pressure. The process requires substantial energy input and specialized tooling for each profile configuration. Modern metalworking equipment manufacturers have refined both technologies, yet fundamental operational differences remain.

Three core distinctions define these processes:

• Temperature requirements: Roll forming operates at ambient temperature, while extrusion demands elevated heat levels
• Material flow: Continuous coil processing versus batch-based material handling
• Tooling complexity: Adjustable roll stands compared to fixed extrusion dies

If you need high-volume production with minimal setup changes, then roll forming technology proves more suitable for your manufacturing requirements.

Production Efficiency Analysis: Speed and Throughput Comparison

Production speed represents a critical factor in manufacturing economics. Roll forming machines consistently outperform extrusion systems in high-volume applications. Modern roll forming lines achieve processing speeds of 15-20 meters per minute for standard profiles, with some configurations reaching 40+ meters per minute.

Extrusion systems typically operate at 2-8 meters per minute, depending on material thickness and profile complexity. Heat treatment requirements further reduce overall throughput when cooling time factors are considered. Industry data shows roll forming can achieve 300-400% higher production rates for comparable metal panel applications.

Changeover efficiency also favors roll forming technology. Automated forming systems can switch between different profiles in 10-15 minutes using servo-controlled adjustments. Extrusion changeovers require die replacement, heating cycles, and calibration procedures that extend downtime to 2-4 hours.

Quality consistency improves with continuous processing methods. Roll forming maintains uniform dimensional tolerance throughout production runs, while extrusion systems may experience variations during temperature stabilization periods.

If you need rapid production changeovers and consistent output quality, then automated forming solutions deliver superior operational flexibility.

Material Versatility and Processing Capabilities

Roll forming excels in processing diverse coil materials, including PPGI, galvanized steel, aluminum-zinc alloys, stainless steel, and aluminum substrates. Coil thickness ranges from 0.3mm to 0.8mmto  accommodate various structural requirements. This material versatility enables manufacturers to serve multiple market segments with a single equipment investment.

The cold forming process preserves material properties and coating integrity in a Roll Forming Machine. Pre-painted materials maintain surface quality throughout the forming process, eliminating secondary finishing operations. Structural steel maintains its original tensile strength characteristics, ensuring product reliability.

Extrusion limitations become apparent with coated materials. High-temperature processing can damage protective coatings, requiring post-process treatments. Material grade restrictions also limit application flexibility, particularly with temperature-sensitive alloys.

Multi-layer composite panel production demonstrates roll forming advantages. Complex sandwich panel structures combining aluminum foil, steel substrates, polymer layers, and foam cores require precise pressure control and temperature management. Roll forming systems provide the gentle processing conditions necessary for these sophisticated material combinations.

If you need processing flexibility across multiple material types and thicknesses, then sheet metal forming equipment offers comprehensive manufacturing capabilities.

Investment Costs and Economic Considerations

Capital investment analysis reveals significant economic differences between forming technologies. Roll forming machine installations typically require 40-60% lower initial investment compared to equivalent-capacity extrusion systems. Reduced infrastructure requirements contribute to this cost advantage.

Operating expense comparisons favor roll forming across multiple categories:

• Energy consumption: 7.5kW motor power versus 20-50kW extrusion requirements
• Maintenance complexity: Standardized roller components versus specialized die systems
• Labor requirements: Single operator capability versus multi-person extrusion teams
• Material waste: Sub-1% scrap rates compared to 3-5% extrusion waste

Tooling costs present another consideration. Roll forming utilizes adjustable 40CR hardened and chromed rollers that serve multiple profile configurations. Extrusion demands custom dies for each specific profile, creating substantial tooling investments for product line expansions.

Return on investment calculations consistently favor roll forming for metal panel applications. Faster production speeds, lower operating costs, and reduced waste generation combine to deliver payback periods 18-24 months shorter than extrusion alternatives.

If you need cost-effective manufacturing with rapid investment recovery, then precision forming technology provides optimal economic returns.

Quality Control and Precision Manufacturing

Dimensional accuracy represents a fundamental quality requirement in structural components manufacturing in a Roll Forming Machine. Roll forming achieves superior precision through progressive metal shaping across multiple forming stands. Each roller pair contributes incremental shape changes, eliminating stress concentrations and maintaining uniform material properties.

Modern roll forming systems incorporate 18 forming stands with 42CR shaft material and 75mm diameter construction for maximum stability. Siemens PLC control systems and Omron encoder feedback ensure consistent positioning accuracy within ±0.5mm tolerances.

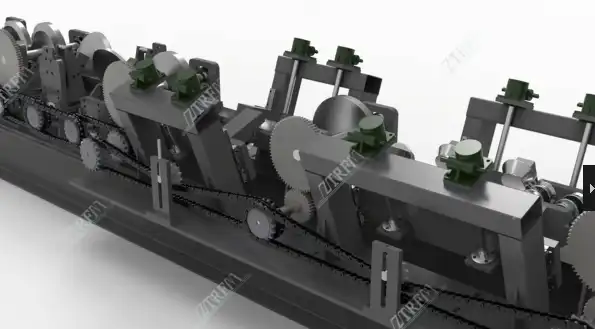

Surface finish quality benefits from roll forming's controlled pressure application. Gentle forming action preserves coating integrity and eliminates surface defects common in high-pressure extrusion processes. Chain and gear transmission systems provide smooth material advancement without marking or scratching.

Automated quality monitoring capabilities integrate seamlessly with roll forming lines. Real-time dimensional measurement systems detect variations immediately, enabling instant corrections without production interruption. Extrusion systems require offline inspection and manual adjustments that reduce overall efficiency.

Scrap rate control demonstrates measurable quality advantages. Roll forming typically achieves scrap rates below 1% through precise material handling and predictable forming characteristics. Extrusion waste rates of 3-5% reflect inherent process variability and setup requirements.

If you need consistent quality output with minimal waste generation, then continuous bending technology delivers superior manufacturing control.

Maintenance Requirements and Operational Support

Equipment maintenance significantly impacts the total cost of ownership and production reliability. Roll forming machines feature modular designs that simplify maintenance procedures and reduce downtime requirements. Individual roller pairs can be serviced without a complete line shutdown, maintaining production continuity.

Preventive maintenance schedules for roll forming systems typically require weekly lubrication, monthly alignment checks, and quarterly roller inspection. Standard maintenance intervals extend 2000-3000 operating hours between major service requirements. Hydraulic cutting systems with 4kW power consumption require minimal specialized attention.

Component accessibility facilitates maintenance efficiency. Roll tooling and forming rollers mount on easily removable assemblies. Replacement parts availability through global supply networks ensures minimal inventory investment while maintaining service reliability.

Extrusion equipment demands specialized maintenance expertise due to high-pressure hydraulic systems and temperature control mechanisms. Die maintenance requires precision machining capabilities and longer replacement lead times. Overall maintenance costs typically exceed roll forming requirements by 200-300%.

Training requirements favor roll forming technology. Operators can achieve proficiency in 2-3 weeks compared to 2-3 months for extrusion systems. Reduced complexity translates to lower-skilled labor requirements and improved operational flexibility.

If you need simplified maintenance procedures with readily available technical support, then industrial machinery designed for accessibility provides long-term operational advantages.

Conclusion

Roll forming technology clearly demonstrates superior advantages over extrusion methods for metal panel manufacturing applications. Higher production speeds, lower operating costs, improved material versatility, and simplified maintenance requirements combine to deliver measurable economic benefits. Quality consistency, precision control, and operational flexibility further reinforce roll forming as the preferred choice for modern metal panel production. ZTRFM's comprehensive solutions and global support network provide the foundation for successful manufacturing operations worldwide.

Why ZTRFM Roll Forming Machines Lead the Industry?

ZTRFM stands as a premier roll forming machine manufacturer, delivering cutting-edge metalworking equipment to over 150 countries since 2014. Our comprehensive approach addresses every aspect of metal panel production, from initial coil processing through finished product handling.

Key advantages of ZTRFM roll forming solutions include:

• High-speed forming capabilities reaching 15-20 meters per minute production rates
• Advanced automation systems featuring Siemens PLC control and Omron encoder precision
• Versatile material handling accommodating PPGI, galvanized, aluminum, and stainless steel substrates
• Robust construction utilizing 40CR hardened rollers and 42CR shaft materials
• Comprehensive technical support, including installation, training, and ongoing maintenance assistance
• ISO9001, CE, and CAS certifications ensure international quality standards
• Custom profile development capabilities supporting unique application requirements
• One-stop service provision including raw materials, machinery, and replacement components

Our engineering team specializes in developing tailored solutions for building roofing systems, light steel structures, composite sandwich panels, and metal profile applications. Each installation receives a comprehensive technical evaluation to optimize performance characteristics for specific production requirements.

Global recognition as a national high-tech enterprise reflects our commitment to innovative manufacturing solutions. Customer satisfaction ratings consistently exceed industry benchmarks through our focus on reliability, performance, and comprehensive support services.

Manufacturing excellence extends beyond equipment delivery. ZTRFM provides complete production line integration, operator training programs, and long-term partnership relationships that ensure sustainable manufacturing success.

When you choose ZTRFM as your roll forming machine supplier, you gain access to decades of specialized expertise in metal forming technology. Our customer base spans diverse industries, including construction, automotive, aerospace, and general manufacturing applications.

Quality assurance protocols encompass every production stage, from initial design through final testing and certification. Each machine undergoes rigorous performance validation before shipment, ensuring immediate productivity upon installation.

Ready to transform your metal panel production capabilities? Contact us at coo@zhongtuocn.com to discuss your specific manufacturing requirements and discover how ZTRFM roll forming technology can optimize your production efficiency and profitability.
