Troubleshooting Common Issues in Industrial Steel Sheet Press Machines

Industrial steel sheet press machines are the most important tools for working with metal today. They take raw materials and shape them into precise parts that are used in building, automobile, and infrastructure projects all over the world. The steel sheet making machine has changed over time from simple mechanical presses to complicated computerized systems that can do very precise forming operations. It's possible for these important production tools to break down, which can throw off whole production plans, cost more, and make the goods less good. To keep production working at its best and costly downtime to a minimum, troubleshooting methods that actually work must be used. Experts in the buying field, industrial engineers, and plant managers need to know both how these tools work technically and how to quickly find and fix problems with them. In today's tough business world, being able to spot problems early, fix them quickly, and stop mistakes from happening again has a direct effect on profits and standing in the competitive market.

Understanding Common Problems in Steel Sheet Press Machines

There are a few common problems that modern roll making equipment has to deal with that can really slow down production. When there are problems with moving things around, the steel bars don't always move easily through the making stations. This is called uneven feeds. This problem usually happens because the decoiler mechanisms aren't lined up right, the tension control isn't good enough, or the guide parts are worn out, which makes the material run less evenly.

Hydraulic System Malfunctions

Another big worry is that the hydraulics could break down, which would make the cuts less accurate and the machine work less well overall. Cutting processes are less exact when hydraulic pressure is lower than it should be. This leads to changes in sizes that are too big to be acceptable. The hydraulic shear method in high-tech tools is meant to keep the accuracy of the cuts to within ±2 mm. For it to always work, it needs to be under steady pressure and have the right amount of liquids in it.

When the temperature of hydraulic fluid changes, it can get thicker or thinner, which can change how well the system works. Every so often checking the pressure, the filters, and the quality of the hydraulic fluid can help find problems before they get worse and cause major breakdowns. Metallic particles in dirty hydraulic fluid make parts wear out faster and make the system work less well.

Electrical Control System Issues

Problems with the control system can stop automatic processes and make output less consistent. Even though Delta PLC systems with tablet screens make it easier for operators to work with them, they can still have problems with programming, sensors, and communication between system parts. Stations that make things might not work right when control messages aren't stable. This could damage tools and make things that aren't right.

It is possible for electric waves, high temperatures, and water getting into electronic parts to change the way they work. Installing power breakers properly, adjusting devices often, and keeping software up to date all help the control system work well during long production runs.

Step-by-Step Troubleshooting Methodology for Steel Sheet Press Machines

Before a full review can begin, a full problem report must be made. This report must include a list of all the symptoms, working conditions, and changes in performance compared to normal levels. The people who do repairs should pay attention to the area, the tools, and the way the steel sheet-making machine is set up. Also, they need to write down any changes that might make the tools not work as well.

Initial Assessment Protocol

First, check out the wheels, drive systems, and safety systems. These things need to be fixed more than anything else. The people who work on the machine should check the roller surfaces for signs of wear, use accurate measuring tools to make sure the blades are lined up correctly, and make sure all the safety interlocks are working. Professional tools have a 70 mm shaft width. Watch it carefully to see if the surface is broken or worn in any way that could hurt the work.

Look at the power lines and write down how steady the electricity is. Then, make sure that the 380V three-phase source always gives you steady power. The test should be moved quickly, the motor should use a lot of power, and the gears should be hot. If it shakes a lot, it could be the motor or parts that are worn out.

Component-Specific Diagnosis

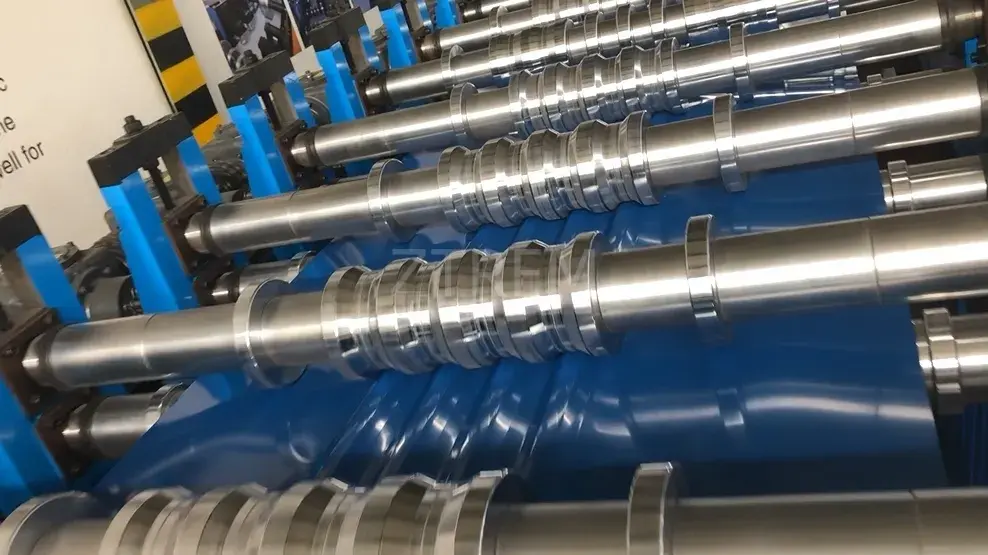

Forming station analysis is the process of checking each station's contribution to the final product's description in a planned way. Technicians must make sure that all 18 making stations are properly oiled and that the rollers are properly set. They must also make sure that material doesn't build up on the roller surfaces. It is possible for mistakes to happen in progressive making if the rollers are moved around. These mistakes get worse as more stations pass.

You check out a drive system by seeing how well the motor, gear reduction, and link all work. With a line speed of up to 15 m/min, the 5.5 kW main motor has to keep up with the load and keep the power steady. Keeping an eye on the motor's temperature, present use, and mechanical noises can help you find issues before they cause the machine to shut down without notice.

Comparison of Steel Sheet Press Machine Types and Their Trouble Proneness

Manual systems offer simplicity and lower initial costs but require extensive operator intervention and skill to maintain consistent product quality. These machines typically experience higher variability in forming accuracy due to human factors and limited process control capabilities. Troubleshooting manual systems often involves mechanical adjustments that require experienced technicians familiar with traditional metalworking practices.

Automated System Advantages

Fully automated roll-making lines have high-tech control systems that constantly check important factors and make changes in real time to keep performance at its best. These systems make it so that operators aren't needed as much and the quality of the output stays the same over long production runs. For successful repair, however, automatic systems need more advanced diagnosis tools and specialized technical knowledge.

The trade-off in difficulty between human and automatic systems has a big impact on how often upkeep needs to be done. Automated systems collect detailed information about how they're working, which helps with planning ahead for upkeep. Human systems, on the other hand, depend more on what the user knows and how often they check the system. These days' machines can work with materials that are between 0.3 and 0.8 mm thick, which means they need precise control even when they are fully automatic.

When high-speed steel sheet-making machine production lines are going full speed, they put more stress on the mechanical parts. Parts that wear out more quickly need to be checked more often. When planning repair plans and methods for managing extra parts inventories for the steel sheet-making machine, it's important to think about how production speed affects how long parts last.

Best Practices for Operation and Safety to Minimize Troubleshooting Needs

Preventive maintenance programs significantly reduce unexpected failures and extend equipment service life through systematic care of critical components. Regular lubrication schedules, bearing replacement intervals, and hydraulic fluid changes help maintain optimal machine performance while reducing the likelihood of catastrophic failures that result in extended downtime periods.

Operator Training Protocols

Comprehensive operator training encompasses proper startup procedures, material handling techniques, and emergency response protocols that protect both personnel and equipment. Operators must understand the relationship between material properties, forming parameters, and final product quality to make appropriate adjustments when conditions change.

Safety protocols extend beyond basic lockout procedures to include proper material handling techniques, emergency stop procedures, and recognition of abnormal operating conditions that warrant immediate attention. The integration of safety interlocks with production control systems helps prevent accidents while protecting equipment from damage caused by improper operation.

Energy efficiency considerations include optimizing hydraulic pressure settings, minimizing idle time between production runs, and implementing variable frequency drives that adjust motor speed based on actual load requirements. The 4 kW hydraulic unit operates most efficiently when pressure settings match actual forming requirements rather than maintaining maximum pressure continuously.

Procuring Reliable Steel Sheet Press Machines: Brands and Services to Trust

Selecting equipment suppliers requires careful evaluation of technical capabilities, service infrastructure, and long-term support commitments that extend well beyond initial installation. Manufacturers with ISO9001, CE, and CAS certifications demonstrate adherence to international quality standards and regulatory compliance requirements that ensure reliable performance in global markets.

Supplier Evaluation Criteria

Technical specifications must align with specific production requirements, including material thickness ranges, forming profiles, and production speed expectations. The frame construction using a 16 mm wall-plate H-beam design provides the structural rigidity necessary for maintaining dimensional accuracy under high-speed operations while supporting the 3.5-ton machine weight effectively.

After-sales support capabilities become crucial when evaluating potential suppliers, particularly for international installations where rapid response times can significantly impact production continuity. Suppliers with global service networks and comprehensive spare parts availability help minimize downtime costs associated with unexpected equipment failures.

Customization capabilities allow suppliers to adapt standard steel sheet-making machine configurations to specific application requirements without compromising reliability or service support. OEM and ODM services enable integration of specialized features while maintaining compatibility with existing production systems and quality standards.

Conclusion

Effective troubleshooting of industrial steel sheet press machines requires systematic approaches that combine technical expertise with preventive maintenance strategies. Understanding common failure modes, implementing structured diagnostic procedures, and maintaining strong supplier relationships create the foundation for reliable production operations. Modern roll forming equipment offers sophisticated capabilities that demand corresponding technical knowledge and support infrastructure to achieve optimal performance throughout extended service life.

FAQ

1. How often should hydraulic fluid be changed in steel sheet-making machines?

Hydraulic fluid replacement intervals typically range from 2,000 to 4,000 operating hours, depending on operating conditions, fluid quality, and contamination levels. Regular fluid analysis helps determine optimal replacement timing while monitoring system cleanliness and additive depletion rates.

2. What are the primary indicators that forming rollers need replacement?

Roller replacement becomes necessary when surface wear exceeds specified tolerances, dimensional accuracy deteriorates beyond acceptable limits, or surface defects appear on formed products. Regular measurement of roller diameters and surface finish helps determine replacement timing before product quality suffers.

3. How can production facilities minimize downtime during troubleshooting procedures?

Effective downtime reduction strategies include maintaining adequate spare parts inventory, implementing predictive maintenance programs, training multiple operators on troubleshooting procedures, and establishing clear communication protocols with equipment suppliers for technical support and emergency service response.

Partner with ZTRFM for Superior Steel Sheet Making Machine Solutions

ZTRFM stands as your trusted steel sheet making machine manufacturer, delivering innovative roll forming solutions that combine cutting-edge technology with proven reliability. Our comprehensive approach addresses the complete spectrum of industrial forming challenges, from initial consultation through long-term service support, ensuring your production goals are met consistently.

Since 2014, we have specialized in designing and manufacturing advanced cold roll forming equipment that serves manufacturers across 150+ countries worldwide. Our ISO9001, CE, and CAS certifications demonstrate our commitment to quality excellence, while our OEM and ODM capabilities provide customized solutions tailored to your specific requirements. Contact our team at zhongtuorollforming@gmail.com to discuss your steel sheet making machine supplier needs and discover how our expertise can optimize your production capabilities.
