AG Panel Roll Forming Machine for Agricultural Buildings

The AG panel roll forming machine is the most significant equipment for making durable, weatherproof metal panels for buildings, storage facilities, and contemporary farms. This cold-processing device makes precise agricultural profiles from galvanised steel or pre-painted coils. This requires the 36-inch net coverage AG profile with 3/4-inch-high main ribs 9 inches apart. These machines eliminate oil canning in thinner gauges, provide anti-syphon grooves for weathertight side-laps, and boost coil yield efficiency to minimise manufacturing costs per linear foot compared to traditional bending equipment.

Understanding AG Panel Roll Forming Machines

High-tech roll forming technologies designed for farm and rural construction have driven agricultural building technology advances.

What Defines an AG Panel Roll Forming Machine？

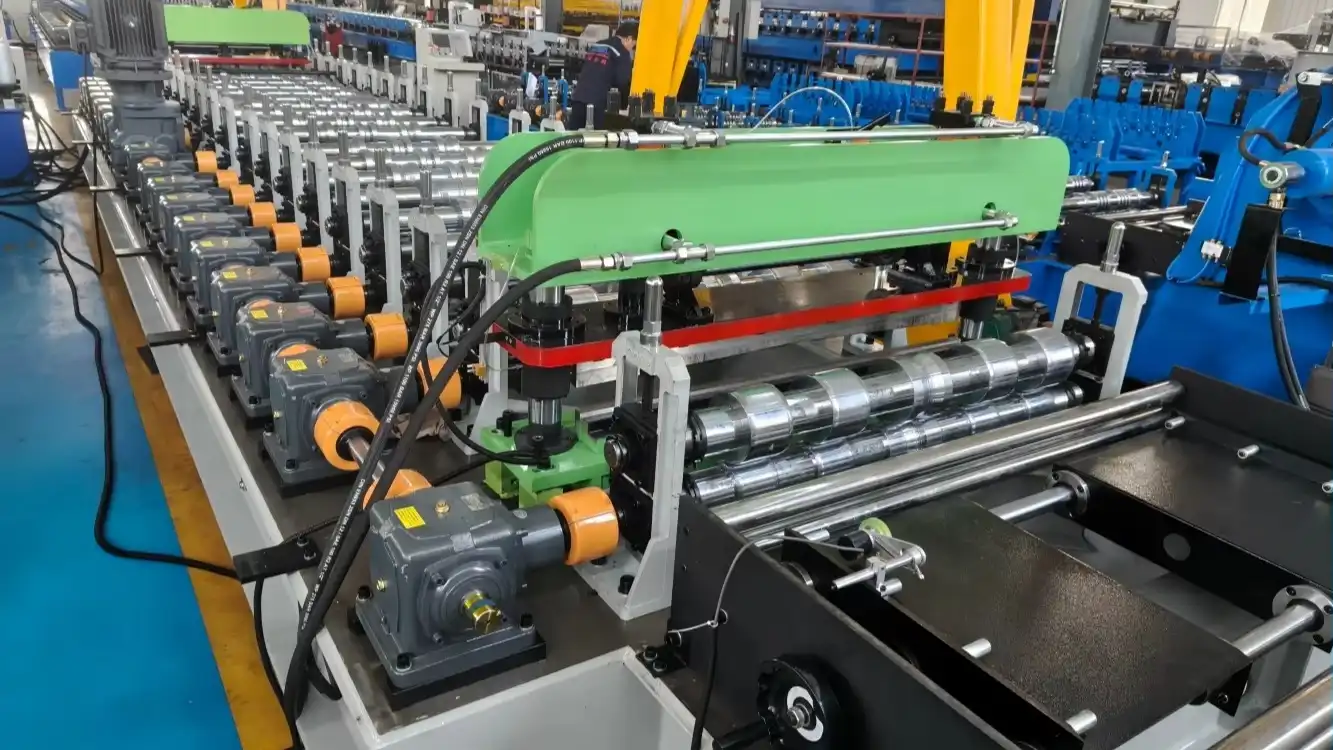

A particular machine called an AG panel roll-forming machine makes metal roofing and siding panels from long steel or aluminium strips. The flat metal is passed through 12 to 18 precisely engineered roller stations to mould it into an agricultural profile. Each roller station bends gradually, creating ribs, valleys, and locking edges without compromising the material's protective layer or structural integrity.

The Roll Forming Process Explained

Making begins with decoiling. Material comes from 3- to 5-tonne coils here. The machine moves metal at 15–25 m/min, and the timed roller sets form the profile with regulated pressure. Advanced PLC systems (including Delta, Siemens, or Mitsubishi controllers) monitor tension, speed, and cutting length with ±1.0mm precision. Cold forming retains the material's tensile strength while manufacturing panels for agricultural buildings immediately.

Machine Configurations and Drive Systems

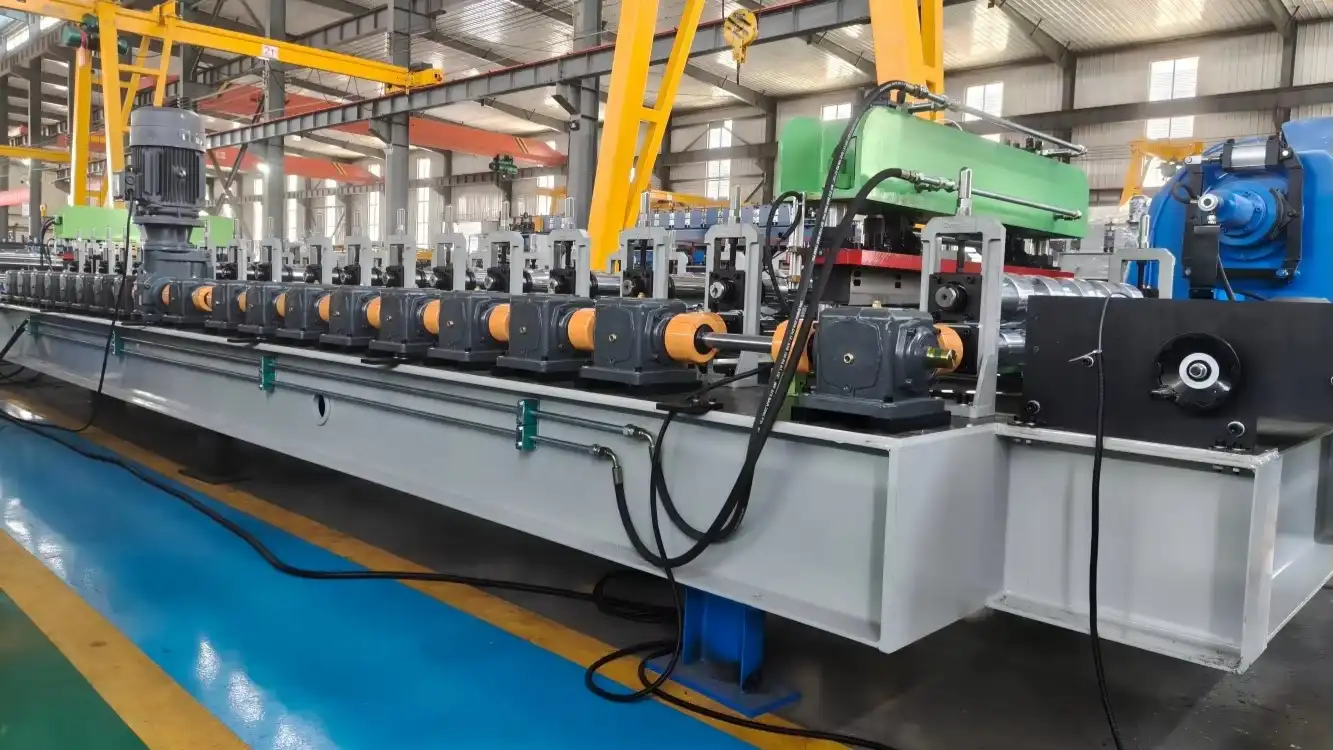

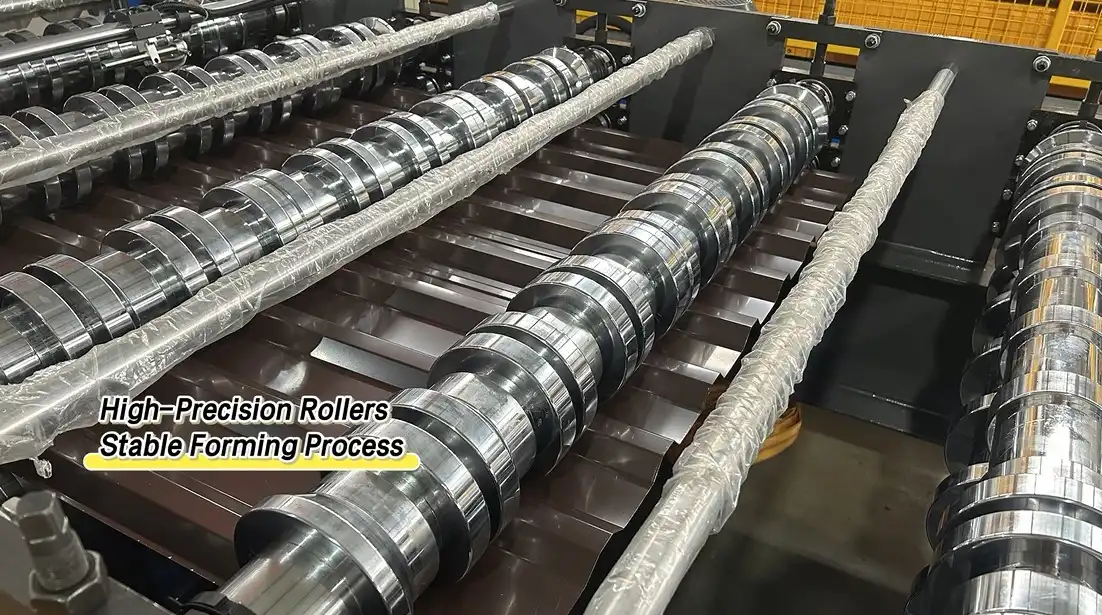

Modern equipment is available in several designs for different processes and output quantities. Gearbox gears make long-term operation smoother, whereas chain-bracket drive techniques give strong torque for larger gauges. Roller materials are commonly 45# steel or Cr12 bearing steel, chrome-plated to 0.05 mm to prevent zinc from scratching pre-painted surfaces. Sharp Cr12MoV blades in the hydraulic cutting system last long but need to be sharpened every 6–8 months under typical conditions.

Key Benefits of Using AG Panel Roll Forming Machines in Agriculture

Purchasing AG panel roll forming machines affects how things are created and addresses important challenges for farm building manufacturers.

High Production Efficiency and Capacity

Continuous operation is a big advantage over push brakes, especially with an AG panel roll forming machine. A shift of hand-bending may produce 50–70 panels, whereas automated roll-forming plants always produce 200–300. When productivity increases dramatically, large contracts for chicken coops, equipment sheds, or post-frame buildings are useful. By eliminating press brake setup time, companies may meet tight deadlines without sacrificing quality.

Material Waste Reduction and Cost Savings

Precision engineering in roll production technology reduces garbage rates to 2% in ideal operations. Continuous production eliminates trimming waste from cutting each panel separately, and accurate length control ensures that every panel fulfils requirements without additional material. Speed gains save money immediately when processing $1.20 to $1.80 per pound of materials. Automating material handling reduces work expenses and reduces the risk of panel surface damage that would render them useless for construction.

Consistent Panel Quality and Structural Integrity

Automatic roll forming simplifies matching thousands of panels, which is difficult when creating items by hand. Every rib height, valley depth, and side-lap dimension is the same when constructed, so it works with conventional fasteners, closure strips, and snow guards. Sharp press brake rotations cause material stress clusters, whereas gradual formation prevents them. This creates weatherproof panels. This homogeneity is even more necessary when creating panels for large barns, when profile matching is crucial for appearances and weatherproofing.

Energy Efficiency and Operational Cost Control

Modern machines employ three-phase power systems that consume 15kW to 22kW, far less energy than many press brakes. Unlike previous machines, servo-driven cutting systems only activate during the cutting cycle, saving the hydraulic pump. Over numerous shifts, these efficiency gains cut energy costs and boost sustainability initiatives that farming clients increasingly value due to their carbon footprints.

How to Choose the Right AG Panel Roll Forming Machine for Agricultural Buildings？

Choose the proper AG panel roll forming machine by balancing quick productivity with long-term operating flexibility and support.

Assessing Your Production Requirements

Determine your monthly linear footage and panel count across lengths for the AG panel production machine. A manufacturer that deals with local farmers may need different standards than a regional merchant that sells in many states. Another key element is the material gauge range. Normal 29-gauge and 26-gauge machines may need shaft diameter modifications to properly handle larger 24-gauge or 22-gauge steel without shaft deflection that distorts the profile.

Evaluating Machine Precision and Speed

Accurate measurements help you satisfy quality-conscious consumers and reduce field installation calls. Examine the tool parameters for rib spacing (typically ±0.5mm), panel width variation, and cutting accuracy. Production speed must balance throughput and material handling. If your material handling staff can't properly handle panel production, running at full speed won't help. Most farm panel manufacturers believe 18–22 m/min works best with the correct staffing.

Customisation Options and Supplier Reputation

Farm construction markets reflect regional tastes, making roller customisation vital. Roller design services from reliable manufacturers like ZTRFM can accommodate rib spacing, panel width, and ventilation profiles. Supplier credentials matter. ISO9001 accreditation indicates a mature quality management system, while CE certification indicates the provider satisfies international safety requirements. ZTRFM, which operates in over 150 countries, has the mechanical expertise to handle your facility's unique voltage, environment, or operational requirements.

Comparing Roll Forming to Alternative Methods

Press brake panel formation is still common in smaller enterprises since it uses cheaper equipment, but the comparison illustrates its limits. Roll forming machines cost $35,000 to $85,000, depending on technology, but they pay for themselves faster when they generate more than 50,000 linear feet of material each month. The option depends on your company's strategy. Those who undertake a lot of bespoke work may choose press brakes, whereas farm builders may benefit from roll building.

Maintenance and Troubleshooting Tips for AG Panel Roll Forming Machines

Repairing your AG panel roll forming machines regularly ensures high-quality work and consumer trust.

Daily and Monthly Maintenance Protocols

Check the roller alignment, watch for metal garbage around the cutting blades, and double-check the hydraulic fluid levels regularly. Roller bearings and chain drives must be maintained per the manufacturer's specifications. To prevent parts from wearing out rapidly, use the correct grease daily. Once a month, deeper examinations are done to evaluate the roller surface for wear, cutting blade sharpness, and PLC system backup. Written checklists ensure all workers and shifts do the same duties.

Common Issues and Quick Fixes

Too much roller pressure or unequal coil tension at the entrance guide of the AG panel production machine causes panel ripples or oil filling. Adjusting the tension brake and middle roller spacing usually fixes this problem without interrupting production. Unmatched panel lengths are frequently caused by encoder calibration drift or poor cutting blades. Recalibrating the length counter and inspecting blades fixes most length variation issues. Aluminium has different spring-back characteristics than steel. To avoid breakage, roller pressure must be regulated, and maybe extra manufacturing stations added.

When to Seek Professional Help

Professionals must immediately address complex issues, such as PLC code errors, hydraulic system failures, and drive motor issues. If you fix things without training, you risk damaging them and losing your warranty. Get to know your supplier's technical support personnel before you need them. ZTRFM provides installation training and operating support. According to the supplier, keeping additional cutting blades, encoder units, and hydraulic seals reduces downtime when parts need to be changed.

Procurement and Investment Insights for AG Panel Roll Forming Machines

Knowing the overall expenses of ownership and what the seller can accomplish helps you acquire what fits your business's growth ambitions.

Pricing Components and Investment Considerations

What features, how automated, and how much a base machine can create affect its pricing. Beginner manual feed machines for enterprises cost around $35,000. Fully automated lines with coil cars, stacking, and punches cost $85,000–$120,000. Testing and installation add 8–12% to the standard price. Set up the electricity, level the machine, and instruct the user. Equipment leasing and supplier programmes help organisations develop while maintaining working capital.

Supplier Evaluation and After-Sales Support

Instead of trading firms that offer tools, choose those that can manufacture several items. Touring factories or reading their records reveals how goods are manufactured, and quality is regulated. The guarantee should span 12 months for parts and 24 months for construction elements, and remote and on-site assistance should be available. Good vendors stand out with after-sales support. Equipment's longevity is protected by experienced support, simple access to replacement parts, and upgrades when output demands change.

Lead Times and Spare Parts Planning

Standard machine manufacture takes 45–60 days from deposit to shipment. Custom roller designs may take two to three weeks longer. International shipping may take longer, depending on the destination. Ocean freight from Asia takes 30–35 days to the US. Planning purchases around annual production cycles helps you avoid rash decisions. Order critical spares with the equipment to prevent emergency air freight fees. A hydraulic seal kit, encoder backup, and a full set of cutting blades are good to have at the start.

Conclusion

AG panel roll forming machines, also referred to as AG panel production machines, revolutionise how farm building enterprises create products. This equipment improves flow and uniformity, fixes oil canning faults in thin-gauge material, and creates weathertight profiles through accurate anti-syphon groove construction to tackle genuine production challenges. While PBR panel roll formers serve similar agricultural sectors, AG-focused machines remain central to standard farm panel manufacturing. Whether you are entering the industry or expanding, understanding machine specifications, maintenance requirements, and supplier support enables smart investment decisions.

FAQ

1. Can AG panel machines handle both steel and aluminium materials?

Good AG panel roll-forming machines operate with both materials; however, aluminium requires some tweaks. Aluminium has different spring-back qualities than steel due to its lower elastic modulus. Roller pressure must be adjusted and possibly more manufacturing stations added. Some businesses manufacture "aluminium configurations" with different roller shapes to prevent cracking during formation. The greatest results when switching materials are attained by recalibrating roller spacing and tension. To satisfy a wide range of clients without setting up distinct production lines, machines that function with both materials provide companies more operating freedom.

2. What causes profile distortion, and how do I prevent it?

Profile distortion is frequently caused by misaligned rollers, worn roller surfaces that unevenly distribute pressure, or material gauge variations too large for the machine. First, verify alignment using precision measurement instruments during routine repairs to avoid issues. Maintaining forming uniformity requires monitoring roller surfaces and replacing worn sections before they degrade. Make sure new material gauges meet requirements. On machines with tighter tolerances, 0.05mm or more might compromise form quality. Detailed production records that relate batches of materials to quality outcomes help identify tendencies to alter.

3. How long does a typical machine setup and training require?

Professional installation and testing take three to five days, depending on building readiness and machine complexity. This timeline involves assembling the mechanical pieces, connecting the electrical parts, calibrating the first time, and testing sample panels for quality. Operator training runs two to three days and includes machine usage, minor repairs, routine maintenance, and safety. ZTRFM and other organisations like it provide extensive training to ensure staff can operate machinery and follow quality control requirements to provide consistent output. From equipment arrival to full production, manufacturers should expect two weeks. This time should include installation, training, and tweaking the initial production run.

Ready to Upgrade Your Agricultural Panel Production?

Engineering firm ZTRFM develops high-tech roll forming systems for agricultural buildings. Our 10 years of expertise in building AG panel roll forming machines from 2014 apply to every work. Our ISO9001 and CE-certified equipment features an accurate roller design and simple PLC settings to always deliver quality. We customise equipment, train operators, and provide fast professional support to customers in over 150 countries. Our technical staff creates solutions for all your manufacturing demands, whether you're creating standard AG forms or market-specific variants. Contact our application specialists at zhongtuorollforming@gmail.com to discuss your production objectives and obtain equipment recommendations based on our farm panel experience.
