PLC-Controlled Roofing Sheet Making Machine Advantages

Metal roofing producers now achieve tight project schedules using automated processes instead of human ones. The R101 Roofing Sheet Making Machine's innovative PLC technology overcomes roofing producers' major challenges, such as inconsistent forming quality, poor production rates, and maintenance downtime. A 5.7-inch touchscreen and Delta PLC system regulate each forming station, hydraulic cutting cycle, and line speed adjustment on this machine. High throughput, little scrap, and known operational costs result from this technique. These benefits directly affect competitive market profits.

Understanding PLC-Controlled Roofing Sheet Making Machines

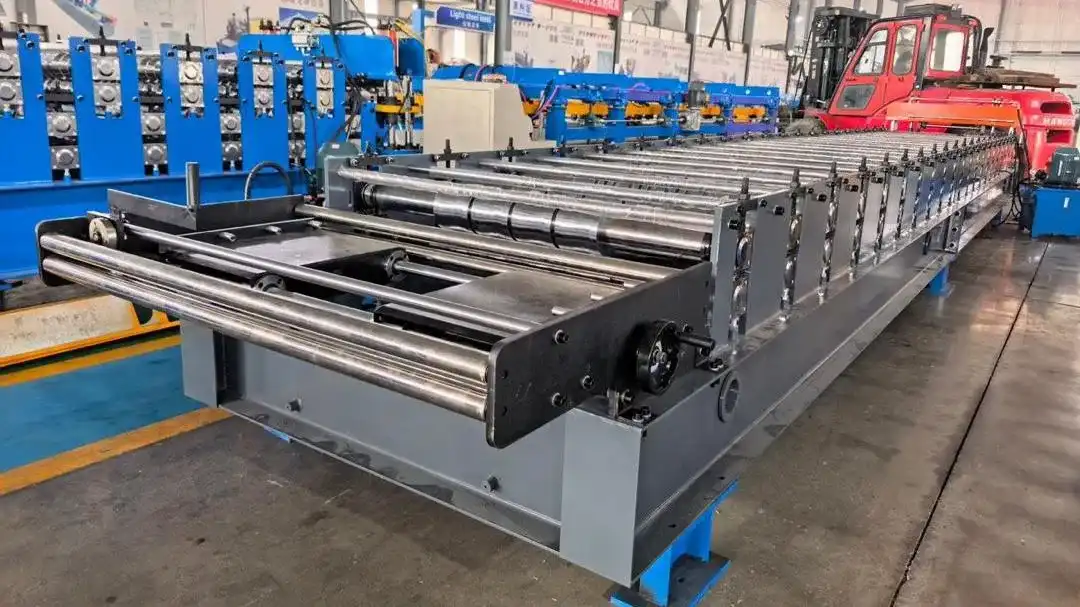

For trapezoidal metal roofing forms like the R101 Roofing Sheet Making Machine design, cold roll forming is now standard. Automatic roll-forming machines drive flat galvanised or pre-painted steel coils through properly matched rollers. This differs from hand bending, which can cause size and fatigue disparities. Each of the 18 forming stations carefully shapes metal into the R101 roofing sheet making machine profile without heat. Long-term corrosion resistance depends on the uniformity of this protective layer.

What Makes PLC Control Essential？

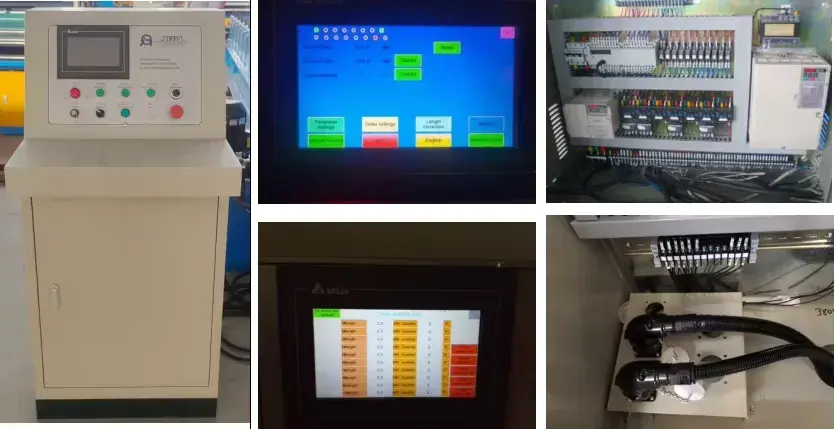

Today, programmable logic controllers are the brains of roll-making machines. The Delta PLC in the R101 roofing sheet making machine monitors motor speeds, hydraulic pressure, and cut accuracy. Workers may set batch sizes and sheet lengths using the simple tablet interface. This degree of automation eliminates measurement and timing errors, ensuring that every sheet meets the same high standards, whether it's the first or the thousandth.

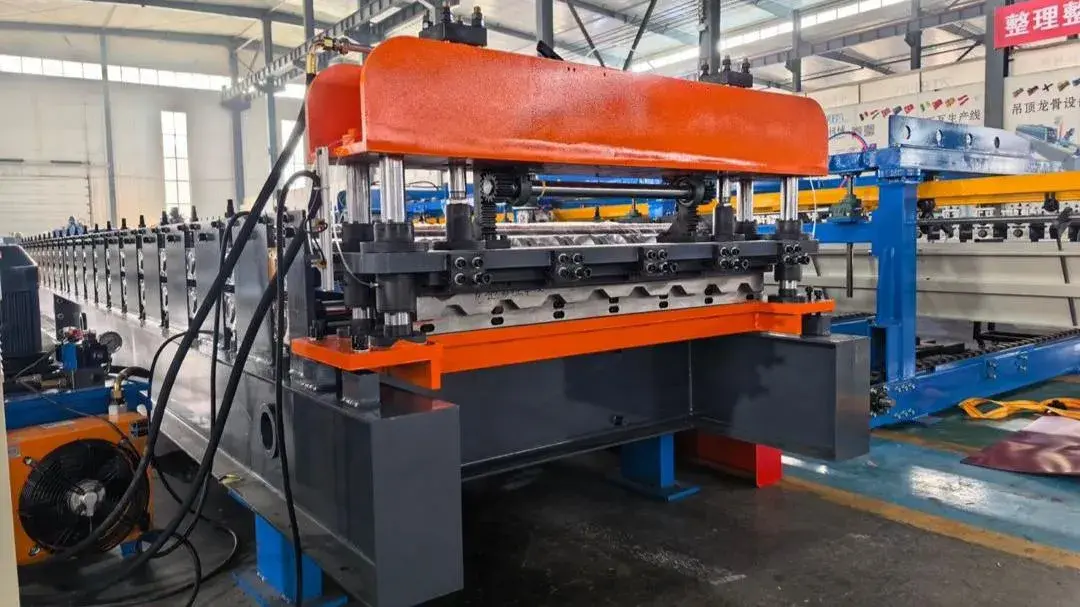

Technical Construction of the R101 Model

The R101 Roofing Sheet Making Machine can deal with roofing materials from 0.3 to 0.8 mm thick, the complete range utilised in commercial and residential roofs. Its hardened steel 70 mm shaft width allows it to form high-tensile materials without deflection. The 5.5 kW primary motor can move manufacturing stations 15 metres per minute. A 4 kW hydraulic unit with 2 mm accuracy powers the post-cutting system.

A sturdy 16 mm wall-plate H-beam structure keeps the machine stable even while running 24/7. Standard plant designs suit its 6,200 x 850 x 1,500 mm footprint, and its 3.5-tonne weight makes it straightforward to set up on reinforced concrete foundations. The 5-tonne decoiler works with North American supply line coil weights. Manual or motorised operation.

Advantages of the R101 PLC-Controlled Roofing Sheet Making Machine

Today, manufacturers must produce more without sacrificing quality or cost. The R101 roofing sheet-making machine uses smart technologies to improve every stage of the production process to satisfy these objectives.

Enhanced Production Efficiency Through Automation

The PLC system lets workers create complete work orders ahead of time, changing production planning. The staff enters the length and number of sheets on a tablet instead of measuring and cutting them by hand. The machine repeats the same parts, freeing up qualified workers to inspect quality and move resources. Automation allows roofing contractors to achieve tight deadlines for large contracts for affordable housing and corporate growth.

The R101 Roofing Sheet Making Machine can create 900 linear metres of roofing material in eight hours, provided it is set up and changed coils regularly and runs at 15 metres per minute. This output meets the production demands of medium-sized local market enterprises, yet is affordable for young companies putting up their first automated production line.

Superior Product Quality and Consistency

Handmade items vary as operators exchange shifts and during extended manufacturing runs when workers grow fatigued. Mechanical precision eliminates this fluctuation in the R101 roofing sheet making machine. Each of the 18 manufacturing stations utilises the same pressure at specific times, so every sheet has the identical rib heights, wave pitches, and effective cover widths.

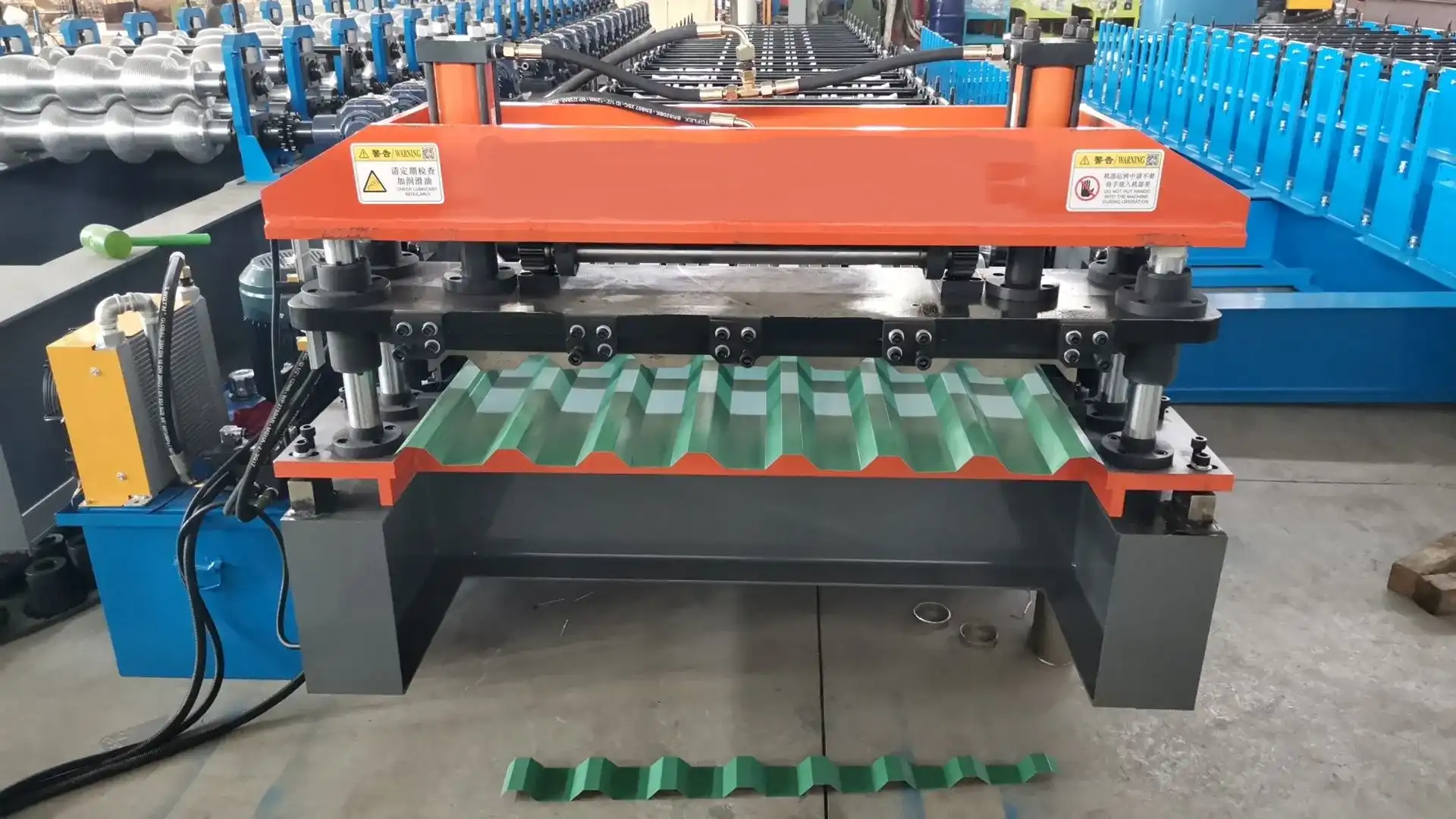

With Cr12MoV tool steel blades in the hydraulic cutting system of the R101 Roofing Sheet Making Machine, edge profiles are clean and free of burrs and warping. When roofing workers install hundreds of panels, accurate measurements imply faster installation, fewer mismatched components, and cheaper field labour expenses. The ±2 mm cutting margin ensures accurate sheet alignment, preventing water damage to construction walls caused by overlap.

Energy Efficiency and Cost Reduction

Operating expenditures far exceed tool purchase prices. The R101 Roofing Sheet Making Machine's 5.5 kW motor and 4 kW hydraulic unit consume less power than conventional gas or mechanical systems. This efficiency reduces power expenses throughout a typical work year. Industrial energy prices are rising, making this crucial.

The machine's better roller development reduces waste. Instead of severe bends in fewer stages, steadily sculpting the shape across 18 stations reduces stress fractures and spring-back deformation. This prevents material waste from these issues. Waste rates are less than 2% with the R101 Roofing Sheet Making Machine with correctly set rollers and acceptable input materials, according to manufacturers. This is far better than human methods, which waste 5–8%.

Simplified Maintenance and Diagnostic Capabilities

Equipment failure disrupts output planning and client service. Workers may monitor the R101 Roofing Sheet Making Machine's PLC system for any issues before they become significant. Based on sensor input, the tablet displays hydraulic oil pressure, motor temperature, and roller alignment. Maintenance teams can uncover issues during planned breaks instead of during critical production runs.

Simple designs are utilised for routine maintenance. Hydraulic oil must be replaced annually after six months of breaking in. Rollers are inspected monthly for surface wear and covering accumulation that might harm completed sheets. PLC software may be updated often to improve performance and solve field issues.

These benefits address the main concerns of building roofing system manufacturers who want stable, fast equipment, light steel structure manufacturers who need accuracy and quick specification changes, and small manufacturers who need reliable, easy-to-maintain machines.

Comparing the R101 Roofing Sheet Making Machine with Other Models

The capabilities, prices, and performance of different tools in different production situations should be considered before buying. The R101 roofing sheet making machine balances sophisticated robotics and small producer usability, making it an excellent market fit.

R101 vs. R102: Evolutionary Improvements

The R101 Roofing Sheet Making Machine balances advanced automation with ease of use, making it an excellent choice for manufacturers. The R102 model offers additional diagnostic tools and motor efficiency upgrades, but the R101 provides proven performance at a more accessible price point. For businesses establishing their first automated production line or expanding beyond manual operations, the R101 Roofing Sheet Making Machine delivers all essential functions without unnecessary features.

PLC-Controlled vs. Manual Systems

Manual systems require constant monitoring to measure, cut, and check quality, leading to slower production and higher variation. The R101 Roofing Sheet Making Machine automates these tasks, allowing one operator to supervise production while the machine follows programmed instructions. Although manual equipment may have a lower purchase price, the R101 reduces labour costs, increases output, and minimises waste, delivering superior quality and consistency for customers who require certified dimensional tolerances and fast order processing.

Though manual equipment may be cheaper to acquire, its overall cost of ownership must include more effort, less production, and more garbage. Automation gives the R101 Roofing Sheet Making Machine, a roofing sheet-making machine, superior quality and production to manual methods. Customers who require certified dimension tolerances and speedy order processing need this.

Procurement and After-Sales Considerations for the R101 Roofing Sheet Making Machine

Many factors go into choosing industrial tools besides technical parameters. Planning, training, and support are essential for successful implementation.

Sourcing from Authorised Manufacturers

Cangzhou Zhongtuo, founded in 2014, makes the R101 roofing sheet making machine and other cold roll production equipment. The ISO9001, CE, and CAS-certified firm has sent tools to over 150 countries. This has given them expertise with international shipping, customs procedures, and voltage conversion for multiple power networks. Fitting installation schedules into construction project planning is easier with global experience.

Bulk orders facilitate large-scale businesses, and flexible OEM and ODM agreements allow wholesalers to request local market adjustments. Design demands and production schedules determine lead times, which are generally 45–60 days. Manufacturers require this knowledge to plan capacity increases around annual demand cycles.

Investment Analysis and Service Packages

Prices vary by decoiler type, power needs, and shipping location. The warranty normally lasts 12 months after the unit is manufactured. This protects buyers from machine manufacturing issues during usage. Extended service packages offer priority technical help, cheaper spare parts, and frequent checkups. Makers who work various shifts or have tight contract deadlines enjoy these options.

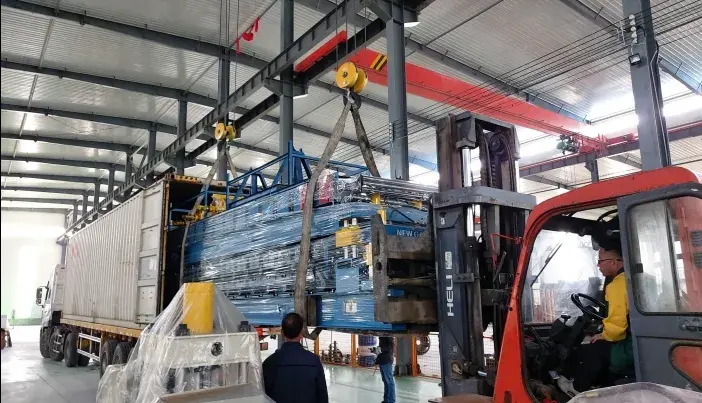

International logistics involves using shipping containers efficiently, insuring them, and dealing with freight forwarders that can manage large industrial equipment. Installation support includes base standards, electrical connections, and factory-trained technicians who test everything before departing.

Training and Technical Knowledge Transfer

On-site training programmes ensure production crews can operate equipment, maintain it, and repair fundamental issues. These courses include PLC programming, hydraulics, and roller changing. Comprehensive training reduces the learning curve during production ramp-up and helps staff solve small problems without outside aid.

Technical material includes electrical schematics, hydraulic diagrams, parts lists with specifications, and maintenance schedules. This information simplifies long-term operations planning and ordering new parts as they wear out.

Maximising Your Investment: Maintenance and Troubleshooting Tips

Systematic maintenance prevents minor issues from becoming costly. This maintains equipment performance and longevity. The R101 Roofing Sheet Making Machine is straightforward to service if repair crews follow guidelines.

Daily checks should include checking the hydraulic oil level, listening for unexpected noises or vibrations while the machine is working, and ensuring the cutting mechanism cuts clean lines without burring. Roller surfaces must be cleaned regularly to remove coating residue and metal fragments that might harm completed sheets. PLC code and drive chain tension must be reviewed to ensure production demands are met.

Roller bearings, hydraulic hoses, and electrical connections are examined monthly. Roller surfaces should have even wear patterns; damage in one region indicates abnormal wear and needs adjustment. The roofing sheet making machine's PLC software tracks running hours and cycle counts to determine part replacement.

Common Operational Challenges and Solutions

Most profiles twist or bend during manufacture because of uneven roller gaps or improper material feeding. Gaps must be measured at each manufacturing station, and parallel alignment checked across the machine width during correction. The output-end adjustable straightener can compensate for material variances when adjusted properly.

Paint damage on already-painted surfaces indicates either too much roller pressure or filthy surfaces. Lowering the forming pressure and thoroughly cleaning all touch locations usually fixes these issues. Materials running too slowly through stations might rub against rollers; therefore, keeping the line speed prevents paint scraping.

European Roofing Manufacturer Case Study

An Eastern European metal roofing firm converted from hand-formed tools to an R101 Roofing Sheet Making Machine in early 2023. After three months of installation, daily productivity increased 47%, and material loss dropped from 6.2% to 1.8%. The PLC system's programming made switching sheet lengths for mixed-order batches straightforward. The corporation was free to undertake large corporate and household tasks. After-sales technical support solved the first roller adjustment questions over the phone, minimising production delays.

Conclusion

Adding PLC technology to roofing sheet production is a big manufacturing advancement. The R101 Roofing Sheet Making Machine illustrates how automation may solve production repeatability, efficiency, and quality control issues. This equipment assists everyone from major organisations growing production to small firms launching automated operations. It achieves this with clever control systems and solid mechanical design. Manufacturers looking to boost throughput, quality, and cost should consider the R101 Roofing Sheet Making Machine. Its technological characteristics, simplicity of maintenance, and global success make it a viable option.

FAQ

1. What production capacity can I expect from the R101 under typical operating conditions?

The R101 Roofing Sheet Making Machine produces 300 sheets per hour at 15 metres per minute and 3-metre sheet lengths. The result relies on coil change frequency, material thickness, and user competence. Most manufacturers finish 850–950 linear metres in eight-hour shifts, including setup and quality checks.

2. How can PLC technology improve energy efficiency compared to older machines?

Delta PLC adjusts motor power to the formation load instead of running at maximum capacity. This improves motor performance. Smart power control saves 18–25% energy compared to traditional air systems. Energy is lost even less since the hydraulic unit only functions during cutting.

3. Can the R101 accommodate different material thicknesses without extensive reconfiguration?

With its standard roller arrangement, the R101 Roofing Sheet Making Machine can handle 0.3–0.8 mm solids. Only slight roller gap modifications are needed to modify the width within this range in 15–20 minutes. Working with materials beyond this standard range requires replacing the rollers, a more complicated operation normally done when the manufacturing emphasis is irrevocably altered.

Partner with a Trusted R101 Roofing Sheet-Making Machine Manufacturer

ZTRFM has specialised in cold roll forming for 10 years. They provide comprehensive ISO9001 and CE-certified equipment solutions to businesses worldwide. Based on proven engineering, our R101 Roofing Sheet Making Machine model is designed for manufacturers who desire dependable automation, quality output, and quick maintenance. Production teams benefit from our skilled installation, operational training, and continuous support as your manufacturing demands evolve.

Email zhongtuorollforming@gmail.com to reach application engineers who can aid roofing manufacturers in many markets. We provide complete quotations that include your needs, expected output rate, and transportation. We may exhibit equipment so you can try it before buying in our premises. Rollformingmachinemanufacturer.com has specifications, standard sheets, and case studies. These demonstrate how the R101 Roofing Sheet Making Machine operates in real life and with various materials. As the R101 Roofing Sheet Making Machine seller, we pledge to partner with you beyond equipment delivery. We will provide fast technical help and genuine spares.
