AG Panel Roll Forming Machine Setup Guide for Beginners

Setting up an AG panel roll forming machine doesn't have to overwhelm newcomers to metal forming equipment. This comprehensive guide walks you through the essential steps—from unpacking and positioning your roll-former machine to running your first production batch. Whether you're a startup metal products manufacturer or a building roofing system producer expanding capabilities, understanding the fundamentals of your AG panel roll-forming machine ensures consistent output quality, minimises scrap rates, and maximises your investment return from day one.

Why Proper Setup Makes All the Difference?

Many production inefficiencies trace back to rushed or incomplete initial setup procedures. When manufacturers skip critical alignment checks or incorrectly calibrate tension systems, the consequences ripple through operations: wavy panels, inconsistent rib heights, and excessive wear on forming rollers.

A methodical approach to machine installation protects your equipment investment while establishing reliable production capacity. The AG profile—widely recognised for its 36-inch coverage width and distinctive rib pattern—requires precision forming to meet weather-tight specifications. Proper setup eliminates common defects like oil canning in lighter 29-gauge materials and ensures the anti-syphon grooves form correctly to prevent water infiltration beneath panel overlaps.

Experienced operators know that two hours invested in careful setup saves weeks of troubleshooting downstream quality issues. The process builds foundational knowledge about how material characteristics, roller pressure, and feeding speed interact to create dimensional accuracy within industry tolerances.

Pre-Installation: What You Need Before Powering Up?

Before your roll-forming equipment arrives, prepare the installation site to avoid delays. Verify that your facility's concrete foundation meets load-bearing requirements—most AG panel lines weigh between 3,500 and 6,000 kilograms, depending on configuration. The floor should be level within 2mm across the machine's footprint.

Electrical infrastructure deserves careful attention. Standard high-speed systems require three-phase power (220V/380V/440V at 50/60Hz) with 15kW to 22kW total consumption. Engage a certified electrician to install appropriate circuit breakers and ensure grounding meets local safety codes.

Space planning matters more than many realise. Allow minimum clearances: 1.5 metres on operator sides for maintenance access, 8-10 metres of coil loading space at the entry end, and adequate run-out length matching your typical panel dimensions. Poor spatial planning forces awkward workflows that slow production and increase injury risk.

Gather essential tools before delivery: precision levels; torque wrenches (for securing mounting bolts); measuring tapes; feeler gauges (for roller gap verification); and safety equipment, including gloves and eye protection. Having everything ready demonstrates organisational capability that your team will appreciate.

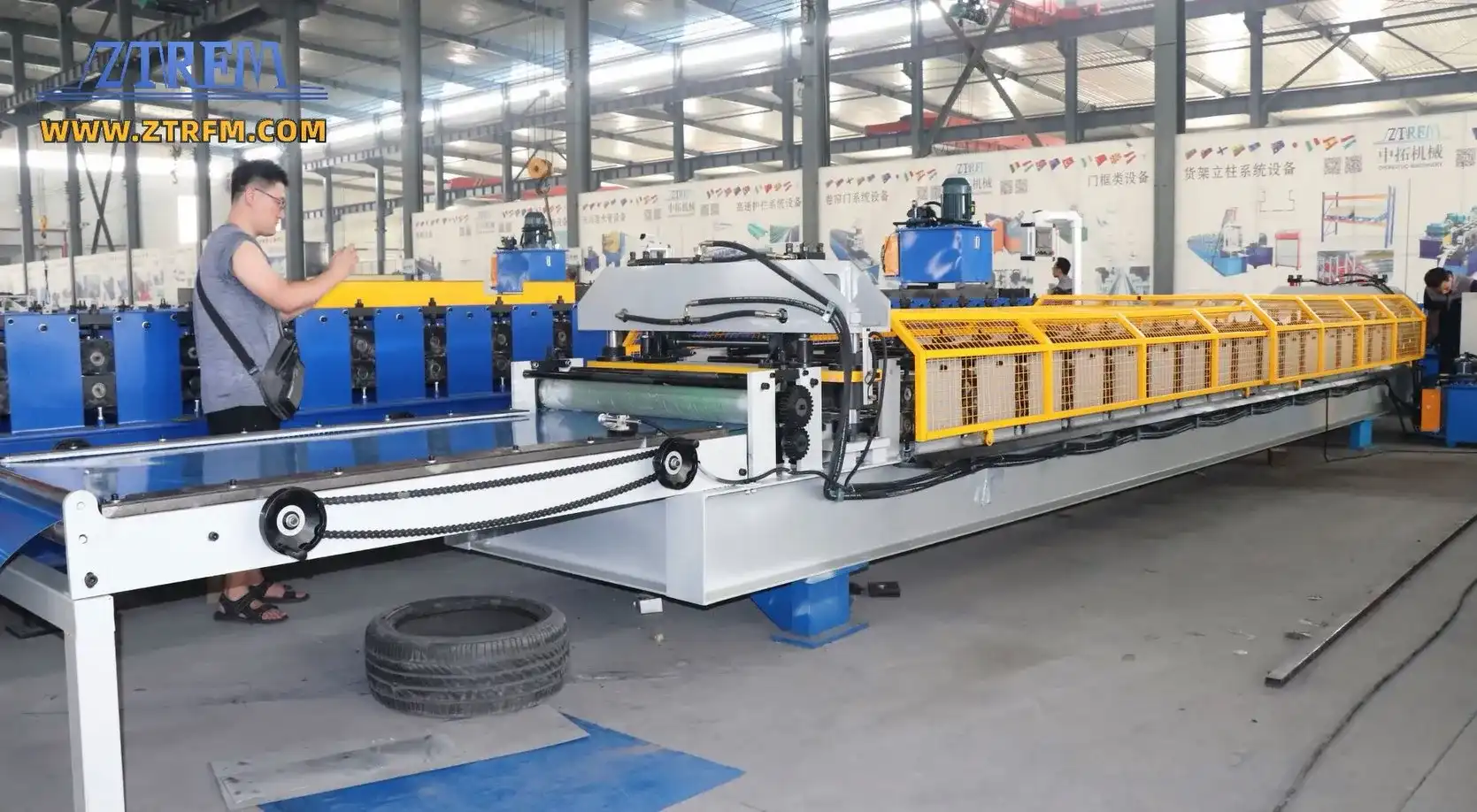

Unpacking and Positioning Your Metal Forming Machine

Professional freight handling prevents costly damage. AG panel roll forming lines typically ship on wooden pallets with protective wrapping. Inspect packaging immediately upon arrival, documenting any transit damage with photographs before the carrier departs.

Use appropriate lifting equipment—a forklift or overhead crane, depending on component weight. Main forming sections often separate into modular units for shipping: decoiler station, entry guide system, forming mill, cutting station, and exit conveyor. Consult the manufacturer's rigging diagram to identify lift points that won't stress structural components.

Position the decoiler first, aligning its centreline with the machine's coil entry path. The feeding system should sit square to the AG panel roll-forming machine's forming mill—even slight angular misalignment creates edge waving that compounds through successive forming stations. Use laser alignment tools or taut string lines to verify straightness across the entire steel coil processing path.

Anchor mounting feet to the foundation using expansion bolts specified in your manual, typically M16 or M20 grade 8.8 fasteners. Torque to manufacturer specifications—over-tightening can distort the machine frame, while under-tightening allows vibration that accelerates wear. Check levelness again after bolting; settling may require shim adjustments.

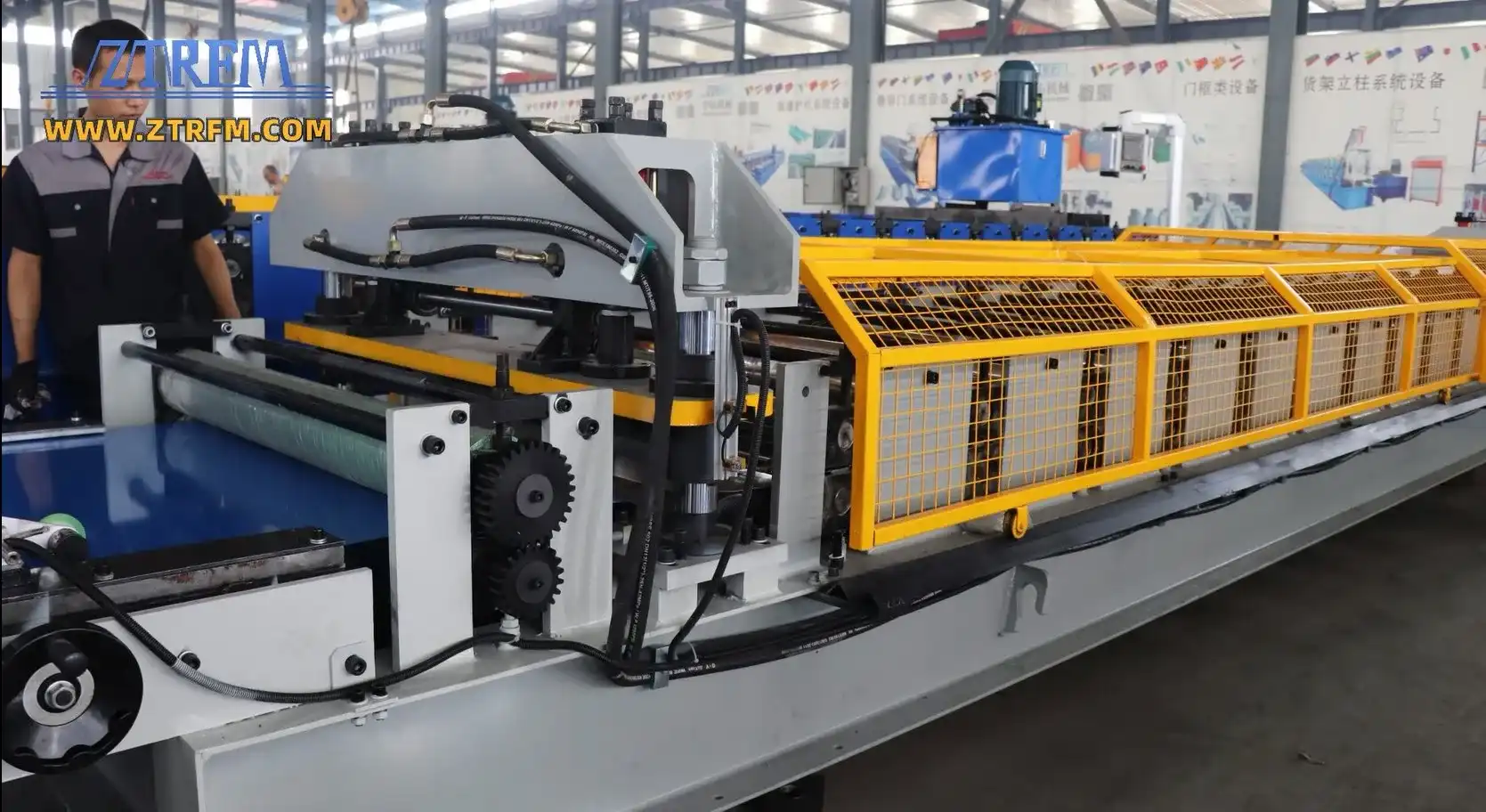

Understanding Your Control System and Hydraulic Components

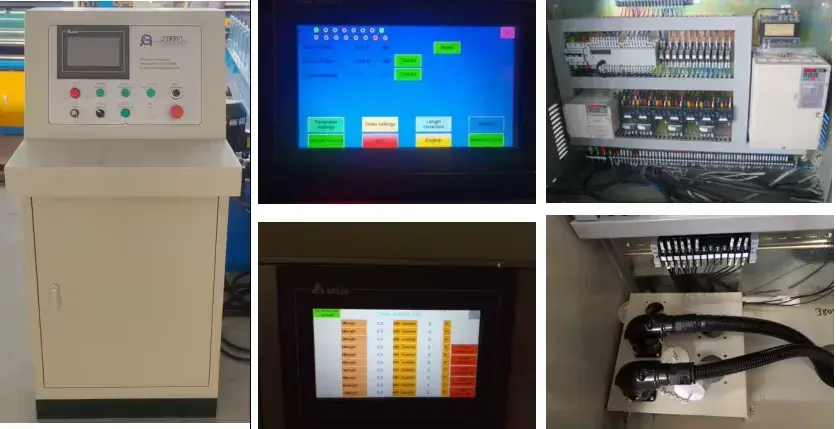

Modern roll-forming automation centres on PLC control panels with touchscreen HMI interfaces. Familiarise yourself with the control layout before attempting operation. Locate emergency stop buttons—they should be easily accessible from multiple positions along the line.

The hydraulic station powers cutting mechanisms and, in some configurations, decoiler expansion. Check hydraulic oil levels before initial startup, using the grade specified in your manual (typically ISO VG 46 anti-wear hydraulic oil). Inspect hoses for shipping damage and verify fittings are secure but not over-tightened.

Programme basic parameters into the control system: desired panel length, production quantity, and cutting delay timing. Length accuracy depends on encoder feedback calibration. Run the machine empty (without material) through several cycles, observing that the cutting sequence activates at the programmed interval and movement remains smooth throughout.

Test safety interlocks systematically on the AG panel roll forming machine. Modern equipment includes sensors that halt operation if guards open or material jams occur. Verify each safety feature functions correctly—regulatory compliance depends on these systems, and they protect operators from serious injury.

Material Loading and Tension Adjustment Fundamentals

Proper coil loading onto your decoiler prevents feeding problems that compromise profile quality. Position the steel coil so the unwinding direction matches the machine's feed path—incorrect orientation causes twisting. Secure the coil using the mandrel expansion system, ensuring equal grip around the circumference.

Tension control represents one of the most critical adjustments in sheet metal roll forming. Too little tension allows material to buckle before entering forming rollers; excessive tension stretches the substrate, causing dimensional inaccuracy and premature work hardening.

Start with manufacturer-recommended tension settings based on material gauge and yield strength. Most AG lines include adjustable magnetic brakes or pneumatic tension systems on the decoiler. For 29-gauge galvanised steel (0.35 mm), begin at approximately 60-70% of maximum tension capacity and fine-tune based on panel flatness during test runs.

Entry guides must centre the coil precisely as it approaches the first forming station of the AG panel roll former. Adjust guide rollers so material passes through with minimal lateral play—typically 1-2 mm clearance per side. Misalignment here propagates through the entire forming sequence, creating panels with wandering ribs or uneven edges.

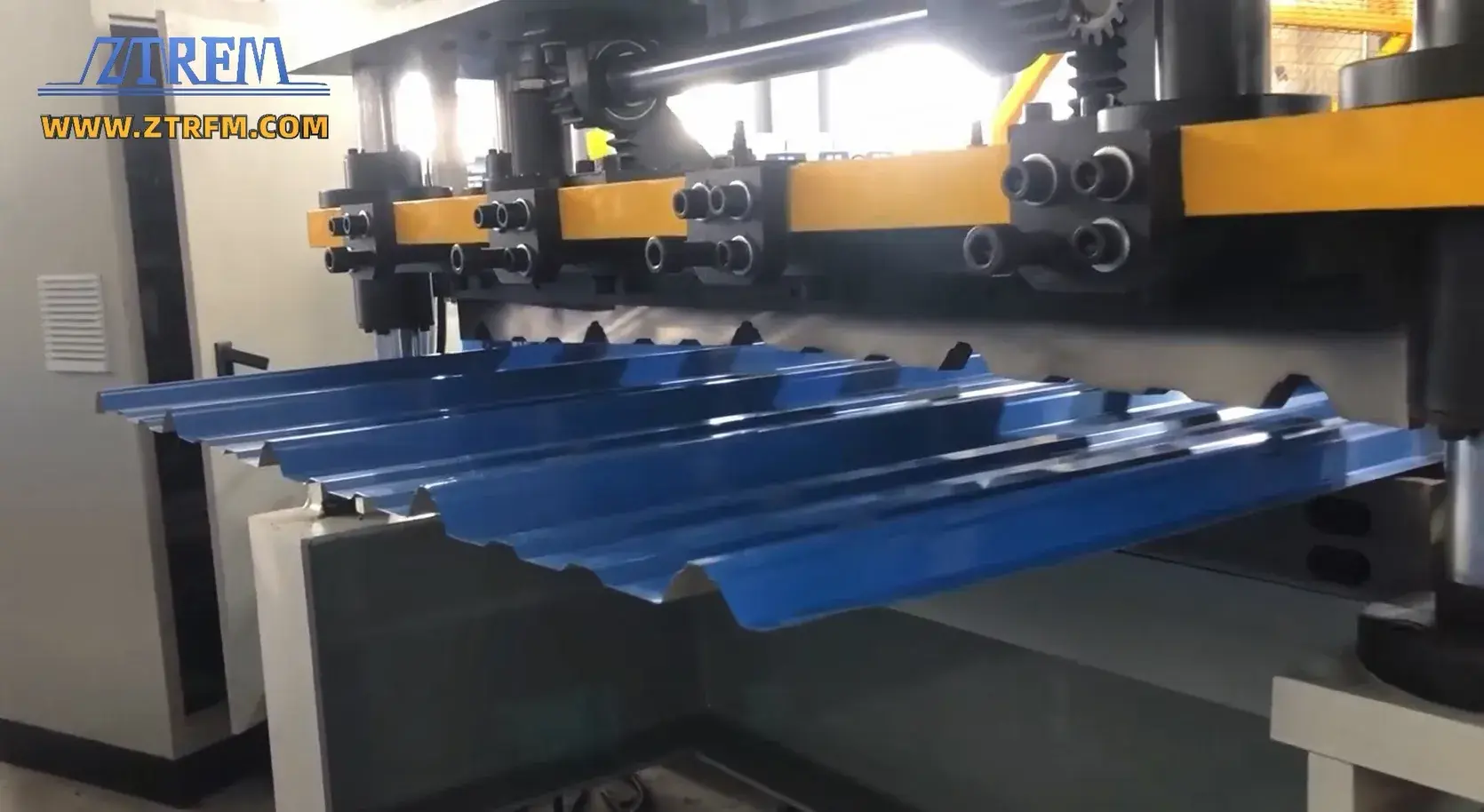

Roller Gap Settings and Forming Station Calibration

Setting the right gaps between the upper and lower rollers at all forming points is the most important part of precision roll making. Through small changes in shape, each machine bends the flat sheet into the final AG outline. Gaps need to be big enough to fit the thickness of the cloth while still providing enough pressure to stop spring-back.

Check the gear setup sheet that came with your machine for exact gap readings for each station based on the material gauge. Check the gaps with feeler gauges and make sure the rollers are aligned by measuring at three different points across their width. A difference of just 0.5 mm can make the edges wave or the ribs not stand out the same way every time.

When working with different sizes, keep in mind that big changes in thickness (like from 29 ga to 24 ga) need to be handled by adjusting the rollers. Tolerance engineering in high-end systems reduces this to a minimum, but big changes in the properties of the materials mean that the calibration needs to be redone. Write down your settings for every popular mix of gauge and metal. This will help you make quick changes.

Roller bearings should be oiled at times specified by the maker, which is usually every 200 hours of use. Use grease that is based on lithium and can handle heavy loads. If you lubricate properly, you can cut down on the friction that causes painted coils to scratch, which is an expensive flaw in finished metal roofing panels.

Running Your First Test Panel: What to Watch For？

With the mechanical setup complete and safety checks verified, you're ready for trial production. Load a short coil segment (3-5 metres) rather than a full coil for initial testing. This limits waste if adjustments prove necessary.

Set production speed to 50% of rated capacity—most AG lines operate at 30-60 metres per minute at full speed, so start around 15-20 m/min. Lower speeds reveal forming issues more clearly and allow time to stop if problems emerge.

Observe material behaviour as it progresses through forming stations. Watch for signs of stress: unusual noise, roller skipping, or material resistance. The transition through each station should appear smooth and controlled. If material bunches before a station or shows excessive deflection, stop immediately and reassess tension and roller gaps.

Measure the first completed panel thoroughly. Check rib height, rib spacing, overall width, and edge straightness against specification drawings. Verify that anti-syphon grooves are formed completely—these small channels prevent water from travelling laterally beneath panel overlaps. Use precision callipers for rib dimensions; variations exceeding ±0.5 mm indicate setup refinement needs.

Surface quality inspection reveals potential issues with roller condition or material handling, particularly for the AG panel roll former. Look for scratches, scuff marks, or indentations. If processing pre-painted material, any finish damage dramatically reduces panel value. Minor scratches suggest debris on roller surfaces; deep gouges indicate roller damage requiring immediate attention for the AG panel roll former.

Troubleshooting Common Beginner Mistakes

Even careful setup can encounter challenges. Understanding typical issues speeds resolution and builds operator confidence.

• Oil canning or waviness in flat sections: This cosmetic defect stems from excessive roller pressure or uneven tension. Reduce pressure on intermediate stations incrementally while monitoring improvement. Verify that decoiler tension remains consistent throughout unwinding.
• Inconsistent panel length: Encoder calibration errors or slippage in the drive system causes length variation. Recalibrate the encoder by measuring actual versus programmed lengths over multiple panels. Check drive chain tension and gear engagement if mechanical slippage occurs.
• Edge waving or camber: Material entering crooked relative to forming stations produces wavy edges. Re-verify entry guide alignment and coil positioning on the mandrel. Ensure the coil itself isn't damaged—edge damage from handling creates feeding irregularities.
• Cutting blade fails to shear cleanly: Dull blades or an incorrect blade gap create ragged cuts. Inspect blades for wear; Cr12MoV tooling typically requires sharpening every 6-8 months under normal production volumes. Adjust blade clearance to 0.2-0.3 mm for clean shearing without excessive force.
• Unusual noise during operation: Grinding, squealing, or knocking sounds signal mechanical problems. Stop immediately and investigate. Common causes include inadequate lubrication, loose mounting bolts, or foreign objects caught in the forming path. Never ignore abnormal sounds—they precede expensive failures.

Establishing Maintenance Routines from Day One

To make sure that the output ability is effective, maintenance plans must be followed. Set up habits when you first start up instead of waiting for problems to happen.

A part of the daily routine is to look for damage on the wheels, check the amount of the hydraulic oil, and clear the cutting area of any metal scrap. To get rid of any zinc or covering dust that has built up on the open roller surfaces, wipe them down with a clean cloth. This will also protect other materials from getting scratched.

Aside from making sure the safety systems work, the drive chains are greased and the electrical links are tightened every week as part of maintenance checks. Even if there were no problems, check the PLC error logs because diagnostic codes often show signs of problems that are about to happen.

Once a month, you should do deep maintenance. This means putting oil on the roller bearings, checking the hydraulic filters, and making sure everything is set up correctly. As output goes up, vibration and cycles of heat can move parts a little. When realignment is done regularly, the consistency that defines quality output stays the same.

Write down the times, what you saw, and any changes you made for all the repairs you do. This record is very useful for figuring out patterns of problems and proves that the right steps were taken to get quality certifications like ISO 9001.

Material Considerations for Optimal Results

The AG profile traditionally serves agricultural and post-frame building applications, where durability and weather resistance matter more than aesthetic perfection. Understanding material properties—particularly for 29-gauge and 26-gauge galvanised or Galvalume coils—helps optimise machine settings for this specific panel geometry.

Galvanised steel (ASTM A653) remains the most common substrate, offering corrosion protection through zinc coating. Coating weight affects formability—G90 coating (0.90 oz/ft² per side) provides excellent protection with good forming characteristics. Heavier G115 coating increases brittleness, requiring gentler forming pressures.

Galvalume (ASTM A792) delivers superior corrosion resistance through aluminium-zinc alloy coating, which is particularly valuable in coastal environments or agricultural buildings housing corrosive materials. The alloy's different mechanical properties compared to pure zinc coating necessitate slight roller pressure adjustments—consult your roll forming technology provider for specific recommendations.

Pre-painted materials (PVDF, SMP, or polyester topcoats over primer) demand extra caution, including for the AG panel roll former. Roller surfaces must be immaculate to avoid scratching the finish. Reduce forming speed by 10-15% when first processing painted coils, ensuring adequate time for material to flow around forming radii without coating damage.

Material gauge selection balances structural requirements against cost. The 29-gauge material (0.35mm) suits many residential and light agricultural applications, while the 26-gauge (0.45mm) provides enhanced strength for larger buildings or high wind/snow load zones. Your continuous roll forming machine should handle this range without modification, though roller gaps require verification when changing gauges.

Optimising Production Efficiency While Maintaining Quality

Once you know how to do the basics, you can focus on getting the most work done without sacrificing accuracy or surface finish. Production speed has a direct effect on how profitable and powerful a manufacturing business is.

As the person gets better, slowly speed up the machine. Keep a close eye on the quality of the panel as the speed goes up, because some forming flaws only show up at faster speeds. As making time goes down, material memory effects and spring-back properties become more noticeable. The best speed matches the rate of production against the rate of waste to get the most sellable goods per shift.

Cut down on the time it takes to switch between panel lengths or material specs. Set up PLC memory banks with frequently used settings so that they are easy to find. Physical changes like roller gaps can't be done away with, but switching times can be cut down by following a set of steps. Write down standard working methods that workers with less experience can trust to follow.

Coil output reduction cuts down on trash and lowers the cost of each panel. Set up cutting patterns that leave as little waste as possible; knowing the lengths your customers need lets you do smart stacking. A 1% increase in the amount of materials used directly leads to lower costs when making a lot of things.

With quality control checkpoints, waste doesn't get to the next step. Instead of only checking finished batches, measure panels at regular intervals during production runs. If you notice a measurement shift early, you can fix it before making a lot of products that don't meet standards. Simple "go" or "no-go" gauges speed up inspections so that not every panel has to be measured in great detail.

Conclusion

A successful AG panel roll forming machine setup combines methodical preparation, precise roller gap adjustment for the 36-inch profile, and systematic verification of rib height and anti-syphon groove formation. The initial investment in proper installation establishes a foundation for years of reliable AG panel production. Understanding material behaviour, maintaining equipment diligently, and continuously refining processes separate profitable operations from those struggling with inefficiency and quality complaints. As your experience grows, these fundamentals become second nature, allowing focus to shift towards optimisation and expansion. The knowledge gained during setup serves every subsequent production run, making this learning phase one of the most valuable investments in your manufacturing capability.
