Everything you need to know about the stud and track roll forming machine

A stud and track roll forming machine transforms galvanised steel coils into C- and U-shaped studs and rails. These are crucial to current light-gauge steel frames. Manufacturers may utilise these machines to manufacture precise metal frame profiles at stable rates. They typically handle 16- to 22-gauge material and 3- to 6-inch profile widths. Progressive bending stations convert flat coil material into ASTM C645- and EN 14195-compliant structural shapes with near sizes.

What Is a Stud and Track Roll Forming Machine?

Fundamentals and Working Principles

Buying teams may make better production decisions by understanding these tools. Roll forming involves repeatedly bending metal through roller stations.

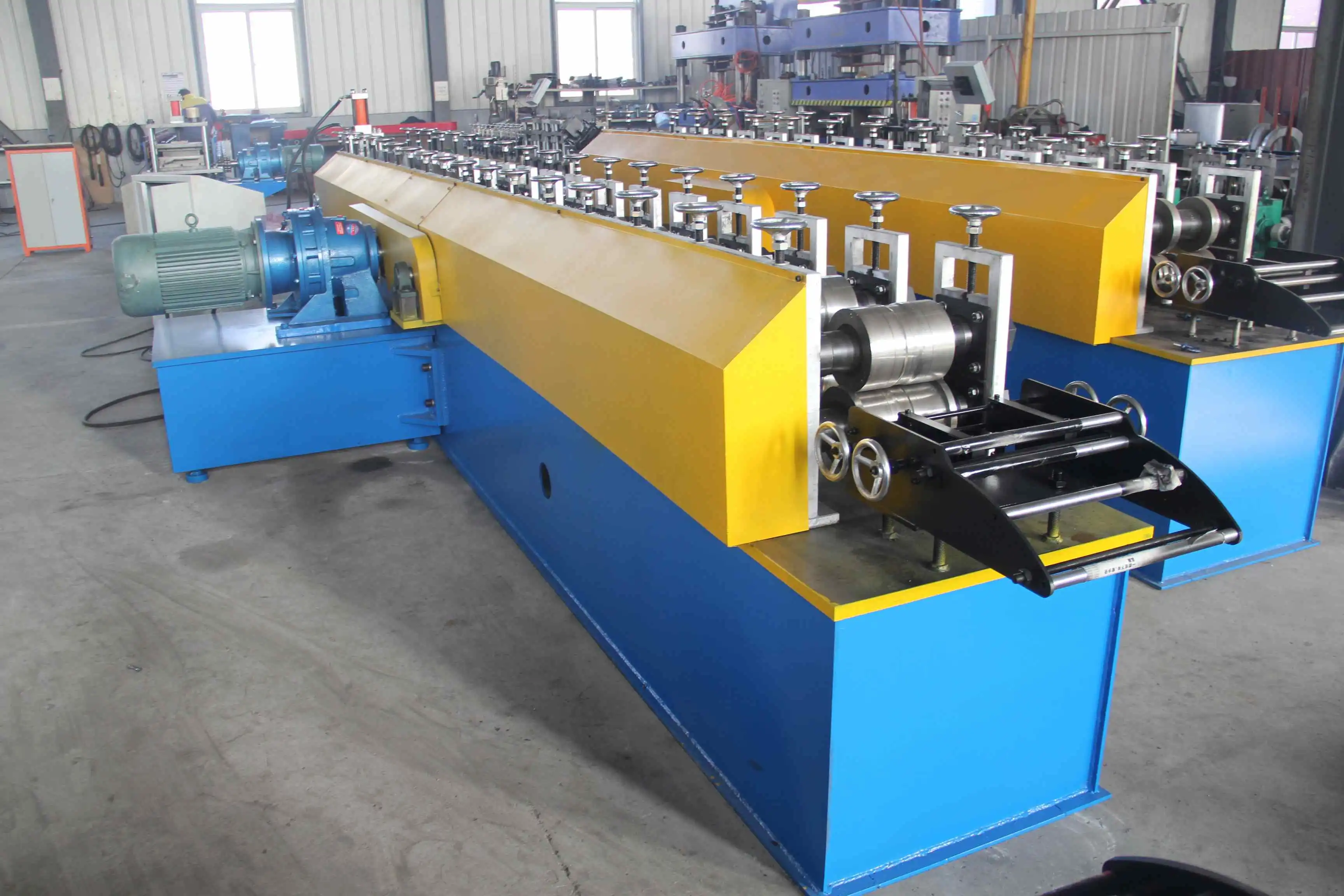

Core Components That Drive Production

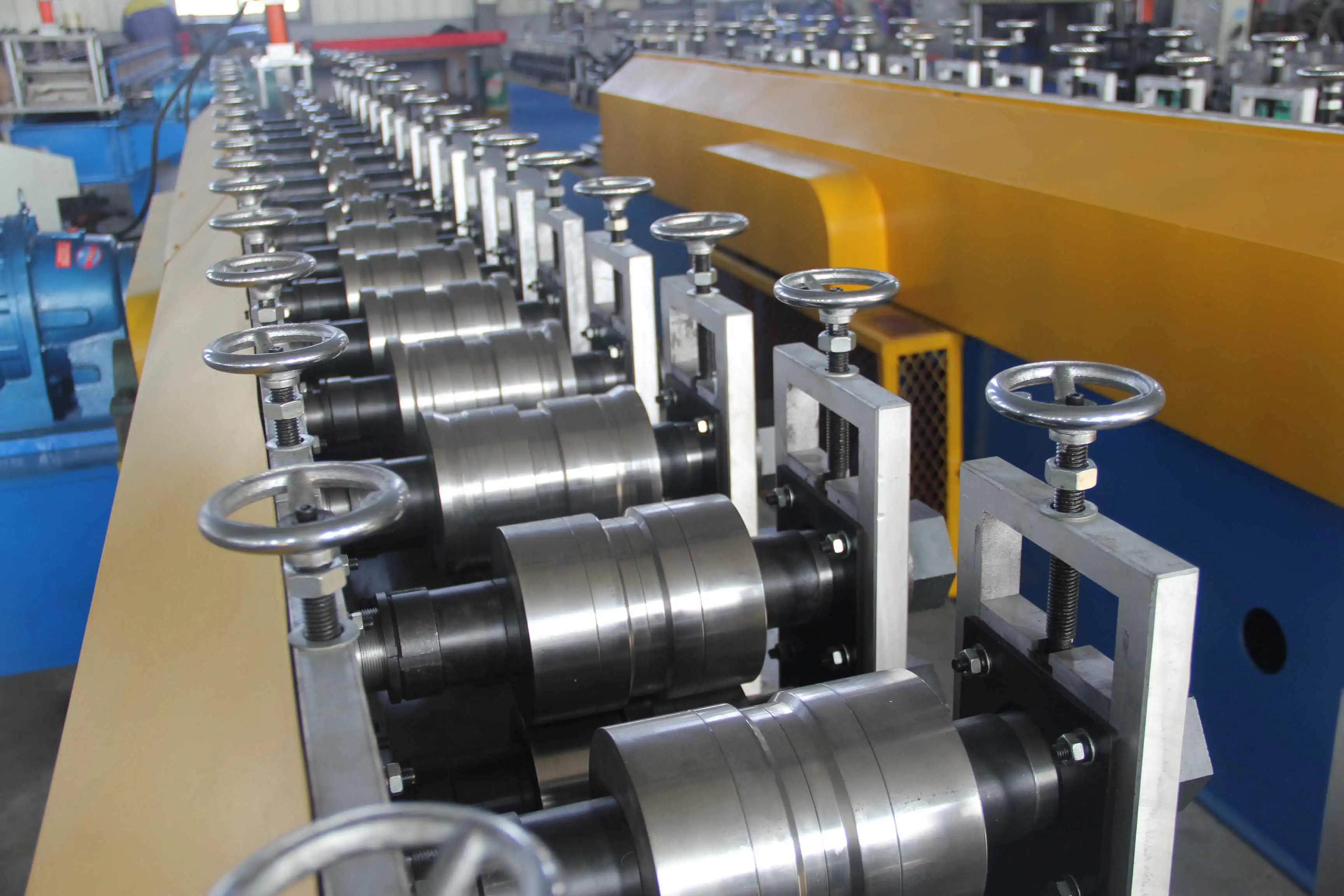

A hydraulic decoiler holds and feeds 2.5 tonnes of coil material. An entry guide system aligns the material before it enters the production stations. Our machines include 100 rows of precision-engineered rollers per layer. Each 45 lb high-grade steel roller is heat-treated to prevent wear over millions of cycles. These rollers progressively bend the metal strip into the desired C-channel or U-track shape.

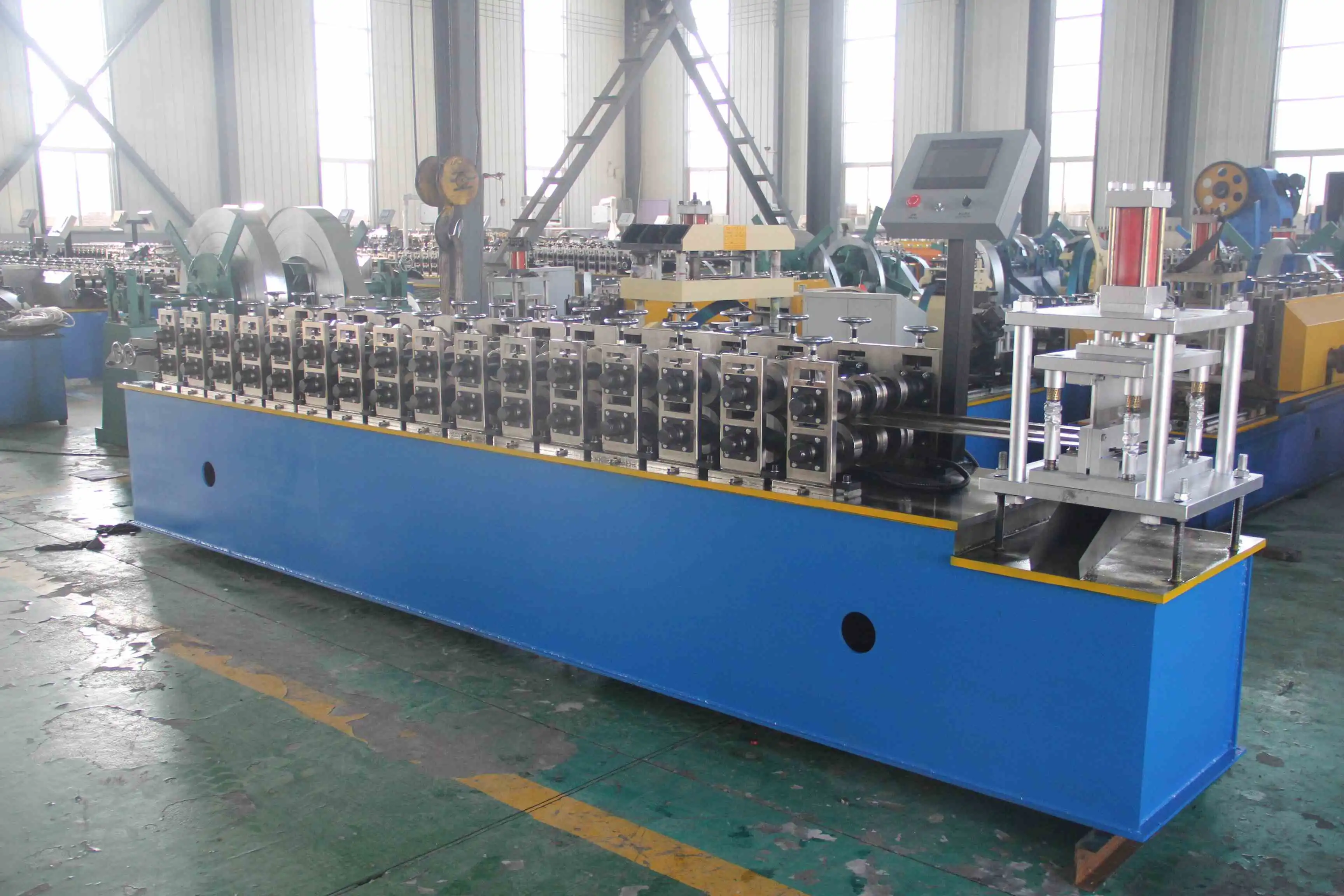

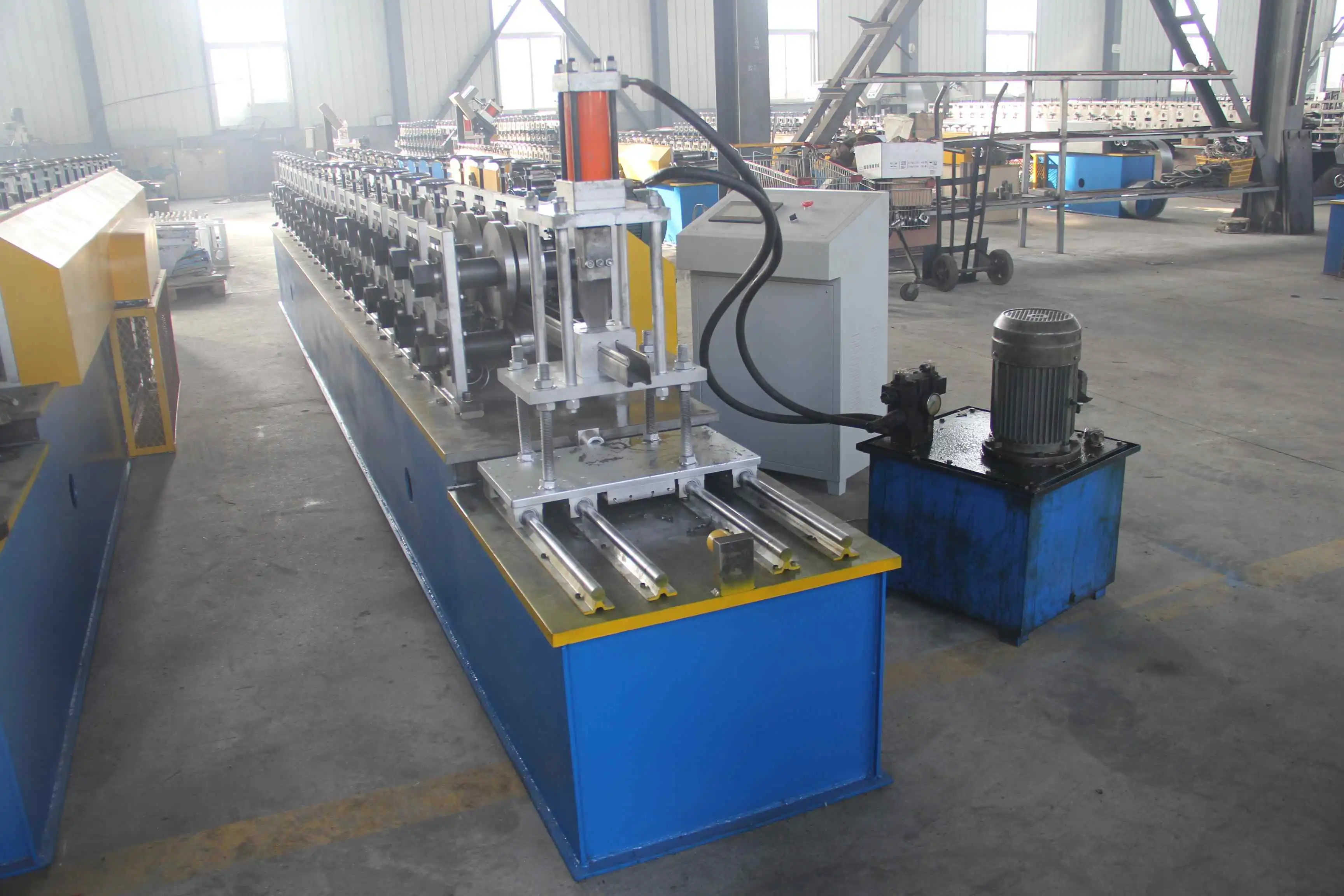

The entire process is managed by a PLC. You specify the length, and the system automatically adjusts feeding speed, roller alignment, and cutting time. The hydraulic cutting device features HRC 55–58 CR12 high-grade steel blades. These blades cut profiles cleanly without distorting or creating burrs that make fitting tougher.

The Progressive Forming Process

Flat material runs through each roller station, where top and bottom dies exert regulated pressure. Station one's edge may bend 15 degrees. Station two raises the curve to 35 degrees and adds a lip form. This gradual form continues at each station until the entire profile geometry is attained. This method takes 9–12 steps, depending on complexity.

This step-by-step procedure prevents material tension from causing cracks or uneven proportions. The chain drive mechanism maintains a steady speed of 8-10 m/min and maintains a size range of ±0.5mm during manufacturing. With that precision, your studs will slot friction-tight into tracks during field assembly without holes that might compromise the construction.

Material Considerations for Optimal Results

Weldable galvanised steel is still the best basis since it doesn't rust. Our machines can handle 80 ksi yield strengths at 1.6 mm thick (16 gauge) G250 and G550 material. Internal wall dividers and ceiling grids that get wet need the zinc coating to prevent corrosion.

For purposes where exterior appearance is less critical, hot-rolled (H.R.) steel is cheaper. But material mechanical properties directly affect the production quality. Spring-back, when produced metal partially returns to its original shape when roller pressure is withdrawn, can be prevented by higher roller pressure and slower speeds.

Benefits and Applications of Stud and Track Roll Forming Machines

When you convert from pressing to roll forming, labour costs and product quality shift. The continuous process eliminates start-stop stages that make pressed pieces difficult and improves material consumption.

Operational Advantages That Impact Your Bottom Line

Roll manufacturing saves 40% more scrap than pressing. Roll forming employs the entire coil thickness, while pressing dies cut sheet stock, leaving waste, and using a stud and track roll forming machine. You just buy what you create, reducing material costs significantly across manufacturing cycles.

Money may be saved by conserving energy. Our 7.5 kW main motor provides stable performance without high-tonnage presses. Running expenses decrease with lower electricity use. This is crucial when utility bills rise or while operating in demand-based locations.

Dimensional reproducibility is constant throughout the coil run. Every form will match the first when roller parameters are established. This homogeneity eliminates die wear issues in printing, where changing dimensions require constant die adjustment or replacement.

Industry Applications Driving Demand

The largest use is commercial buildings. Hospitals, business towers, and government buildings require lots of drywall framing. Our machines produce the vertical pegs and horizontal tracks of non-load-bearing walls that separate offices, hospital rooms, and halls. Profile widths of 3.625 inches and 6 inches accommodate different wall thicknesses, and flange lengths of 1.25 inches to 2 inches provide gypsum board connection locations.

Modular home builders use off-site framing techniques. Roll-formed profiles arrive at assembly plants trimmed to length and with water and electrical holes. This precision enables just-in-time production. Wall panels are assembled horizontally on machines, coated with oriented strand board, then trucked to building sites for speedy installation. Compared to stick-built construction, this saves weeks.

HVAC personnel employ lighter-gauge profiles for duct support systems and equipment mounting frames. Our tools can use 22-gauge steel to build load-bearing support channels at a reasonable cost. Fabricators can swiftly change profile sizes to accommodate a variety of applications without maintaining several manufacturing lines.

Real-World Performance Metrics

Automatic roll forming equipment increased output by 35% for a medium-sized Texas metal building components manufacturer. In their previous pressing company, they manually moved materials and changed dies constantly. Continuous roll manufacturing allowed two operators to do the task of five, eliminating these delays. Lower scrap rates and labour expenses compensated for the equipment in 18 months.

How to Choose the Right Stud and Track Roll Forming Machine for Your Business?

Check the machine's skills against your production volume, product mix, and quality requirements to determine the suitable equipment. Technology that doesn't match limits growth or wastes money on unused capacity.

Production Volume and Automation Level

How much you want to produce each year determines whether manual, semi-automatic, or completely electronic ways are cheaper. Manual tools with length stops can be used by producers doing less than 500,000 linear feet a year. Operators position the material, start the cutting cycle, and remove the pieces. When production runs are small and product mixes vary regularly, this approach works but is laborious.

Semi-automatic systems include programmable length controls, but operators must supply materials and transfer finished items. These machines are affordable and capable for mid-volume producers that operate 500,000 to 2 million linear feet a year. Without expensive automation, you get correct cuts every time.

Fully automated lines with built-in stacking systems benefit enterprises that move over 2 million linear feet of goods annually. Robotic stackers band finished profiles, stage bundles in the warehouse, and count them. This eliminates human handling, which delays manufacturing and increases danger. Labour savings and nighttime output make the larger first investment worthwhile.

Profile Flexibility and Changeover Speed

If your order book includes many profile sizes, you must switch rapidly. In earlier studies and track roll-forming machine processes, switching roller boxes between 3.5-inch and 6-inch profile widths took hours. With today's cassette-style head-making, the stud and track roll forming machine switch takes less than 30 minutes. Precision tracks and hydraulic clamps secure pre-engineered roller sets. This lets you arrange multiple product runs per day without switching duties for whole shifts.

Our machines offer adjustable manufacturing stations for profile widths from 3 to 6 inches and flange heights from 1.25 to 2 inches. Servo-controlled side guides automatically position material strips for varying lengths, and machine adjustments modify the flange. When market demands change or you're seeking to reach new customers with alternative frame sizes, this adaptability preserves your investment.

Evaluating Supplier Capabilities Beyond Machine Specifications

Technical specifics matter, but project success depends on supplier support. Operators receive thorough training on setup, maintenance, and simple repairs. Your team learns to recognise worn parts before they cause quality issues and utilise changes to maintain dimensions as rollers wear down over millions of rotations.

You can relax with worldwide after-sales support for manufacturing issues. Because we serve over 150 countries, our technical assistance channels respond rapidly worldwide. Replacement parts from local distribution sources reduce downtime when worn out. Our ISO9001, CE, and CAS certifications demonstrate our commitment to quality control methods that ensure all of our machines meet high standards.

Maintenance, Troubleshooting, and Safety Guidelines for Optimal Performance

Preventative maintenance programmes safeguard your equipment investment from unexpected breakdowns, which can disrupt production schedules and customer commitments.

Daily and Weekly Maintenance Tasks

Operators should inspect roller surfaces daily for deterioration or metal growth. High pressure on rollers can transfer the galvanised coating to them, leaving elevated patches where the next profile begins. These layers can be removed with a clean mineral spirits-soaked towel before setting. Check the cutting blade sides for chips or dull places that make the cut ends harsh and require deburring.

Lubrication points must be checked weekly. Regular lubrication extends the life and power of sealed O-ring chains in the chain drive system. Lubricate the chain when the machine is sluggish. This allows oil to thoroughly coat the pins and bushings. Grease-plugged shaft bearings. Fill the bearings with lithium-based oil until a little resistance is felt, but don't overpack to avoid seal damage.

Monthly and Quarterly Maintenance Protocols

Hydraulic systems are serviced monthly. Check the tank's oil level and hoses for wear or cracks that might kill. Hydraulic fluid should be clear yellow. Dark or foggy fluid is polluted and must be replaced immediately. The manufacturer recommends cleaning or replacing input filters every 500 hours.

Roller position is checked every three months. Even slight misalignments produce dimensional shifts that worsen over time and aren't observed until consumers remark. Use precise measurement equipment to ensure roller gaps match technical criteria everywhere. Plan your mounting bolt adjustments and check the balance after each modification to avoid over-correcting and causing issues on the opposite side.

Common Issues and Resolution Strategies

Poor coil tension causes inconsistent material flow. Too much force somewhat stretches the material, which grows as it moves through the production stations. The material weaves horizontally, creating wavy profiles when tension is low. Set the decoiler brake to maintain back-tension. The fabric should draw smoothly without jerking.

If the cut length changes more than allowed, the encoder or cutting wheel is broken. Encoder data on material movement tells the PLC where to cut. Loose encoder bases or unclean sensor wheels cause inaccurate readings. Securely attach and clean encoder parts. The blade falls more slowly in hydraulic cutting cylinders with internal seal breaches. This advances the material before cutting. Cutting is crisp again after replacing the seal.

Safety Protocols That Protect Your Team

Operators are trained to recognise pinch areas near cutting instruments and roller stations. Emergency stop buttons along the machine can be swiftly triggered if clothes or body parts approach danger zones. Lockout/tagout prevents equipment from starting accidentally during maintenance. Turn off electrical power and hydraulic pressure before working inside the enclosure.

Workplaces with noise above 85 dB (including stud and track roll forming machines) need safety glasses, steel-toed boots, and hearing protection. Worker safety is protected by cut-resistant gloves, but workers should never wear them near moving parts since the fabric might catch and drag them into the machine.

Conclusion

Modern buildings require accuracy, speed, and efficiency, which roll-forming technology has provided light-gauge steel frame manufacturers. The machines make uniform-sized studs and tracks from galvanised steel strips. These support corporate buildings, modular houses, and industries worldwide. Know how much you'll create, make sure the supplier can do more than what's advertised, and calculate the entire cost of ownership instead of simply the purchase price to get the correct instruments. Correct maintenance preserves product quality measures and extends tool life. Working with well-known manufacturers that give comprehensive training, global part support, and timely professional advice will ensure your investment lasts.

FAQ

1. What distinguishes roll forming from stamping for metal framing production?

Roll forming makes continuous curves by rolling coil stock via roller stations. Stamping uses dies to punch items from flat sheets. Roll manufacturing uses the entire coil width to make the completed product, which improves consistency, speed, and material utilisation by 40%. Skeletal waste results from punching and stamping sheet stock forms. Roll forming is preferable for high-volume manufacturing, whereas stamping is better for short runs of intricate forms that require embossing or many holes that progressive forming cannot add.

2. Can one machine produce both studs and tracks?

The flange direction, not the geometry, distinguishes stud and track shapes. Wallboard panels fit into C-channel studs' inward-turning flanges. However, U-channel tracks include outward-facing flanges to grab stud ends. Modern roll forming machines employ adjustable tools or quick-change boxes for both forms. When exchanging profiles, skilled workers require 20–30 minutes to exchange roller sets and guides. This offers flexible production scheduling that can adjust to changing demand without setting aside machines for each profile type.

3. How long does typical equipment last with proper maintenance?

Good roll manufacturing tools last 15–20 years if maintained. Depending on material thickness and hardness, cutting blades should be replaced every 200,000–300,000 cuts. Drive systems and structural frameworks seldom wear out. Forming rollers deteriorate over millions of rotations. Dimensional tracking shows when roller wear exceeds acceptable limits, requiring refurbishment or replacement every 5 to 7 years in high-volume operations. Lubricating, replacing bearings rapidly, and cleaning the hydraulic system can prevent early failure and decrease its lifespan.

Partner with ZTRFM for Your Metal Framing Production Needs

ZTRFM has over 10 years of cold-roll-forming tool experience and can help with production issues. ISO9001, CE, and CAS certifications and successful installations in over 150 countries are our stud and track roll forming machine manufacturers. We understand that equipment is expensive. Our staff consults with you to understand your production demands, facility constraints, and growth projections before offering solutions.

Our technical staff helps ensure that equipment configurations fit your objectives, from profile size to automation, whether you're starting new metal framing operations or expanding existing ones. Contact us at zhongtuorollforming@gmail.com to learn how our precision-engineered roll forming solutions may help your business produce more and compete.

References

1. American Iron and Steel Institute (2021). Cold-Formed Steel Framing Design Guide. Washington, DC: AISI Committee on Specifications.

2. Halmos, G.T. (2006). Roll Forming Handbook. Boca Raton: CRC Press, Taylor & Francis Group.

3. Yu, W. & LaBoube, R.A. (2010). Cold-Formed Steel Design (4th ed.). Hoboken: John Wiley & Sons.

4. Bhattacharyya, D., Smith, P.D., Yee, C.H. & Collins, I.F. (1984). The prediction of deformation length in cold roll-forming. Journal of Mechanical Working Technology, 9(2), 181-191.

5. ASTM International (2020). ASTM C645-20: Standard Specification for Nonstructural Steel Framing Members. West Conshohocken: ASTM International Standards Organization.

6. Lindgren, M. (2007). Cold roll forming of a U-channel made of high strength steel. Journal of Materials Processing Technology, 186(1-3), 77-81.
