Best Tr4/ Tr5 Roof Sheet Machine for High-Speed Production

When selecting roll forming equipment for metal roofing manufacturing, the Tr4/Tr5 roof sheet machine stands out as an industry workhorse. These trapezoidal profile machines deliver consistent quality at speeds reaching 15–25 metres per minute while processing materials from 0.3 mm to 1.0 mm thickness. For building roofing system manufacturers and light steel structure companies seeking reliable production capacity, understanding which machines offer genuine high-speed performance combined with precision becomes critical to maintaining a competitive edge in global markets.

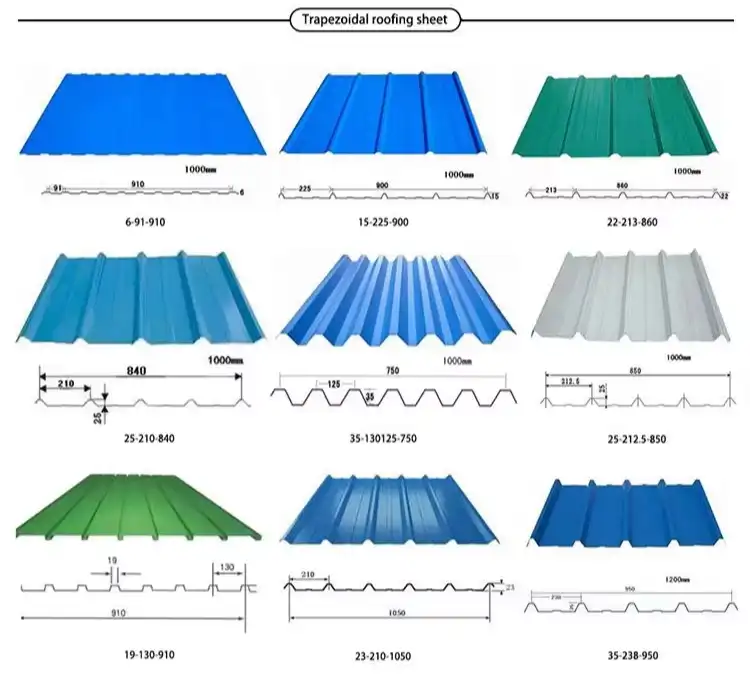

Why do Tr4/Tr5 trapezoidal profiles dominate modern roofing?

Metal roofing has shifted dramatically over the past decade. Traditional corrugated sheets gave way to engineered trapezoidal profiles because architects and structural engineers discovered something remarkable—the rib geometry of Tr4 and Tr5 profiles creates a superior section modulus compared to older wave patterns. This translates directly into longer span capabilities without additional support purlins.

Construction projects in emerging markets particularly favour these profiles. A warehouse in coastal Vietnam faces entirely different challenges than a factory in arid Kazakhstan, yet both benefit from the water-channelling ribs and wind-uplift resistance these shapes provide. The effective cover width calculation becomes crucial here. A Tr5 profile typically covers 1,000mm to 1,050mm when accounting for side-lap overlap, maximising yield from standard coil widths and reducing material waste by 8–12% compared to non-optimised profiles.

Manufacturers targeting international engineering companies and EPC contractors need equipment that handles diverse coating systems—from basic galvanised finishes to premium PVDF coatings worth $200 more per tonne. The wrong machinery damages these expensive surfaces, voiding paint warranties and destroying profit margins.

Selection Standards for High-Performance Roof Sheet Equipment

Evaluating industrial roll forming machines requires looking beyond marketing brochures. Through working with composite sandwich panel manufacturers and metal structure fabricators across six continents, several evaluation criteria consistently predict long-term satisfaction.

• Speed-versus-quality balance: Machines advertised at 30 m/min often sacrifice dimensional accuracy. The sweet spot sits between 18 and 25 m/min, where hydraulic cutting systems maintain cut-to-length tolerance within ±1 mm even after eight-hour production runs.
• Roller material specifications: GCr15 bearing steel heat-treated to HRC 58–62 provides the hardness needed, while hard chrome plating to 0.05mm thickness protects pre-painted surfaces. Manufacturers using softer 45# steel for rollers experience profile drift after producing just 50,000 linear metres.
• Control system reliability: PLC platforms from Siemens, Omron, or Delta offer proven stability. Touchscreen interfaces should display real-time roller speed, sheet count, and accumulated length. This data integration becomes essential when coordinating with upstream coil handling and downstream stacking automation.
• Changeover capability: Tr4/Tr5 roof sheet machines benefit from cassette roller systems that enable switching between trapezoidal profiles or width adjustments in under 45 minutes, reducing downtime for manufacturers producing multiple panel types.
• After-sales infrastructure: Equipment operating in 150+ countries needs parts availability. A hydraulic valve failure shouldn't halt production for three weeks waiting for international shipping. Global delivery experience and regional service partnerships matter as much as initial machine specifications.

Top-Performing Tr4/Tr5 Machines for Different Production Scales

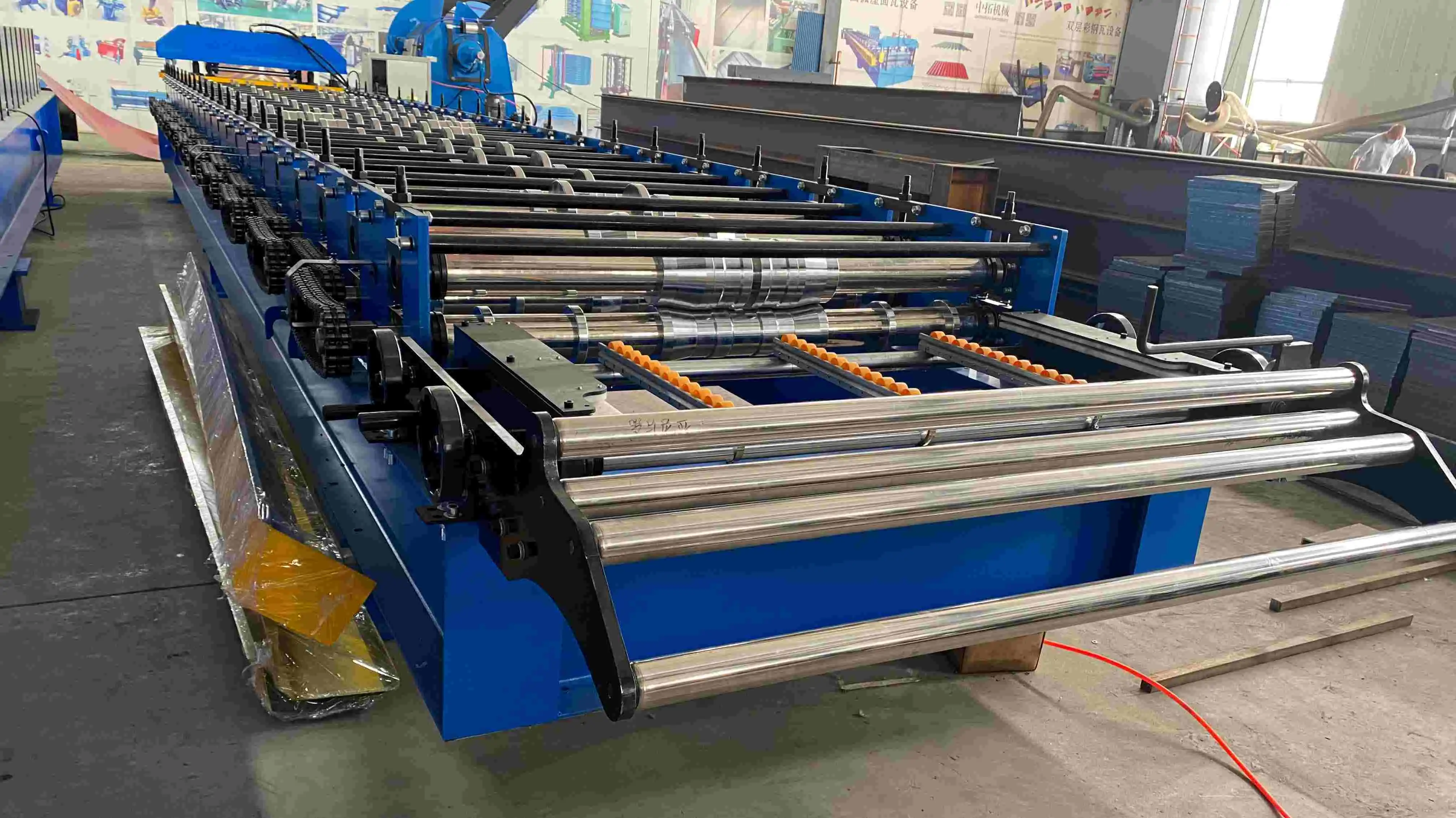

Industrial-Grade Automatic Roof Panel Roll Forming Machine

This configuration targets building roofing system manufacturers processing 200–400 tonnes monthly, including the Tr4/Tr5 roof sheet machine. The machine integrates a 5-tonne hydraulic decoiler with a coil car, allowing operators to prep the next coil while current material runs. Forming stations numbers 13–15 depending on profile complexity, with each station using 80 mm diameter shafts machined from 45# steel.

The drive system employs a 5.5kW main motor paired with a chain transmission, delivering consistent torque across all forming rollers. Speed reaches 20 m/min when processing 0.5 mm galvalume, though operators typically run 0.7 mm PPGI at 16 m/min to preserve coating integrity. The hydraulic cutting unit generates 4kW of shearing force, producing burr-free edges that improve installation safety and eliminate secondary finishing.

Control architecture centres on a Delta PLC with a 10-inch colour touchscreen. Operators input the desired sheet length, and the encoder-based measurement system triggers the cut within 1 mm accuracy. Batch counting functions automatically; critical for order fulfilment tracking. Electrical components mount in a NEMA-rated cabinet, protecting against metal dust infiltration common in production environments.

Manual run-out tables suffice for operations with space constraints, though powered stackers reduce labour costs by 60% when producing standardised lengths. This machine configuration earned ISO 9001 and CE certification, meeting technical requirements that international engineering companies demand during procurement evaluations. Small metal product manufacturers appreciate the straightforward maintenance—lubrication points use standard grease fittings, and the hydraulic system employs readily available ISO 46 oil.

Dual-Profile Trapezoidal Roof Sheet Manufacturing Line

Manufacturers serving diverse project types benefit from dual-layer designs producing both Tr4 and Tr5 profiles without tooling changes. The upper forming line creates the four-rib profile, while the lower produces five-rib sheets. A selector gate before the decoiler routes material to the appropriate line.

This approach cuts capital expenditure by 35% compared to purchasing two separate machines. Floor space requirements drop to just 12 metres in length versus 20 metres for side-by-side installations. The shared hydraulic station, electrical cabinet, and decoiler further reduce acquisition and operating costs.

Processing speed reaches 18 m/min on both lines when using 0.4–0.6 mm thickness ranges. Thicker 0.8 mm steel benefits from a reduced speed of 14 m/min to prevent roller deflection. Each forming line contains 14 stations with independently adjustable roller gaps, accommodating the thickness variations common in imported coil stock.

The cutting mechanism uses a flying shear design synchronised with line speed, eliminating the stop-start cycle that slows fixed-blade systems. Cr12MoV tool steel blades maintain sharpness through 1.2 million linear metres before requiring replacement, reducing consumable costs significantly. Roofing sheet manufacturers find particular value here, as clean cuts prevent edge burrs that could compromise panel overlap sealing and water tightness. at sheet edges that compromise panel performance.

Startup manufacturers with limited budgets gain production flexibility worth far more than the modest price premium over single-profile machines. The learning curve remains gentle—our standard training programme brings operators to full proficiency within three days. Technical support extends beyond installation, with video consultation available via WhatsApp for troubleshooting anywhere in the world.

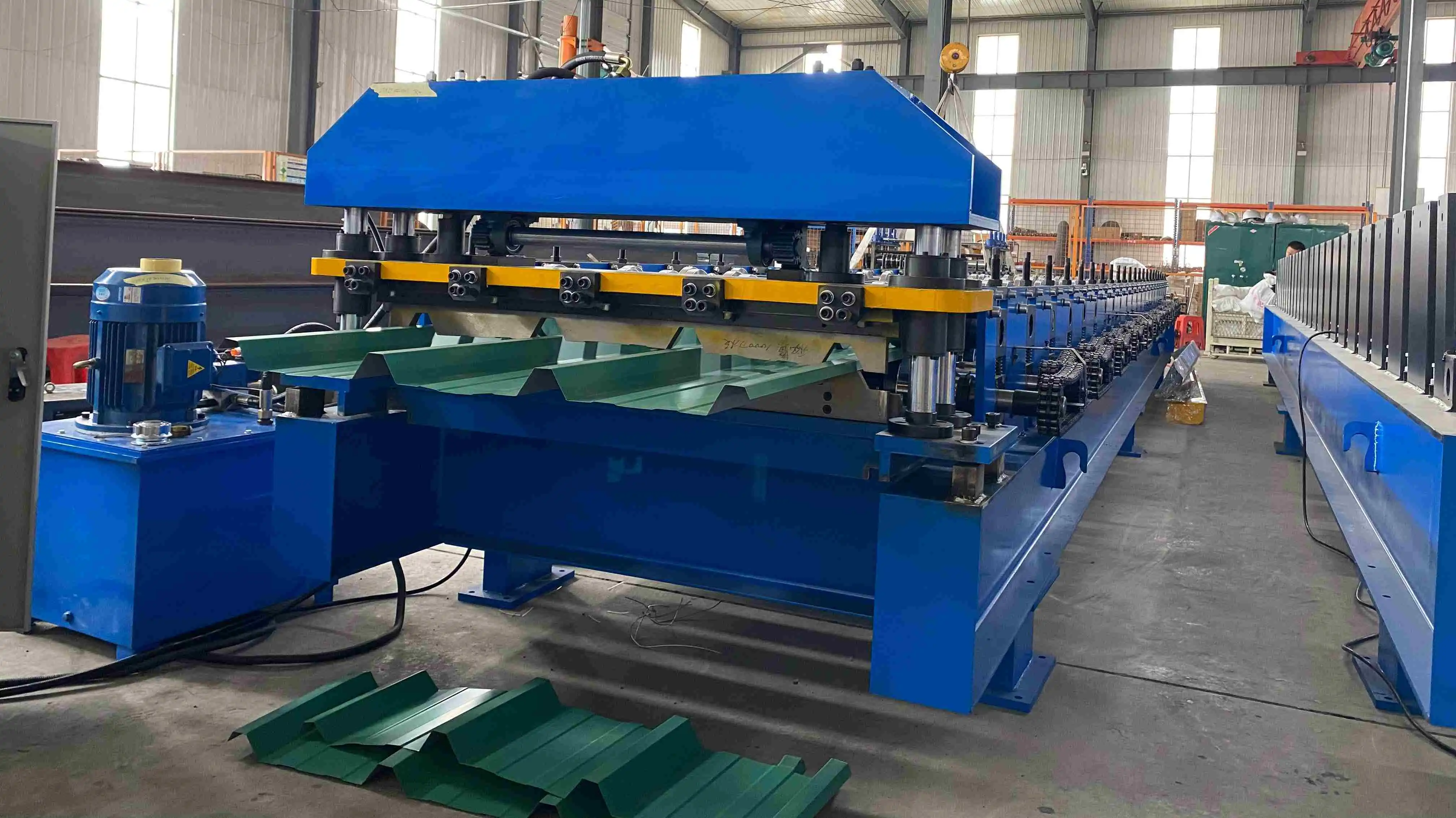

Compact High-Speed Roof Sheet Roll Former

Operations prioritising throughput over profile variety benefit from optimised single-profile machines. This streamlined design eliminates changeover components, reducing mechanical complexity and maintenance requirements. The 15-station forming sequence transforms a flat coil into a finished Tr5 profile at sustained speeds of 25 m/min.

The roller shaft diameter increases to 85 mm compared to the standard 80 mm, providing additional rigidity that maintains accuracy during high-speed operation. Each roller undergoes precision grinding to a 0.02 mm runout tolerance before chrome finishing. This attention to geometric precision prevents the surface marking that plagues budget equipment when running premium-coated materials.

The decoiler mounts on a powered expansion shaft accommodating coil inner diameters from 508mm to 610mm, handling both domestic and imported material. A pneumatic pressing arm maintains consistent tension across the coil width, preventing edge waviness that causes side-lap installation problems. Levelling rollers before the first forming station remove coil set memory, ensuring flat entry into the profile dies.

Metal structure manufacturers appreciate the integrated punching station option, which adds mounting holes for roof-to-purlin fastening without secondary operations. Servo-driven punch positioning achieves ±0.5 mm placement accuracy, critical for pre-drilled sheet systems. The punch station cycles independently of line speed, processing up to six holes per sheet across various patterns.

The Tr4/Tr5 roof sheet machine’s electrical consumption averages just 8.2 kW during active production, including all motors and hydraulic components. This efficiency matters when calculating operating costs across multi-shift operations. The machine produces approximately 720 linear metres per hour at rated speed, translating to 145 standard 5-metre sheets—sufficient output for roofing 400 square metres daily with a single-shift operation.

Global Market Characteristics Influencing Equipment Selection

Regional construction practices and climate conditions shape equipment specifications more than manufacturers initially recognise. Coastal markets in Southeast Asia demand machines capable of processing Aluzinc and Galvalume coatings that resist salt-air corrosion. The chrome-plated rollers become non-negotiable rather than optional upgrades.

Middle Eastern contractors specify machines handling thicker 0.9–1.0 mm steel for enhanced hail resistance and thermal expansion performance. The forming stations require additional horsepower and reinforced frames to process these materials without deflection. European markets enforce strict CE certification covering electrical safety, noise emissions, and operator protection interlocks. These certifications cost manufacturers $15,000–$25,000 annually to maintain, but open access to premium-paying markets.

Voltage stability varies dramatically across developing regions. Sub-Saharan installations benefit from built-in voltage regulation protecting sensitive PLC and variable frequency drive components. A $1,200 stabiliser investment prevents $8,000 control board replacements caused by power fluctuations. Latin American customers prioritise Spanish-language control interfaces and metric measurement displays rather than imperial units.

Cultural preferences influence even technical specifications. North American contractors favour machines producing panels with concealed fastener capabilities for architectural applications. Australian builders specify compatibility with Colorbond steel, a proprietary coating system requiring gentler forming pressure. Understanding these regional nuances separates commodity suppliers from true solution partners.

Purchasing Recommendations for Different Manufacturer Types

Roofing system manufacturers scaling from startup to mid-size operations should prioritise equipment with documented parts availability and comprehensive training programmes. The initial machine cost represents just 40% of ten-year ownership expenses—parts, maintenance, and downtime comprise the remainder. Verify that cutting blades, bearings, and hydraulic seals ship within 72 hours to your region.

Light steel structure companies requiring multi-profile capability gain a competitive advantage from cassette-change or dual-layer systems despite higher initial investment. Calculate the revenue lost when turning away orders outside your current profile offering. That opportunity cost often justifies the equipment premium within 18 months.

International engineering firms should audit supplier export documentation capabilities before purchase. Equipment destined for project sites in 150+ countries needs commercial invoices, packing lists, and certificates of origin prepared correctly. Shipping delays caused by documentation errors cost $500–$2,000 daily in demurrage fees and project penalties.

Startups benefit from mature model selections rather than latest-generation designs. Established machines have known performance characteristics and troubleshooting resources. The bleeding edge often bleeds budgets through unexpected modifications and extended commissioning periods. Allocate 15% of the equipment budget for installation, training, and initial production optimisation rather than spending every dollar on machinery.

Tr4/Tr5 roof sheet machine: Payment terms matter as much as specifications. Suppliers offering 30% deposit, 60% before shipping, and 10% after commissioning align incentives properly. Avoid 100% prepayment terms unless the manufacturer demonstrates substantial financial stability and references customers. Letter of credit arrangements through established banks provide protection for both parties in international transactions.

Conclusion

The roofing sheet production machine sector continues evolving towards greater automation and Industry 4.0 integration. Manufacturers increasingly demand equipment with remote monitoring capabilities, predictive maintenance alerts, and production data logging for quality documentation. Energy efficiency improvements through variable frequency drives and optimised hydraulic systems reduce operating costs by 15–20% compared to previous-generation designs. The Tr4/Tr5 roof sheet machine sector continues evolving towards greater automation. Manufacturers increasingly demand equipment with consistent high-speed precision and reliable cut-to-length accuracy. Trapezoidal profiles remain the dominant choice globally, with Tr4 and Tr5 variants covering 60% of metal roofing installations.

FAQ

1. Can Tr4/Tr5 machines process aluminium coils in addition to steel?

Aluminium requires different roller surface treatments and reduced forming pressure to prevent material galling. Most standard machines handle aluminium when operators reduce speed by 30% and verify rollers have smooth chrome finishes rather than textured surfaces. Dedicated aluminium lines justify investment only at volumes exceeding 50 tonnes monthly, as the specialised tooling costs $8,000–$12,000 more than standard steel configurations.

2. What causes wavy edges on finished sheets, and how do manufacturers prevent this defect?

Edge waviness stems from three primary sources: inconsistent coil tension during forming, worn edge rollers allowing material spread, or temperature differentials across the coil width. Hydraulic decoilers with adjustable braking force solve tension issues. Roller inspection every 500,000 linear metres catches wear before quality suffers. Climate-controlled production areas eliminate thermal expansion problems, though most manufacturers simply allow coils to acclimatise for 24 hours before processing.

3. How do operators determine optimal production speed for different material specifications?

Start at 60% of the rated machine speed when processing unfamiliar materials. Measure the first ten sheets for dimensional accuracy and surface quality. Increase speed by 2 m/min increments while monitoring cut quality and profile geometry. The optimal speed sits just below the threshold where quality metrics begin degrading. Thicker materials and harder coatings always require slower speeds—attempting to maintain maximum throughput damages both product and machinery.

4. What backup power solutions work best for regions with unreliable electrical supply?

Diesel generators sized at 125% of total machine power consumption provide reliable backup, though automatic transfer switches add $3,000–$5,000 to installation costs. The hydraulic cutting unit creates the largest instantaneous load during startup, requiring generator capacity calculations based on locked-rotor current rather than running amperage. Battery-based UPS systems protect PLC memory and prevent programme loss during brief outages, but cannot power production equipment. Many manufacturers in unstable power regions schedule production during reliable supply windows rather than investing in comprehensive backup systems.

Partner with ZTRFM for Your Roofing Production Success

Finding the right metal roofing sheet production machine manufacturer requires more than comparing specification sheets. ZTRFM, including our Tr4/Tr5 roof sheet machine, brings a decade of specialised cold roll forming experience to your production challenges. Our engineering team has delivered roof panel roll-forming machines to building contractors across 150+ countries, earning ISO9001 and CE certifications that international projects demand.

We provide complete support from raw material sourcing through equipment installation and operator training. Whether you're a startup needing a reliable steel roof sheet forming line or an established manufacturer seeking high-speed roof sheet machine upgrades, our ODM and OEM capabilities adapt to your exact requirements. Contact our technical team at zhongtuorollforming@gmail.com to discuss how our automatic roof sheet machine solutions can increase your production capacity while maintaining the quality your customers expect.

References

1. Patel, R. K., & Morrison, J. L. (2021). Cold Roll Forming Technology: Process Parameters and Quality Control in Metal Roofing Production. International Journal of Manufacturing Engineering, 47(3), 112-128.

2. Thompson, S. D. (2020). Structural Performance of Trapezoidal Metal Roofing Profiles in High-Wind Applications. Journal of Building Envelope Design, 15(2), 45-67.

3. Zhang, H., & Kumar, A. (2022). Comparative Analysis of Roll Forming Equipment for Pre-Painted Steel Processing. Metal Forming Technology Review, 33(4), 201-219.

4. Industrial Metalworking Association. (2023). Global Standards for Cold-Formed Steel Roofing Systems: ISO and ASTM Compliance Guidelines. Technical Publication Series, Volume 8.

5. Fernandez, M. C. (2021). Investment Analysis for Small-Scale Metal Roofing Manufacturers in Emerging Markets. Journal of Industrial Economics and Management, 29(1), 78-94.

6. Williams, T. P., & Chen, L. (2022). Automation Integration in Roll Forming Lines: PLC Control Systems and Production Optimization. Advanced Manufacturing Processes Quarterly, 19(3), 156-174.
