Understanding CZ Purlin Roll Former: A Beginner's Guide

If you're stepping into the world of steel structure manufacturing, understanding the CZ purlin roll former becomes essential. This intelligent cold-forming equipment produces both C-shaped and Z-shaped steel purlins on a single machine platform, eliminating the need for multiple production lines. Unlike older mono-functional machines that required hours of downtime for profile changes, modern automated systems switch between profiles in under 10 minutes through computer-controlled positioning. This capability addresses a critical bottleneck for manufacturers seeking production flexibility while maintaining dimensional accuracy and minimising operational costs.

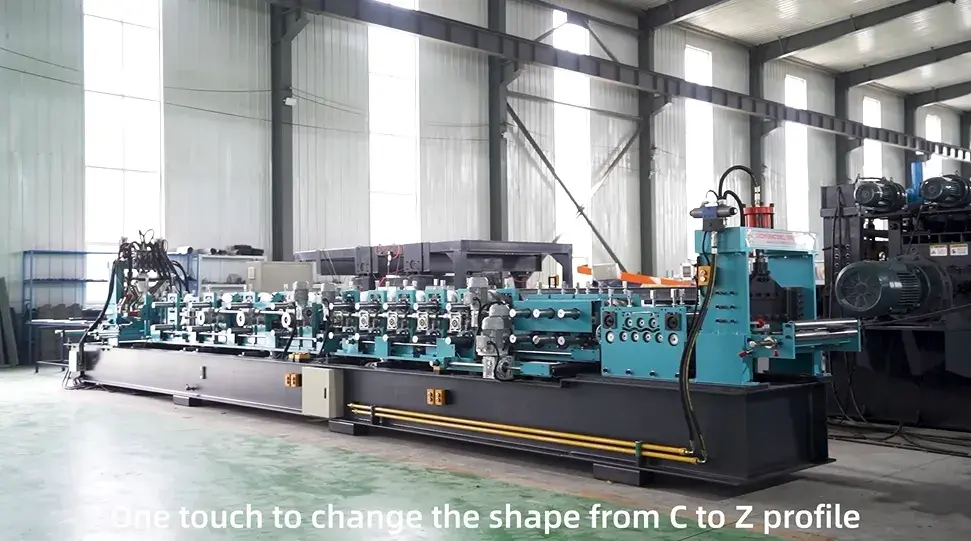

What Defines a CZ Purlin Roll Forming Machine?

When it comes to making structural steel parts that are used in building frames, the CZ purlin roll forming is a very advanced piece of machinery. This machine has a clever guideway system or spinning station device that lets it quickly switch between different profile shapes without taking apart any of the tools.

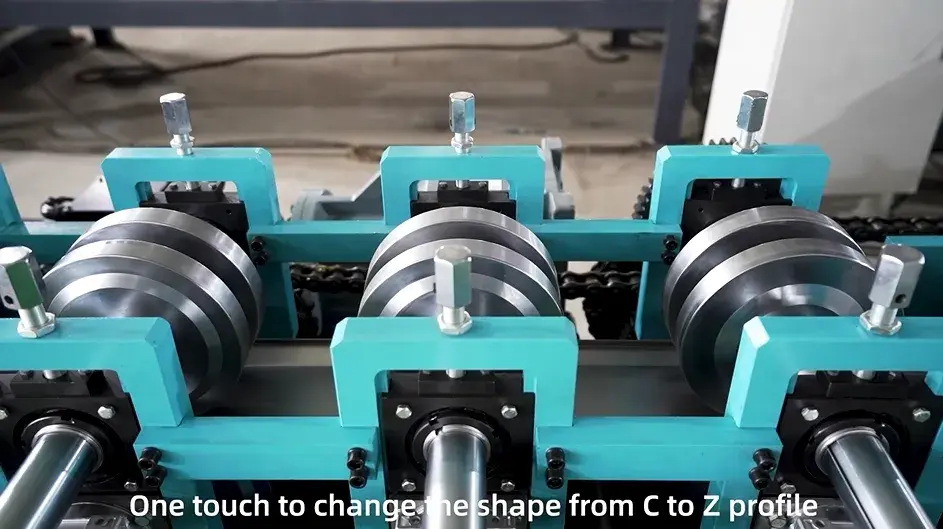

At its core, this piece of machinery uses coils made of stainless steel to slowly make flat materials into perfect C or Z forms at several roller stations. It ranges from 15 to 22 feet per minute most of the time, but it depends on how thick and complicated the material is. Height changes can be made from 40mm to 100mm and width changes can be made from 80mm to 300mm, depending on how the machine is set up.

The main difference between basic units and advanced models is that advanced models can handle chores. Computer-controlled systems have programmable logic settings that make sure the rollers are in the right place and that the cutting and punching work together. Servo motors make sure that the feeding is exact to within ±1.0 mm. This is very important for long production runs because it keeps the quality of the product the same.

Most of the time, GCr15 die steel is used for the shaft. This steel is fired until it has an HRC value of 58 to 62. It is ensured by this standard that high-tensile steels like G450 or G550 last a long time. These steels have strong spring-back qualities when they are formed.

Critical Applications Across Industrial Sectors

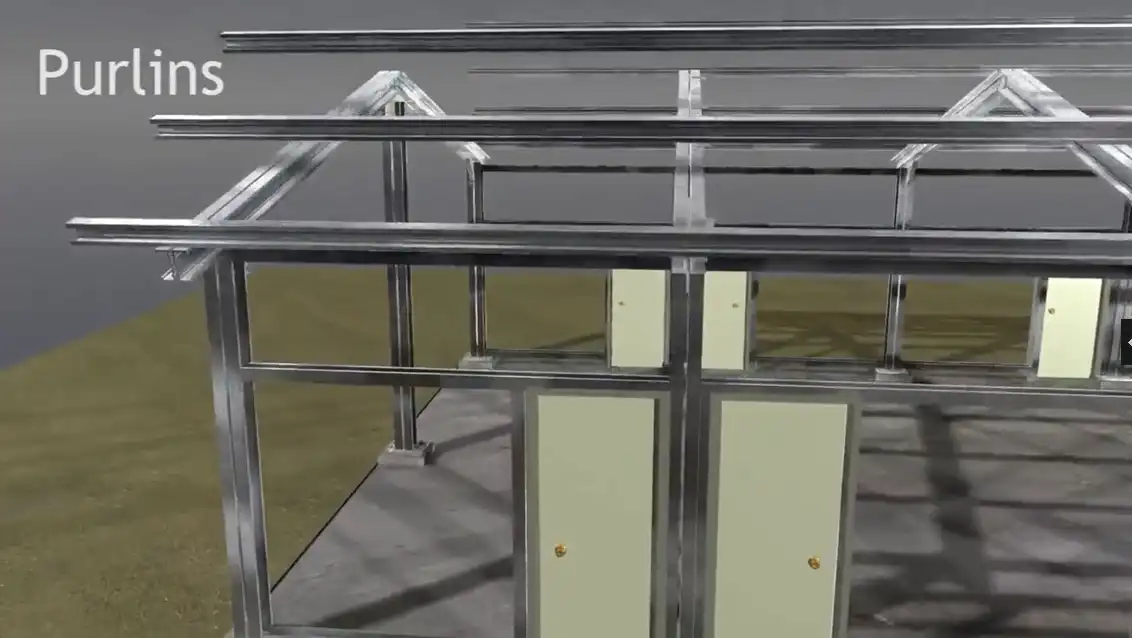

Pre-engineered building manufacturers rely heavily on this equipment to produce secondary structural framing for warehouses, factories, and distribution centres. The machine's ability to create Z-profile purlins enables lapping connections, which distribute loads across wider bay spacings compared to simple C-sections. This structural advantage reduces overall steel consumption while maintaining load-bearing capacity.

Solar mounting structure fabricators utilise roll forming lines to manufacture heavy-gauge sections for photovoltaic ground installations. These applications demand equipment capable of handling hot-dip galvanised coils with thick zinc coatings reaching 600 g/m² without surface damage. The corrosion resistance provided by intact galvanisation proves essential for outdoor installations exposed to environmental stressors over decades.

Agricultural infrastructure projects benefit from the customisation flexibility these machines offer. Poultry houses, livestock barns, and storage facilities often require non-standard profile dimensions to accommodate specific ventilation systems or architectural designs. The rapid changeover capability allows manufacturers to economically produce small batches of custom sizes without sacrificing production efficiency.

Metal fabrication shops serving diverse markets appreciate the versatility of equipment like the CZ purlin roll former for producing support brackets, shelving systems, and industrial structural components. Integrated punching stations create mounting holes at precise intervals, eliminating secondary operations and reducing handling costs.

Engineering Specifications That Matter

When evaluating a purlin roll forming machine, several technical parameters directly impact long-term performance and product quality. Roller material selection stands paramount—high-grade Cr12MoV or GCr15 die steel resists wear from continuous contact with abrasive galvanised surfaces. Insufficient hardness leads to groove deformation, causing dimensional drift that manifests as profile inconsistencies.

Shaft diameter and material composition determine the machine's ability to maintain alignment under forming loads. Solid steel shafts manufactured from 40Cr alloy, ranging from 70mm to 90mm in diameter, prevent deflection that would otherwise compromise product straightness. Hollow shafts or undersized components introduce flexibility that accumulates across multiple forming stations, resulting in twisted or bowed profiles.

Drive system architecture influences both speed capability and maintenance requirements. Heavy-duty gearbox transmissions synchronised with servo motor feeding systems deliver consistent material advancement regardless of coil tension variations. Chain drive arrangements offer cost advantages but require more frequent adjustment to maintain timing accuracy.

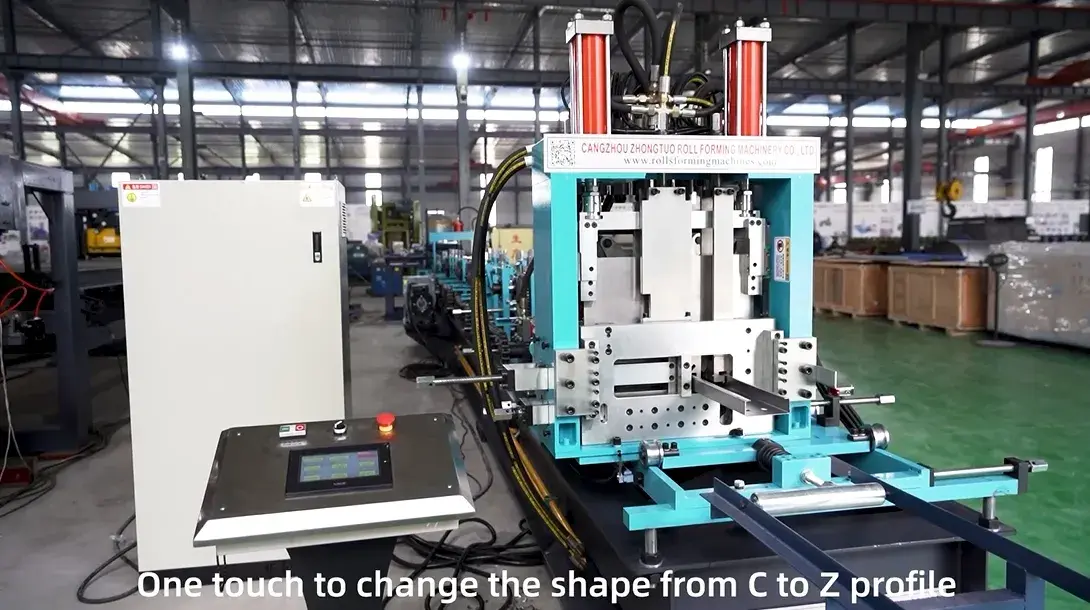

Cutting technology represents a critical decision point. Post-cutting systems, often called flying shears, sever profiles after complete formation, producing clean ends without distortion. These hydraulic units adjust automatically to accommodate different profile geometries, eliminating manual blade changes. Pre-cutting methods process material before forming, which accelerates production but may leave distorted ends requiring secondary trimming.

The PLC control platform determines operational ease and changeover efficiency. Systems utilising Siemens or Mitsubishi controllers with intuitive HMI interfaces allow operators to input new dimensions through touchscreen commands. The software calculates roller positions and adjusts stations automatically, reducing setup errors common with manual adjustment procedures.

Addressing Common Production Challenges

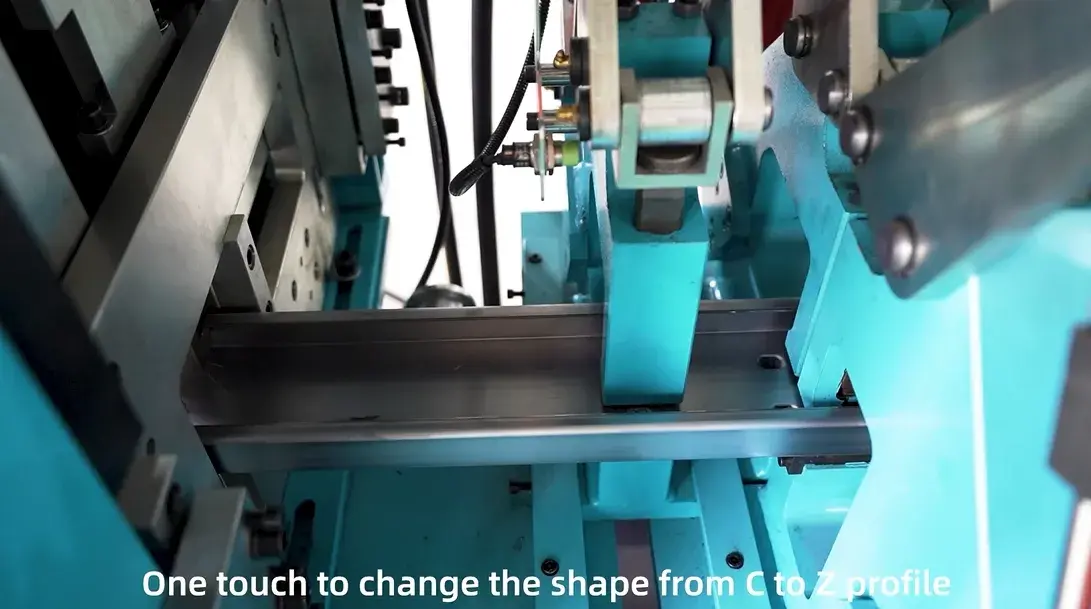

Profile changeover duration directly impacts daily throughput, making this specification crucial for manufacturers serving diverse project requirements. Fully automated CZ purlin roll former lines achieve C-to-Z transitions within 5 to 10 minutes through motorised station positioning. Semi-automatic systems requiring manual rotation of tooling assemblies extend this interval to 30-45 minutes, significantly affecting overall equipment effectiveness.

High-tensile steel processing presents material-specific challenges that demand specialised machine configurations. G550 grade steel exhibits pronounced spring-back after forming, requiring over-forming angles in roller design to compensate. Machines not engineered for high-strength materials produce profiles with dimensional deviations that fail quality standards.

Flange wave defects, appearing as ripples along profile edges, typically result from incorrect roll gap settings or excessive forming pressure. Resolving this issue requires precision adjustment of finishing pass stations or integration of straightening units at the machine exit. Experienced manufacturers recognise that material thickness variations within industry tolerances necessitate periodic gap verification to maintain consistent results.

Punching system architecture affects both production speed and hole accuracy. Traditional stop-to-punch mechanisms halt material advancement during each hole creation, reducing effective line speed. For CZ purlin roll formers, servo-driven continuous punching or rotary crunching technologies maintain material flow while creating holes, preserving throughput rates of 20-25 metres per minute.

Cutting surface quality impacts both worker safety and assembly efficiency. Burr-free cuts eliminate injury risks during handling and ensure proper fitment during construction. Hydraulic cutting pressure, blade sharpness, and cutting speed synchronisation all contribute to achieving clean severing.

Quality Verification Standards

Dimensional tolerance verification forms the foundation of quality assurance protocols. Web width and flange measurements must fall within ±1 mm specifications to ensure compatibility with standardised connection hardware. Profile twist, measured over 6-metre lengths, cannot exceed 1 mm per metre to facilitate straightforward installation without field adjustments.

Hole punching accuracy receives particular scrutiny since bolt alignment during construction depends on consistent hole positioning. Centres must align within ±1 mm relative to profile ends, requiring precise encoder feedback systems and regular calibration verification.

Material yield strength testing validates that machine structural components withstand forming forces without permanent deformation. Running full-specification high-tensile material through all forming stations reveals inadequate frame rigidity or undersized shaft diameters that might not manifest during light-gauge production.

Surface finish inspection examines the galvanised coating for scratches, scrapes, or zinc removal caused by roller contact. Damaged protective coatings compromise corrosion resistance, reducing service life in exposed applications. Proper roller polishing and gap adjustment minimise surface contact pressure.

PLC logic stress testing simulates extended production runs and rapid parameter changes to identify software glitches or hydraulic system overheating. Continuous eight-hour operation under variable conditions exposes reliability issues that shorter test periods might miss.

Investment Considerations for Different Manufacturers

Light steel structure manufacturers producing C and Z purlins require CZ purlin roll formers with rapid changeover and precise dimensional control. A fully automated CZ machine with motorised station positioning achieves C-to-Z transitions in 5-10 minutes, directly supporting daily production of multiple size variations.

Building material suppliers benefit from CZ purlin roll formers offering a broad size range capabilities—height adjustments from 40mm to 100mm and width variations from 80mm to 300mm—to accommodate diverse project requirements without maintaining multiple dedicated lines.

International engineering firms deploying CZ purlin roll formers across multiple project sites prioritise ISO9001 and CE-certified machines with established spare parts distribution channels, ensuring reliable operation and minimised downtime in remote locations.

Startup manufacturers entering metal forming need cost-effective CZ purlin roll formers with simplified maintenance. Machines using widely available components (e.g., 40Cr alloy shafts, GCr15 rollers) reduce spare parts costs and simplify technician training.

Large-scale fabricators integrating CZ purlin production, including CZ purlin roll formers, into broader operations emphasise servo-controlled feeding systems that synchronise with upstream coil handling and downstream stacking, creating continuous material flow for maximum facility utilisation.

Conclusion

Selecting a CZ purlin roll former requires evaluating specific parameters: changeover speed (5-10 minutes for fully automated systems), roller material (GCr15 or Cr12MoV, HRC 58-62), shaft diameter (70-90 mm solid 40Cr alloy), and PLC control architecture. These specifications directly determine the machine's ability to produce C and Z profiles within a ±1.0 mm dimensional tolerance while maintaining production flexibility for structural applications.

Partner with ZTRFM for Reliable CZ Purlin Roll Former Solutions

Manufacturers seeking a CZ purlin roll former should evaluate suppliers based on documented quality systems, global service capabilities, and technical specifications. Key criteria include ISO9001 and CE certification, installed base references, and responsive technical support for automation controls, changeover systems, and dimensional tolerance verification.. Contact zhongtuorollforming@gmail.com to discuss your specific purlin manufacturing needs and receive detailed technical specifications.

References

1. Smith, J.R. & Williams, M.K. (2021). Cold Roll Forming Technology: Principles and Industrial Applications. Manufacturing Press International.

2. Zhang, L., Chen, H. & Roberts, P. (2020). "Automated Changeover Systems in Multi-Profile Roll Forming Equipment," Journal of Manufacturing Systems Engineering, 45(3), pp. 112-128.

3. Anderson, T.D. (2022). Steel Structure Manufacturing: Modern Production Methods. Construction Technology Publishers.

4. Kumar, S. & Patel, R. (2019). "Material Spring-Back Compensation in High-Tensile Steel Forming Processes," International Journal of Metal Forming, 38(2), pp. 67-84.

5. European Committee for Standardization (2020). EN 10162: Cold Rolled Steel Sections - Technical Delivery Conditions. Brussels: CEN Publications.

6. Thompson, G.L., Morrison, K.A. & Lee, S.Y. (2023). Pre-Engineered Building Systems: Design and Manufacturing Considerations. Structural Engineering Press.
