Energy Efficient Roll Forming Machines for Metal Sheets: Save Costs and Boost Productivity

The energy economy is crucial to metal product manufacturing. Modern energy management systems on trapezoidal sheet roll forming machines save power while maintaining production speed and quality. These machines massively reduce expenses and boost output. They use clever motor control, energy-saving automation, and better-designed parts. Modern trapezoidal sheet roll forming machines demonstrate how new technology may save firms money and boost productivity. This applies to global roofing, purlin, and metal structure manufacturers.

Understanding Energy-Efficient Roll Forming Technology for Metal Sheets

Flat metal bands are cold-formed repeatedly to create strong structures with contemporary roll-forming equipment. Production systems that utilise less energy are currently standard and offer several advantages over previous ones.

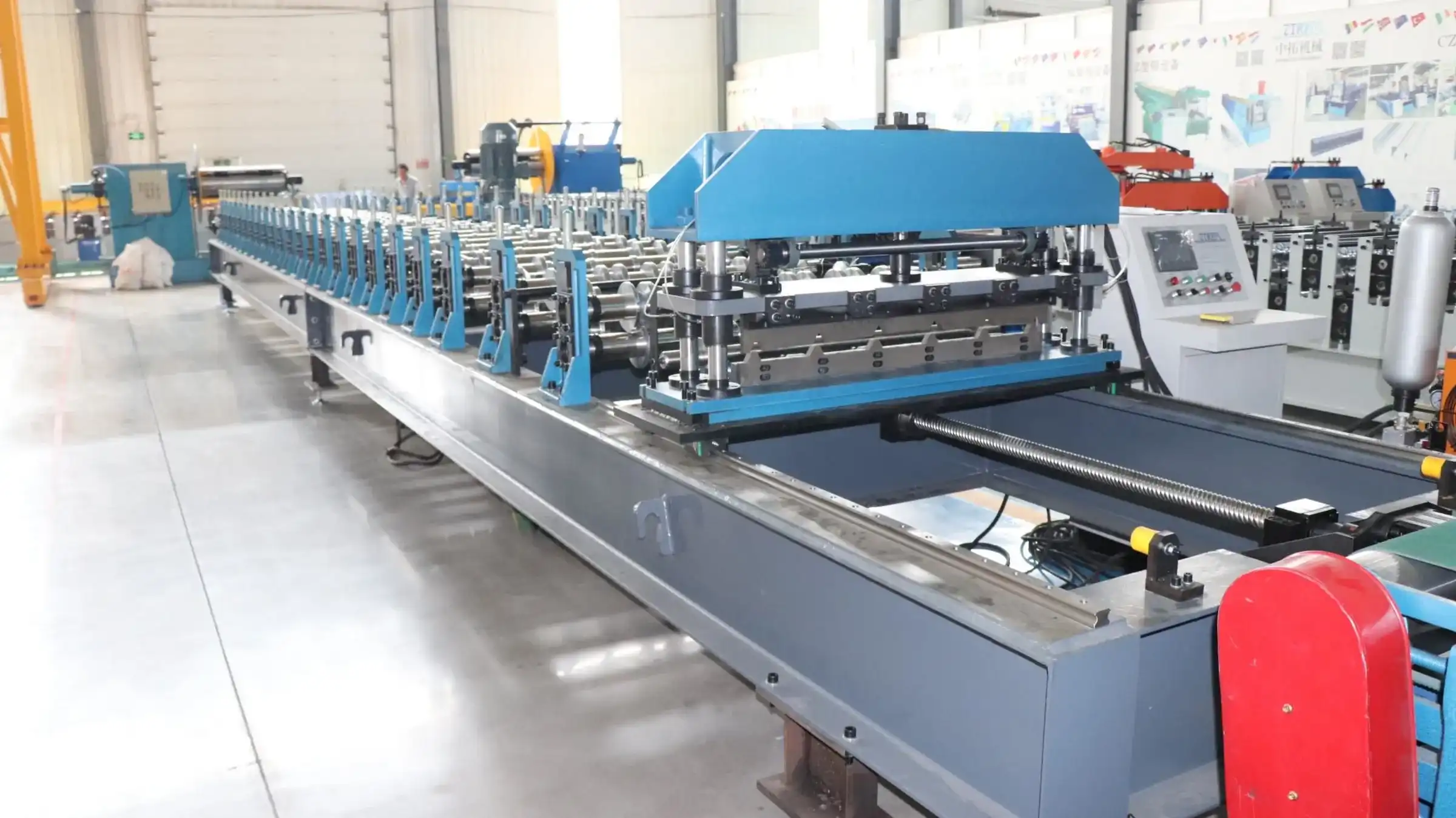

How do trapezoidal sheet roll forming machines work?

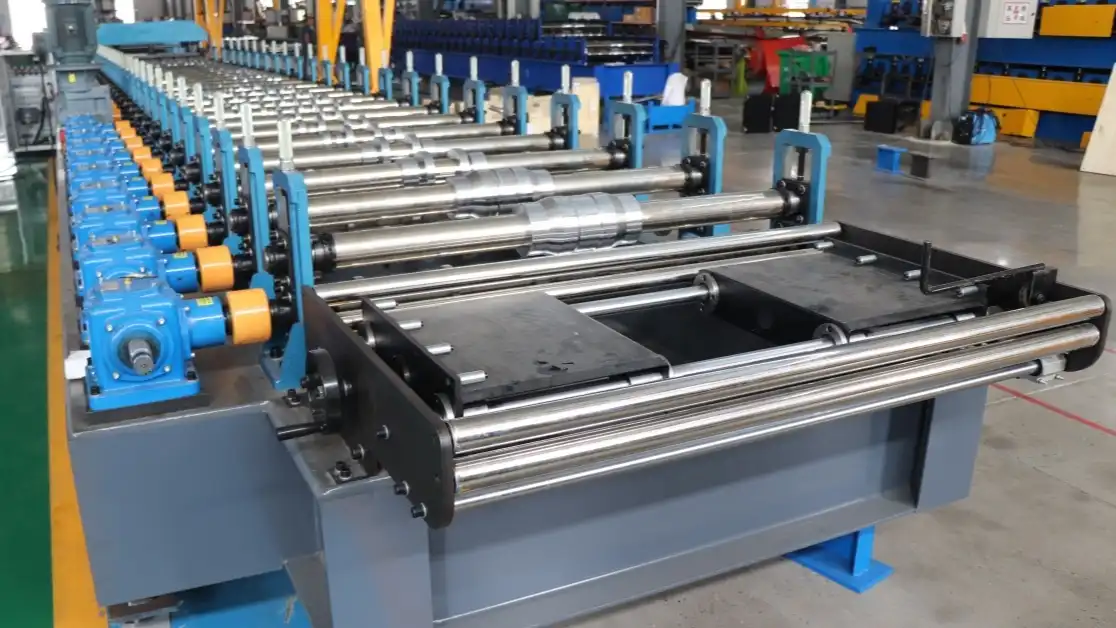

Roller units progressively bend the metal sheet into the desired rectangular form. Our high-speed systems contain 26 roller stations with 45# steel 80 mm rods. This keeps the structure stiff during forming. Each roller has a hard chrome coating to reduce friction and preserve pre-painted materials like PPGI or galvanised steel. The PLC-based control system controls the manufacturing process's speed from 0 to 60 m/min. This allows exact material thickness adjustment (0.3 mm to 1 mm). Smart coordination reduces energy lost during speed-up-and-slow-down cycles.

Energy-Saving Design Principles

Different design approaches work together to save energy. Compared to chain drives, gearbox transfer systems waste less power and perform smoothly. Only 5.5 kW powers the whole manufacturing process, compared to 7.5 kW or more for earlier equipment. The 7.5 kW hydraulic cutting system only activates during cutting. It runs intermittently. Modern machines employ servo motors that adjust power based on material resistance. This limits system's current to what it requires.

The 350 H steel machine body structure is sturdy and doesn't flex, preventing energy-wasting wheel-material pressure. Chrome-plated rollers with HRC 58–62 hardness remain smooth throughout lengthy manufacturing cycles. This prevents old part friction. These design concepts create a system that uses every watt instead of wasting it on inefficient machinery or heat output.

Material Processing Capabilities

Our trapezoidal sheet roll forming machines operate with many construction materials. PPGI coils are rolled over polished rollers to retain the ornamental coating. This is crucial for aesthetic building projects. The system produces roofing panels from 3 to 20 feet. 10 inches long and flashings from 20 feet to 20 feet 11 inches long from galvanised steel and aluminium up to .032" thick at consistent rates.

The panels come in 24 and 22 Tru-Gauge specifications and can be used for vertical or horizontal roofs and walls. Because they are so flexible, one machine can be used for many different types of production, which maximises equipment potential and spreads out the initial investment.

Optimising Productivity Through Advanced Automation Features

Automation technology makes energy efficiency an active productivity enhancer by monitoring and changing operations in real time to maximise job output while minimising resource usage.

PLC Control Systems and Real-Time Monitoring

Our PLC-based control interface gives operators real-time information on production metrics like forming speed, cut length accuracy, and power consumption patterns for the trapezoidal sheet roll forming machine. The system stores up to 50 product profiles, so it can quickly switch between panel specifications without manually adjusting the rollers. For example, switching from 1000 mm to 1250 mm width configurations takes less than 10 minutes.

This adaptive response prevents energy spikes caused by machines running at fixed power levels regardless of load requirements by detecting higher resistance and changing the motor output to maintain forming pressure without overworking the drive system.

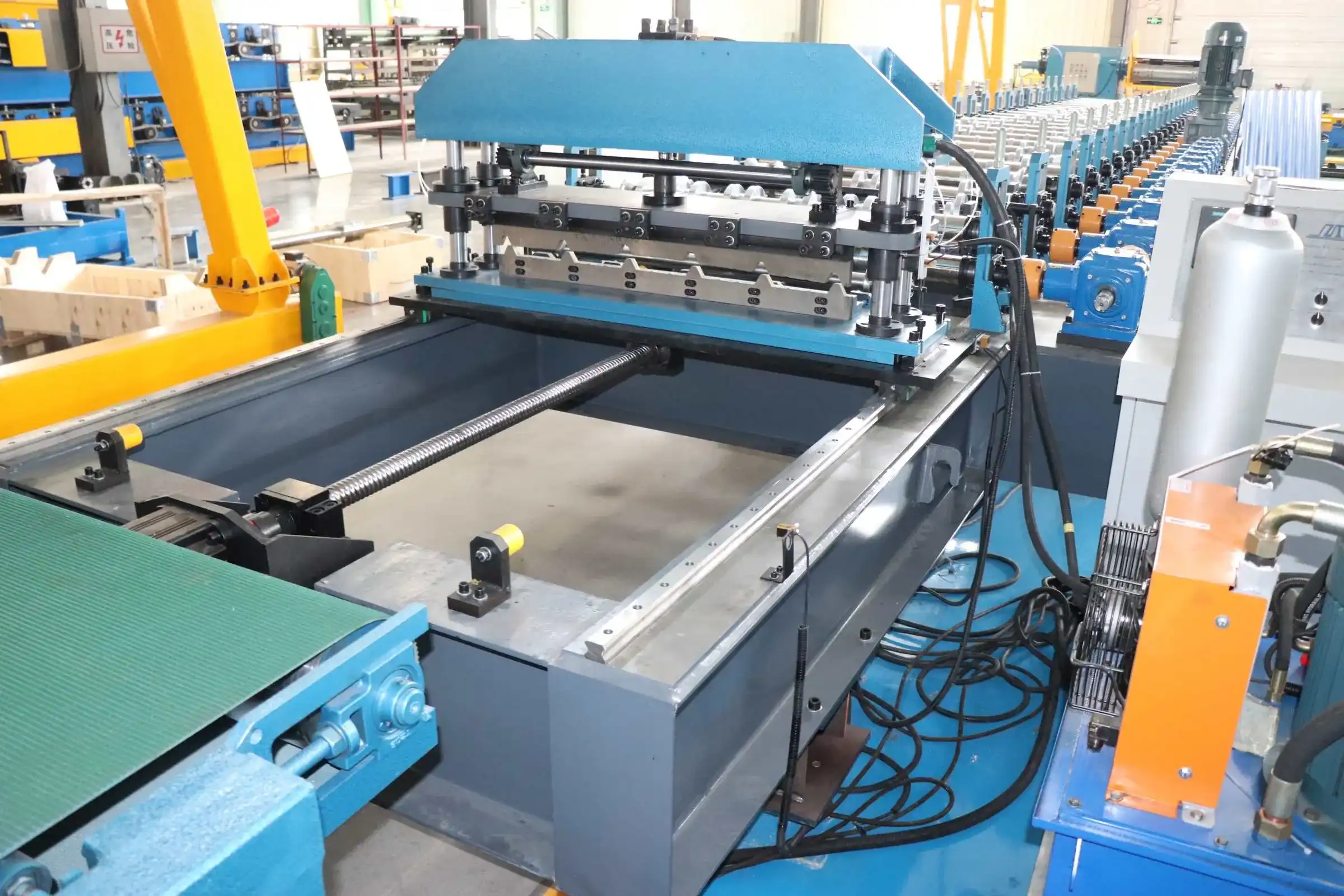

Hydraulic Cutting Precision and Energy Management

By using CR12MoV blade material, the hydraulic cutting system saves energy and maintains clean cuts without excessive pressure, meeting strict construction industry standards. Burr-free edges eliminate the need for additional finishing steps.

Demand-based hydraulic activation saves 15 to 20% of the energy used by continuously running hydraulic systems over an eight-hour production shift, which makes panels at 30 metres per minute by only turning on the 7.5 kW hydraulic pump during the cutting cycle, which lasts two to three seconds per panel.

Maintenance Practices That Sustain Efficiency

Energy efficiency drops without adequate maintenance, yet organised maintenance plans can retain energy efficiency within 5% of original specs after five years.

Our rollers' hard chrome plating makes them last longer than 10 years under normal conditions, but metal dust or coating residue can make them less smooth. Cleaning the rollers with the right solvents removes drag-causing contaminants. Shaft bearings should be oiled according to the manufacturer's instructions.

Electrical connections are checked for resistance, which causes heat loss and energy loss. Thermal imaging cameras find hot spots that indicate bad connections or worn-out parts. Belt drives need to be adjusted every three months because loose belts slip and waste energy, and overtightened belts stress the bearings.

Selecting the Right Energy-Efficient Roll Forming Equipment for Your Operation

When making a purchase decision, you must consider the initial cost, energy use, production capacity, and long-term support. The right equipment will match your manufacturing needs and set up your business to make money.

Key Specifications That Impact Performance

Our machines can go from 0 to 60 metres per minute, so you can start at slower speeds while training operators and increase throughput as they improve. For example, facilities that make 24-gauge panels for commercial roofing run at 40 to 45 metres per minute to balance production volume with quality control.

The maximum material thickness determines the application range. For most roofing and wall panel needs, equipment rated for 0.3 mm to 1.0 mm will suffice. Customisable width options of 1000 mm or 1250 mm cater to regional market preferences; for example, North American construction projects often request wider panels for faster installation. Motor power of 5.5 kW provides enough capacity for standard production while keeping energy costs low.

Customisation Options and Installation Support

To fit your production environment, we can change the roller station configuration of the trapezoidal sheet roll forming machine from 26 rows to fit specific profile needs or panel geometries and change the voltage specifications to fit different power systems, such as 380V/50Hz in many international markets or 415V/50Hz in others, so you don't have to buy expensive transformers.

Our install support includes full setup on-site, alignment confirmation using laser measurement tools, and operator training that covers basic operation and troubleshooting. Our technicians stay on-site during initial production runs, making small adjustments to improve form quality and energy efficiency. This hands-on approach means your team is fully productive in days instead of weeks, speeding up the ROI.

Supplier Reputation and After-Sales Service

Cangzhou Zhongtuo has provided roll forming solutions, including trapezoidal sheet roll forming machines, to over 150 countries since 2014, known for its reliable equipment and fast technical support. Our ISO9001, CE, and CAS certifications ensure that our equipment meets safety and performance standards.

Our after-sales service goes beyond installation by having spare parts and remote diagnostic tools. When equipment problems arise, our technical team can access machine data remotely through the PLC system and often find solutions without visiting the site. Downtime directly affects production revenue, so having access to critical parts like cutting blades, hydraulic seals, and control modules is crucial.

Real-World Cost Savings and Productivity Improvements

Real setup data shows how energy-efficient roll forming technology affects finances at different production levels and sizes.

Case Study: Roofing Manufacturer Reduces Energy Costs by 22%

A medium-sized roofing panel manufacturer in the south-east of the US replaced three 15-year-old forming machines with two new high-speed units with advanced energy management. The facility makes 12,000 linear metres of PPGI panels for residential and light commercial use daily, working two shifts.

At the facility's industrial electricity rate of $0.11 per kWh, annual savings were over $18,000. PLC controls made faster forming and less time spent on changeovers possible, increasing production capacity by 35%. The company didn't have to work weekends to meet delivery deadlines, saving $45,000 a year on premium labour costs.

Rejection rates reduced from 3.2% to 0.8%, reducing waste and labour to select and remove faulty panels. Panel sizes and sidewall straightness were within 2mm across 20-foot lengths, compared to 5mm with the old technology.

Case Study: Automated System Increases Purlin Output by 40%

A company that makes light steel structures and C and Z purlins bought automated roll-forming equipment with servo-driven controls and energy-optimised motors. Each project requires different profiles, so the profiles must be changed often.

The automated changeover system dropped profile switching time from 35 minutes to 8 minutes, allowing the facility to handle smaller batch sizes more cost-effectively and take rush orders that competitors couldn't handle, opening up a new market segment. Without adding shifts or staff, production increased 40% from 75 to 105 tonnes per week.

To form high-strength G550 steel purlins using a trapezoidal sheet roll forming machine, motors had to be running at full capacity, which wasted a lot of energy and generated a lot of heat. The new equipment changed motor output to match actual load requirements, which cut energy use by 18% even though production volume increased. Better thermal management also extended motor life expectancy.

Conclusion

Modern trapezoidal sheet roll forming machines have advanced features like PLC controls, servo motors, and optimised hydraulic systems that make energy efficiency more than just an environmental concern. Companies that invest in these systems usually see a return on their investment in less than 24 months due to energy savings and productivity improvements.

FAQ

1. How does material thickness affect energy consumption?

Because thicker materials require more force to bend, our equipment maximises efficiency by letting operators slow down the forming speed for thicker materials, which lowers power demand while maintaining quality. The PLC system can store optimised speed profiles for each material specification.

2. What maintenance schedule sustains optimal energy efficiency?

Clean and inspect the rollers once a month to prevent friction. Lubricate the bearings and moving parts every three months to keep them running smoothly. An annual professional inspection that includes alignment, electrical connection, and hydraulic system pressure checks detects wear and tear before it affects efficiency.

3. Can energy-efficient machines handle pre-painted materials without damage?

Our mirror-smooth chrome-plated rollers can handle PPGI and other pre-painted materials without scratching or marring. Keep the rollers clean to avoid abrasive particles. Entry-stage material guides with adjustable tension prevent excessive drag that could damage coatings. Some high-end architectural installations add protective film applicators at the entry station.

Partner with ZTRFM for Advanced Roll Forming Solutions

Find a trapezoidal sheet roll forming machine supplier with a track record of success and full support services. ZTRFM has decades of experience in cold-roll forming equipment and can offer custom solutions to meet your exact production needs. Our high-speed trapezoidal systems combine strong mechanical construction with smart energy management to give your business cost savings and output.

We handle the entire project, from initial consultation to installation, operator training, and ongoing technical support. Email zhongtuorollforming@gmail.com to discuss your needs with our application specialists, who will provide you with detailed technical specifications, energy consumption projections, and competitive pricing for selling trapezoidal sheet roll forming machines.
