Overview of the metal wall panel machine

A metal wall panel machine is an industrial cold roll forming line that turns flat metal coils—usually galvanised steel, Galvalume, or pre-painted steel (PPGI/PPGL)—into wall covering sheets of various shapes and sizes. This machine employs many mating roller stations to bend metal strips into trapezoidal, corrugated, or concealed-fixing patterns simultaneously, unlike press brakes. The key benefit is that it solves major building industry issues. It eliminates manual bending errors, reduces waste by a huge amount with perfect cut-to-length, and speeds up production to meet tight project deadlines.

Introduction

To meet increased output demands, the construction and industrial industries increasingly need dependable, efficient equipment. This book covers everything about metal wall panel machines, which have revolutionised building panel production. Procurement workers, engineers, and OEM clients are under pressure to reduce operational costs while maintaining quality and production efficiency. In today's competitive production market, you must understand these tools' technical specs, operational demands, and selection criteria.

This tutorial discusses crucial decision-making aspects that affect your bottom line. We discuss how roll forming lines function, which technological requirements are most significant, and source evaluation. We intend to offer you more confidence in choosing the correct equipment for rapid, low-cost production by describing how machines function, what they do, and how to maintain them. This website provides real-world industrial examples for launching a metal panel business, updating ageing equipment, or extending an existing one.

What is a Metal Wall Panel Machine?Core Technology Behind Roll Forming Lines

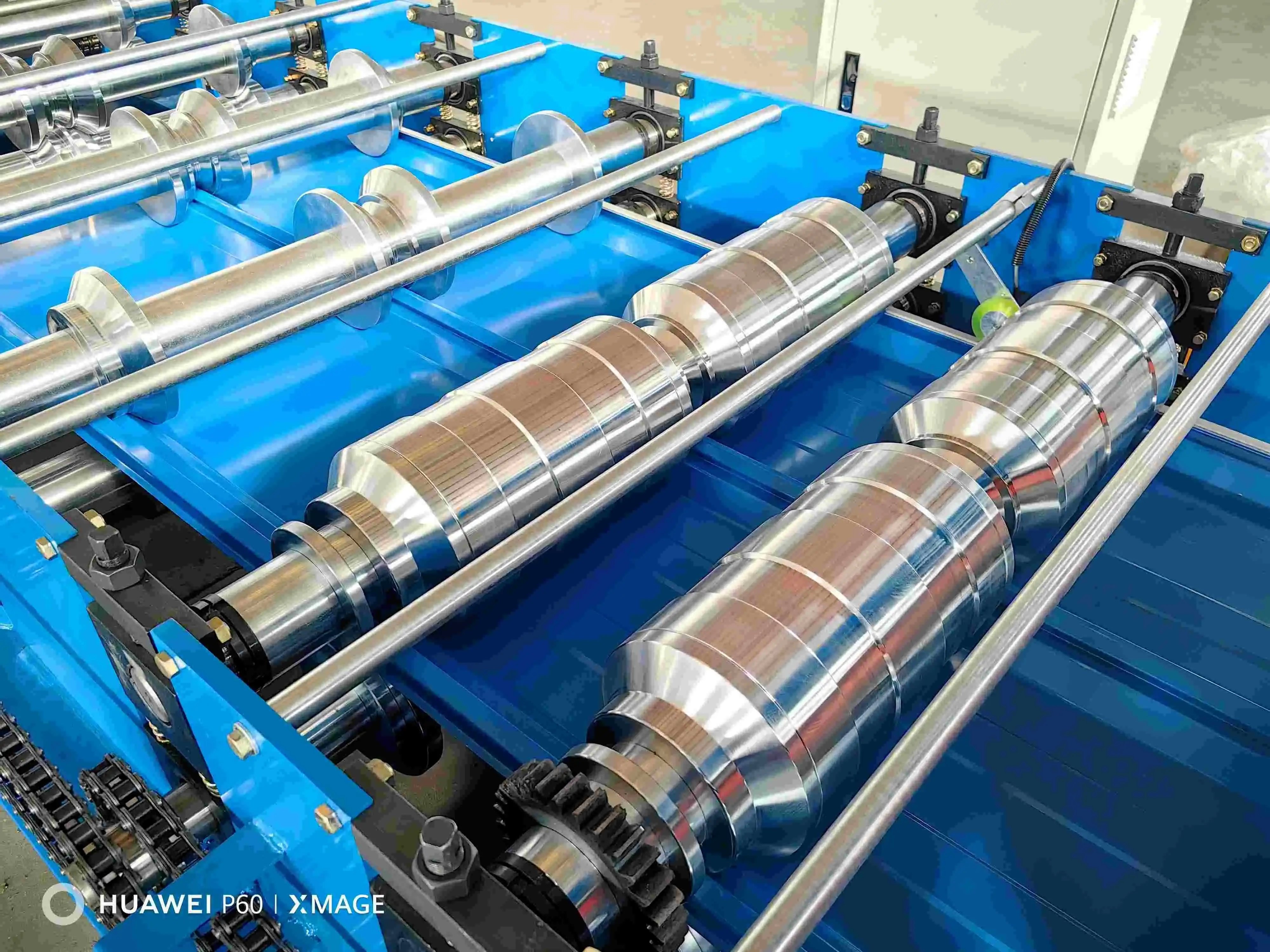

Metal wall panel tools manufacture robust metal panels for buildings' exteriors and interiors. The method relies on cold roll forming. Metal strips pass via roller stations in this continuous rolling operation. At each step, material is gradually moulded without heat. The metal's structure and protective layers remain intact. Decoiling methods unwind raw material coils. Balancing units remove the natural coil set. The flat sheet is then delivered to the manufacturing stations, where precise rollers constructed of high-quality GCr15 or Cr12MoV steel and heated to HRC 58–62 bend it into shape.

Manufacturing Process From Coil to Finished Panel

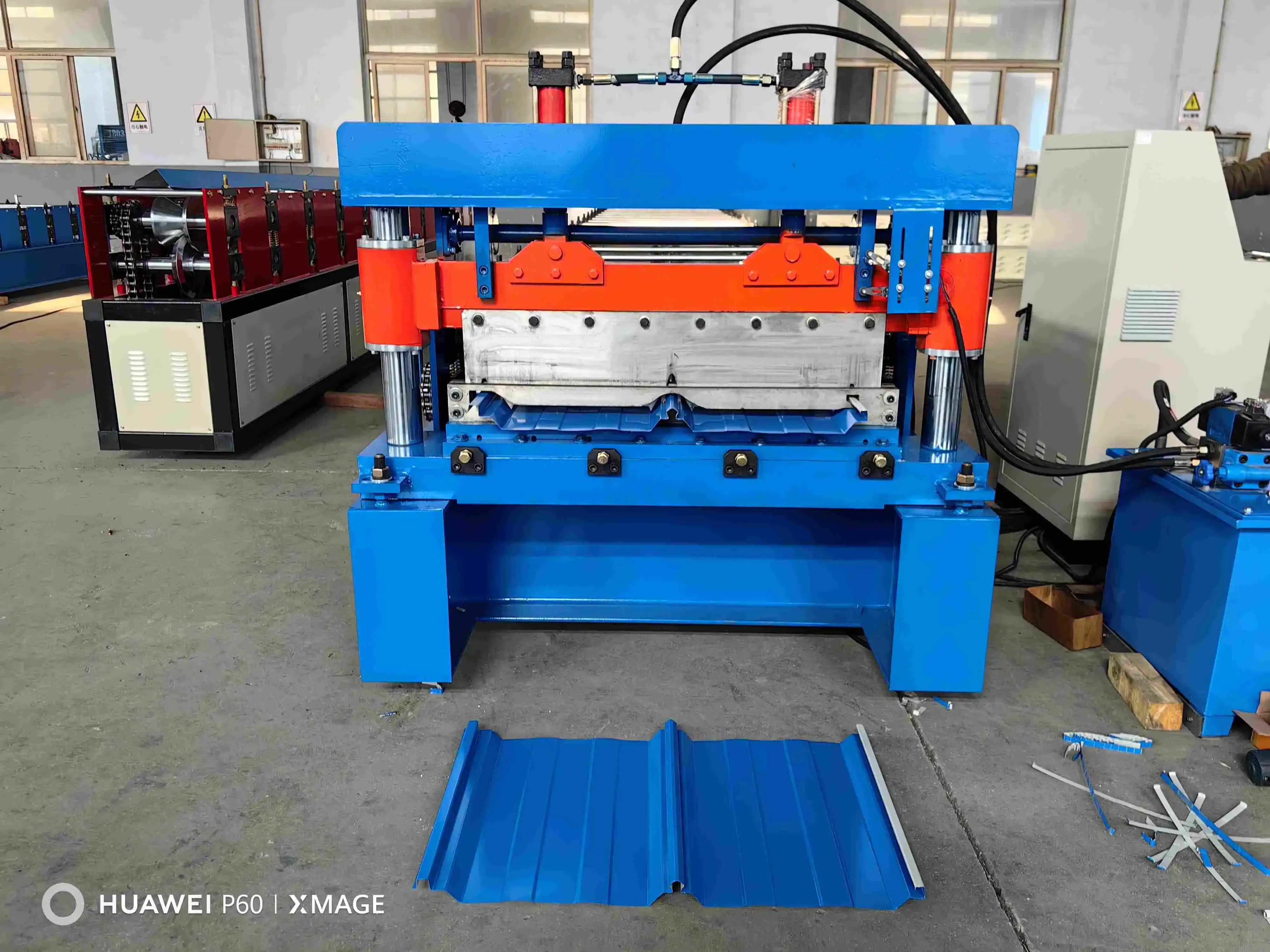

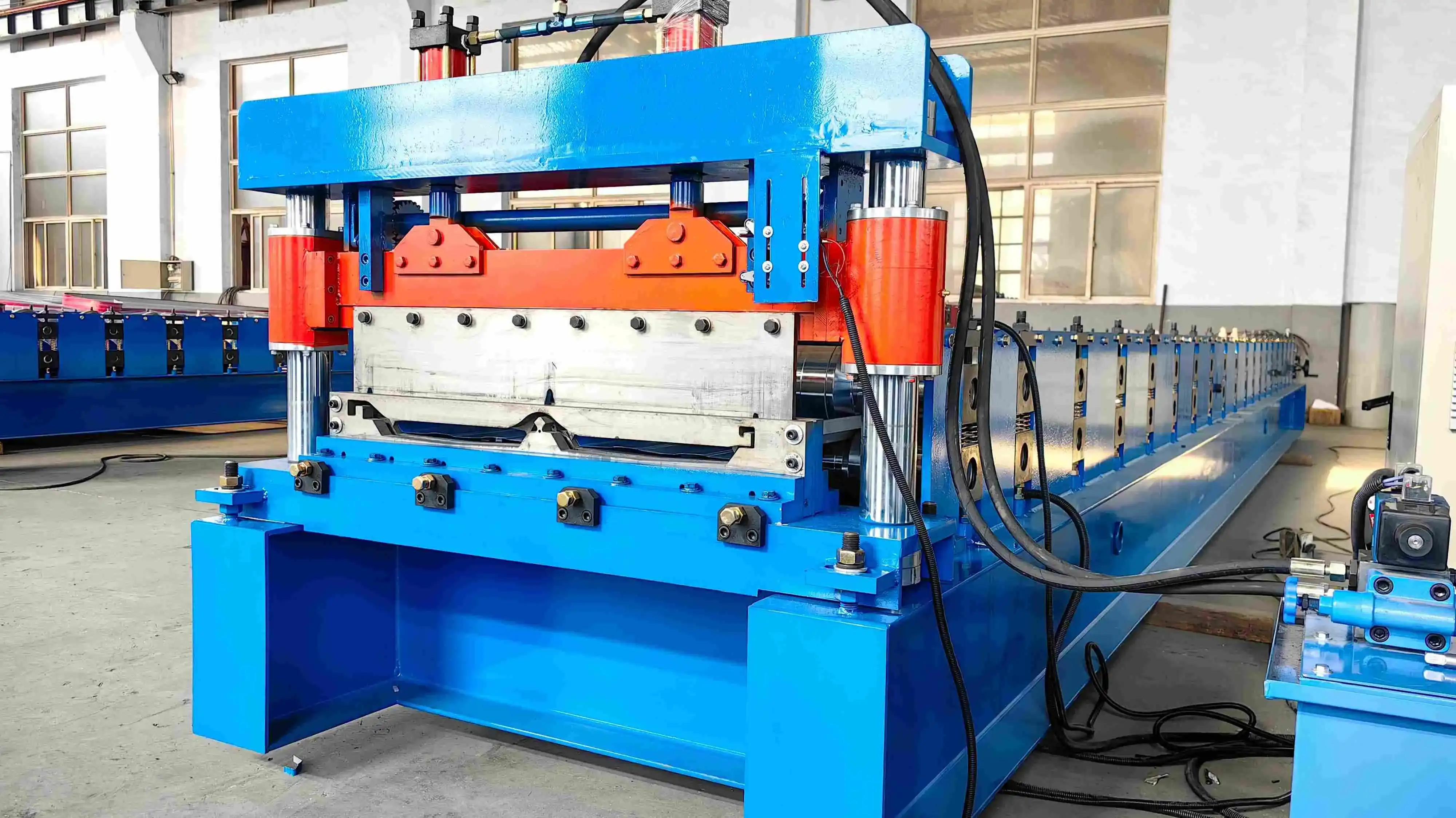

Multiple stations operate together in the step-by-step production process. After decoiling and levelling, supplementary filming units protect completed surfaces during handling. Corner-cutting stations prepare edges for folding, notably for box layouts. The major forming segment comprises 14–18 roller stations, depending on profile complexity. Each slightly bends the final form. Makers can produce different-sized panels without changing tools. Metal structure builders no longer have to fulfil several product requirements. Panels are precisely cut with a ±1.0mm inaccuracy using hydraulic pre-cut or post-cut machines. Modern machines match cutting to panel position using servos. This prevents material waste from misaligned cuts.

Differentiation Between Manual and Automated Systems

In manual systems, operators measure, mark, and direct cutting. Small firms and startups with little funding benefit from these solutions. Entry-level machines usually cut 8–12 metres per minute using mechanical foot pedals. Siemens's and Mitsubishi's industrial PLCs enable workers to specify batch sizes, panel lengths, and production processes using touchscreen HMIs. High-end automated lines may form at 20-40 m/min with ±0.5 mm profile accuracy. Automation helps light steel structure builders make rapid modifications, and clients enhance efficiency. Combine auto-stackers with material handling conveyors for even less effort. This directly impacts running cost estimations that decide purchases.

Key Benefits and Applications of Metal Wall Panel Machines

Enhanced Production Efficiency and Material Utilisation

The benefits of roll forming lines, including the metal wall panel machine, may transform manufacturing. Modern robots can process 15–40 metres per minute, whereas humans struggle to produce the same amount. This is the main advantage. This speed helps pre-engineered structures and corporate ventures meet tight construction timelines. Consistency eliminates human-bending profile discrepancies. Well-maintained automated systems reduce scrap rates from 8–12% to 2%. Low waste means more effective material use, and accurate cut-to-length features ensure builders obtain panels that are the right size, saving them time and money on job site trimming.

The tools can work with thicknesses from 0.3 mm to 0.8 mm, making them suitable for light, movable housing and heavy-duty industrial building walls constructed of high-yield-strength steels like G550. This flexibility satisfies many clients' demands by delivering changing cross-sections. Energy-efficient hydraulic systems are quiet and power-efficient. This helps producers balance investment costs with system expenses, which is why individuals purchase across market groups.

Diverse Industry Applications and Use Cases

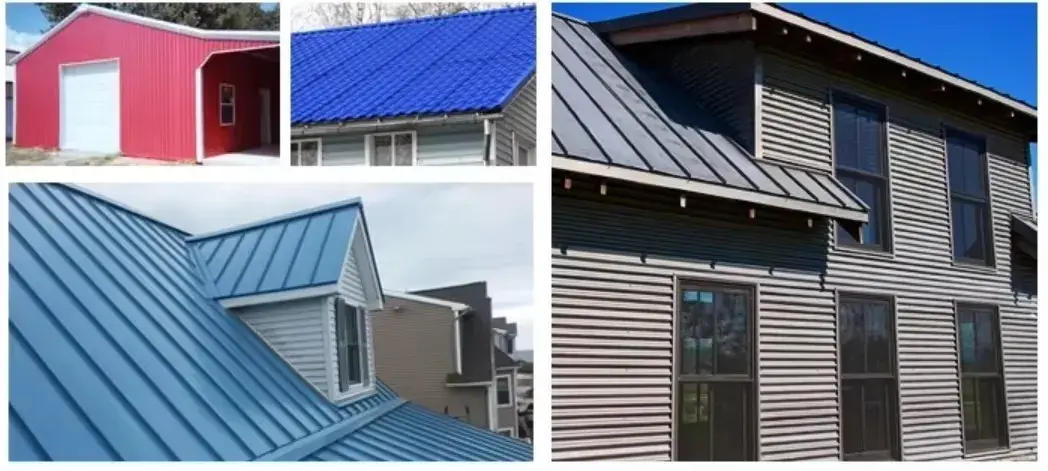

Many industrial and storage facilities employ this equipment to manufacture high-rib trapezoidal profiles for steel structure workshops and transportation centres. Strong winds and tough industrial environments must be handled by the metal wall panel machine. To do this, they need to be made with tools that can work with high-yield strength materials without damaging the profiles. Building roofing system manufacturers value accurate shape and reliable manufacturing capability in severe scenarios.

The commercial building facade market is very important. For business buildings and commercial malls that care about appearance, the equipment manufacturer creates creative siding and concealed-fixing wall panels. You require accurate rollers and a sturdy frame to maintain surfaces smooth and free of oil canning, a visible defect. Good machines use 350H beam steel bodies and 35mm arch frames to prevent vibration-related defects. This discusses scrap rate management and appearance quality, which impact purchase decisions.

The machine can operate with thinner gauge materials, making it handy for mobile houses. Most container dwellings and mobile cabins are built of 0.3–0.4 mm painted steel, which springs back and causes difficulty for weaker equipment. For quick production cycles like temporary housing projects, machines can maintain profile integrity even with these strong materials with the correct roller design and station scheduling.

Technological Advancements in Automation and Connectivity

Modern technologies have transformed these machines from simple shaping tools into sophisticated manufacturing equipment. Modern lines employ 5.5–7.5kw servo motor drive systems for precise speed control and instant acceleration. This boosts panel quality and efficiency. PLC control systems enable automation precision of ±1.0 mm in cutting length, meeting rigorous criteria for global engineering projects.

Machinery may now provide production data to plant management systems via Industry 4.0. This helps repair plans avoid unwanted downtime. This addresses procurement professionals' main concerns—reliable tools and dependable manufacturing capacity. Some manufacturers offer remote diagnostics, allowing technical support personnel to see machine data and address issues remotely. This is especially beneficial for rural or developing market firms with limited technological skills.

How to Choose the Right Metal Wall Panel Machine？

Evaluating Production Capacity and Technical Specifications

Compare your operational demands to the machines' talents to pick the correct one. To begin, state your production objectives, including the number of panels you plan to manufacture each month, the typical panel length, and the materials you'll use most often. Manufacturers who manufacture 30,000 to 50,000 square metres per month can employ 15-20 m/min machines. High-speed lines that can run 30 to 40 metres per minute are needed for firms that manufacture 80,000 square metres or more. Details about roller material. GCr15 steel rollers with strong chrome finishing last longer and prevent zinc from clinging to galvanised surfaces, preserving machine life and panel surface quality.

Machine stability under pressure depends on shaft width and material. Solid steel rods 70–90 mm wide can handle deflection in high-strength materials. This prevents rollers on the metal wall panel machine from misaligning, reducing profile accuracy. Machine body construction is crucial. Heavy welding H-beam frames dampen vibrations better than channel steel frames. This impacts your capacity to maintain forming precision, which determines scrap rate. Hydraulic cutting systems with Cr12MoV blades maintain profile geometry and clean edges. This suits building uses that value appearance.

Comparing Manual Versus Automated Options

Basic manual machines cost 35–45% less than automated systems. This attracts small metal product producers and capital-constrained firms. These technologies work well for small-batch manufacturers that change profiles often when programming time wouldn't cover labour expenses. Standard metalworking operators who are accustomed to manual controls may need less training.

The efficiency and effectiveness of automated tools justify their high cost. A single operator may manage an automated metal wall panel machine line that would need two or three manual workers. This directly impacts the machine's 12–15-year lifespan and operating expenses. Automatic length setting, batch processing, and quantity control reduce measurement errors and setup time between production runs. The flexibility to swap activities rapidly overcomes efficiency issues that light steel structure manufacturers claim are crucial. Calculate the break-even point for automation based on personnel expenses, output rate, and estimated operational hours. Automation pays for itself in 18–24 months for many producers, making it an investment rather than a luxury.

Assessing Manufacturer Reputation and Support Services

Equipment reliability depends on the manufacturer's expertise and help system. Engineering, quality control, and post-project support should be considered while choosing suppliers. The ISO9001, CE, and CAS certifications demonstrate worldwide quality management and safety standards. Standard tools for global usage are crucial for worldwide engineering organisations. Check the supplier's delivery history. Manufacturers with experience in many markets can adapt to diverse power requirements, material specs, and regulatory regulations.

A worldwide after-sales service commitment makes all consumers more inclined to buy. Ask directly about replacement parts, response time, and technical support. Manufacturers need comprehensive training programmes to address insufficient technical abilities, according to startup founders. One-stop service alternatives that provide raw materials, deploy machines, supervise installation, and instruct operators reduce coordination and speed up production. Long-term supply chain partnerships allow for the replacement of rollers, cutting blades, and worn parts without stopping production years after the machine was installed.

Maintenance and Safety Guidelines for Optimal Performance

Routine Maintenance Protocols and Preventive Schedules

You can ensure the longevity and high-quality output of your metal wall panel machine by taking care of it. Daily maintenance begins with an eye inspection of roller surfaces for metal pickup or covering accumulation that might affect later panels. Lubricating the chain transmission and bearing housings prevents premature wear and keeps the machine working smoothly. Weekly chores include checking hydraulic fluid levels and hose connections for leaks that might influence cutting force. Monthly, precise gauges verify roller alignment across all manufacturing stations as part of normal maintenance. Deviations of 0.2 mm can deform profiles and increase scrap rates.

To prevent dust accumulation from heating the PLC control box, clean it carefully every three months and inspect electrical connections for arcing or breaking. Chain transmission systems must have their tension adjusted and wear checked every 2,000 hours to ensure panel length correctness. Cutting blade replacement periods vary by material thickness and workload, although they are normally between 60,000 and 100,000 cuts. Written maintenance schedules with clear roles and responsibilities provide consistency and accountability, which procurement pros respect for equipment reliability.

Operator Safety Protocols and Risk Mitigation

Due to their strength and speed, these machines require rigorous safety standards to protect workers. The machine must have emergency stop buttons at numerous points throughout its length so they are simple to reach from regular operating settings. Safety shields surrounding roller stations prevent accidental contact with operating machinery. These guards should have locking switches that halt the machine when opened. Operators must learn how to load materials and the hazards of quick coil undoing if the decoiler brakes fail.

Safety glasses protect eyes from metal chips created when cutting a metal wall panel machine; hearing protection is needed in situations with several machines working at once, and steel-toed shoes protect feet from falling objects. Lockout/tagout prevents machinery from turning on accidentally during maintenance. Clear floor markers that indicate where people can walk and handle goods reduce accidents in crowded workplaces. Regular safety audits that identify hazards and enforce regulations build a culture of awareness that protects employees and reduces liabilities.

Conclusion

You must balance short-term production demands with long-term strategic goals to pick the proper metal wall panel machine. Technical specifications, automation, and manufacturing support infrastructure affect company performance, product quality, and market position. When procurement experts understand how these machines function, how they may be utilised in different sectors, and the most significant selection variables, they can make sensible decisions with a clear ROI. Developing smart, networked industrial equipment brings up new options to improve manufacturing while lowering costs. As the market shifts towards customisation and speedy delivery, it becomes increasingly vital to invest in versatile, well-supported equipment.

FAQ

1. What factors most significantly influence metal wall panel machine pricing?

The machine price depends on several interconnected factors. Production rates (15–40 m/min) affect price, with high-speed lines charging more. Advanced automation, including PLC control systems, servo drives, and automated width adjustment, costs more but saves money over time. Roller material specifications and precision machining affect panel quality and lifetime. GCr15 steel with strong chrome plating costs more than basic tools but lasts longer. Frame design with heavy-duty H-beam steel instead of smaller structures affects building cost and security over time. Manufacturer name, ISO/CE approval standards, and product support services affect prices. Over time, these characteristics decrease operation costs, paying for themselves. Basic hand-operated tools cost $25,000 to $45,000, while fully automatic, high-capacity manufacturing lines with many sophisticated features cost $80,000 to $150,000 or more.

2. How can manufacturers customise panel profiles for specific architectural requirements?

Customising a profile begins with roller design based on the desired cross-section shape. Manufacturer engineering services employ CAD software to simulate progressive bending and create forming station configurations from architectural standards. Machines having a width adjustment range of 200 to 400 mm can accommodate variations in dimensions. This is doable without changing tools. New profiles need custom roller sets, which cost between $3,000 and $8,000 depending on profile difficulty and roller count. Quality machines offer modular stations for simpler roller changeouts. Skilled teams swap in 4–6 hours. Some firms manufacture quick-change tape systems that enable you to replace assembled roller stations. This reduces station switching to under 90 minutes. Embossing adds texture or stiffens ribs, while built-in punching tools produce drain holes or fastening slots. Working with equipment vendors with unique application knowledge ensures that the machine design meets your architectural panel's demands.

Partner With ZTRFM for Reliable Metal Wall Panel Machine Solutions

ZTRFM has over 10 years of expertise in designing and producing cold-roll forming machines for various industries. Our equipment has been shipped to producers in over 150 countries since 2014. We've assisted roofing system, light steel structure, and composite panel manufacturers overcome their difficulties with bespoke solutions. Our metal wall panel machines range from simple entry-level systems for new enterprises to fully automated high-capacity production lines that match worldwide engineering firm standards.

Our complete service covers raw materials, metal wall panel machines, machine building, installation, operator training, and technical support. This simplifies procurement and accelerates manufacturing. Before leaving our facility, our machines are ISO9001, CE, and CAS-certified to fulfil international quality and safety requirements. We constantly invest in new goods as a national high-tech corporation. To automate and streamline our equipment, we employ servo drive technology, modern PLC control systems, and smart production tracking. Modern manufacturing becomes more competitive.

Whether you're expanding, replacing equipment, or starting a metal panel business, our technical staff helps you identify the ideal arrangement. We want procurement workers to experience the ZTRFM distinction while choosing a metal wall panel machine manufacturer. Talk to our staff at zhongtuorollforming@gmail.com to discuss your demands, acquire comprehensive technical specifications, and get bids that meet your operational and budgetary goals.
