Flying Cut Ceiling T Grid Roll Forming Machine Accuracy

If you make suspended ceiling systems, your T-grids will fit properly or need expensive repairs. How properly your production line is set up matters. A ceiling T-grid roll-forming machine with flying cut technology may measure consistently better than a manual or fixed-length system. This sophisticated technology synchronizes cutting and material flow to prevent positioning errors and ensure every main and cross tee matches contemporary construction project specifications. Procurement managers and production engineers must know how precise flying cut systems are to keep ahead of the competition as construction standards tighten and design demands get more intricate.

Understanding Flying Cut Ceiling T Grid Roll Forming Machine Accuracy

Flying cut technology has revolutionized suspended ceiling parts. A ceiling T-grid roll-forming machine with flying cut technology employs a blade assembly that travels at the same speed as the material being cut, unlike traditional post-cutting procedures that stop the manufacturing line. This continual motion keeps the material straight, and the hydraulic or servo-driven cutter cuts at fixed lengths. This design improves accuracy, which directly affects product quality and production efficiency.

Working Principles of Flying Cut Technology

The moving-cut gadget works with coordinated movements. When the profile departs the last rolling station, an encoder measures its length. A PLC processor activates the cutting carriage at the specified size. This cart accelerates up to follow the manufacturing line, cuts while both pieces travel simultaneously, then slows down and begins again. Synchronization usually takes less than two seconds. However, the brief collaboration enables ±0.5mm cutting precision for designs up to 3600mm long.

Critical Accuracy Metrics in T Grid Production

Three things determine roll-making system success. Dimensional tolerance measures how well the finished length matches the preset standard. Modern flying cut systems achieve standard lengths within ±0.5mm, whereas manual cutting stations achieve ±2.0mm. Cutting accuracy measures edge straightness and smoothness. A clean, straight cut ensures that pieces fit into connections without burrs that might harm painted surfaces or complicate installation. Repeatability indicates how effectively the machine maintains these boundaries across thousands of iterations. Manufacturers using 40-metre-per-minute lines require repeatability of ±0.3 mm to prevent drift during eight-hour production cycles.

Material considerations impact these outcomes. Pre-painted galvanized iron (PPGI) coils from 0.12mm to 0.3mm for the top, and GI coils from 0.2mm to 0.4mm for the bottom react differently to forming pressures. Thinner gauges have greater elastic springback, and thicker materials require higher forming pressures, which might stress roller bearings if tuning changes. Main and cross tee profiles have 18 and 16 stations, respectively. These stations progressively distribute forming stress, protecting the surface and maintaining the profile's web and flange shape.

Core Factors Influencing the Accuracy of Flying Cut Ceiling T-Grid Roll-Forming Machines

Accuracy comes from numerous tiny elements working together. Design parameters determined during engineering provide the basis. Over years of operation, maintenance and calibration maintain accuracy.

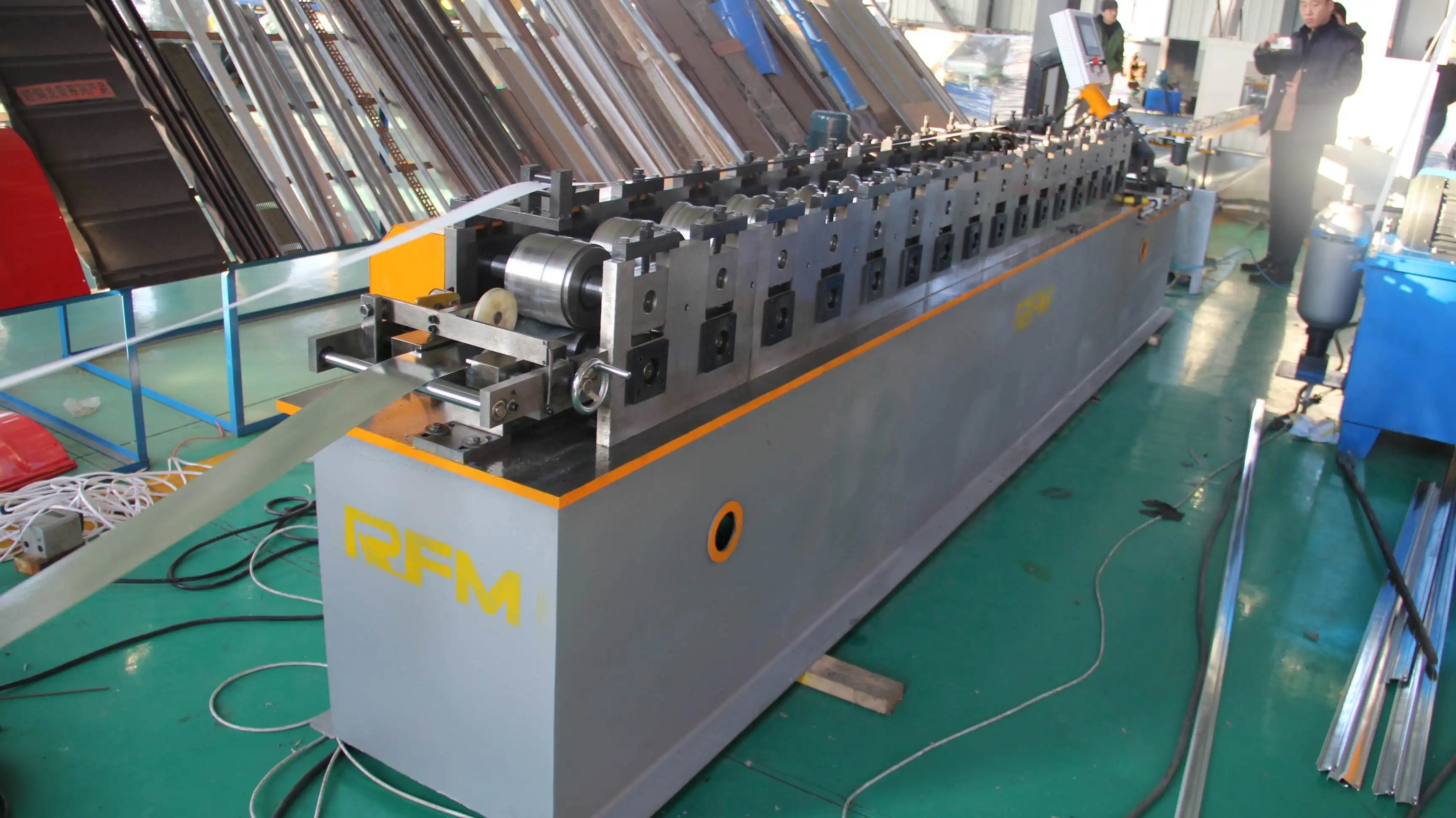

Design Parameters and Roll Forming Elements

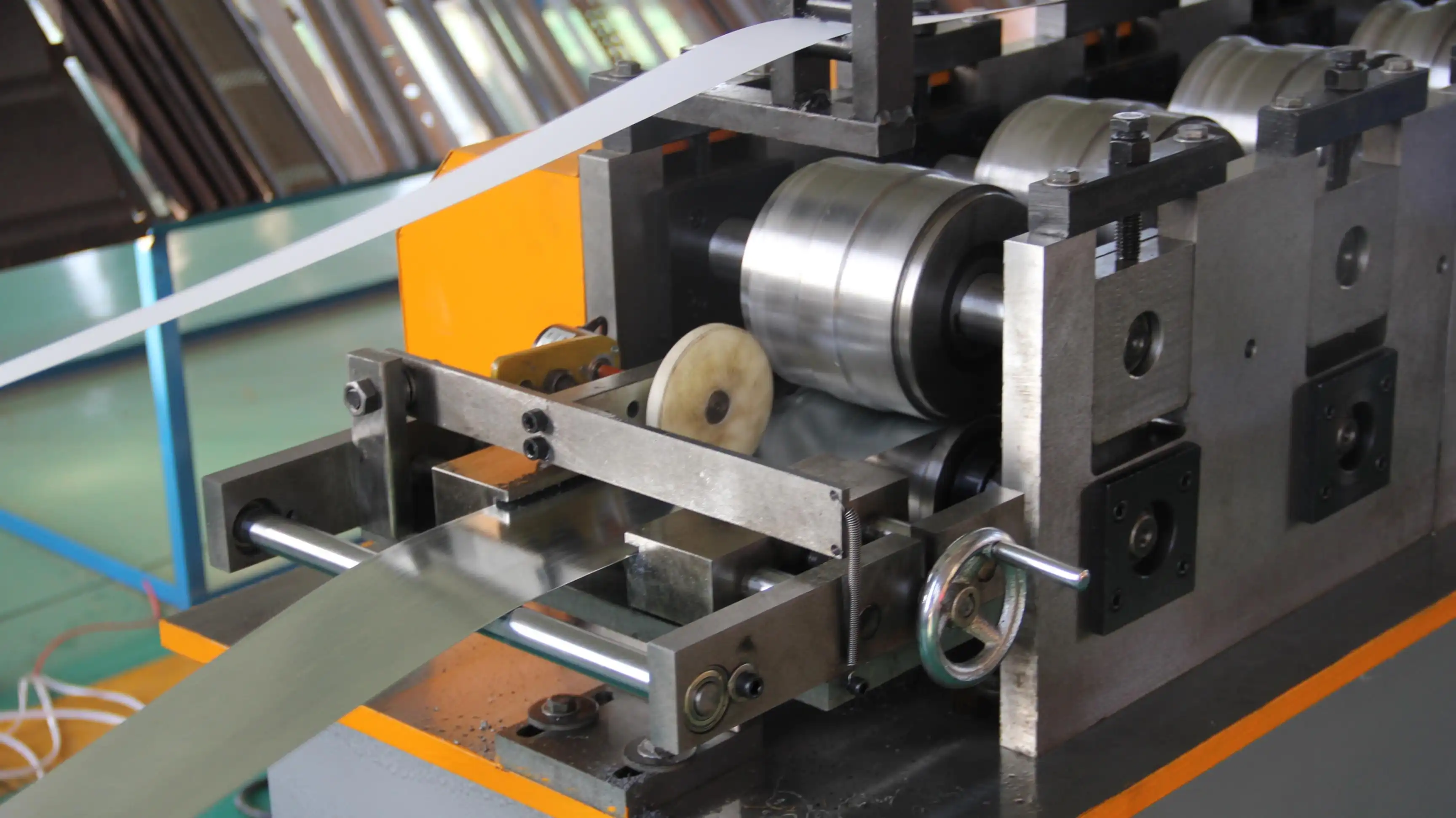

Any manufacturing system relies on roller material and production precision. Our tools use vacuum-heated GB-Cr12 steel rollers, which harden to HRC 58–62. Hardness prevents abrasive zinc coatings from wearing away and maintains the T-grid's longitudinal stiffening rib radius forms. Roller diameters and groove shapes are CNC-machined with ±0.02 mm precision. This ensures that each forming station adds enough deformation without twist or horizontal variance.

Stiff shafts improve roller precision. Our 45# steel rods are tempered for strength and toughness. This prevents side-on high-speed forming forces from deflecting them. These 50mm shafts keep straight within 0.05mm over their 400mm bearing span. This rigidity prevents minor vibrations that cause cutting station measurement errors.

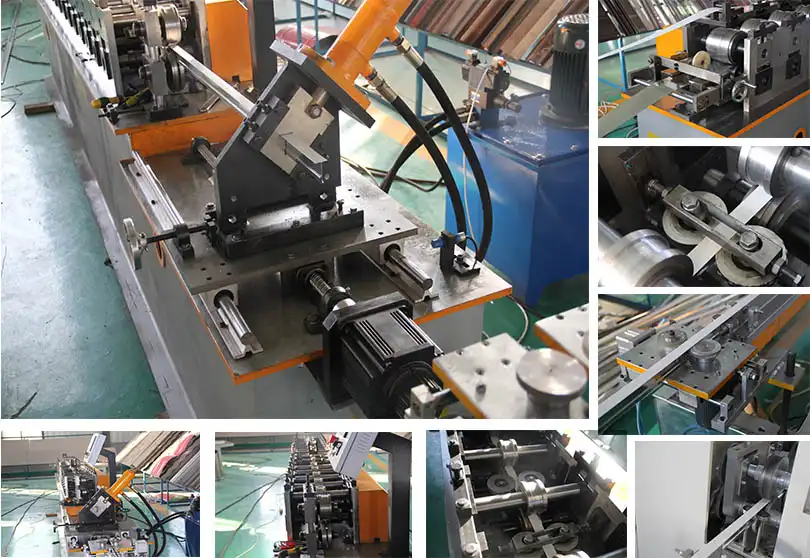

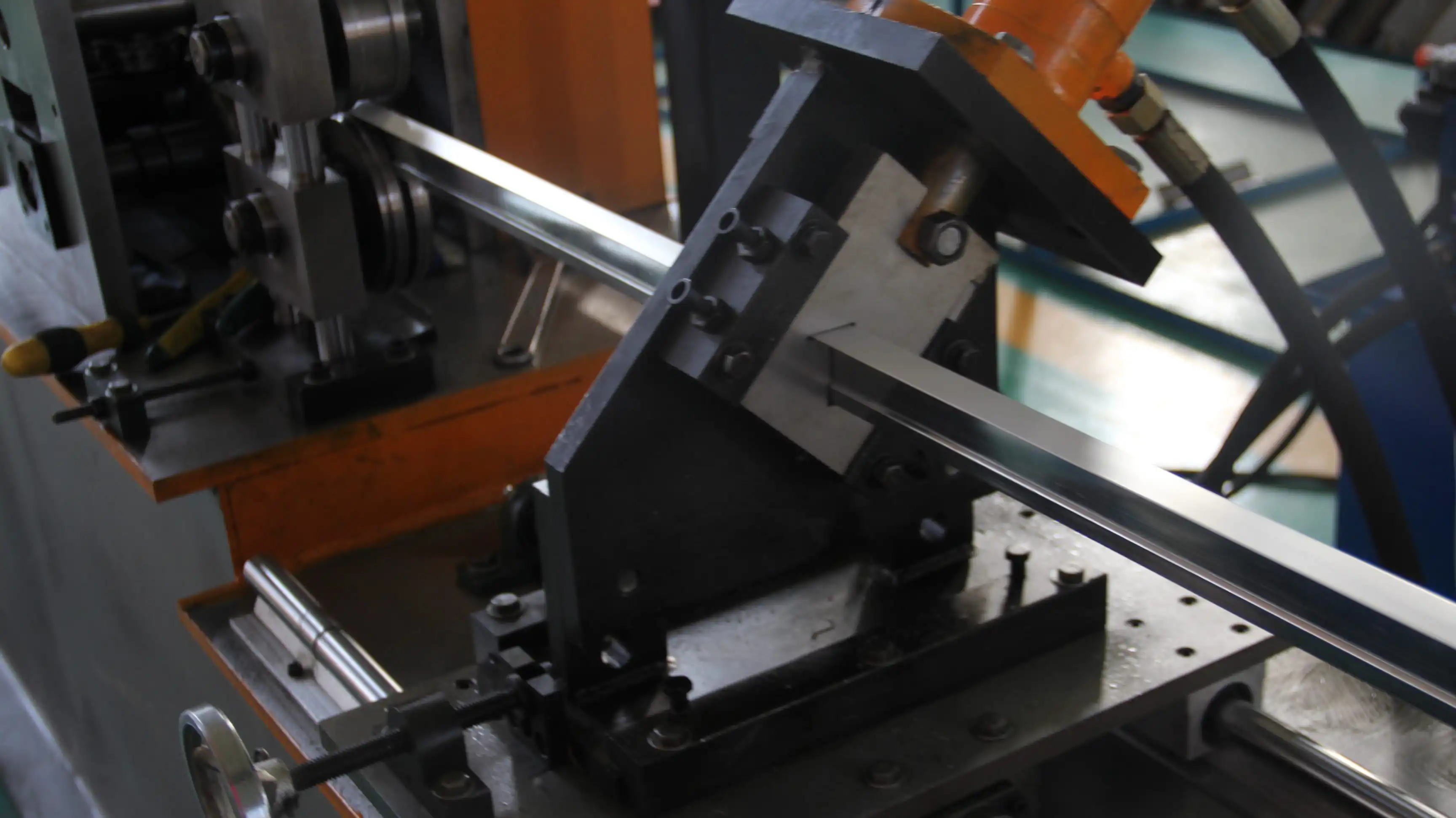

Moving cut unit integration is the hardest element of planning. The cutting cart must travel from 0 to line speed, which in our standard configuration is 20 metres per minute; shear; slow down; and return without interfering with the material's straight line. Although hydraulic systems offer a consistent cutting force, weather can vary in viscosity, making timing less precise. Servo-electric systems repeat activities better but require more intricate control to avoid jerky movements that mark material.

Maintenance and Calibration Best Practices

Even well-designed ceiling T-grid roll-forming machines fall down without sufficient upkeep. A three-tier repair approach is advised. Daily checks are conducted to check for dirt or coating accumulation on roller surfaces, gear lubrication, and encoder wheel cleanliness. Weekly activities compare cut lengths to prescribed values using calibrated measurement instruments. Sample three items from a production run and average the measurements.

We make full modifications every month throughout testing. Rollers are checked using feeler gauges and straightedges to ensure station alignment within 0.1 mm. The cutting cylinder's hydraulic pressure is monitored and held between 15 and 20 bar for clean, stress-free slicing. To compensate for detecting wheel width wear, encoder calibration verifies the controller's length count against the measurement.

With this care basis, typical issues are straightforward to repair. The encoder wheel's layer may have gotten broader as the cuts get longer, leading the processor to underestimate how far the material has moved. Dull blades push material back before cutting. The term is gradual shortening. If successive pieces have different specifications, aged or loose roller bearings or drive chain sections may be creating transmission backlash.

Comparing Flying Cut Machines with Other Ceiling T-Grid Roll-Forming Solutions

Knowing your rivals' strengths and weaknesses might help you decide when flying-cut technology is best. Not all manufacturing scenarios require precision; thus, expenditure should depend on operations.

Flying Cut Versus Fixed-Length Cutting Systems

Fixed-length systems add steady shear after formation. The substance advances until a mechanical halt. A hydraulic ram slices the form while gripped. This approach is simpler and cheaper than flying-cut setups, generally 30–40%. Units with proper maintenance have an accuracy limit of around ±1.5mm. For low-cost ceiling systems in factories or service rooms, installation tolerances of ±3mm are typical.

At scale, throughput costs matter. Each cut cycle requires the line to halt, make room behind the shear to prevent material warping, cut, then start moving again and fill up the space before feeding again. Because of this, the fastest speed is 8–12 m/min. A firm that creates 500 main tees daily uses 2.5 hours on a moving cut line and 4.2 hours on a fixed-length system. This means the fixed-length system costs more or has less capacity.

Material waste is another hidden expense. After stopping, the profile might score where it drags across roller surfaces, creating 100–200 mm pieces that must be discarded. A month to manufacture 40,000 metres requires 200 metres of material, enough to make 55 additional main tees at 0.5% scrap. Flying cut methods save motion waste.

Choosing Between Electric and Hydraulic Flying Cut Systems

Hydraulic flying cut systems use hot oil to drive the blade and carriage. The pros include reliability, the capacity to provide a lot of cutting force, and easy maintenance, which most industry specialists know. Most issues include inaccuracy. The thickness of hydraulic fluid fluctuates with temperature, affecting response time. A system working in 15°C in the morning will have a slightly different time than one in 35°C in the afternoon. This might cause a ±0.3mm discrepancy in cutting synchrony.

Electric servo-driven devices use rotary servo motors with ball screw actuators to move the cart and linear actuators to operate the cutting blade. Because electrical resistance is less sensitive than hydraulic viscosity, these systems may be repeatedly employed with great precision, frequently within ±0.2mm across various temperatures. Accuracy costs 25–30% more than hydraulic options and is more complicated. Object positioning determines the option. Architectural-grade system manufacturers for high-end corporate projects might repay their servo investment by reducing rework and increasing their image. Hydraulic solutions frequently suffice for house building and price-conscious buyers.

Machine size affects both technologies. Our entry-level ceiling T-grid roll-forming machine has 1.5-tonne decoilers and 4 kW main motors, which may be used in smaller companies that create 100 to 200 T-shirts each day. Heavy-duty frames, dual-motor drive systems, and 5-tonne decoilers assist large companies that create 1000 or more pieces per day in maintaining tension control throughout longer production runs without manually changing coils.

Procurement Insights: How to Select High-Accuracy Flying Cut Ceiling T-Grid Roll Forming Machines?

You must compare technical requirements against company demands and long-term goals to pick the correct tools. When downtime and quality claims are factored into total ownership, the lowest offer may not be optimal.

Technical Specifications and Performance Requirements

Determine your accuracy needs based on your consumers' needs and market position. Typical architectural ceiling systems for workplaces, hospitals, and schools require a ±0.5 mm length tolerance and a 1-degree perpendicularity tolerance for a ceiling T-grid roll-forming machine. Economy devices can handle ±1.5mm for business use. Match this to the supplier's criteria, but get evidence. Request test records from genuine production runs, not just design potential.

Study the roller material specifications. Some dealers save money by employing surface-hardened 45# carbon steel rollers instead of alloy steel rollers that have been heated completely. The softer rollers wear out more quickly while applying zinc coatings. Within 6 to 12 months, they lose their exact forms and must be replaced, which is expensive. Standard manufacturing rates keep true Cr12 or Cr12MoV metal wheels correct for 5–7 years. Request hardness certifications and cross-sectional hardness testing to verify the material.

Control system complexity affects operating efficiency. Cut lengths must be input by hand in basic relay logic systems, which can't detect errors. Operators may save several profile programmes on PLC-based controllers with touchscreen screens, instantly switch between main and cross tee settings, and monitor real-time production counts with alerts for out-of-range parameters. Changing manufacturing runs takes less than 10 minutes with this system, down from 45 minutes. Job shops that handle many orders benefit from this.

Supplier Credibility and After-Sales Support

Technical requirements are meaningless without adequate engineers for setup, training, and troubleshooting. Verify that potential vendors operate factories rather than merely function as intermediaries. You may chat to the tool engineers directly at the manufacturer and obtain genuine problem-solving advice instead of broad ideas.

Certification provides objective proof. ISO9001 certification verifies quality management systems. CE-marked products fulfil European safety and electromagnetic compatibility criteria. This reveals how well the task was done, which is vital for US firms. Instead of merely assembling parts, national high-tech companies invest in R&D and recruit competent professionals.

Professional sellers conduct post-sale customer support differently than transactional merchants. Check if there are spare components in stock or if they must be ordered from abroad, which might delay delivery. Broken encoders and roller bearings shouldn't take two weeks to repair. It should take 48 hours. Technical support matters too. When a production deadline is approaching at 2 AM, you need expert professionals to address an accuracy problem, not an email autoresponder that promises to react the next business day.

ROI Considerations and Financing Options

Although flying cut systems cost more than traditional forming lines, the business case extends beyond that. Based on production speeds, material utilization, personnel demands, and scrap rates, estimate each piece's cost for a ceiling T-grid roll-forming machine. A $42,500 flying cut system that manufactures 500 main tees a day at 98% yield and only one operator is superior to a $28,000 fixed-length system that makes 350 at 95% yield and needs 1.5 workers when labour costs $25/hour, and material costs $1.20/kg.

Examine energy use attentively. At average output speeds, our 4 kW main drive units require 3.2 kWh/h. Other designs with large motors or poor hydraulic pumps can use more than 6kWh, costing $0.08 per hour at industrial energy prices. Over a 4,000-hour work year, this disparity adds $320 to operational costs. The sum is little, yet real.

Supplier and regional payment methods fluctuate. Leasing equipment from a third-party financial institution distributes the cost and preserves operating capital for stock and market growth. Some suppliers let you pay over time or in phases, depending on installation goals and production verification. Check if the prices include installation, user training, and the first set of spare parts. These items can add 8–12% to the equipment's cost if purchased separately.

Conclusion

The flying cut technique improves ceiling grid manufacturing with a precision of ±0.5 mm, minimal motion-induced surface damage, and over 60% higher throughput than existing processes. These approaches cost more but provide less waste, cheaper labour expenses, and a better product image. Instead of only considering price, selection criteria should include performance standards, provider engineering, and support infrastructure. Precision-making enterprises will stay ahead as technology advances and consumer quality expectations grow.

FAQ

1. How often should flying cut systems be calibrated?

Monthly thorough adjustment checks are recommended in regular production. In this monthly inspection, real cut lengths are compared to planned measures, rollers are aligned, and hydraulic pressure is steady. Daily spot checks of three components assist in identifying issues before they hinder output. If cutting quality variations exceed ±0.8mm, immediate attention is required. Extreme temperature or annual humidity variations may require more regular monitoring in buildings without climate control.

2. What advantages does flying cut technology offer over traditional cutting methods?

To avoid manufacturing delays, flying-cut devices cut while the material is moving. This continual operation increases productivity by 50–70% over stop-and-start cutting stations. The synchronized movement prevents surface damage and material distortion from profiles dragging over rollers as they speed up and slow down. Measurement accuracy improves from ±1.5mm to ±0.5mm or better, reducing installation hassles and waste.

3. Can flying cut machines handle customized T-grid profiles without accuracy loss?

Due to their configurable controls and replaceable roller tools, modern flying cut systems can handle many designs. Standard 18-station main tee and 16-station cross tee configurations may produce variable web heights, flange widths, and reinforcing rib patterns by altering roller sets. The cutting procedure remains the same if the form varies as long as the material thickness is 0.12-0.4 mm. This ensures precise measurements. Custom profiles require technical verification that the forming pressures and roller designs operate with the new design.
