How Does a Stud and Track Roll Forming Machine Improve Output?

A stud and track roll-forming machine automatically shapes flat steel coils into accurate C- and U-shaped studs and tracks at 8–10 metres per minute. This boosts production. This method moves on to the next item without waiting, like hand-bending or press-brake operations. It maintains size requirements within ±0.5mm and reduces waste by up to 40%. These machines maintain the quality of thousands of profiles every shift using PLC-controlled hydraulic cutting and servo-driven feeding. This eliminates manufacturing constraints for light steel frame producers and construction material suppliers.

Understanding Stud and Track Roll Forming Machines

What Defines This Equipment？

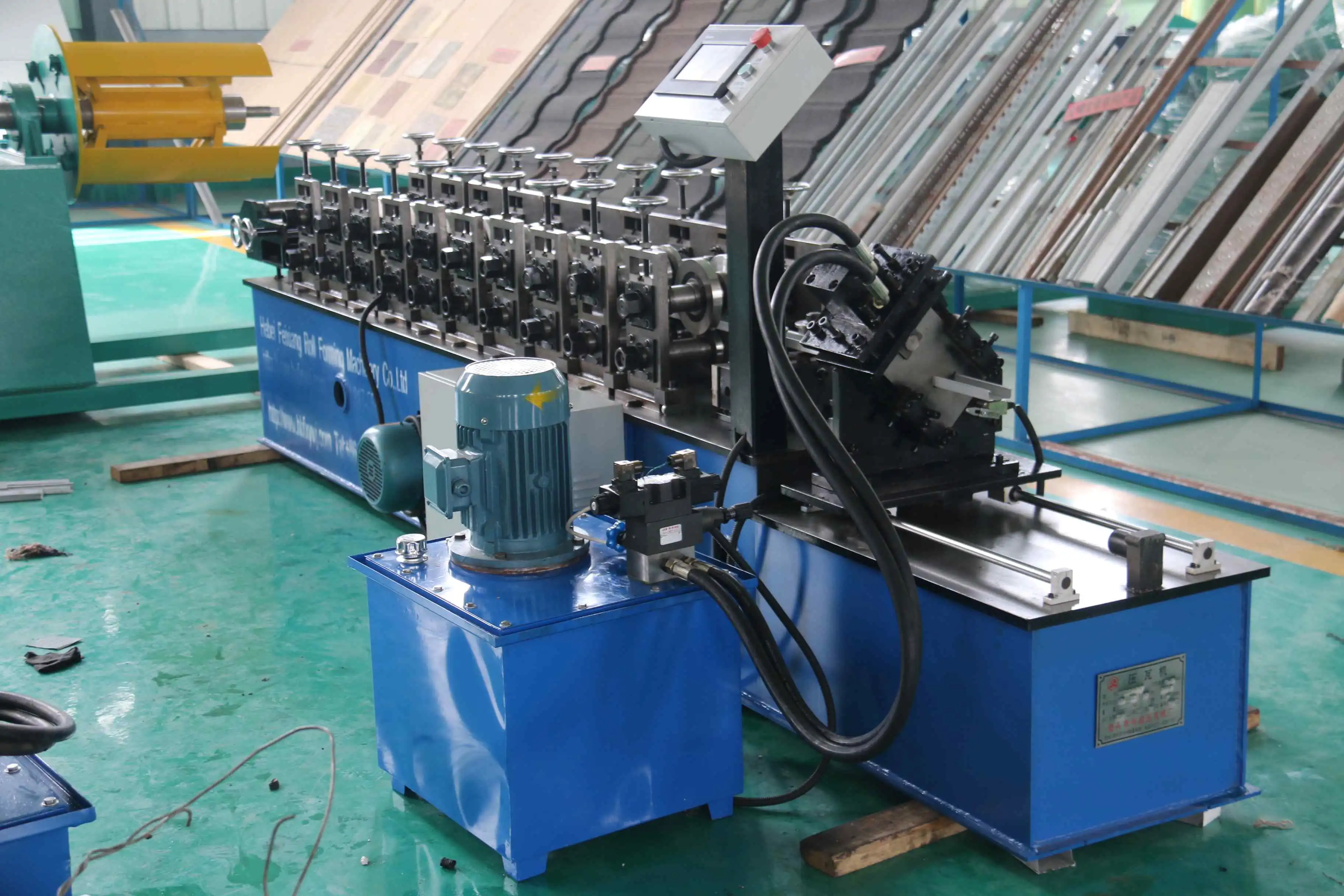

A stud and track roll-forming machine bends galvanised or cold-rolled steel bars into structural forms. Each roller station progressively creates metal without cutting or welding, preserving its purity. Modern machines can handle 22-gauge (0.76 mm) to 16-gauge (1.6 mm) thicknesses. They can alter bases from 1.25 to 2 inches and profile lengths from 3 to 6 inches. Uncoilers deliver raw material to the production line. After 12 to 16 roller stations bend the steel into the proper cross-section, a hydraulic cutting mechanism cuts each piece to length.

Key Components That Drive Performance

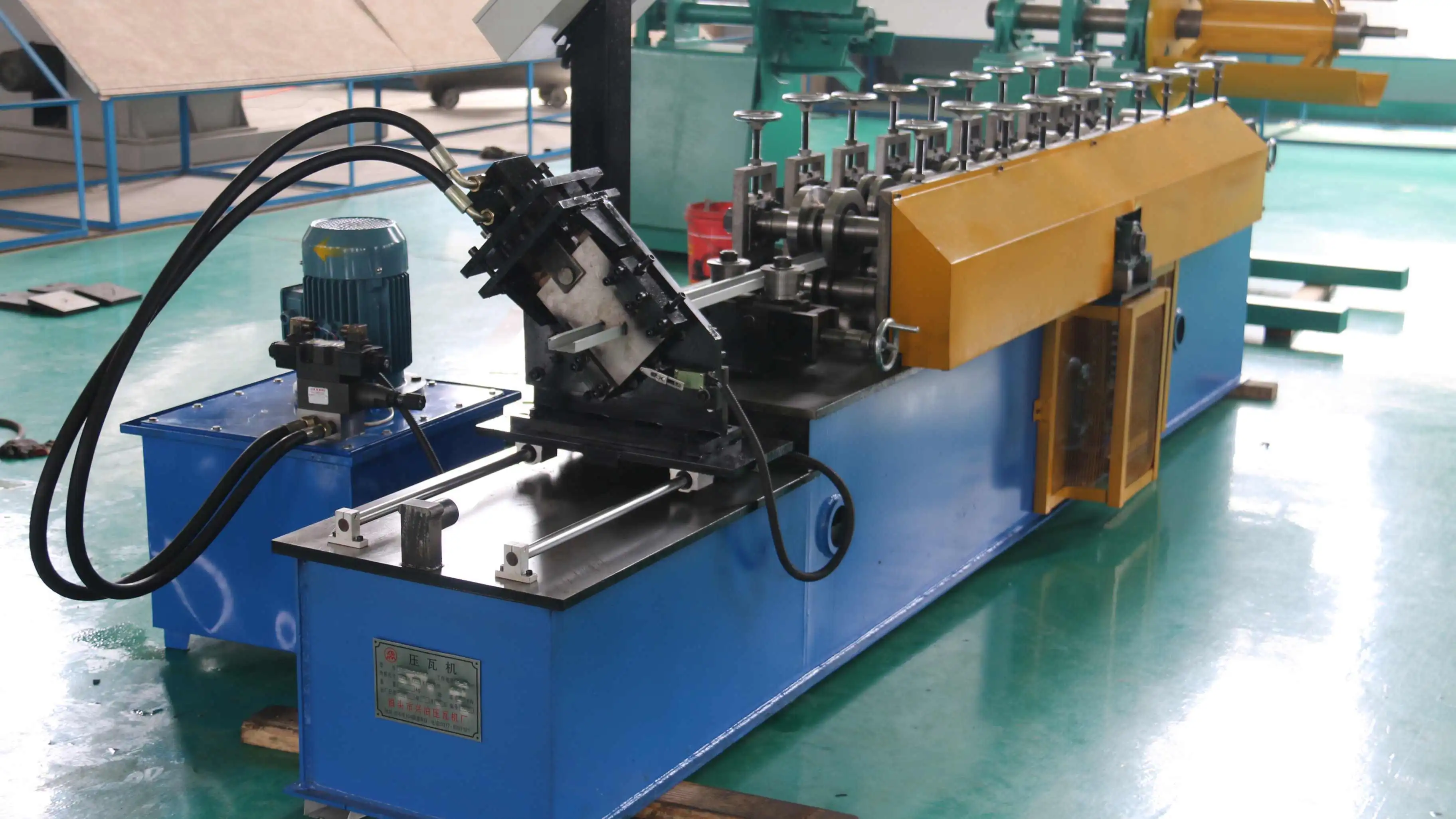

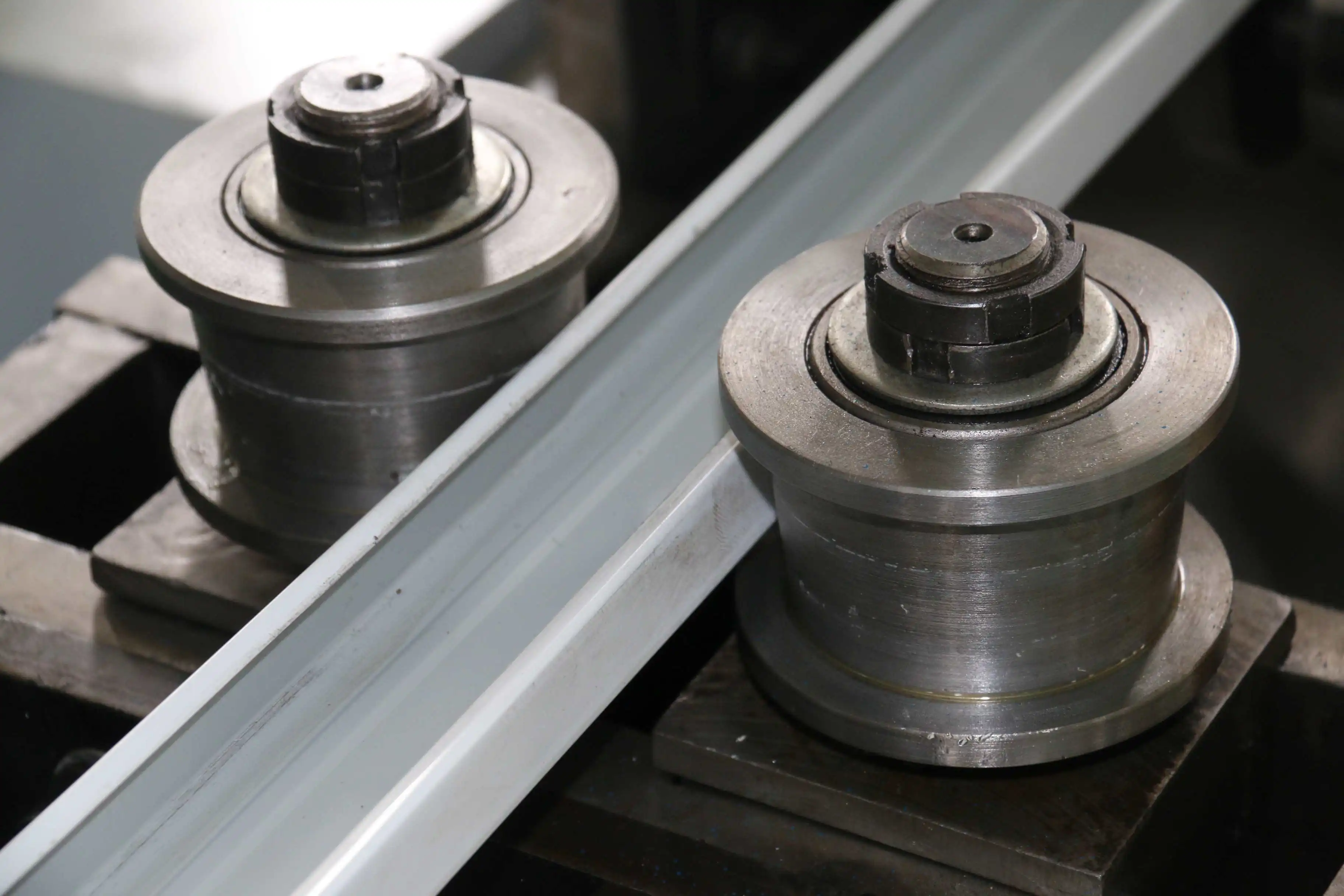

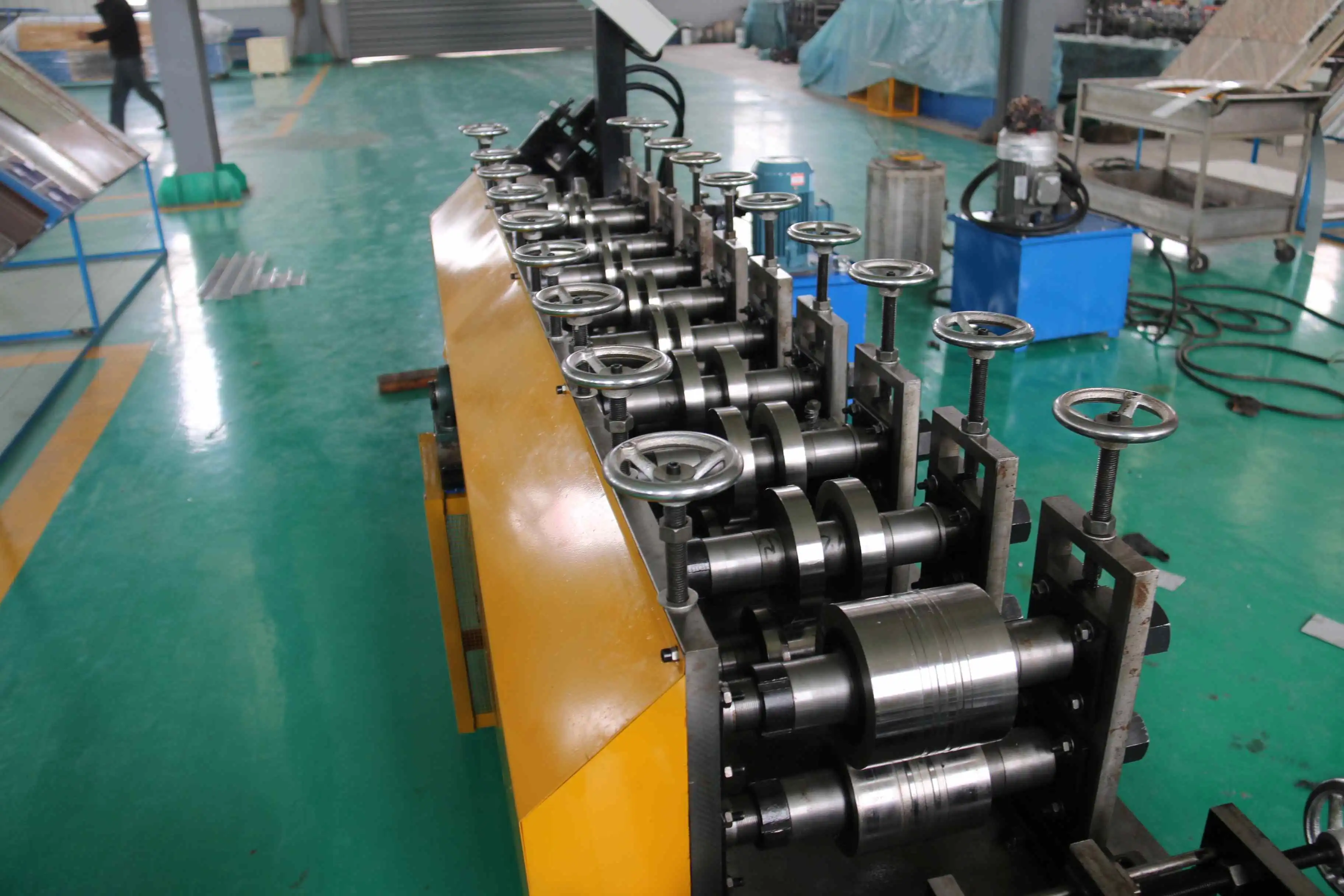

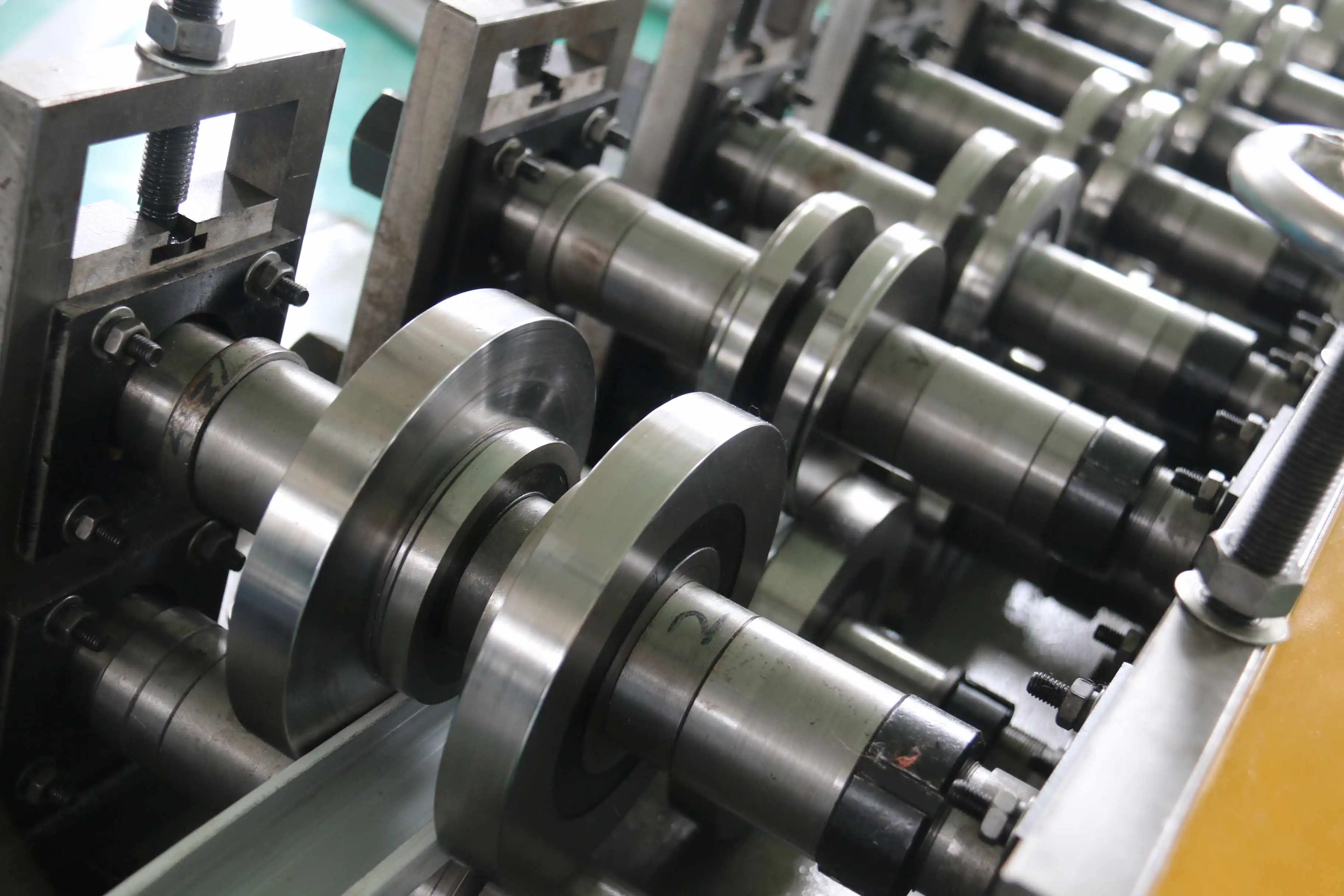

The decoiler holds 2.5 tonnes of steel coils and maintains tension while feeding them. Roll stations employ heated 45# high-grade steel rollers with HRC 58–62 hardness. After years of usage, these rollers don't wear out. The hydraulic cutting unit's CR12 steel blades cut cleanly without burrs that might hinder installation. A PLC controls speed, length, and timing between all sections. This connection ensures that every form leaves the machine ready to be placed, reducing production line delays.

Material Compatibility and Specifications

Due to their strength and rust resistance, galvanised and hot-rolled steel are preferred building materials. Galvanised coatings protect studs and tracks in moist environments, extending their lifespan in houses and businesses. The maximum yield strength at 16-gauge thickness is 80 ksi, meeting ASTM C645 load-bearing internal frame specifications. By adjusting sizes and widths, manufacturers may swiftly react to changing project demands without retooling. They may maintain manufacturing plans even when order specifications vary.

Core Ways to Study and Track Roll Forming Machines Improve Output

Continuous Production Eliminates Downtime

Traditional manufacturing requires moving materials after each item, which wastes hours. The stud and track roll-forming machine process produces straight profiles till the coil runs out. This continuous flow boosts production by 60–80% over a push brake. One person can monitor the automated process, freeing up qualified people for quality control and operations. Manufacturers may fulfil tight deadlines for large orders by making more linear feet each shift with less handling time.

Precision engineering minimises material waste.

Hand-cutting and turning wastes due to measurement and angle errors. Automatic stud and track roll forming machine operations ensure precise shape dimensions within ±0.5 mm, ensuring studs slot into tracks without gaps. From 8–12% with human approaches, rejection rates reduce to less than 2% with this precision. Each coil produces more product with less waste, lowering raw material costs. The hydraulic cutting system uses real-time measurements to position the blade. This prevents over- or under-cutting, which causes job-site assembly issues. This uniformity saves thousands in material prices annually.

Automation Reduces Labour Dependency

On older production lines, many people must feed material, watch the form, and handle finished items. All these tasks can be automated with contemporary stud and track roll-forming machines. The PLC system regulates coil feeding speed, roller pressure to accommodate varied quantities of material, and cutting times. The machine runs without supervision once operators enter the length and number of profiles. The fewer personnel needed, the cheaper the pay expenses and the safer the workplace—fewer people near moving machinery implies fewer injuries. Companies can maximise employee performance by assigning experienced workers to management or repair responsibilities.

Energy Efficiency Lowers Operating Costs

Advanced tools employ servo motors and variable frequency drives to adjust power consumption by load. Light gauge systems consume 15–25% less energy than fixed-speed motors, lowering electricity expenses. Even at maximum speed, the primary power need of 7.5kW is modest, lowering energy expenditures. Energy-efficient designs generate less heat, so manufacturers need fewer cooling systems. These savings mount up over months, increasing profits without cutting productivity. Environmental rules increasingly encourage energy-efficient technology. Current stud and track roll-forming machines are a good investment for long-term compliance.

Press brakes work effectively for one-time turns but not for bulk manufacturing. Hand-assembling, positioning, and removing each piece restricts production to 50–100 pieces each shift. A stud-and-track roll-forming machine can manufacture 500–800 forms at once, making them ideal for big orders. Due to operator expertise, press brakes vary in bend angles, resulting in different measurements each time. This method eliminates this human component; thus, features remain consistent over changes. A stud-and-track roll-forming machine is the only option to satisfy deadlines and quality requirements for enterprises making thousands of comparable studs and rails for large building projects.

Manual Versus Automatic Machine Configurations

On manual roll production lines, workers measure and cut each form by hand, which takes time and might be inaccurate. For automatic systems, sensors detect length, and hydraulic shears are controlled by a PLC to cut with a ±1.5 mm range. This technique triples output speed and eliminates tiredness-related errors. Startups aiming to save money may use manual methods, but scalability becomes an issue as order numbers climb. Automatic setups provide 24-hour production with little control. This allows companies to take on greater work without hiring additional staff. Within 12–18 months, improved capacity and decreased labour costs offset initial investments.

Total Cost of Ownership Analysis

The original purchase price is only a fraction of the tools' cost over time. Maintenance expenses, energy usage, and downtime determine profitability. In a stud and track roll-forming machine, heat-treated rollers and precision-ground rods need to be greased every three to six months, although parts seldom need to be replaced in the first five years. Cheaper machines made of lower-grade steel have rollers that wear out fast, requiring expensive replacement and stopping production. Energy-efficient versions save 20–30% annually, paying for themselves in three years. Procurement managers should calculate the 10-year total cost of ownership to identify the greatest value for their manufacturing environment. They should consider maintenance contracts, spare parts, and downtime.

Practical Tips to Maximise Output and Maintain Your Roll Forming Machine

Routine Maintenance Schedules

Regular cleaning prevents roller seizure and prolongs bearing life. Every 200 hours, lubricate drive chains with high-pressure grease and verify tightness and balance. Monthly, check cutting blade edges for wear. Blade dullness alters profiles and creates scrap. Replacement blades are needed when a microscope shows edge rounding. Check hydraulic fluid levels weekly and add as needed to maintain system pressure. A professional's annual maintenance should include laser measurement equipment to check roller alignment and ensure all sites stay within 0.1 mm of each other. These preemptive measures save emergency repair costs by 70% and keep manufacturing lines running during peak demand.

Troubleshooting Common Production Issues

Uneven exit profiles indicate misaligned mid-station rollers. Turn off the stud and track roll-forming machine and use feeler gauges to match roller pair gaps. Make small modifications to attaching bolts until gaps satisfy the criteria. When material slides while feeding, the decoiler isn't exerting enough force. Increase stopping resistance to unwind the coil slowly. Burrs on the cut sides indicate a dull blade or slow cutting. Change or sharpen blades and adjust hydraulic pressure to material thickness. Too much roller pressure wrinkles surfaces; reduce compression. Keep extensive upkeep logs to spot issues and patterns so you may solve them before they become issues.

Upgrading for Enhanced Productivity

Servo motors make older machines more energy-efficient and speed-controllable. Due to their ability to store recipes for different kinds of profiles, programmable logic controllers can replace relay systems. Automatic stacking systems save manufacturing time by eliminating manual handling of completed items. Custom tooling allows you to manufacture unusual forms like screw retention studs with dimples or utility holes without extra labour. Check with equipment manufacturers to ensure compatibility before ordering modifications. Reliable vendors like ZTRFM offer unique refit solutions for each machine model, ensuring a smooth merger. These innovations prolong tool life and keep firms competitive as industry standards evolve.

Procurement Considerations for Stud and Track Roll Forming Machines

Evaluating Budget and Financing Options

Make sure you can afford pricey tools because they restrict cash flow. Leasing spreads expenses over three to five years, leaving operational cash for raw materials and running expenditures. Equipment loans often offer lower interest rates than conventional company finance, reducing the overall repayment amount. Some manufacturers provide staggered payment programmes with output targets. This enables purchasers to profit before large purchases. Estimate the production value less the financing cost to calculate the ROI. Most modern stud and track roll-forming machines have 18–24 month ROIs. Provide 10% of the purchase price for installation, user training, and the initial spare parts stock. Careful financial planning may prevent cash shortages, which could delay manufacturing.

Selecting Trusted Suppliers and Manufacturers

Supplier image affects corporate long-term success. Companies with ISO9001 and CE certifications meet worldwide quality requirements. Find case studies from similar industries and write out how the tools functioned and how they were assisted after the sale. Request virtual or actual plant tours to observe how items are created and quality verified. Suppliers with 10 years or more experience provide stability and success. Cangzhou Zhongtuo, a 2014 national high-tech business, provides OEM and ODM services and exports to over 150 countries. Working directly with a facility lets you talk to tech teams about equipment specs and customisation without middlemen.

Ensuring After-Sales Support and Spare Parts Availability

Strong help networks are crucial because equipment downtime damages earnings. The vendor should have approved partners or regional service centres that can fix anything on-site within 48 hours, including the stud and track roll-forming machine. Check spare parts lists to ensure rollers, blades, and hydraulic seals will be accessible at least 10 years after purchase. Discuss service level agreements that specify response times and delivery dates. Operating, maintaining, and repairing should be included in comprehensive training programmes to equip internal teams to address minor issues. Internet-connected PLCs allow suppliers to remotely test and rectify issues without sending people. These support systems prevent production interruptions and protect capital equipment.

Conclusion

Smart control systems, automation, and precision engineering revolutionise metal frame production in modern stud and track roll-forming machine technology. Machines that handle 16- to 22-gauge galvanised steel at rates above 8 metres per minute produce consistent, ASTM C645-compliant forms while reducing waste and labour expenses. Hydraulic cutting, PLC control, and heated rollers let manufacturers handle huge orders fast. Long-term operational performance depends on total cost of ownership, provider reputation, and post-sale support. As construction demand grows and tolerances tighten, light steel frame manufacturers must invest in a stud and track roll-forming machine to stay competitive.

FAQ

1. What materials work best in stud and track roll forming?

Most people prefer galvanised steel since it doesn't corrode and is readily available. Hot-rolled steel is suitable for low-cost, low-exposure usage. The strongest material for load-bearing inside walls is 16-gauge (1.6mm). Different structures can employ 40ksi–80ksi yield values.

2. How often should maintenance occur?

Grease roller bearings and drive chains every 200 hours. Check cutting blades monthly and replace them when edge wear occurs. Complete annual expert checks to ensure hydraulic system alignment and health. Tools can generate high-quality items for over 15 years with proper care.

3. Can manual machines be upgraded to automatic operation?

Retrofitting involves adding PLC controllers, servo motors, and automated cutting. Most stud and track roll-forming machines cost 30–50% of a new one. Older frames may not be sturdy enough for high-speed automation. Ask manufacturers about compatibility. ZTRFM will assess your equipment and recommend cost-effective upgrades to safeguard your investments and boost your capabilities.

Partner with ZTRFM for Superior Roll Forming Solutions

Cangzhou Zhongtuo builds precision stud and track roll forming machines for American building projects. Our machines can handle 22- to 16-gauge material and 3–6-inch profile widths. Coated and hot-rolled steel with 80ksi yield strength is also accepted. ISO9001 and CE-approved systems feature PLC control, hydraulic cutting, and heat-treated CR12 blades with ±0.5mm tolerances. ZTRFM exports to over 150 countries and provides OEM/ODM services. Their entire solutions include installation, training, and expert support. Contact our tech staff at zhongtuorollforming@gmail.com to discuss unique configurations for your production. Discover why leading stud and track roll forming machine manufacturers trust ZTRFM to produce dependable, high-output equipment that revolutionises steel framing.
