Metal Panel Production with Roofing Sheet Making Machine

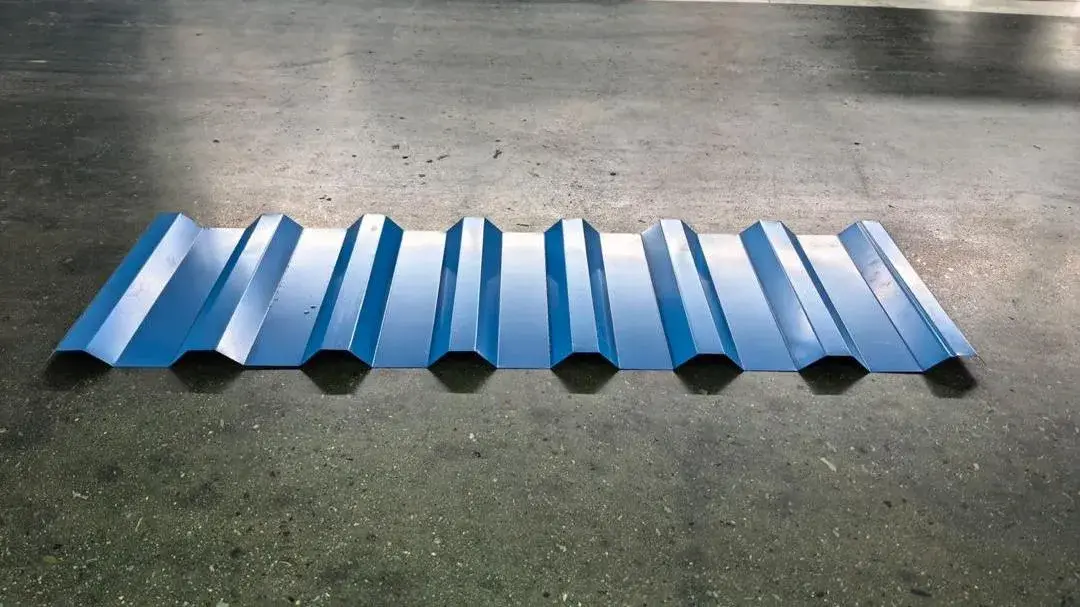

The manufacturing of metal panels has changed the way the R101 Roofing Sheet Making Machine is used by businesses, farms, and homes all over the United States. The R101 Roofing Sheet Making Machine is the heart of this change. It is a cold roll forming machine designed to make precise and consistent trapezoidal roofing shapes. This machine runs flat metal strips, usually galvanized or pre-painted steel or Galvalume, through a number of roller stations that gradually bend the material into the famous R101 shape without using heat. People who are thinking about buying this will find that the machine gets rid of the size errors that come with human processes and, thanks to PLC-controlled hydraulic cutting systems, wastes a lot less material. Manufacturers can meet large orders quickly by producing at speeds of up to 15 meters per minute and keeping the tight tolerances needed for weathertight roofing systems on big span buildings.

Understanding the R101 Roofing Sheet Making Machine

Core Components and Technical Architecture

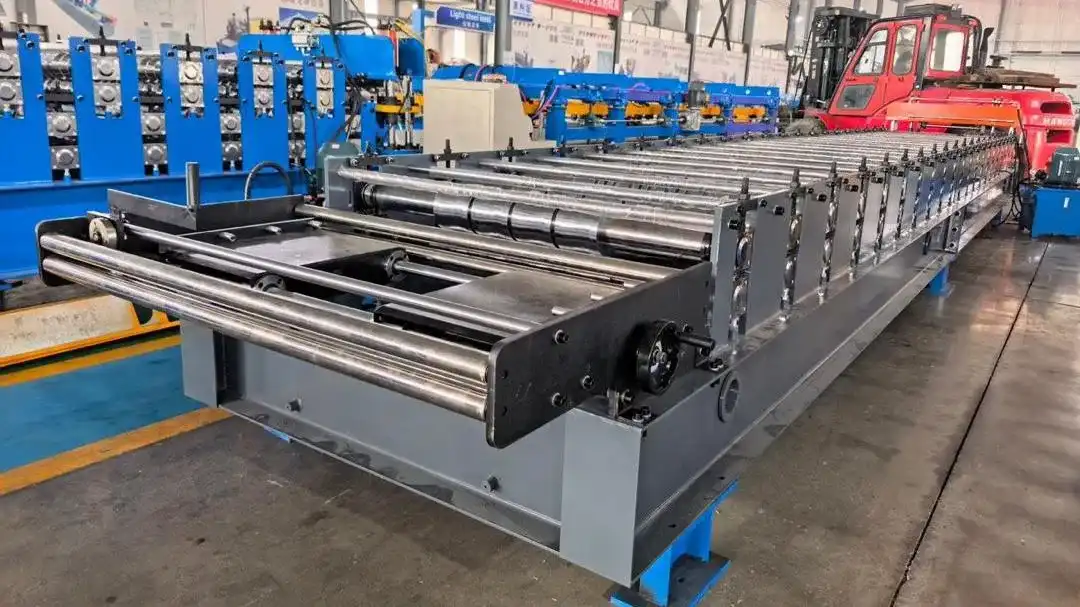

The technical structure of the R101 Roofing Sheet Making Machine makes it possible for it to work reliably. This model has 18 making stations, and each one is perfectly placed to shape the metal one piece at a time without causing stress cracks or surface damage. The 70 mm width of the shaft gives it the strength it needs to work with materials that are between 0.3 and 0.8 mm thick. These solid steel rods, which are usually made from high-grade bearing steel, spread force evenly across the width of the roller. This stops the curve or waviness that happens in machines with parts that are too small. A main motor with 5.5 kW and a hydraulic unit with 4 kW work together to give power. This mix powers both the rollers that do constant forming and the device that cuts off the ends. The hydraulic shear system has mold steel blades made of Cr12MoV that have been heated to an HRC 58–62 hardness. These blades can make clean cuts with an accuracy of ±2 mm across a 1,250 mm profile width. The decoiler is where the material feeding starts. It can hold up to 5 tons of material and can be manual or motorized, based on the production number needs.

Automation and Control Systems

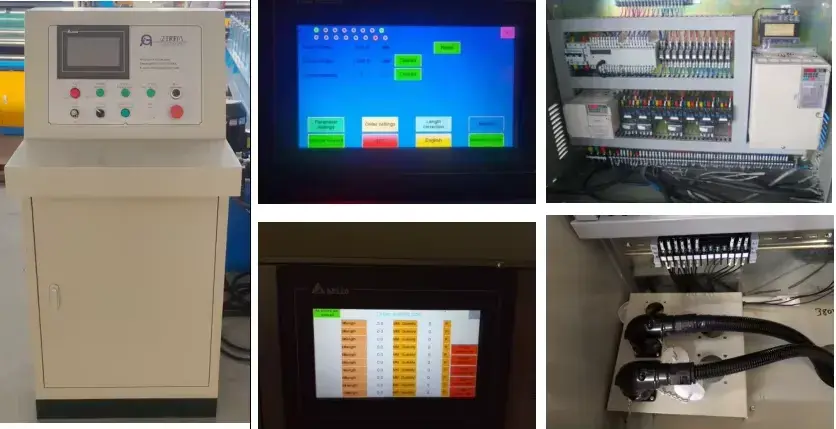

Modern machines can't keep up with the level of accuracy needed to make roofing sheets while working eight-hour shifts. The R101 Roofing Sheet Making Machine has a 5.7-inch touchscreen interface and a Delta PLC built in. This lets workers set up production runs by adding sheet length and number. Once the settings are set, the system takes care of synchronizing the rollers, timing the cuts, and counting the production without any help from a person. Light steel structure builders who need to switch between different purlin shapes throughout the day without losing accuracy will find this automatic level very useful. The control system constantly checks the line speed and keeps it at up to 15 meters per minute while adapting to changes in the thickness of the material. The system automatically slows down when working with thinner gauges, like 0.3 mm pre-painted steel, to keep the surface from getting scratched. This is an important feature for building uses where project success depends on how good the project looks. If the material is thicker than 0.8 mm, the speed may need to be slowed down a little. The PLC handles this automatically while the touchscreen shows updated metal roofing sheet machine output time predictions.

Comparing the R101 Roofing Sheet Making Machine to Other Solutions

Performance Benchmarks Against Alternative Systems

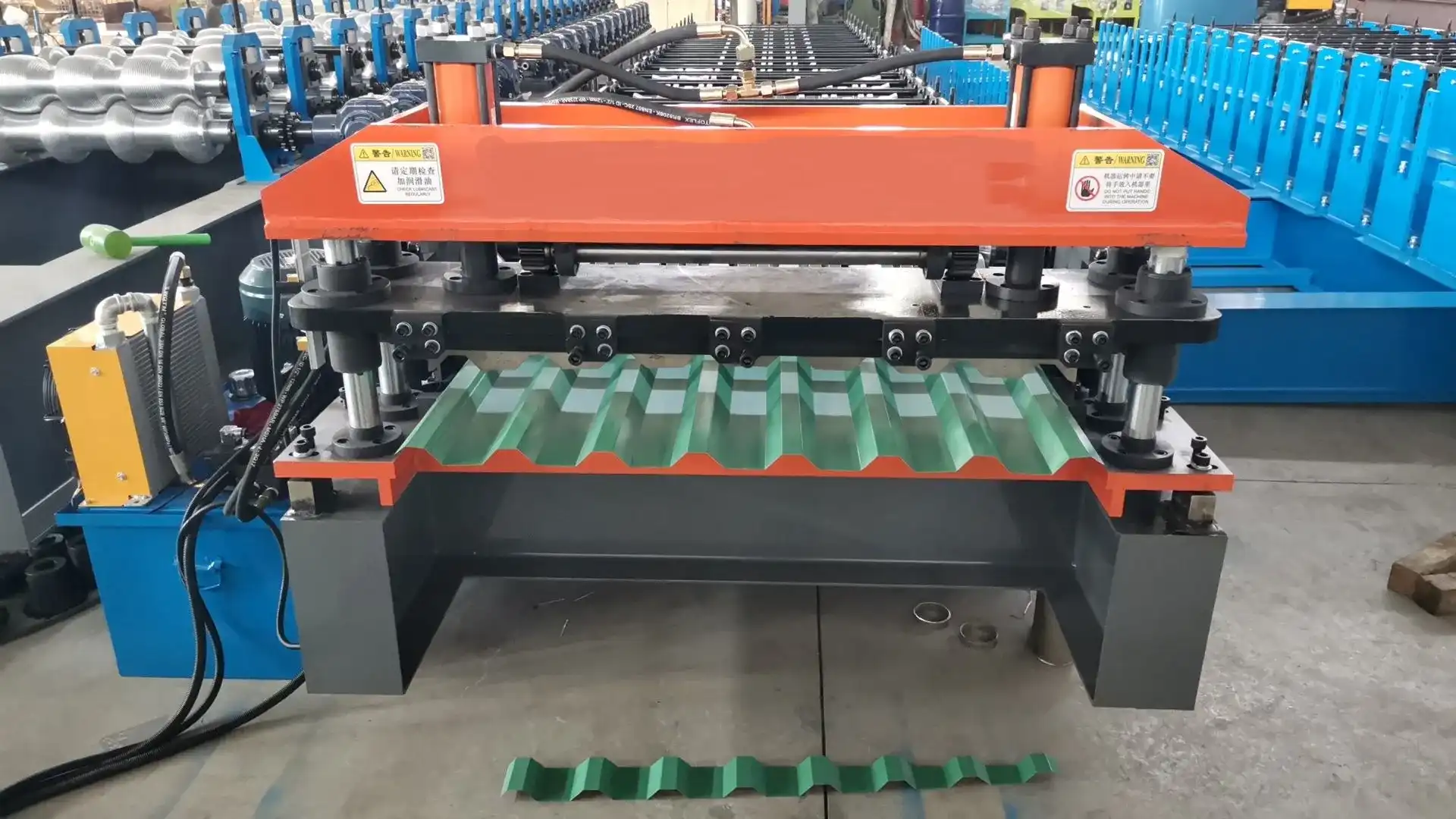

Smaller fabrication shops still use the old-fashioned way of using a brake press, which gives them more freedom but less accuracy. A skilled user could use a press brake to make 50 to 80 sheets per shift, with an accuracy of 3 to 5 mm over a 6-meter length. This solution changes completely because of the R101 Roofing Sheet Making Machine. With a cutting accuracy of ±2 mm and a speed of 15 meters per minute, a single machine can do the work of four to five trained press brake operators. This saves money on wages and training costs that come with keeping that many workers. The R101 Roofing Sheet Making Machine is a big step forward in technology when compared to older automatic roll formers. Machines from earlier generations often used simple relay logic or entry-level PLCs that couldn't do much repair work. When problems with production happened, like material jams, drops in hydraulic pressure, or misaligned rollers, it took workers a long time to figure out what was wrong because there weren't any clear error messages. The Delta PLC system has fault code screens that show problems right away. This cuts down on average downtime from 45 to 60 minutes to 10 to 15 minutes for typical issues.

Total Cost of Ownership Analysis

The purchase price is only the first part of the tool investment. Metal structure and profile makers who run production lines for shelving systems have talked about how upkeep costs have a big effect on their profits over three to five years. Because the R101 Roofing Sheet Making Machine is built to last, it only needs to be maintained on a regular basis instead of being fixed when something goes wrong. Maintaining hydraulic systems is a great example of this idea in action. Using industrial-grade #46 hydraulic oil, the system needs to be changed for the first time after six months of use to break it in. After that, it needs to be changed every year. This simple plan is different from smaller machines with hydraulic pumps that are too small and overheat when they are used all the time, needing oil changes and seal replacements every three to four months. The higher repair frequency of the premium equipment makes up for any difference in price over five years, and it also avoids the production losses that come with unplanned downtime. Another cost factor that changes a lot between quality levels is how long the cutting blades last. When heated correctly, the Cr12MoV blades can make 500,000 to 1 million cuts before they need to be sharpened or replaced. If your machine uses softer tool steel, you may need to service the blades every 200,000 cuts.

Procurement Guide for the R101 Roofing Sheet Making Machine

Identifying Qualified Suppliers and Manufacturers

The connection with the provider sets the stage for long-term equipment happiness. Cangzhou Zhongtuo, which was founded in 2014, is a good example of a specialty producer that works with the roll forming business. The company only designs and builds cold roll forming machines. Because of this, it has a lot of technical knowledge that other companies that sell different kinds of machines can't match. Their ISO 9001, CE, and CAS approvals show that they follow quality control systems and safety standards that are accepted in 150 countries where their equipment is used. When looking at possible providers, look at how they handle service after the sale. Comprehensive support includes giving your workers technical training, making sure you have spare parts on hand with clear wait times, and helping you fix production problems remotely when they happen. Zhongtuo's one-stop service model meets this need by providing raw materials, tools, and accessories through a coordinated network. This makes managing vendors easier, which is hard for smaller businesses that don't have dedicated buying staff.

Financial Arrangements and Payment Structures

Buying capital equipment can be hard on cash flow, especially for new businesses that have to balance the cost of the equipment with the need for working capital to pay for things like supplies and running costs. Knowing the different ways to pay helps match financial responsibilities with expected income. In normal foreign business, a 30% fee is required as soon as the order is confirmed, and the remaining 70% is due before the shipment. This structure keeps everyone safe: the buyer keeps their power until acceptable factory acceptance testing proves the equipment works, and the maker gets a promise to make custom configurations. Letters of credit through well-known banks offer security for bigger deals, which is especially helpful for buyers who don't have any previous business relationships with foreign suppliers. Before making a payment, the bank checks to make sure that the documents are correct. This makes sure that the equipment goes as planned. Even though letters of credit add banking fees to the cost of a transaction, the reduced risk makes the cost of buying expensive tools worth it. When negotiating, buyers should be clear about the type of cash early on. American buyers don't have to worry about exchange rates when they buy in US dollars, but some producers would rather use their own currency or euros. The choice of amount affects how changes in currency affect metal roofing sheet machine the total cost between placing the order and paying for it.

Logistics and Delivery Coordination

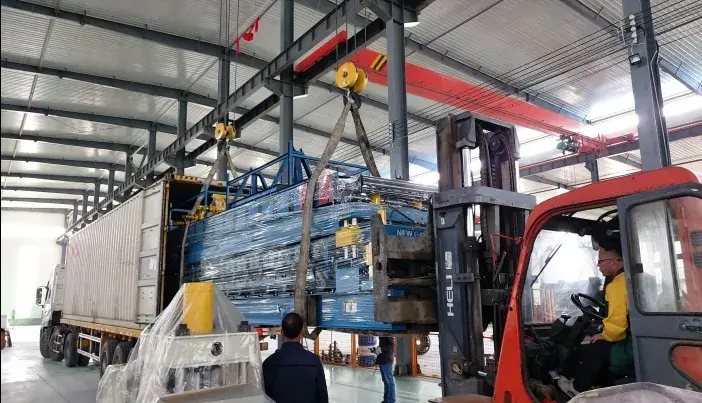

The R101 Roofing Sheet Making Machine is about 6,200 mm long, 850 mm wide, and 1,500 mm high, and weighs 3.5 tons. It needs to be carefully shipped. Ocean freight is the most cost-effective way to get goods to the US. It takes 18–25 days to get from Chinese ports to East Coast targets and 12–16 days to get to West Coast ports. The machine is shipped as a whole on a wooden pallet or in a custom-made crate, which protects it from salt air and damage that can happen during international moves. Import taxes and clearing customs take more time and cost more money. The current tax classifications for roll forming machinery depend on certain characteristics and the place where the machinery was made. When you work with a customs broker who knows about importing industrial machinery, you can avoid classification fights that hold up port release. The broker takes care of the paperwork, like business bills, packing lists, and certificates of origin, so that customs processing goes smoothly. For domestic transfer from the port to your building, trucks that are specially designed for this size and weight of equipment are needed. Commercial carriers can't take machinery loads that don't have protected crates.

Maintenance and Troubleshooting of the R101 Roofing Sheet Making Machine

Daily and Periodic Maintenance Protocols

Daily checks before production runs are the first step in consistent upkeep. Operators should check the amount of hydraulic oil in the sight glass and look for a milky appearance, which means water got in from condensation or a leaky seal. The oil should be clear and yellow, with no particles in it. When the amount is low, it's best to add matched #46 hydraulic oil instead of mixing different grades, which can change how the system pressure works. At each of the 18 forming sites, lubrication points need to be checked based on production output rather than calendar plans. Machines that work 8 to 10 hours a day need to be oiled every 40 to 50 hours, or about twice a week for full-time activities. Apply lithium-based grease that is rated for high pressure to the bearing blocks that hold up each roller shaft until you feel a little resistance, which means the bearing housing is full. When you grease something too much, the extra oil pushes past the seals and attracts dust and metal bits that speed up wear. There is steady stress on the chain drive that connects the main motor to the roller stations. Check the chain slack every 200 hours by noting how much it bends in the middle of the sprockets. When pressed, the right tension lets the piece move 10–15 mm vertically. Too much slack makes the action jerky and the roller speed uneven, which leaves lines on the surface of the formed sheet. Use the flexible motor mount to change the tension, and then check the position of the sprockets to stop side loading that wears out chain links too quickly.

Common Issues and Resolution Strategies

There are three main types of production problems: problems with moving materials, problems with the way things are shaped, and mistakes in the control system. Problems with moving things around are often caused by the wrong decoiler tension. When there is too much strain, smaller materials are stretched, which makes waves in the formed shape. If there isn't enough tension, the coil can unwind or twist unevenly, which throws off the edges of the material as it hits the first forming station. When the decoiler is set up correctly, it keeps just the right amount of back-tension to keep the material moving straight without putting stress on it. Profiles that twist or bow show that the rollers are not lined up right or that the gaps between the upper and lower rollers are not even. This problem usually shows up slowly as roller bearings wear out, letting shafts move slightly out of parallel line. To find the station with the uneven gaps, you have to use precision straight lines and feeler gauges to take measurements in a planned way. Loosen the bolts that hold the bearing block in place, move it so that the gaps are the same across the whole width of the roller, and then tighten the bolts again while checking the readings again. A lot of machines have an exit straightener, which is a set of small rollers with an angle that fights natural material curl. Changing the straightener's pressure only fixes small bows and doesn't fix the problem of forming stations not being lined up correctly.

Real-World Maintenance Case Study

A medium-sized roofing company in the Midwest with three R101 Roofing Sheet Making Machine units working on two shifts started a preventive maintenance program after having frequent breakdowns on the weekends that required costly overtime service calls. They made maintenance plans with different colors: daily checks were marked with green tags, weekly lubrication was marked with yellow tags, and monthly thorough inspections were marked with red tags. Green-tagged things were done when the shift started, yellow-tagged tasks were done on Friday afternoons, and red-tagged checks were done on the last Saturday morning of every month when production was stopped. Unplanned downtime dropped by 73% compared to the previous year in just six months. The planned repair windows on Saturdays caught problems like worn hydraulic seals, loosened roller bearings, and chain stretching before they stopped work. Ordering parts became strategic instead of reactive, which got rid of the need for rush shipping fees. The repair log showed that because Station 12 was at the profile's highest forming angle, its bearings needed to be replaced more often than those at other stations. With this information in hand, they made sure Station 12 had extra bearings, which cut the average fix time from four hours to 45 minutes. This methodical approach shows how structured repair practices can improve the dependability of equipment while keeping costs down.

Optimizing Metal Panel Production with the R101 Roofing Sheet Making Machine

Enhancing Production Efficiency and Throughput

The fastest way to improve production is to cut down on the time it takes to switch the R101 Roofing Sheet Making Machine between different sheet widths or types of material. The R101 Roofing Sheet Making Machine's PLC programming lets you save more than one preset setup, such as different line speeds for different material thicknesses or different lengths for different building sections. Instead of recalculating and entering settings by hand for each production run, operators use the tablet to call up these programs. This feature cuts the time it takes to change over from 15 to 20 minutes to less than three minutes, which is useful for making small batches for unique projects. Cutting down on material waste has a direct effect on profits because steel prices change all the time. As a general rule, the ends of coils have 50 to 100 mm of material that can't go through the making stations. Manufacturers make less scrap by carefully planning production runs to avoid making too many broken sheets. The ±2 mm cutting accuracy lets you nest sheet lengths tightly when cutting from continuous coils. This is especially helpful when making shorter panels for trim or transition pieces. In order to find output bottlenecks, the whole process must be watched. It doesn't matter how fast the roll is formed if the decoiler can't keep up or if finished sheets pile up faster than workers can stack and bundle them.

Integration with Existing Production Lines

The R101 Roofing Sheet Making Machine's small size—about 6.2 meters long and 850 mm wide—makes it easy to place in existing buildings without having to completely rearrange the floor plan. The machine needs to be mounted securely on a concrete floor that is thick enough to absorb vibrations. The foundation bolts that are buried in the concrete hold the H-beam frame in place. This stops the frame from slowly moving, which happens when heavy equipment is used on foundations that aren't strong enough. The power needs are 380V/50Hz/3-phase, which is the standard for industrial electricity service in North America. However, based on the local utility requirements, voltage conversion may be needed. Some places use 480V systems, which means they need step-down transformers that can handle the 9.5 kW load of the main motor and hydraulic unit, plus a safety cushion. Power quality problems that damage motor windings or stop the PLC from working can be avoided by talking to industrial electricians before planning the installation. How well the whole system works depends on how well the tools upstream and downstream work together. Material is placed at the decoiler by coil handling equipment, which can only be reached by high cranes or forklifts. With a normal 5-ton coil capacity, you can move coils that weigh up to 11,000 pounds each.

Scalability and Long-Term Investment Value

Thanks to its strong construction, the R101 Roofing Sheet Making Machine can last for decades with regular upkeep. When a company wants to make more things, they have to decide whether to buy more tools or run their current ones for longer hours. The design of the machine allows it to work three shifts without wearing out faster when repair plans are changed to match the number of hours worked. This gives growing businesses the freedom to get the most out of the tools they already have before spending money on more units. Changes to the profile design add another level of scalability. The R101 Roofing Sheet Making Machine only makes the R101 triangular profile, but roller changeout lets you make other profiles with the same level of complexity. When replacing rollers, the maker usually needs to be involved to make sure that the station is set up correctly and that the roller gaps are set correctly. Because of this, businesses that serve a wide range of customers can use the same machine frame with different sets of rollers for each product line. Because roll-making gear is so specialized, the equipment's resale value stays high. Well-kept tools keep 40–50% of their original price after five years of use, giving owners options for getting out of the business if things change. This is very different from general manufacturing tools, which lose value much more quickly because there is more of it on the market. Roll formers are in high demand on the used equipment market because companies that want to start making roofs need people who know how to use them.

Conclusion

The most practical way for makers to serve the building market that needs uniform quality, reasonable prices, and dependable delivery plans is to use automatic roll forming to make metal panels. The R101 Roofing Sheet Making Machine does these things with the help of current control systems, strong mechanical design, and cold-forming technology that has been used for a long time. Knowing what the machine can do, how often it needs to be serviced, and how it will fit into your existing systems lets you make smart investment choices that help you reach your production goals. This article gives you the technical details and practical characteristics you need to start considering equipment choices and supplier relationships, whether you already make roofs or want to get into this market area. For companies that make metal roofing sheets, the mix of precise engineering, low capital costs, and easy upkeep makes for a strong value offering.

FAQ

1. Can the R101 process full-hard G550 steel materials?

Standard R101 Roofing Sheet Making Machine setups work well with soft to medium-hard steel with a yield strength of around G300. To work with the higher yield strength and spring-back properties of full-hard G550 material, forming stations need to be updated with stronger roller bearings and more motor power. Buyers who want to handle high-strength materials should make sure that manufacturers know what they need during the initial equipment talks. This way, manufacturers can make sure that the right parts are included. Using normal tools with G550 material can damage the rollers and make profiles that don't match up in size because there isn't enough forming force.

2. What factors affect hydraulic cutting blade lifespan?

How long a cutting blade lasts relies on how hard the material is, how thick it is, and how often it is cut. When used on normal steel that is 0.3 to 0.8 mm thick, properly heated Cr12MoV blades can make 500,000 to 1 million cuts. Wear happens faster on harder materials and sizes that are bigger. Maintaining a blade means checking the edges on a regular basis and having a professional resharpen it when the quality of the cut gets worse. Too much force can cause blades to wear out too quickly, but keeping the right blade gap and hydraulic pressure can stop this. Cutting through surface contaminants like rust or dirt quickly wears down edges. The quality of the material is another thing that affects the life of a blade.

3. How do I resolve profile twisting during production?

Most of the time, odd roller gaps or misplaced forming stations cause profiles to twist. Using feeler gauges to measure the gaps at both ends of each roller station is part of a systematic evaluation. Within a range of 0.1 mm, the gaps should stay the same across the width of the roller. At stations with uneven gaps, move the bearing blocks around to make sure the upper and lower rollers stay in a straight line. By applying controlled pressure through angled rollers, the exit straightener machine fixes small twists in the first place. Continuous turning could mean that the roller bearings are worn out, and letting the shaft move while it's working, which means that the bearings need to be replaced.

Partner with ZTRFM for Your Metal Roofing Production Needs

Manufacturers all over the United States who need solid tools to make roofing sheets can come to ZTRFM for help with the R101 Roofing Sheet Making Machine for their cold roll forming needs. As a well-known company that sells the R101 Roofing Sheet Making Machine, we know the production problems that building system manufacturers, steel structure makers, and metal panel manufacturers face in a wide range of market niches. Our engineering team works directly with clients to set up equipment that meets their exact material needs and output rates. This makes sure that the equipment works at its best from the time it is installed until it is used every day for years to come.

ZTRFM does more than just sell equipment; they also offer full technical support, such as training for operators, advice on upkeep, and quick fixing help when production issues arise. Our quality control systems are ISO 9001-certified, and our documentation for CE compliance meets the high standards that engineering firms and EPC companies around the world need for global project requirements. Whether you're adding to your current production capacity or starting to make roofing sheets for the first time, our technical experts can help you choose the right tools and set it up in the best way. Email our team at zhongtuorollforming@gmail.com to talk about your unique production needs and get thorough technical proposals that are made to fit your manufacturing goals.
