What Is a PBR Roll Former and How Does It Work in Roofing

You must know how to use manufacturing tools to succeed in metal roofing. A PBR roll former is a specialist cold-forming equipment for purlin bearing rib panels. These structural roofing shapes have expanded bearing legs that fit entirely on the roof purlins. This corrugated panel machine generates a trapezoidal form about 1.25 inches high with sides that meet to keep water out and strengthen the structure. The machine shapes flat metal coils into accurate panels using progressive roller stations. It performs this at rates up to 25 metres per minute using 24 to 26 gauge materials and consistent quality.

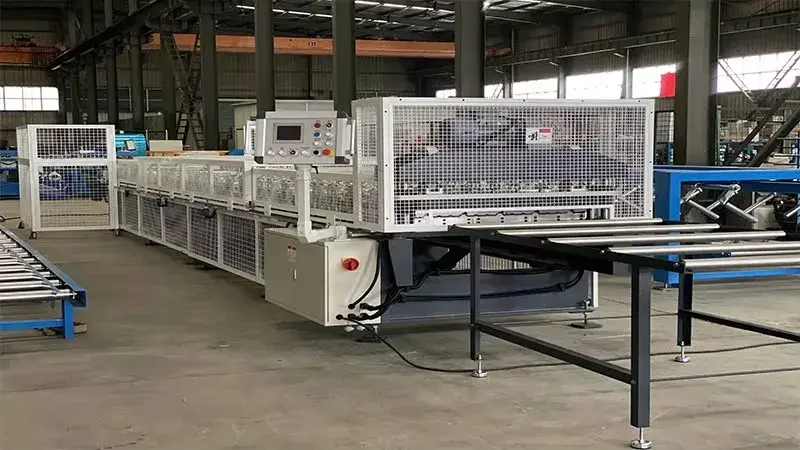

Understanding the PBR Roll Former: Definition and Function

Constant cold shaping turns raw metal strips into roofing panels on this machine. This approach is superior to press braking or hand bending.

What Sets the PBR Profile Apart from Other Metal Roofing？

It's distinctive because its long bearing leg makes full structural contact when panels meet during installation. R-panels feature vertical ribs, whereas PBRs have a larger flat bearing surface on the underlap. This configuration distributes weight equally across the purlins and creates a rainproof seal. Commercial warehouses and farm buildings benefit from this profile's larger lengths between structural supports. This reduces frame costs while fulfilling code load ratings.

The Roll Forming Process Explained Step-by-Step

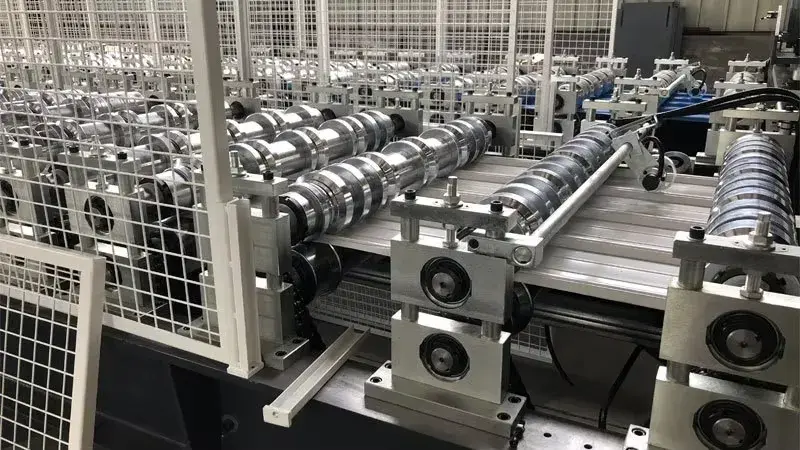

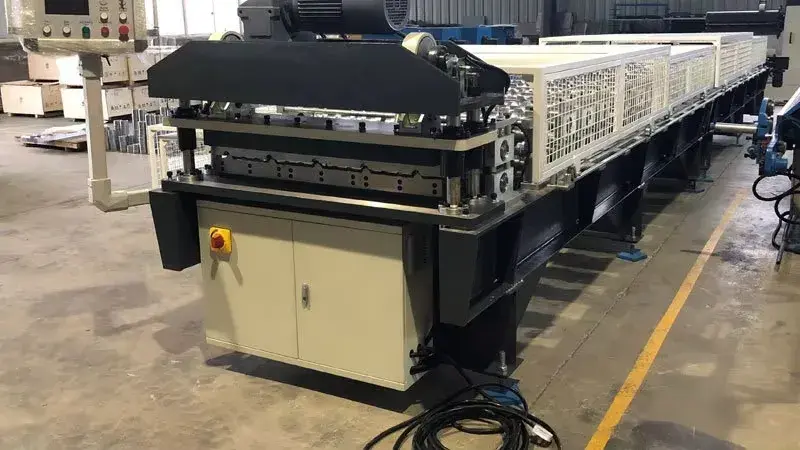

The machine receives twisted galvanized or Galvalume-coated steel sheets. These sheets pass via a tension-controlled decoiling station. Our standard arrangement has 19 progressive roller stations for the flat sheet. The material is bent further at each step to form the profile. Our machines' 80 mm solid shaft width prevents shaft bending during running. Hard chrome-plated 45# cast steel rollers are high-quality. This prevents pre-painted surfaces from scratching and wearing out over hundreds of thousands of manufacturing cycles.

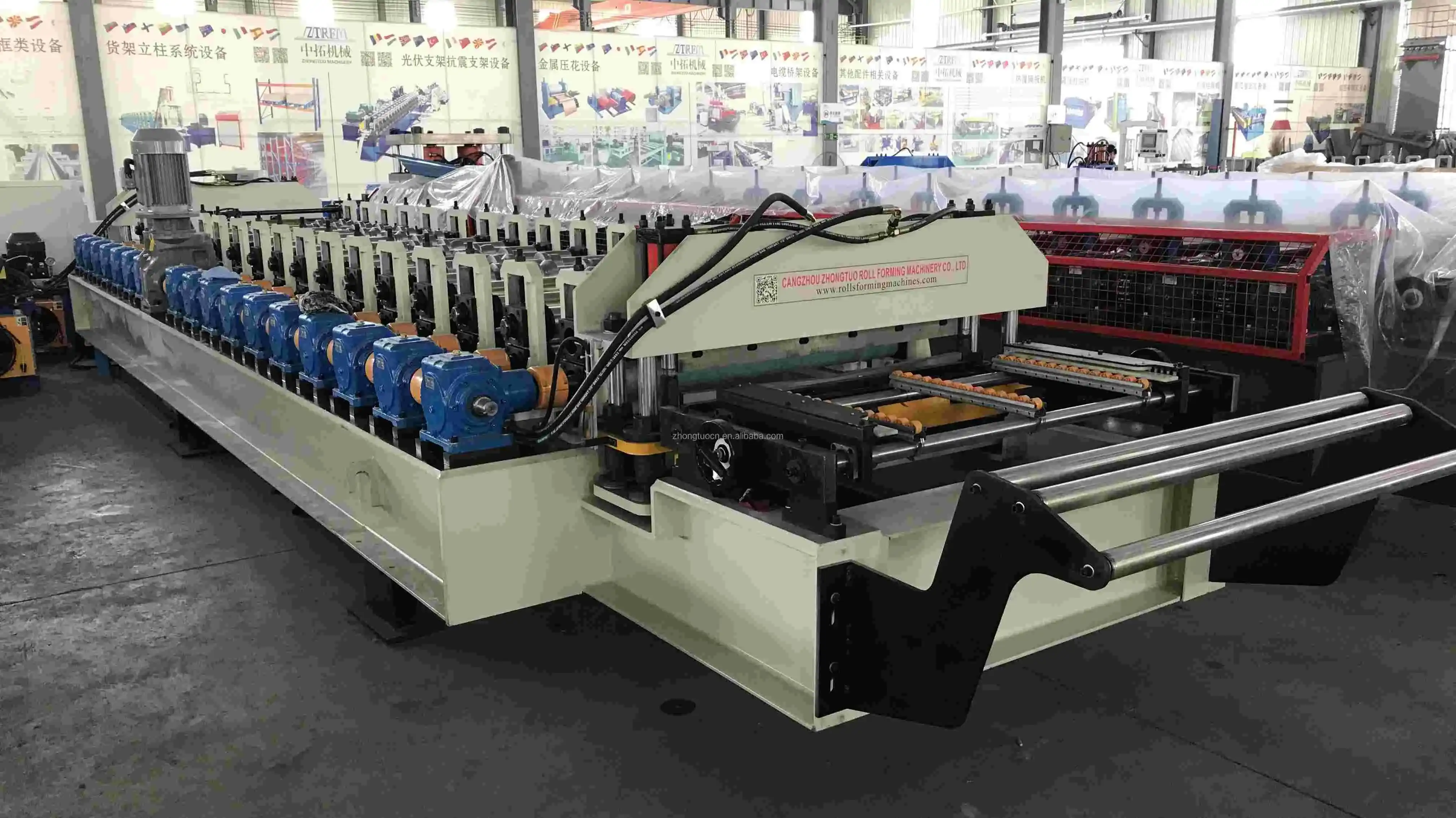

With 20mm welded steel centre support plates, the 350mm H-beam machine body is reinforced. This stiffens the machine to maintain tight tolerances even with elastic materials. A gear and double-chain drive system powers all forming stations and maintains torque. The panels are transferred to an automated cutting station with Cr12MoV blades after the final shape. Tool steel that cuts profiles without deforming or producing edge burrs is used.

Material Compatibility and Coating Considerations

Modern metal roofing requires many bases. Our equipment can deal with ASTM A653 galvanized steel, ASTM A792 aluminum-zinc alloy coatings, and painted steel with PVDF or SMP finishes. Most commercial roofing works benefit from material thicknesses between 24 and 26 gauge, which balance structural performance with material economy. Thicker diameters require more forming stations to accommodate springback when high-strength steel partially returns to its original shape after being bent. The chrome-plated roller surface is crucial when dealing with painting materials since any faults flow right to the panel finish, resulting in costly production rejections.

Key Benefits of Using a PBR Roll Former in Roofing Manufacturing

Making money in metal roofing hinges on efficiency. The continual forming method has no batch constraints, unlike press brakes, where each panel has its own setup and forming stages.

High-Speed Production and Throughput Capacity

A typical manufacturing shift produces 8,000–12,000 linear feet of completed panels per PBR roll former machine. It operates at 15–25 metres per minute, depending on material thickness and form complexity. This throughput satisfies significant corporate project demands where timing affects contractor plans and penalties. Pre-engineered metal building roofing system manufacturers favour this manufacturing pace because it offers just-in-time supply tactics that save inventory costs while fulfilling tight construction schedules.

Dimensional Accuracy and Scrap Reduction

Automatic length measurement employing programmable logic controls maintains cutting margins within ±1mm throughout production runs. This precision eliminates hand-measuring and cutting errors. Panel width consistency is still critical for aligning overlaps during installation—differences of more than 2 mm might cause gaps that reduce weather resistance. Carefully constructed rollers kept within 0.5 mm of their centreline alignment along the forming line achieve these tolerances. Waste reduction saves money, especially when working with luxury coated steels, where raw materials account for 60–70% of production costs.

Energy Consumption and Operating Economics

Standard installations require a 5.5–7.5 kW primary motor and a 4 kW hydraulic power unit for the cutting system. Continuous roll forming utilizes less energy than press brake methods, which alternate between high-power and idle strokes, lowering peak demand electricity expenses. About 85% of the time, the mechanical drive system converts power into work with minimum heat. Maintenance intervals are longer than for other equipment. Bearing replacement normally occurs after 5,000 to 8,000 production hours, while roller resurfacing may not occur until processing 500,000 to 800,000 linear feet, depending on material roughness and coating hardness.

How to Choose the Right PBR Roll Former for Your Business?

When buying capital instruments, consider present needs and potential growth. Procurement managers must consider several factors that impact operating success.

Production Capacity Assessment

First, calculate how many panels to install annually depending on sales and market growth. After setup and breaks, a 160-hour-a-month machine that moves 15 metres per minute creates 600,000 square feet a year. Light steel structure manufacturers generally work two shifts during busy building seasons. This makes long-term tool durability a key selection criterion. Consider whether your product range offers different panel widths or profiles. Some producers require tools for each profile, while others want tools that move between related profiles fast.

Technical Specifications and Quality Standards

How accurately the profile is created under load depends on the roller shaft width. Hollow or smaller shafts produce a less uniform profile than 80 mm solid shafts. The number of forming stations influences panel quality and material selection. High-strength steels with a yield strength exceeding 50 ksi might induce panel waviness or profile distortion in machines with 16 or fewer stations. When exporting abroad or cooperating with engineering firms that determine tool standards, you must follow the certificates. ISO 9001 and CE certification indicate that new suppliers respect European safety standards and have a long-standing quality management system. Both qualifications reassure you.

Service Network and Spare Parts Availability

Costs of equipment downtime exceed lost production, including for the PBR panel roll former. Late project delivery might result in contractual fees and customer dissatisfaction. Manufacturers with 150-country clients have developed transportation networks that help speed up part deliveries. Instead of being imported from overseas, cutting blades, drive chains, and roller bearings should be available from local vendors. Small metal product manufacturers and fledgling firms with few experts benefit from comprehensive training programmes. Detailed operating instructions, video tutorials, and remote diagnostic assistance reduce the learning curve and equipment damage in the first weeks of production.

Troubleshooting and Maintenance: Keeping Your PBR Roll Former at Peak Performance

Even well-designed equipment can malfunction. Knowing how to address common issues keeps production running smoothly and increases equipment life.

Common Operational Issues and Solutions

Panel edge waviness generally indicates unequal tension across the material's breadth or worn rollers, which affects forming pressure. Adjust the decoiler brake to feed material uniformly, and check roller surfaces for flat patches or layer accumulation. Over-forming, when rollers bend the material over the minimum radius needed for the final shape, causes oil canning, which ripples flat panel parts. This issue is greater with smaller gauges and must be carefully rectified with feeler gauges and minor checks.

Rough edges, missing shear, or profile distortion at the cut line indicate cutting system issues. Blade clearance settings should maintain 0.1–0.2 mm gaps between upper and lower blades. Too much clearance destroys the cloth instead of shearing it, and too little wears down the blades rapidly. Before sharpening, Cr12MoV tool steel cutting blades may make 100,000–200,000 cuts. Working with painted materials with thick ceramic coatings accelerates wear.

Preventive Maintenance Best Practices

Write down a strategy to lubricate bearing points, chain drives, and cam followers. SAE 30-weight oil must be used weekly during heavy production times, and tension must be monitored to ensure the greatest chain span doesn't bend more than 1/2 inch. Roller bearings sealed at the factory last 5,000 hours before requiring relubrication. In dusty areas, spacing may need to be shorter.

Monthly line checks prevent tiny changes from decreasing panel quality. Use accurate straight lines over many roller stations to align the axis within 0.5 mm. Make sure the base nuts are torqued properly. Long-term vibrations might impede loosening and induce alignment slide. Maintain thorough repair logs of modifications, replacement parts, and output levels between service visits. These data enable predictive maintenance plans, which replace components during planned downtime rather than fixing them suddenly, which pauses production during critical delivery periods.

The Future of PBR Roll Formers in Roofing: Trends and Innovations

As technology improves, metal-making equipment skills change. In ever-changing marketplaces, knowing new trends may give your firm an edge.

Automation and Digital Integration

Sensors in Industry 4.0 machines measure roller temperature, shaking patterns, and drive motor current in real time. Predictive maintenance programmes use these data to discover issues before they become too significant to remedy. Siemens and Mitsubishi provide touchscreen HMI interfaces for online diagnostics and smoother operation. Without visiting your plant, service professionals may view machine performance data and adjust settings. Integrated automated material handling reduces labour. Programmable controls link coil loading systems, panel stackers, and packaging equipment to the PBR roll former, ensuring continuous production from raw coil to shipping product.

Sustainable Manufacturing Practices

Environmental concerns are more essential when buying equipment, such as a PBR panel roll former. Variable frequency drives in energy-efficient drive systems adapt motor speed to production requirements instead of running at full capacity. Precision cutting and nesting software reduces scrap generation, lowering raw material costs and garbage disposal costs. Some firms create easy-to-disassemble and recycle items. This helps the circular economy, which environmentalists like, and fulfils new standards that compel manufacturers to be more responsible.

Global Market Outlook and Procurement Strategies

North America's metal roofing demand grows. Metal is stronger than asphalt shingles and may be utilized in industrial and residential environments. International engineering firms and EPC businesses are requesting metal roofing solutions for more projects in various climates. This benefits producers who can fulfil various construction codes and aesthetics. When picking a provider, consider their foreign logistics experience, documentation, and cross-timezone technologies. When negotiating a large purchase, go beyond unit costs. Discuss spare parts inventory arrangements, guarantee coverage, and training. Manufacturer or third-party rental agreements can fund equipment. These balance manufacturing capacity with capital constraints.

Conclusion

Making metal roofing requires instruments that are consistent, dependable, and affordable. PBR roll former panel-forming technology addresses these objectives with precision-engineered roller stations, sturdy structural frames, and automated control systems. Technical specs, vendor reputation, and long-term support should be considered while buying gear. This applies whether you're growing manufacturing, targeting new markets, or beginning a new firm. The investment goes beyond the buying price. How effectively the equipment is trained, how often it needs maintenance, and how fast new parts are available are other factors. These factors impact your business's 15–20-year performance.

FAQ

1. What distinguishes a PBR panel from standard corrugated roofing?

When placing PBR panels, the long bearing leg touches the roof purlins, while corrugated panels simply touch the top of each rib. This design improves load distribution and panel gap weather sealing. Trapezoidal ribs allow larger spans, which increases purlin spacing and decreases building structure costs. Various materials have various gauge standards. PBR applications employ 24–26 gauge steel for business structures and thinner materials for house corrugated roofs.

2. How frequently do cutting blades require replacement?

Material and production quantity determine blade lifespan. Cr12MoV blades can produce 100,000–200,000 cuts on coated steel before needing sharpening. Pre-painted materials with ceramic-enhanced surfaces may wear blades out faster, requiring servicing every 60,000–80,000 cuts. The quality of the cut edge is the greatest indicator of blade replacement. Burrs, rough edges, and partial shearing indicate blade wear and require immediate care.

3. Can one machine produce multiple panel profiles?

Standard installations prefer a specific outline form. To switch between significantly diverse forms, roller switching requires disassembling and reassembling all forming stations. The type of equipment and the technician's experience determine how long this transition takes. Manufacturers of modular systems with quick-change roller boxes make switching faster, but they cost more.

Partner with ZTRFM for Your Metal Roofing Production Needs

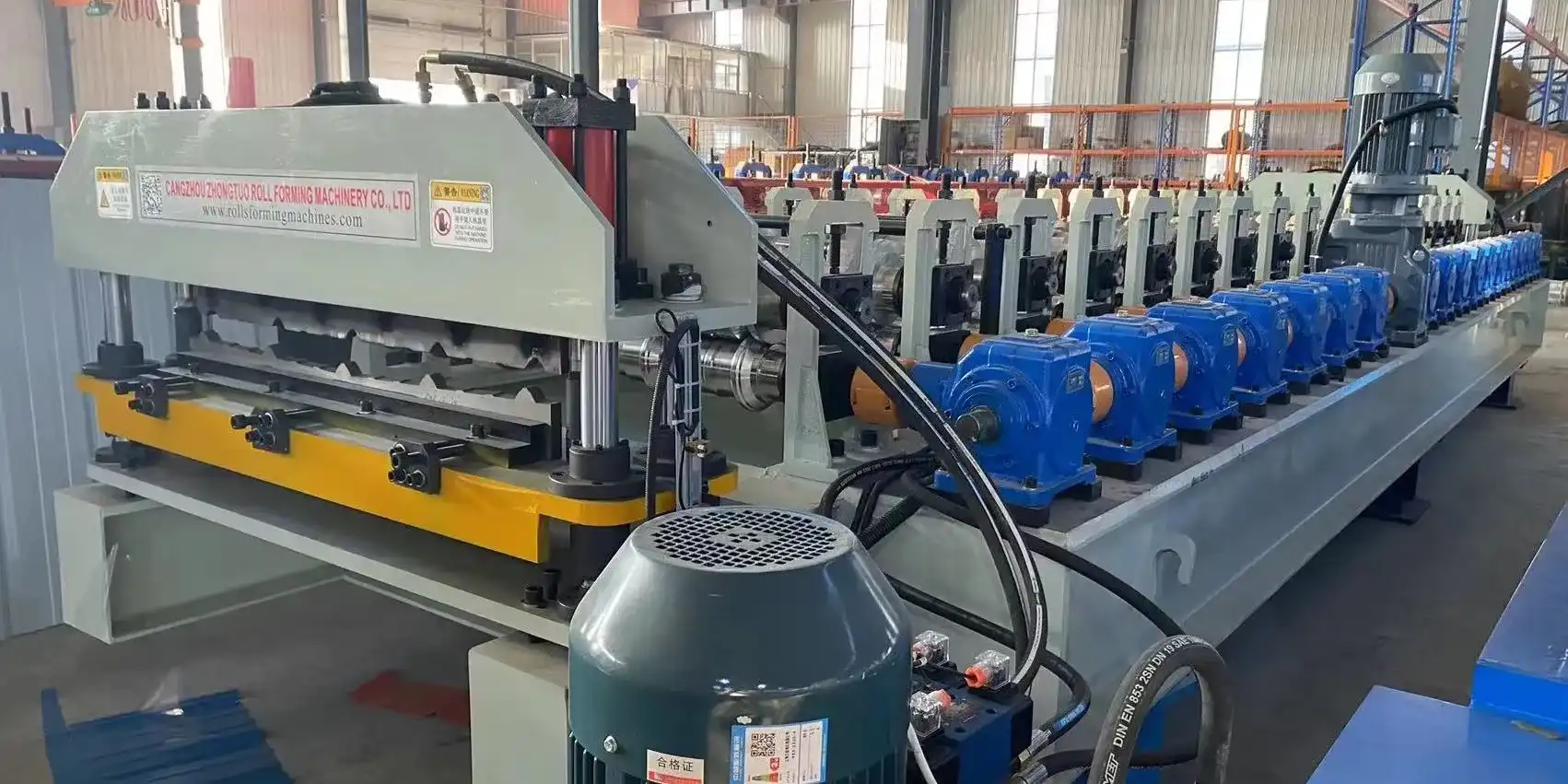

ZTRFM's cold roll forming expertise is ideal for roofing system manufacturers seeking reliable production methods. Since 2014, we have sent instruments to 150 countries for large-scale commercial operations and unique farming needs. PBR roll formers have 19-station forming lines with 80mm shafts and chrome-plated 45# forged steel rollers. These provide flat surfaces using 24–26 gauge materials. PBR roll former manufacturers with ISO9001, CE, and CAS certifications offer comprehensive professional assistance, including installation, operator training, and fast spare part delivery. Talk to our staff at zhongtuorollforming@gmail.com about your production needs and explore creative solutions that meet your budget and company goals.

References

1. American Iron and Steel Institute. (2022). Cold-Formed Steel Design Manual. Washington, DC: AISI Committee on Specifications.

2. Metal Construction Association. (2021). Metal Roofing Design Guidelines. Chicago: MCA Technical Publications.

3. Bhattacharyya, D., & Smith, R. (2020). Roll Forming Technology: Theory and Practice. New York: Industrial Press.

4. ASTM International. (2023). ASTM A792/A792M-22: Standard Specification for Steel Sheet, 55% Aluminum-Zinc Alloy-Coated by the Hot-Dip Process. West Conshohocken: ASTM.

5. Liu, Y., & Zhang, H. (2021). Cold Roll Forming Process Design and Quality Control for Metal Roofing Panels. Journal of Manufacturing Processes, 68(4), 1547-1562.

6. National Institute of Building Sciences. (2023). Whole Building Design Guide: Metal Roofing Systems. Washington, DC: NIBS Publications.
