A Sigma M purlin machine creates Sigma (σ) and M-shaped steel profiles using cold roll forming. Modern warehouses, racking systems, and pre-engineered structures need certain structural pieces. This machine generates web-stiffened forms that sustain weight and stabilise the structure better than C or Z purlin machines. As 2026 approaches, steel fabricators must learn more about these machines' technical talents, how to procure them, and how to manage them to stay competitive.

Understanding the Sigma M Purlin Machine

Core Functionality and Structural Applications

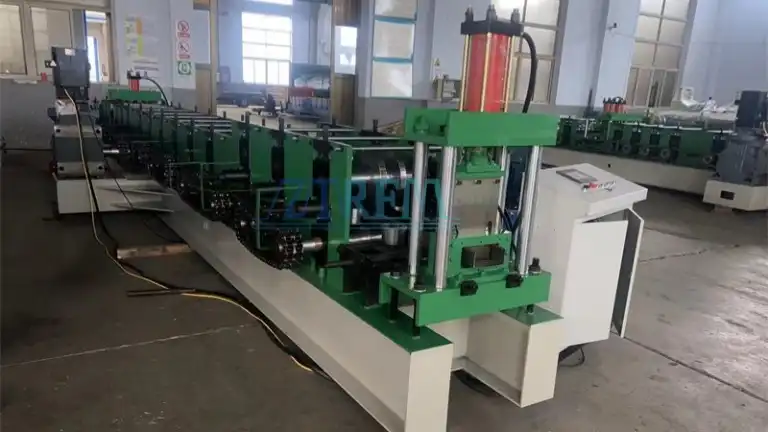

To make complicated patterns from flat galvanised or cold-rolled steel strips, the Sigma M purlin machine uses an extremely accurate cold-forming procedure. Each of the 20–25 manufacturing stations has tougher rollers that shape the metal gradually without weakening it. This approach overcomes one of the biggest challenges of building with light steel: producing forms that don't buckle when bent while utilising the least amount of material.

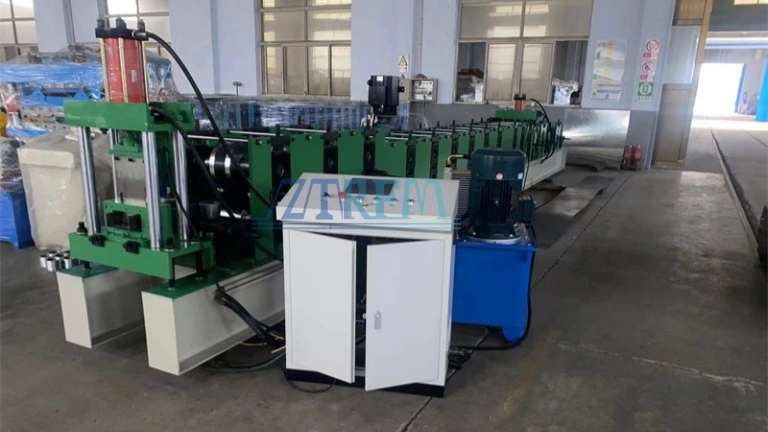

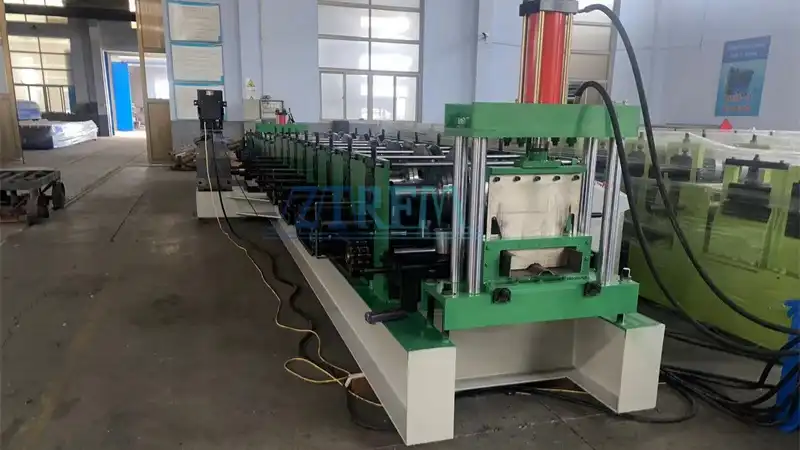

The machine loads the coil, forms it, punches mounting holes using hydraulic punching, and finishes with flying shear cutting to keep production continuing. This roll forming stands out because of its Sigma profile. Its shape, with an enhanced centre of gravity and more web ribs, eliminates channel section instability.

Technical Specifications That Matter

Modern sigma purlin forming tools have high technological requirements, which affect manufacturing quality. The strong 90mm shaft is composed of HRC28–32 hard 40Cr CNC-processed steel, so it doesn't bend at high speeds. This standard is crucial when working with high-tensile steel grades (G450–G550) since even a tiny roller misalignment can affect their profile or produce surface defects.

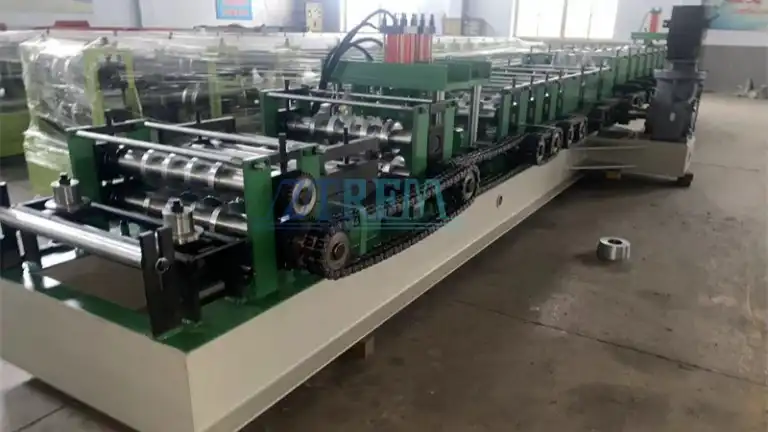

A double-row chain with shaft end support is employed in the gearbox. Power is evenly distributed, and maintenance is reduced with this design. This two-chain design works effectively in continuous manufacturing because equipment uptime affects revenues. For large projects requiring thousands of square metres, the machine can form at 15 metres per minute and maintain profile quality throughout lengthy production cycles.

Though 380V/60Hz/3-phase power demands remain the same, local electrical regulations can be met. Finishing turning and electroplating shaft surfaces reduces friction and extends component life, lowering machine ownership costs.

Industry Applications Across B2B Sectors

Sigma profiles are typically employed in heavy-duty automatic warehousing systems. The machine creates box-loading racking uprights and beams for high-bay storage structures. The profile's form resists bending better than standard sections, allowing higher storage without thickening the material. Because warehouse automation demands more structural stability, transportation and e-commerce firms benefit from this characteristic.

Another developing usage is photovoltaic fastening systems. Solar farm developers require parts that don't corrode and endure decades in severe settings. The Sigma M purlin machine works well with highly galvanised coils (Z275–Z600 coating weights) to build sturdy, rust-resistant mounting frames. This usage uses the machine's capacity to maintain tight specifications even with heavier coating layers that ordinary forming tools cannot manage.

Pre-engineered building firms employ these profiles for extra framing in commercial structures. The Sigma shape's strong bending stiffness allows larger support gaps, reducing steel utilisation in warehouses and factories. This saves building owners money while fulfilling wind and snow load engineering criteria.

Comparing Sigma M Purlin Machines with Alternative Solutions

Design Distinctions from C and Z Purlin Equipment

C and Z purlins are used for most roofing operations. The Sigma purlin-forming machine serves various construction purposes. C-channel profiles perform best with one span and vertical loading. However, Z-sections can manage continuous spans with meeting connections. The Sigma profile provides higher torsional resistance due to its closed-web design. This makes it ideal for designs loaded from both sides or requiring extra lateral support.

The sigma M purlin machine creates profiles with a closed web design that provides superior torsional resistance compared to C and Z sections. While C-channel profiles perform best with single spans and vertical loading, and Z-sections handle continuous spans with lapping connections, the sigma M purlin machine maintains stability under loads from multiple directions. Manufacturing these sigma profiles requires 20–25 forming stations with complex roller geometries to achieve the distinctive web-stiffened shape, whereas C and Z machines typically use 12–16 basic stations. This additional complexity increases equipment cost but produces profiles with higher strength-to-weight ratios, allowing lighter gauge steel usage and reducing material expenses.

Technological Advancements Over Traditional Roll Forming

The closed-loop location input of modern sigma M purlin machines' servo-driven feeding mechanisms controls length precisely. In the past, inaccurate hydraulic systems caused length errors that compounded over extended manufacturing runs. PLC processors with touch-screen interfaces have replaced manual control that needed a lot of skill with digital management that operators can grasp. It has reduced training time and setup errors.

Energy economy improvements are another major advance. Modern machines use variable frequency drives to adjust motor speed depending on load. This consumes up to 30% less electricity than steady-speed systems while the machine is off. This makes economic sense for enterprises with several manufacturing lines where energy expenses dominate yearly operating costs.

Automated changeover devices may have been the biggest improvement. In less than 20 minutes, cassette-type roller devices can alter profile width, while prior technology needed hours to replace spacers by hand. This feature helps organisations satisfy several client demands by allowing them to generate cheaper batches without sacrificing efficiency.

Cost-Effectiveness and Long-Term Value Considerations

A total cost of ownership research found that instruments with greater functionality frequently perform better economically, despite costing more. Hardened GCr12MoV rollers (HRC 58–62) maintain dimensions longer than tool steel rollers. This reduces scrap and prevents costly roller maintenance to stop production.

Warranty and after-sales support vary by manufacturer. Reliable vendors provide maintenance programmes, troubleshooting advice, and spare part lists. Long equipment downtimes can compromise project deadlines in overseas operations; thus, worldwide service networks are necessary. ISO9001 and CE-certified machines have more rigorous quality tests, reducing the likelihood of parts breaking during warranty periods.

How to Choose and Procure the Best Sigma M Purlin Machine for Your Business？

Assessing Production Requirements and Customisation Needs

First, determine output needs before making acquisition decisions. Facilities that mainly create items can focus on their quickest throughput speeds, whereas those that make things for specific projects may prioritise task switching. Determine your annual linear metre needs and compare them to the machine's capacity. Speeds are based on ideal conditions with minimal setup and repair downtime.

Material compatibility is another significant consideration. Without appropriate roller surface treatments, machines for typical galvanised tubes (Z120–Z275) may not perform well with heavily coated materials or sprayed steel. Make sure equipment standards enable weathering steel or aluminium-zinc alloys if you utilise them in production. If not, making modifications afterwards may cost a lot.

You may modify profile measurements, end-cutting angles, punched patterns, and embossing. Complex hole patterns for racking system designs may be programmed on modern punching stations. This adaptability eliminates superfluous stages and decreases handling costs, especially when producing bespoke structural system parts.

Understanding Pricing Structures and Financial Options

Sigma M purlin machines range from $45,000 for simple versions for new firms to $180,000 for fully mechanised manufacturing lines with stacking systems. Due to the forming station count, automation, and equipment merger, this range is large. Request specific bids for the core machine and any extras like automated stackers, remote troubleshooting, and longer warranty coverage.

Project viability can be affected by financing alternatives, especially for rising or new market enterprises. In many countries, leasing equipment reduces upfront costs and taxes. Some producers provide production-based payment plans to keep tool costs in line with revenue. Calculate the effective interest rates and total payment amounts for each option to avoid cutting profit margins.

Supplier Evaluation and Procurement Best Practices

Look beyond the specifications to find reliable Sigma M purlin machine manufacturers. Ask current customers who have utilised similar equipment for references and arrange factory visits to see it in operation. This study typically exposes practical features that technical writing misses, such as noise levels, maintenance ease, and job switching time.

Delivery and installation must be carefully considered during negotiations. Clarify who is responsible for clearing customs, shipping products domestically, and unloading equipment at your facility. Base information, electrical connection, and first setup should be included in complete installation packages. Some vendors offer "turnkey" services, including product creation and operator training. This reduces the period between equipment delivery and revenue.

Long-term tool satisfaction depends on after-sales support. See how the manufacturer tracks components, how long replacement parts take, and if technical support is available during business hours. Manufacturers with local distribution networks can respond faster than those that export parts from abroad for frequent repair.

Maintaining and Troubleshooting Your Sigma M Purlin Machine

Routine Maintenance Protocols for Optimal Performance

Preventative repair schedules underpin successful industrial systems. Daily checks should include chain tightness, lubrication levels, and cutting blade sharpness. Roller surfaces must be cleaned regularly to remove steel dust that can build up and transfer to profiles, generating surface flaws that damage the coating. Monthly methods employ sophisticated measuring instruments to monitor alignment across all forming sites and discover slow wear issues before they impair product quality.

For continual high-impact forces, the hydraulic drilling system needs particular attention. Punch and die apertures should be examined after 50,000 strokes and sharpened or replaced based on burr height. Maintaining the appropriate spacing reduces force, which stresses hydraulic elements and causes punch failures, which damage workpieces and limit production.

Roller bearing maintenance affects shape uniformity. Monitoring bearing housing temperatures during usage can detect alignment or lubrication issues before they fail. Most producers recommend inspecting and replacing parts every 12–18 months and 24–36 months under typical operating circumstances, depending on production and material qualities.

Common Issues and Diagnostic Approaches

Profile twists cause spiral deformation throughout their length. It generally indicates unequal forming pressures over the profile width. This problem normally appears slowly because rollers wear widely; thus, roller diameters must be monitored regularly at all production stations to discover worn portions. To distribute forming pressures uniformly, certain rollers may need to be replaced or moved.

Uneven hole placement complicates installation and causes consumer complaints. Changes in encoder precision, measurement wheel slippage on material, or punching station setup system wear are causes. Modern servo-driven systems track locations automatically and inform users when changes exceed limitations, making diagnosis easier. To correct issues, mechanical parts must be routinely examined.

Marks and scratches damage the coating and make it rustier. To determine which producing station is causing damage, close inspection and occasionally laying fluid on coil surfaces before running test pieces are needed. Damaged roller surfaces, insufficient oil, or dirt between rollers and material are frequent reasons. Fixing these issues immediately prevents costly waste and preserves the product's quality.

Upgrading Automation and Future-Proofing Investment

Adding servo drive systems to ageing equipment makes them more efficient without buying new ones. Servo feeds increase length measurements and allow upstream coil handling systems to be incorporated for lights-out manufacturing. Sites with multiple shifts recover the expenditure in 18–24 months through waste reduction and better throughput.

Remote tracking is another technique to improve. IoT sensors monitor machine performance, including that of the sigma M purlin machine, and transfer data to cloud platforms for analysis. Small variations in sound, temperature, or power usage alert predictive maintenance algorithms to issues before they worsen. This method uses real equipment conditions instead of random time intervals to reduce unplanned downtime and improve maintenance planning.

Conclusion

In conclusion, the sigma M purlin machine produces web-stiffened sigma and M-shaped profiles that offer higher torsional resistance and load-bearing capacity than conventional C or Z sections. Successful acquisition and operation require understanding technical specifications, including 20–25 forming stations, 40Cr alloy shafts (HRC28–32), double-row chain drives, and automated changeover systems under 20 minutes. Evaluating production requirements, material compatibility (G450–G550 steel, Z120–Z600 coatings), and supplier after-sales support ensures appropriate equipment selection. Investing in upgradeable automation preserves long-term competitiveness as cold-roll-forming technologies advance.

FAQ

1. What materials can a sigma M purlin machine process effectively?

This device can handle cold-rolled steel, galvanised strips with Z120 to Z600 coatings, and pre-painted steel with the necessary roller surface treatments. The material thickness is commonly 1.5–3 mm; however, the capacity depends on the steel and machine setup. High-tensile grades like G550 require robust rollers and hydraulic power to manage greater forming forces without distorting shape.

2. How long does installation and commissioning typically require?

Standard installation takes 5–7 days and includes base preparation, electrical connection, and motor assembly. Testing, test runs, and operator training add two to three days to commissioning. Complex installations or those using automatic material handling may take two to three weeks longer. Planning ahead and preparing the site before the equipment comes may greatly save installation time.

3. What after-sales support should buyers expect from reputable manufacturers?

Comprehensive assistance includes operation instructions, maintenance schedules, and troubleshooting recommendations in your language. Technical support should be available by phone, email, or videoconferencing during business hours. Easy-to-get, fair-priced, and on-time parts minimise production interruptions. Training in operation, maintenance, and basic repair will help your staff handle tools properly over time.

Partner with ZTRFM for Your Sigma M Purlin Machine Needs

Industry-grade sigma M purlin machines from ZTRFM satisfy the demands of modern steel manufacturers. The cold roll forming technology we specialise in dates back to 2014. We deal with producers in over 150 countries and have ISO9001, CE, and CAS-approved equipment. Our machines include a robust Φ90mm solid shaft, 40Cr material processing, and double-chain transmission for optimal performance in industrial environments.

We can meet your particular demands and give comprehensive technical assistance, whether you're a light steel structure maker that has to conform to different standards or a multinational EPC business that requires global standard tools. Our technical staff delivers exact specs, helps you pick the proper equipment, and provides OEM/ODM services tailored to your manufacturing needs.

Ready to enhance the structure profile creation? Talk to our professionals at zhongtuorollforming@gmail.com about your specific demands and obtain a detailed price.
