Introduction to C Purlin Making Machines

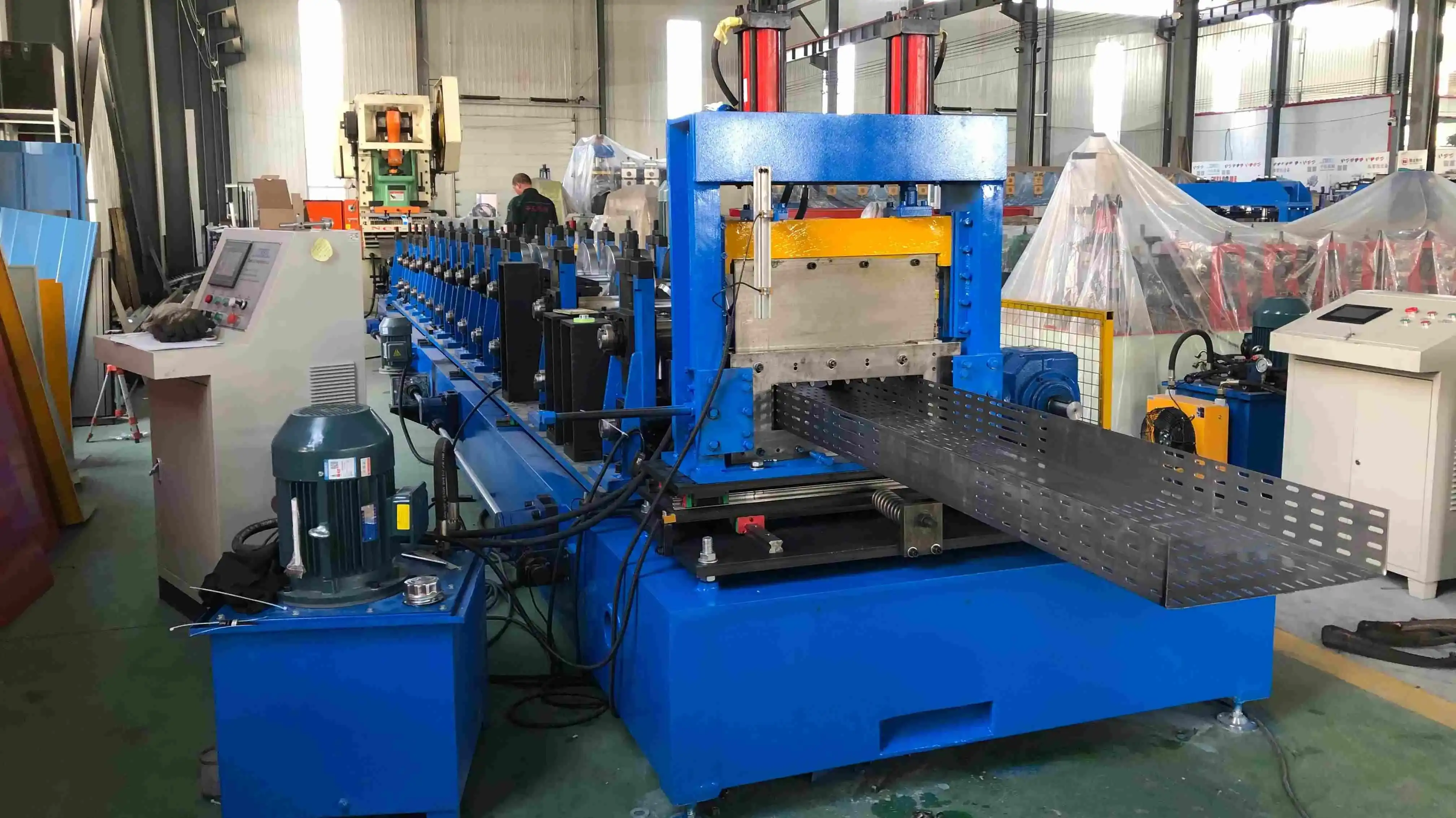

A Cable Tray Machine is a high-tech industrial device designed to make metal cable support systems using automated cold roll forming methods. With the help of these high-tech machines, raw metal coils are precisely turned into cable management profiles like perforated trays, solid bottom channels, and ladder-style arrangements. The most important features include high-precision roll forming stations, built-in hydraulic cutting systems, PLC automation controls,and the ability to change the width without having to change the rollers by hand. This eliminates the need for manual roller changes and keeps the dimensions within ±1mm tolerances for the best cable protection infrastructure.

Overview of Cable Tray Making Machines Understanding Cable Trays and Their Specifications

Cable Tray Machines are the most important part of modern electrical infrastructure manufacturing. They make cable management systems that keep electrical wiring in businesses and factories organized and safe. Raw galvanized steel coils are turned into precisely engineered cable support structures by these high-tech production lines that combine several manufacturing processes into a single, continuous flow. The main benefit of cable tray systems over traditional conduit methods is that they are easier to use and can be expanded. Unlike enclosed conduit systems that need to be taken apart completely to add or change cables, cable trays have open paths that engineers can use to add more cables without messing up existing installations. In fast-paced industrial settings where electrical systems are often upgraded or added to, this flexibility is very useful. Manufacturers of building roofing systems and metal structures can solve some of their biggest problems with modern roll forming technology. Automated forming processes make sure that the dimensions of every cable tray are exactly the same over thousands of linear feet. When trays are made the same way every time, they line up perfectly during assembly, which cuts down on field labor costs and project timelines.

Working Mechanism of Roll Forming Technology

The process starts with high-quality steel coils that are usually between 1.2mm and 3.0mm thick, depending on how much weight they need to hold. Material is fed through progressive forming stations on the machine, where special rollers slowly shape the flat steel into the tray profile that is needed. Every forming station uses the right amount of pressure to make bends that are smooth without affecting the quality of the material or the finish on the outside.

Material Compatibility and Quality Standards

Procurement managers know that buying automated equipment to make cable trays is a much more efficient way to do business than making them by hand. Adding servo-controlled systems gets rid of the chance of human error while keeping production speeds steady at over 15 meters per minute, depending on the perforation density needs. Throughout the manufacturing process, quality control checks are done to make sure that the finished products meet the high standards for electrical safety cable tray making machine is needed in commercial and industrial settings. Because roll forming is done automatically, it wastes as little material as possible and makes cable trays with smooth edges that keep delicate cable jackets from getting damaged during installation and service life.

Types and Uses of Cable Tray Making Machines

Automation Levels and Production Capabilities

Understanding the mechanical structure of equipment used to make cable trays helps you see why these systems work better than other ways of making things. Putting together carefully designed parts makes a production environment that turns raw materials into finished cable management products with a high level of consistency. Any good Cable Tray Machine starts with its uncoiling system, which usually has hydraulic or pneumatic expansion mandrels that can handle coil weights of up to 5 tons. Handwheels on the feeding device let you change the thickness of the material, which makes sure that the tension is controlled correctly during the forming process. This precise feeding system keeps the line speed constant even if the steel gauge changes, so the material doesn't buckle.

Comparison with Z Purlin Manufacturing Equipment

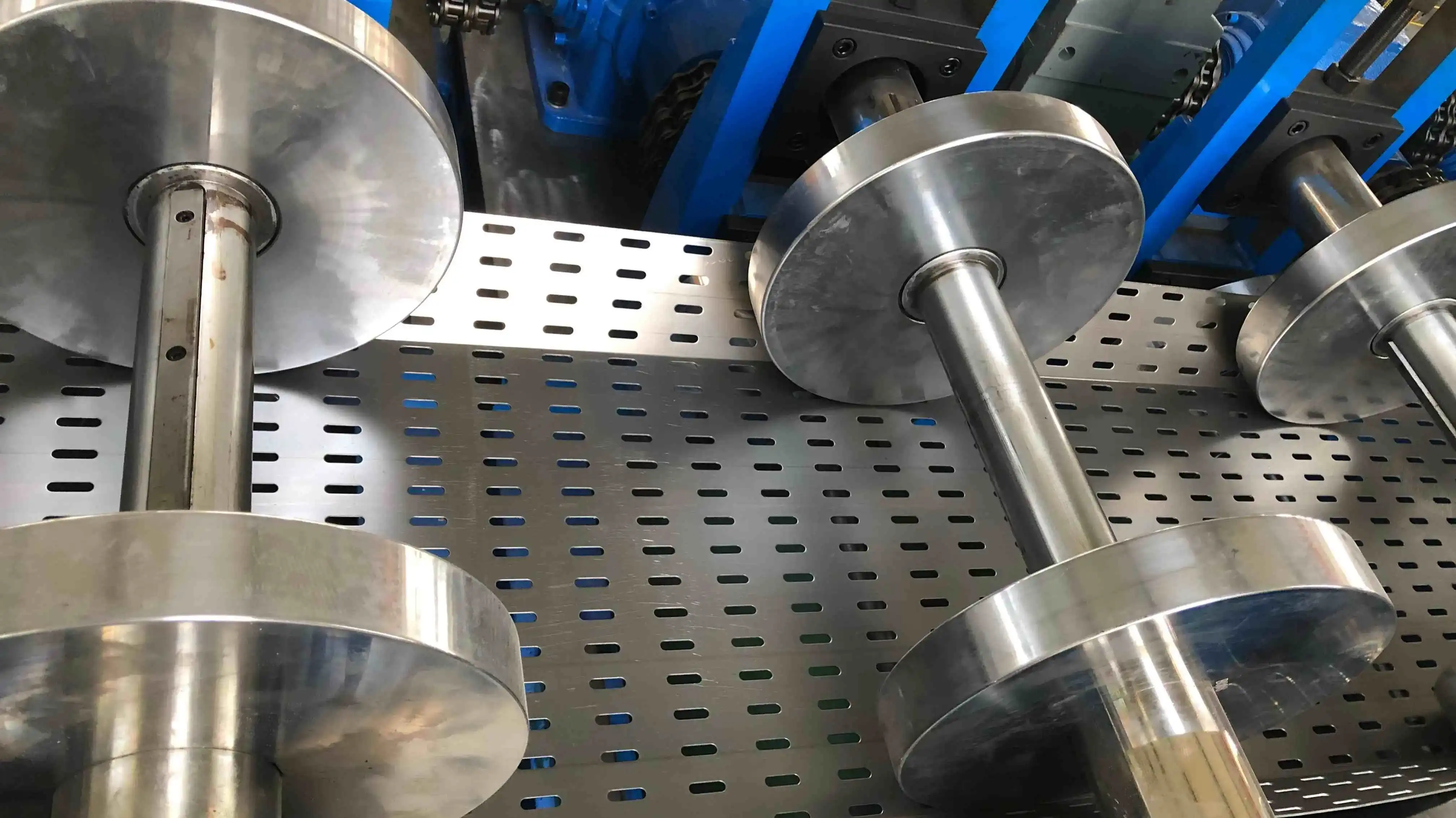

The production system's brain is made up of 14 carefully planned forming stations. Each one has rollers made from GCr15 bearing steel that has been heated to an HRC 58–62 hardness level. The roller axis with a diameter of 85 mm has the best forming geometry because it reduces material stress and achieves precise bend radii that are necessary for structural integrity. With progressive forming technology, bending forces are spread out over several stations. This stops work hardening, which could make the material less flexible. Each station makes small changes to the shape, which lets the steel flow naturally into the final tray shape without putting stress on the inside that could cause cracks or changes in size over time. The roller surface finish gets extra care by using hard-chrome plating methods that make the surface very resistant to wear while keeping the smoothness that is needed to keep pre-finished materials from getting scratched. This surface treatment makes the rollers last a lot longer and keeps the quality of the product the same over long production runs.

Industrial Applications and Market Sectors

The cutting mechanism uses 5.5kW hydraulic power systems, which are strong enough to cut through thick materials and leave clean, burr-free cut edges. The cutting blades are made from Cr12 steel that has been quenched to an HRC56–58 hardness. They perform exceptionally well and require less maintenance. One great thing about the hydraulic cutting system is that it can be changed to make different-sized cable trays without having to replace the cutters. This flexibility is very helpful for companies that want to serve a wide range of customers with different-sized needs. The cutting accuracy that stays the same over the life of the blade makes sure that the finished products meet the necessary tolerances for proper assembly in the field.

Key Factors to Consider When Choosing a Cable Tray Making Machine

Performance Metrics and ROI Analysis

Advanced automation features depend on industrial-grade PLC control systems, which have either Delta or Siemens platforms that are known for being reliable in tough manufacturing settings. The touch screen interface makes it easy for operators to control production parameters like length settings, cutting sequences, and diagnostic data, which helps the cable tray making machine plan ahead for maintenance. Monitoring in real time keeps an eye on production metrics like line speed, material use, and quality indicators that help the process keep getting better. The data logging features of the system help meet the requirements for quality documentation while also giving useful information for planning production and making it more efficient.

Equipment Selection Criteria

The different types of equipment used to make cable trays reflect the different needs of different market segments, from small fabrication shops to large industrial manufacturers that sell their products all over the world. By knowing about these operational configurations, procurement professionals can choose equipment that fits their budget and production goals. Startup companies and small metal products companies that want to get into the cable tray market with little capital investment, like the manual operational modes. These systems need help from an operator to load materials, measure lengths, and cut them, but they still have the precision forming features needed to make good products. The less complicated automation means lower start-up costs and easier maintenance, which is good for businesses that don't have a lot of technical staff. Fully automatic production lines are used by companies that make a lot of things and need the most efficiency and consistency. These systems combine automatic feeding of materials, servo-controlled punching, accurate length measurement, and hydraulic cutting into smooth workflows that reduce the need for labor while increasing output. When production consistency has a direct effect on profits, the level of automation is especially helpful for large-scale operations.

Supplier Evaluation and Quality Assurance

The main difference between making a cable tray and a cable ladder is how they are built and what they are used for. The bottoms of cable trays can be solid or perforated, and the sides are raised. This creates enclosed cable pathways that keep sensitive wiring safe from dirt and other environmental factors. The process of roll forming makes bottom surfaces that are continuous and spreads cable loads evenly across support structures. Cable ladders are made with open rungs that let the most air flow around the cables while supporting heavy power cables. In order to make the side rail profiles and rung attachment points, the manufacturing process needs different tooling configurations. A lot of companies have separate production lines for each type of product so that they can be as efficient and good as possible.

Operation, Maintenance, and Optimization Tips

Setup and Calibration Procedures

Equipment that can be expanded is very important for companies that want to grow and either make more products or offer a wider range of products. Modular machine designs let you add features like automatic stacking, built-in punching systems, or multi-width forming in stages, without having to replace the whole machine. The investment plan should take into account long-term market predictions and the possibility of adding new products to the line. Total cost of ownership is lower for machines that can be upgraded than for entry-level systems that might need to be replaced completely as the business grows. This forward-looking approach works especially well for international engineering firms that sell their products to customers around the world with different needs.

Preventive Maintenance Strategies

By setting up thorough maintenance procedures for the , you can make sure that the Cable Tray Machine works at its best for as long as it's in use, and you can avoid unplanned downtime that delays production. Modern roll forming equipment is very complicated, so preventative maintenance plans need to be well thought out and cover the needs of the mechanical, hydraulic, and electrical systems. Every day, the bearing surfaces should be oiled, the hydraulic fluid level should be checked once a week, and the alignment of the forming stations should be checked once a month. Quality machines have automatic lubrication systems that cut down on the need for manual maintenance and make sure that lubricant is always applied to wear points. Centralized reservoirs in these systems make sure that the right amount of lubricant gets to all of the bearings. This keeps the quality of the production going while also extending the life of the parts.

Performance Optimization Techniques

For equipment to be bought in regulated industries, it needs to have international safety certifications, like CE marking for European markets and UL listing for installations in North America. These certificates show that machines meet strict safety standards for protecting operators, keeping electrical parts safe, and stopping mechanical hazards. Safety systems, such as emergency stop circuits, guard interlocking mechanisms, and electrical isolation procedures, are tested thoroughly as part of the certification process. Manufacturers have to show that they follow machinery directives that spell out the bare minimum of safety rules for using industrial equipment. With this certification, procurement managers can be sure that the equipment they are buying meets all legal safety standards for the workplace. Safe machine operation depends on operator training programs that teach the right way to start up a machine, how to shut it down in an emergency, and how to spot hazards. Because modern equipment for making cable trays is so complicated, operators need to know a lot about both mechanical and electrical systems in order to spot potential safety problems before they become major dangers.

Procurement and Supplier Insights for Global Buyers

Global Market Landscape and Sourcing Strategies

Verification of dimensional accuracy is an important part of quality control throughout the whole production process. Inline measurement systems built into modern machines keep an eye on the size of the product at all times and change the forming parameters automatically to keep specifications. With these closed-loop control systems, nonconforming products can't be made, and less material is wasted. Techniques for statistical process control keep an eye on production trends that could show problems with quality before they affect the specifications of the finished product. PLC control systems can collect data that can be used to find patterns that could mean that maintenance is needed or that the process could be improved. Many industries have strict rules about quality documentation that require full production records that show where materials come from, how they were processed, and the results of each inspection for each batch of products. These needs are met by modern machines' automated data logging features, which also make keeping records less difficult by hand, which could lead to mistakes or omissions.

Supplier Verification and Risk Mitigation

When deciding what cable tray manufacturing equipment to buy, many technical and business factors that affect the long-term success of the business must be taken into account. Initial equipment selection is often based on how fast the production needs to go, but energy efficiency, maintenance costs, and the ability of the supplier to provide support are also very important for lowering the total cost of ownership. Planning production should take into account both current market demand and expected growth paths. Medium-volume operations can use machines with production speeds of 15 to 25 meters per minute. Large-scale manufacturers with a strong market presence can use systems with speeds of more than 25 meters per minute. We need to carefully look at the relationship between production speed and the thickness of the material that can be used. This is because higher speeds may mean that the gauge cable tray making machine capabilities need to be lowered. Concerns about energy efficiency have grown in importance as utility costs rise and environmental rules get stricter. Variable frequency drives in modern machines adjust motor speeds based on production needs. This saves energy when the machine isn't working hard. The overall energy efficiency is affected by the design of the hydraulic system. Load-sensing systems are much more energy efficient than fixed-displacement pump configurations.

Investment Considerations and Value Engineering

The first step in figuring out a supplier's credibility is to look at how well they've done in international markets and how well they can provide full technical support. Companies that are ISO9001 certified and CE compliant show that they are dedicated to quality management systems, which are necessary for delivering consistent products and providing ongoing support. It is very important to have spare parts and technical service support on hand in order to keep production schedules, especially for companies that serve markets that need products quickly. Suppliers with established service networks in major manufacturing regions can get replacement parts to you faster and for less money. Offering training and installation services is a great way to add value to your equipment and make it easier to use. Full training programs should include operational procedures, maintenance needs, and troubleshooting methods that allow technical staff to keep machines running at their best. The installation services should include details about the foundation, the utilities that need to be connected, and the steps that need to be taken to make sure that the equipment is set up correctly.

Conclusion

Capital investment planning needs to take into account the full cost of the system, which includes setup, training, and the first stock of spare parts. Financing options like renting equipment or extending payment terms can help you better manage your cash flow while also giving you access to cutting-edge technology that you might not be able to afford right now. To figure out the return on investment, you need to look at both the direct cost savings that come from automating production and the indirect benefits, like better product quality and less need for labor. The study should also look at ways to grow the market that are made possible by more consistent products and higher production capacity. In the end, it's important to carefully consider the technical specs, automation options, and supplier support when choosing the right Cable Tray Machine to make sure that production runs smoothly and the business succeeds in the long term. This guide's main points show how important precision forming stations, hydraulic cutting systems, and advanced PLC controls are for making sure that product quality is always the same. Modern equipment for making cable trays is much better than making them by hand because it improves accuracy in measurements, requires less work, and speeds up production. When you invest in good roll forming technology, you get lower maintenance costs, longer equipment life, and the ability to serve a wider range of customers with different product needs.

FAQ

1. What production capacity can I expect from a standard Cable Tray Machine?

With the progressive forming method, bending forces are spread out over 14 precise stations. At each station, small changes in shape are made to keep material stress from building up in one place. The 85mm diameter rollers are made of heat-treated GCr15 steel and keep the forming pressure constant while special monitoring systems keep an eye on the dimensions throughout the production process.

2. How long does installation and commissioning typically require?

Most of the machinery used to make cable trays can work with steel thicknesses between 1.2 mm and 3.0 mm, and some heavy-duty models can handle materials up to 4.0 mm thick. Handwheels on the feeding device make it easy to adjust to different thicknesses of material without having to make a lot of changes to the setup.

3. Can the machine accommodate different material thicknesses without major adjustments?

Compared to mechanical systems, hydraulic cutting systems offer better control of force and better cutting-edge quality. The consistent cutting performance of the 5.5kW hydraulic power system is backed up by the HRC56–58 hardness of the Cr12 blade material, which makes for long-lasting tools with clean, burr-free cuts.

4. What maintenance intervals should I expect for optimal performance?

Essential safety standards include CE marking for markets in Europe and UL certification for markets in North America. These certificates show that the machinery meets the rules for electrical safety, operator protection, and preventing mechanical hazards set by international machinery safety directives.

5. How do I ensure proper profile quality and dimensional accuracy?

Both Delta and Siemens PLC platforms offer real-time monitoring, automated length control, and diagnostic features that make production parameters more efficient while requiring less operator input. The systems allow for predictive scheduling of maintenance and logging of production data to make the process better all the time.

Partner with ZTRFM for Your Cable Tray Manufacturing Needs

ZTRFM provides the best cable tray roll forming machine technology in the business, backed by a wealth of engineering knowledge and the ability to provide service all over the world. Our equipment is ISO9001 and CE certified, and it is used by manufacturers in more than 150 countries to make reliable roofing systems, metal structures, and electrical infrastructure. Since 2014, we've been a reliable Cable Tray Machine supplier. We offer full OEM and ODM services, which include raw materials, machinery, and technical support. Visit email our engineering team at zhongtuorollforming@gmail.com to talk about custom manufacturing solutions that will help you get the most out of your production and your investment.

References

1. Commission for International Electrotechnical Harmony. "Cable Tray Systems and Cable Ladder Systems for Cable Management." IEC 61537:2013 Standard for Electrical Installations.

2. Society for Testing and Materials in the United States. Standards for ASTM A653/A653M-20 "Standard Specification for Steel Sheet, Zinc-Coated by the Hot-Dip Process."

3. European Standards and Conformity Assessment Board. Article 12100:2010 of the Machine Safety Directives says, "Safety of Machinery—General Principles for Design."

4. National Association of Electrical Manufacturers. Installation Standards and Practices (NEMA VE 2-2013): "Cable Tray Installation Guidelines."

5. Safety Institute for Machinery. This is from the Industrial Safety Manual 2023 Edition: "Risk Assessment and Safety Integration for Industrial Roll Forming Equipment."

6. Center for Global Manufacturing Research. Volume 45 of the Industrial Engineering Quarterly, 2023, has an article called "Automation Technologies in Metal Forming Industries: Productivity and Quality Analysis."
