Cable Tray Machine

Feeding device With：handwheels for suit different material thickness
Forming station:14sets
The diameter of the roller axis：85mm
Cutting type： hydraulic cutting
Material of blade: Cr12, quench treatment, hardness HRC56-58
blade advantage: easy adjustable for produce different size cable tray,no need replace cutters.
Hydraulic power: 5.5kw
PLC control brand :Delta or Simens

Product Description

Cable Tray Roll Forming Machine

Efficient & Precise Manufacturing of Cable Management Systems

The Cable Tray Roll Forming Machine is a fully automatic production line designed for manufacturing U channel, C channel, perforated and ladder-type cable trays. It integrates decoiling, punching, roll forming, cutting, and automatic stacking into one continuous process, ensuring high efficiency, precision, and consistent product quality.

With our machine, you can produce smooth, straight, and scratch-free cable trays with excellent load-bearing performance, suitable for electrical wiring and cable management in industrial, commercial, and infrastructure projects.

product-4032-3024

🔹 Key Features

Flexible Tray Designs – Supports production of solid, perforated, and ladder-type cable trays
High Precision Roll Forming – Finished products are dimensionally accurate, uniform, and free from paint scratches
Custom Configurations – Available in standard-speed models, high-speed models, and fully automatic flexible lines
Integrated Punching System – Servo or hydraulic punching for slots, holes, and patterns in one pass
Heavy-Duty Construction – Strong machine frame and hardened rollers ensure durability under continuous operation
PLC Control System – Easy-to-operate touch screen for length setting, punching patterns, and production tracking

🔄 Machine Workflow

Decoiler – Hydraulic or manual type, 3–5 tons capacity
Leveling & Feeding Unit – Ensures sheet flatness before punching

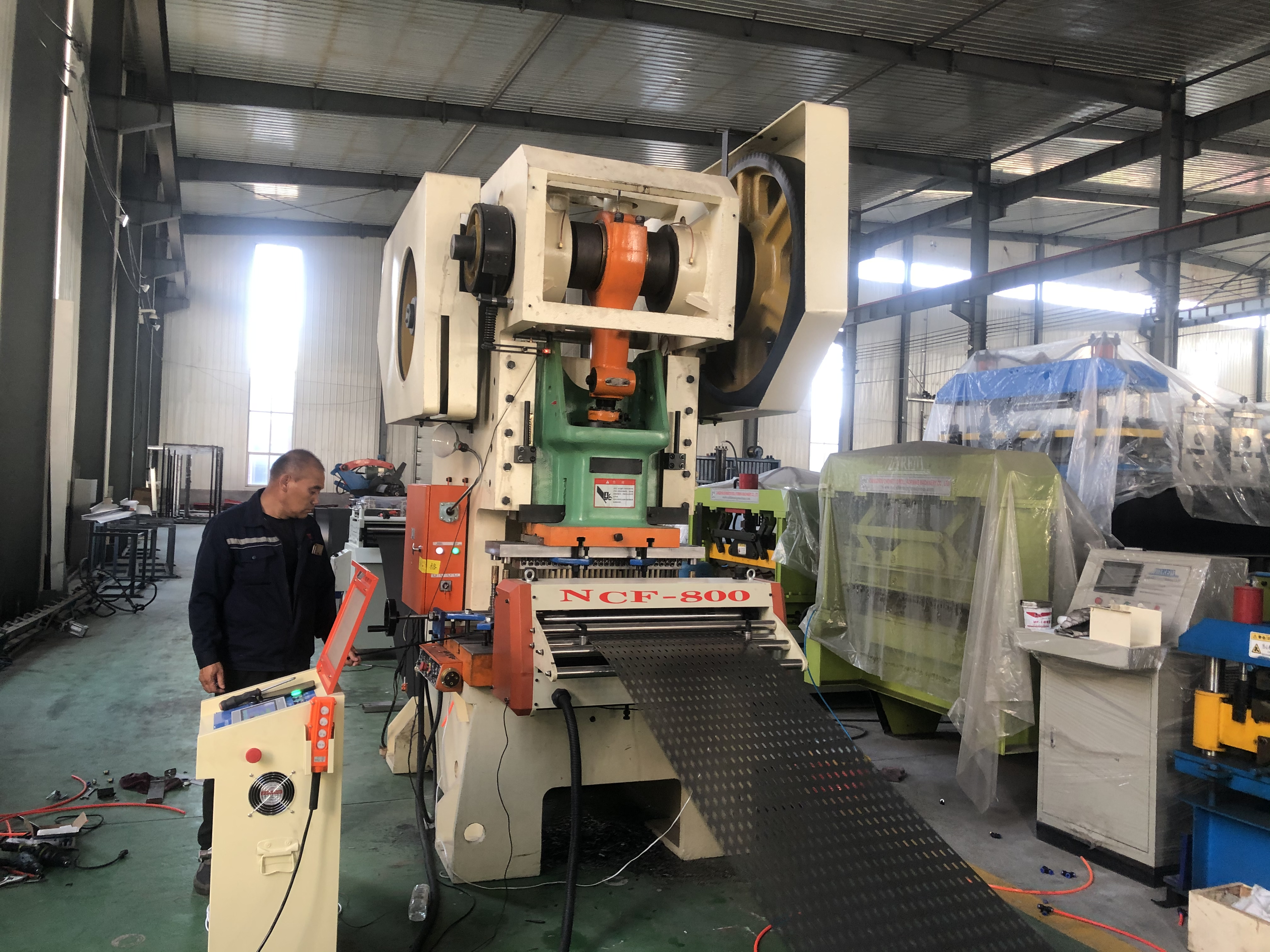

Servo Punching Press – Pre-punches slots and holes according to design

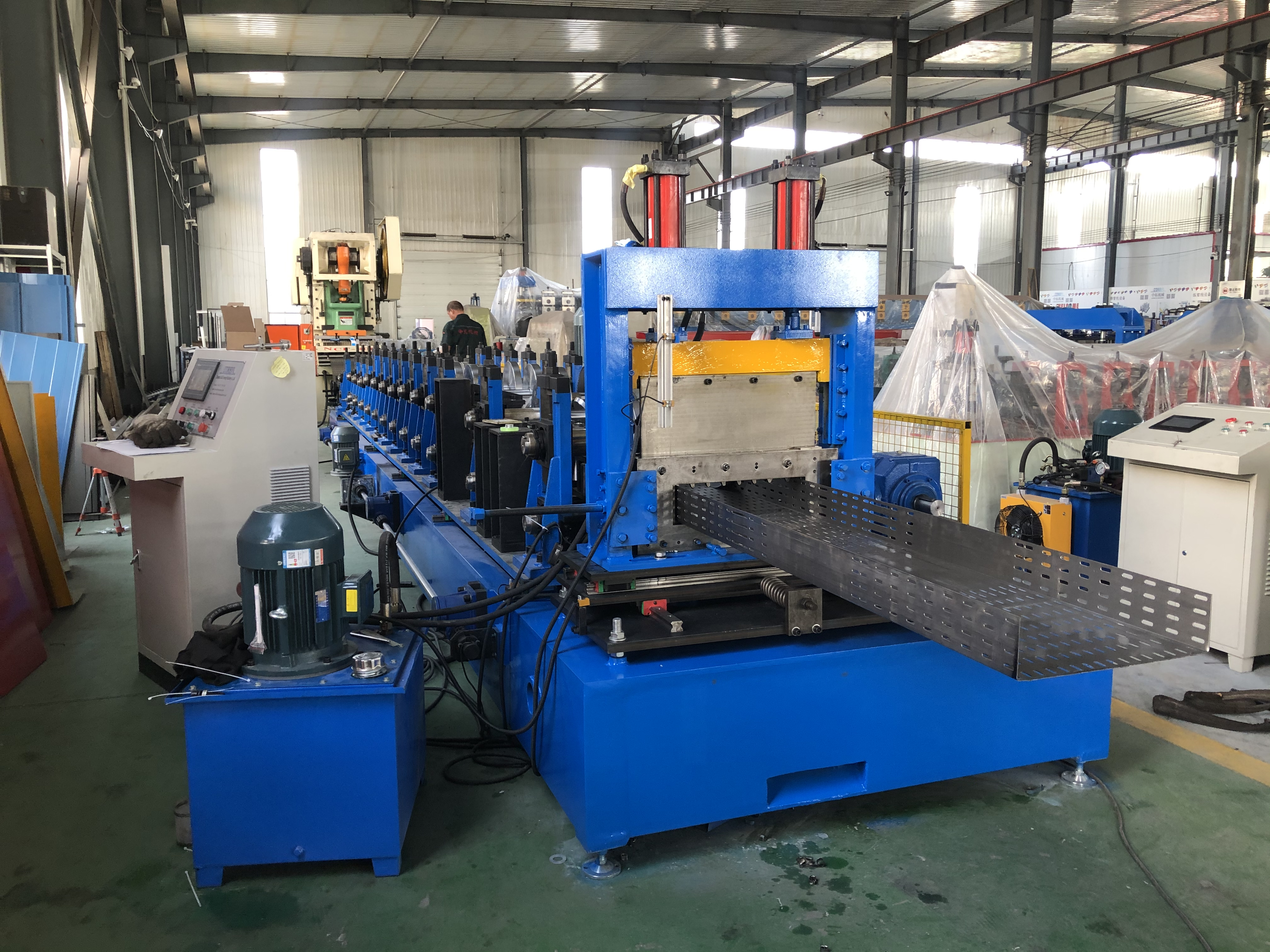

Roll Forming Section – Precision rollers shape steel into tray profile
Cutting Unit – Hydraulic or flying shear for clean, burr-free cutting
Run-Out Table / Auto Stacker – Collects finished cable trays neatly

product-4032-3024

📐 Technical Specifications

Parameter	Standard Model	High-Speed Model
Material	GI / MS / Aluminum	GI / MS / Aluminum
Thickness	0.6–2.0 mm	0.8–3.0 mm
Tray Width	100–600 mm	100–800 mm
Forming Speed	6–10 m/min	15–25 m/min
Punching System	Hydraulic press	Servo + hydraulic press
Cutting System	Hydraulic shear	Flying shear
Control System	PLC + Touchscreen	PLC + Touchscreen + Servo
Decoiler Capacity	3–10 tons	5–15 tons

🛠 Build Quality & Advantages

Rollers made of GCr15 bearing steel, heat-treated & hard-chrome plated
Strong welded steel frame for stability and low vibration
Quick-change punching molds for flexible designs
Easy maintenance with automatic lubrication system
CE/ISO certified machine with long service life

🌍 Applications & Market

The cable trays produced are widely used in:

Power Plants & Substations
Industrial Factories & Warehouses
Commercial Buildings & Office Complexes
Infrastructure Projects – Airports, railways, metro stations
Oil, Gas & Telecom Industry

Global demand for cable management systems is growing rapidly, especially in Middle East, Southeast Asia, Africa, South America, and Eastern Europe, where infrastructure and industrial development drive strong market potential.

🚀 Optional Configurations

Duplex roll forming system for multiple tray sizes
Automatic punching pattern changeover
Pre-galvanized / hot-dip galvanized surface treatment line
Automatic stacking & packing system
