What is a unistrut channel roll forming machine?

When we talk about important structures in building and solar energy, we always come back to the tools that make the support systems that go along with them. A Unistrut channel roll forming machine is a special kind of factory equipment that turns flat steel tubes into standard C- or U-shaped structural channels. These channels are used a lot in industrial frames, solar panel mounting systems, and electrical supports. This process is automated by the Solar Strut Channel Roll Forming Machine, which uses continuous cold-forming to make exact, slotted channels that Solar Strut Channel Roll Forming Machine are needed for modular assembly systems in commercial building projects and solar setups.

Introduction

The rapidly expanding green energy market has created a huge need for industrial solutions that are more efficient than ever. Our team at ZTRFM has seen a lot of buying managers struggle to find equipment that is both accurate, productive, and reliable over the long run. This guide cuts through the technical jargon of channel-making equipment and gives you useful advice based on more than ten years of engineering experience and operations in more than 150 countries. If you want to make your solar mounting business bigger or start making structural parts as well, knowing what these tools can do and how they can be changed will help you make better investment decisions that will have a direct effect on your bottom line, product quality, and ability to compete in the market.

Understanding the Unistrut Channel Roll Forming Machine

This machinery is at the center of the area where mechanical precision and industrial robotics meet. The machine takes in galvanized or coated steel strips, bends them one at a time at different roller stations, and then sends out finished structural channels that are ready to be put in place.

Core Functionality and Manufacturing Process

The production process combines several systems that are in sync with each other and work together. The decoiling station is where steel coils start. Hydraulic expansion makes sure that the material feeds smoothly, without any stress spikes that could affect the quality of the making. The leveling unit then uses movable wheels to get rid of coil memory and surface irregularities. This is a very important step for making sure that the dimensions stay the same during the forming process. As the material moves into the cutting station, long slots are made by hydraulic or servo-controlled presses that move at set times. One thing that makes strut channel systems unique is that they can be mounted in a variety of ways, thanks to these holes. The roll forming section has 20 to 24 progressive stations. Each one bends the steel slightly more toward the finished shape without going beyond its yield strength. When compared to hot-working methods, this cold-working process actually increases tensile strength. This makes channels that can handle heavy loads in utility-scale solar systems.

Key Components and Their Roles

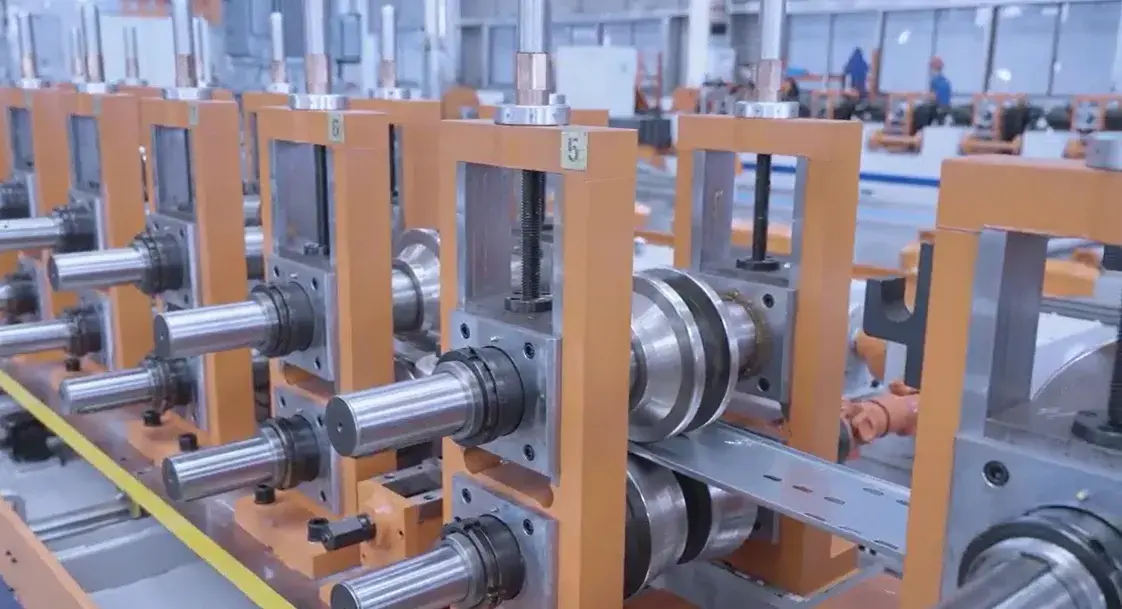

When evaluating a purchase, the making rollers should get extra attention. To keep pre-galvanized materials from getting scratched, high-quality machines use GCR15 bearing steel that has been chrome-plated. Roller width and shaft design directly affect the accuracy of forming. For example, our machines use 45# forged steel shafts with an 80mm diameter to keep deformation to a minimum while they are in constant use. Whether the transmission is chain-driven or has a clutch affects both how long it will last and how often it needs to be serviced. When working with smaller gauge materials, double-chain methods are cheaper, but gearbox drives last longer when working with steel that is thicker than 2.0 mm. Hydraulic shears and flying saws are two different types of cutting devices. With a tolerance of ±1.5 mm, hydraulic devices make clean cuts that are good for normal production runs. Everything is connected by the control architecture. PLC systems with HMI touchscreens let operators set lengths, change speeds, and see real-time output data without having to do anything by hand.

Solar Strut Channel Roll Forming Machine: Technology and Benefits

Channel-making technology has been changed to meet the specific needs of the solar business. Photovoltaic Solar Strut Channel Roll Forming Machine  mounting channels must meet strict requirements for outdoor durability, exact hole placement for bracket alignment, and load-bearing capacity under dynamic wind and snow loads. This is different from standard structural profiles.

Advanced Automation and Precision Control

Our Solar Strut Channel Roll Forming Machine has servo feeding systems that move the material forward and punch it at the same time. This makes it possible to get hole positions that are accurate to within ±0.5mm. This level of accuracy is very important for workers who have to line up many channels across large solar panels. Even small errors add up over dozens of mounting points, making assembly difficult and reducing the efficiency of the structure. The automatic length-setting feature gets rid of the need to measure things by hand, letting workers enter the sizes they want through a touchscreen. The speed of production can hit 8 meters per minute, which means that a lot of work is done every day, enough to support both project-based manufacturing and ongoing supply contracts.

Material Efficiency and Waste Reduction

When compared to pressing or cutting, cold roll making naturally makes less scrap. The ongoing process turns almost 95% of the material that goes into it into finished goods. The leading and following coil edges are the main places where waste happens. This economy is very important for the bottom line when working with pre-coated steel, where material costs make up 60–70% of all production costs. The 11kW station powers the hydraulic cutting system, which gives you clean shears without burrs that would need to be removed again, which saves time and money on labor.

Comparing Solar Strut Channel Roll Forming Machines

There are many configuration choices available to procurement teams, and each one has its own pros and cons in terms of skills, funding, and operational needs. Being aware of these differences helps match the choice of tools with specific output goals and spending limits.

Automation Levels and Operational Impact

Beginner machines have manual controls for setting the length and need to be watched over by a user during production runs. These methods work well for new businesses or companies that only make a few different products and don't change them very often. People who want to save money like that the purchase cost is usually 30–40% less than that of fully automated units. However, over the machine's lifetime, labor costs will partly offset these savings. Mid-range automatic systems use PLC control and pre-set tasks, so workers can set up production runs and leave the room. These machines count finished pieces automatically, start cutting processes, and let workers know when there are problems with the material feed. Medium-volume operations that run 6–8-hour shifts see big gains in production efficiency. This is because moving workers to other jobs increases the productivity edge. In more expensive models, there are servo-driven roller adjustment systems that make it possible to switch profiles without having to manually swap the rollers. With servo control, switching time drops from 4 to 6 hours for manual systems to less than 30 minutes, which is good for manufacturers who make more than one channel size. This adaptability comes in handy when working with a wide range of customers who have different needs or when market demand changes between profile types.

Energy Consumption and Performance Metrics

The main motor power of 22kW is what the machine needs to run, Solar Strut Channel Roll Forming Machine,  with help from the hydraulic station power of 11kW. At a speed of 8 meters per minute, machines can make between 380 and 480 square meters per shift, based on how long the cuts are and how often the machines switch over. Energy costs usually make up 8–12% of the cost of making one unit, which is a manageable amount that stays the same at all operating sizes. When you compare product performance, you need to look at both speed and first-pass return rates. Superior roller design and control systems achieve 98%+ conformance rates, which means that almost all output meets the required dimensions without any need for repair. Lower-quality machines may work at the same speeds, but they have 5–10% rejection rates that lose material and take extra work to sort, which lowers the effective output.

How to Choose the Right Solar Strut Channel Roll Forming Machine

To make the best tool choice, you need to compare the machine's skills to the way you work. When people make decisions about what to buy without thinking about production realities or future growing needs, they often end up with expensive tools that don't work well with their needs.

Assessing Production Capacity Requirements

First, figure out how much work you need now and in the future. Figure out how much you need to make each day based on the orders you already have, then add 30 to 40 percent to account for business growth and inefficient production. When regular stops, changeovers, and material loads are taken into account, a machine that makes 400 meters per shift works at about 75% of its theoretical capacity. By matching this reasonable capacity to your demand, you can avoid delays and avoid spending too much on capacity that you won't use. Also, think about how complicated your product mix is. Businesses that only make two or three common profiles can get by with manual-changeover machines, as long as they are okay with having to take them down every so often to fix the rollers. Quick-change or servo-adjustment systems that cut down on idle time between runs are very helpful for manufacturers who handle special orders or keep large SKU lists.

Evaluating Precision and Quality Standards

The size margins you need depend on the needs of your final market. Utility-scale solar systems usually need key dimensions to be within ±1.5 mm of our normal machine output. Precision electrical enclosures or building systems may need better control systems or more finishing processes because they need to be able to hold tighter tolerances. When evaluating a seller, ask to see example parts and compare their key dimensions, edge quality, hole placement, and surface finish to your own standards. Long-term precision is directly affected by the roller material and building method. Machines that use GCR15 steel wheels that have been heat-treated keep their dimensions the same over millions of linear meters. Softer materials, on the other hand, wear out over time and need to be adjusted or replaced more often, which delays production plans.

Maintenance and Operation Guide for Longevity and Performance

Disciplined repair practices and operational knowledge are needed to make sure that equipment lasts as long as possible and that the quality of the output stays the same. Preventative measures are much cheaper than fixing things after they break.

Daily and Weekly Maintenance Protocols

A set of regular inspections should be done at the start of every work shift. Check the power plant's hydraulic oil levels and look for leaks around links and seals. Check the tightness of the drive chains. Too much slack leads to uneven forming pressure, and too much tightening speeds up wear. Check the making rollers for material buildup or damage to the surface. Clean any debris that has gathered so that it doesn't move to the next production. Lubrication is the most cost-effective upkeep task that can be done. Follow the manufacturer's instructions and grease chain drives, roller bearings, and guide rail systems as often as every 8 to 12 hours of operation. Using the right grade of lubricant is important; using the wrong goods can speed up wear and may void guarantees. Deep checks should be done once a week to make sure that electrical connections are tight, that PLC program backups are working, and that emergency stop features are working. Clean the sides of the punched dies to stop slugs from building up and lowering the quality of the holes. These routines take 30 to 45 minutes a week, but they keep 80% of typical machine breakdowns that stop work from happening.

Operational Best Practices

Operator training goes beyond Solar Strut Channel Roll Forming Machine,  just getting to know the machine. Operators with a lot of experience can spot small changes in the sounds, vibrations, or responses to controls that mean problems are starting to happen. Promoting this level of care through regular refresher training and easy ways to talk about problems with tools creates a culture of proactive upkeep. Material quality has a big effect on how long machines last and how consistently they produce work. Setting standards for arriving steel and checking with suppliers on a regular basis to make sure they are following them stops processing problems. When coils have too much difference in thickness, bad edge trimming, or coating flaws, they make it hard to shape and may even harm rollers, which costs a lot more than any savings on materials from budget sources. Optimizing production parameters strikes a balance between speed and the life of the parts. Technically, machines can work faster than their rated speeds, but running at full speed for a long time speeds up wear and raises the risk of failure. For normal production, we suggest running at 85–90% of rated capacity. Only run at full speed for pressing orders where the extra output is worth the stress on the equipment.

Troubleshooting Common Issues

Material tracking problems, like steel moving horizontally during forming, are usually caused by rollers that aren't lined up right or guides that aren't adjusted evenly. Systematic checking from the feeding end through each making station usually finds the problem area so that it can be fixed specifically, instead of having to take the whole thing apart. Inconsistent hole location is usually caused by a misaligned servo feeder or worn-out punch parts that need to be replaced. The change in size over production runs could be caused by worn rollers or fixing hardware that is coming loose. By measuring output profiles on a regular basis, you can see how parts are slowly breaking down before they stop meeting specs. This lets you plan repairs for normal production breaks instead of having to shut down in an emergency. This kind of proactive tracking is possible by keeping measurement tools calibrated and teaching workers how to use them. Any strange noise or sound needs to be looked at right away. If you keep running the business, you might damage parts that turn a small repair into a major rebuild. Setting clear rules for stopping production and calling technical help keeps workers who mean well from trying to fix problems that are beyond their knowledge and make them worse.

Conclusion

Choosing the right Unistrut channel roll forming machine has a big impact on your ability to make things, the quality of your products, and your place in the market. The cost of owning a piece of technology is more than just the price of buying it. It also includes how well it works, how much upkeep it needs, and how long it takes to get help. Our work with solar mounting makers around the world has shown us that the key to success is to match the machine's capabilities to the unique needs of the production process while putting quality building first to ensure long-term performance. As the renewable energy industry continues to grow, there will be a high demand for high-quality structural channels. This is a great time to start making these channels or increase your current production capacity with tried-and-true machinery made to handle the tough needs of solar support systems.

FAQ

1. What materials can a unistrut channel roll-forming machine process?

These tools can work with different kinds of steel, like galvanized, hot-rolled, cold-rolled, and treated materials like magnesium-aluminum-zinc alloys. The thickness of the material is usually between 1.5 mm and 2.5 mm, and the filling sizes can handle coil stock that is 90 mm to 230 mm wide. In contrast to stamping, which damages galvanization and lowers rust resistance, the cold-forming method keeps the protective coating's structure, which is important for outdoor uses.

2. How long does a profile changeover take between different channel sizes?

Changeover time depends a lot on how the machines are set up. When moving between profiles like 41x41mm and 41x62mm sizes, it takes 4-6 hours for manual systems to change all the rollers and make the necessary adjustments. This takes only two to three hours with semi-automated tools that have tuning guides. Automated roller placement in advanced servo-controlled systems lets changeovers happen in less than 30 minutes, making them perfect for operations that need to meet a lot of different standards.

3. What production volume justifies investing in automated versus manual equipment?

Businesses that make more than 200,000 square meters a year usually get their money back from the extra cost of automatic systems within 18 to 24 months by saving money on labor and working more efficiently. For businesses that don't move more than 100,000 meters per year, manual or semi-automated equipment may be more cost-effective. However, this varies a lot depending on the cost of labor in the area and the complexity of the products being used.

Partner with ZTRFM for Advanced Channel Forming Solutions

ZTRFM focuses on creating Solar Strut Channel Roll Forming Machine systems that are strong and have smart technology that is specifically designed for solar mounting makers. Chrome-treated GCR15 wheels, heavy-duty 45# steel frames, and precise hydraulic systems that offer reliable ±1.5mm tolerances are all part of our equipment. We are an ISO 9001 and CE-certified producer with installations in more than 150 countries. We offer full support, including help with installation, training for operators, and quick expert service. Email our team at zhongtuorollforming@gmail.com to talk about your production needs with experienced engineers who can help you find the best combinations for your needs.
