Snap Lock Standing Seam Roll Forming Machine

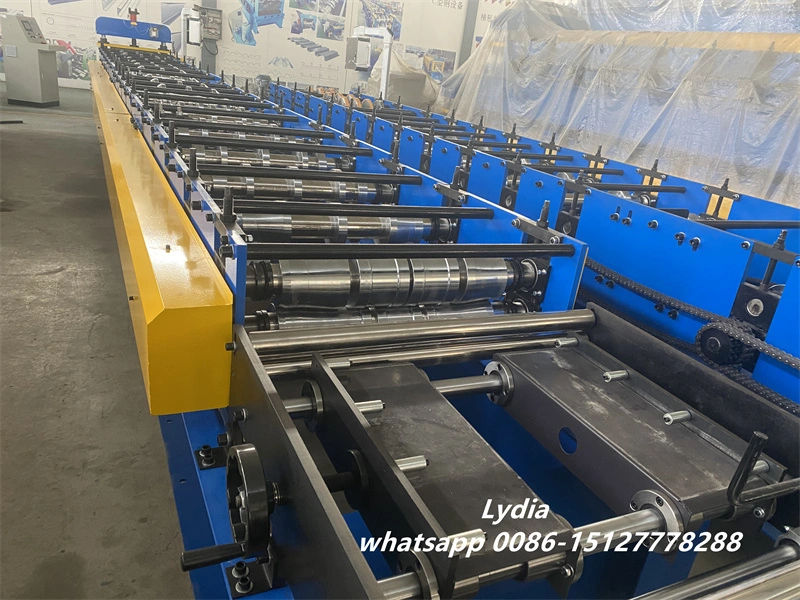

Cangzhou Zhongtuo's snap lock standing seam roll forming machine represents enterprise-grade manufacturing technology backed by a decade of engineering excellence since 2014. Built on a robust 350mm H-beam frame structure, this system features 16 precision forming stations with Φ75mm solid shafts crafted from heat-treated Grade 45 steel. The machine processes 0.3-0.8mm thick GI, PPGI, and G550 materials at speeds up to 20m/min, delivering consistent panel profiles with hard chrome-coated rollers that ensure extended service life. As a national-level high-tech enterprise with ISO 9001 and CE certifications, Zhongtuo integrates finite element analysis and AI-assisted simulation into every production line, exported to over 150 countries worldwide.

What Makes Our System Different

The product eliminates secondary seaming operations entirely. Your panels emerge with interlocking male-female edges that connect through vertical pressure, drastically reducing installation time.

Traditional mechanically seamed systems demand power seamers and skilled operators. This automated solution cuts installation labor by up to 40% on commercial projects. The concealed fastening mechanism protects against thermal expansion issues while maintaining clean architectural lines.

Our machine handles both steel and aluminum coils. The double-chain transmission system ensures smooth material flow through all forming stations without material stress or surface damage.

Technical Specifications of snap lock standing seam roll forming machine

Industry Applications That Demand Precision

Coastal and High-End Residential Projects

Your luxury villa projects require corrosion-resistant roofing systems. Our machine processes marine-grade aluminum and Al-Mg-Mn coils effectively. The snap lock profile eliminates exposed fasteners vulnerable to salt spray, while hidden clips resist high wind uplift forces in coastal environments.

Large-Span Commercial Warehousing

Pre-engineered buildings spanning over 50 meters face significant thermal expansion challenges. The panels produced by this snap lock standing seam roll forming machine float on clips, accommodating temperature-driven expansion cycles without fastener fatigue or leakage points.

Portable On-Site Manufacturing

Transportation of over-length panels creates logistical bottlenecks. Compact versions of our system deploy directly to construction sites, rolling panels onto roof structures and eliminating shipping damage.

Engineering Advantages Built on Research

Zhongtuo maintains deep collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. This partnership brings cutting-edge roll design optimization and AI-powered forming simulation into your production environment.

Advanced Roll Design Technology

Our rollers undergo finite element analysis before manufacturing. This process optimizes forming paths and reduces material stress during the gradual shaping of snap-lock profiles. You receive consistent panel geometry across thousands of production meters.

Intelligent Process Control

The PLC control system monitors forming pressure in real-time. When material thickness varies, the system automatically adjusts roller gaps to maintain profile accuracy. This prevents the common springback issues that cause loose snap connections.

Virtual Commissioning Support

Before shipment, your machine undergoes complete virtual debugging using Siemens simulation platforms. This reduces on-site installation time and ensures immediate production capability upon delivery.

Material Versatility and Panel Quality

The Cr12MoV cutting blade maintains precision across different materials. Steel requires different gap settings than aluminum due to yield strength variations. Our micrometer adjustment system on roller stands allows quick adaptation to material gauge changes.

Hard chrome coating on all forming rollers prevents zinc pickup from galvanized coils. This protects your material surface finish and extends roller service life beyond 500,000 linear meters of production.

The optional striation roller stations address oil canning in wider panels. These induce subtle stiffening ribs into flat pan areas, diffusing light reflection and physically strengthening the panel against visual waviness.

FAQ

Q：How does the machine prevent springback issues in snap lock profiles?

A：The final two forming stations over-bend the male leg slightly to compensate for material elastic recovery. Our engineers calibrate this based on your specific material yield strength, ensuring tight snap engagement after forming.

Q：Can one machine produce multiple panel widths?

A：Yes. The system features bilateral movement capability controlled through the PLC interface. You can adjust effective widths between 300mm and 600mm without changing rollers, using servo-controlled spacer positioning.

Q：What maintenance schedule should I follow?

A：Check the hydraulic cutting blade gap clearance (0.05mm-0.10mm) every 500 operating hours. Apply lubrication to chain drives weekly. The hard chrome rollers typically require no maintenance for the first year under normal production conditions.

Q：Does the system handle both steel and aluminum?

A：Absolutely. The machine processes G300-G550 galvanized steel, Zincalume, and 3003-series aluminum alloy. You'll adjust roller gap settings when switching materials, which takes approximately 15 minutes using our quick-adjustment protocol.

Q：How do you ensure consistent panel quality across long production runs?

A：The double-chain transmission eliminates speed variations that cause dimensional inconsistencies. Our 350mm H-beam frame resists deflection under load, maintaining precise roller alignment throughout production cycles.

Q：What support do international customers receive?

A：We provide cloud-based remote monitoring for equipment diagnostics. Your technical team receives virtual commissioning documentation and video guidance. Our graduate researchers from Yanshan University offer long-distance troubleshooting support in English.

Contact Us

Ready to enhance your roofing panel production capabilities with the snap lock standing seam roll forming machine? Contact us at zhongtuorollforming@gmail.com  for technical specifications and customization options tailored to your manufacturing goals.
