16″ Standing Seam Panels Machine

Premium Cold Roll Forming Solution for Architectural Roofing with the 16″ Standing Seam Panels Machine

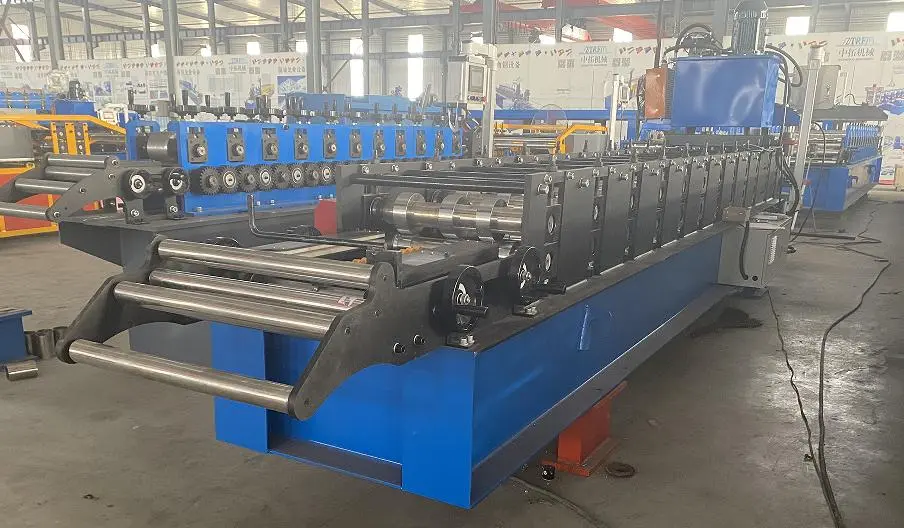

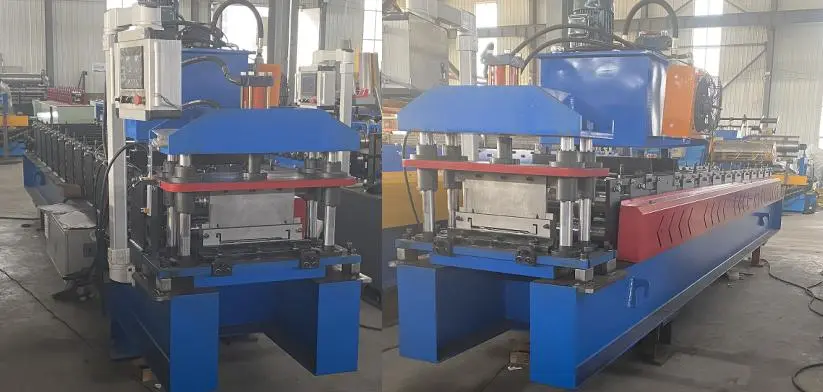

Cangzhou Zhongtuo Roll Forming Machinery delivers industrial-grade 16″ Standing Seam Panels Machine designed for high-precision metal roofing fabrication. Since 2014, we've engineered cold forming systems with 18 roller stations and 5.5kw motor power, processing 0.3-0.5mm galvanized and pre-painted steel. Our machines feature 80mm hardened shaft diameter with quenched 45# steel rollers, ensuring consistent panel profiles across 50+ feet runs. The hydraulic cutting system and 350H steel welded frame deliver durability for continuous production. With ISO 9001 and CE certifications, this product solves water intrusion risks through concealed fastening systems while maintaining ±1/32″ width tolerance for commercial-grade roofing projects.

Why Choose Our Standing Seam Panel Machine

Precision Engineering for Zero-Leak Performance

Your roofing projects demand reliability. Our machine produces panels with raised mechanical lock seams that eliminate fastener penetration points. This concealed clip system prevents the primary failure mode in traditional metal roofing—water intrusion through screw holes.

The 18-station progressive forming process ensures gradual bending. This reduces material stress and minimizes oil canning defects on 24-gauge steel panels.

Built for Continuous Operation

Heavy-duty construction meets demanding production schedules. The 350H steel welded frame provides rigidity during high-speed runs. Chain-driven transmission with tempered 45# steel shafts handles continuous coil feeding without slippage.

Hydraulic cutting delivers clean edges without burrs. This maintains panel integrity for seamless installation on job sites.

Versatile Material Handling

Process both galvanized and color-coated steel within the 0.3-0.5mm thickness range. The machine accommodates standard architectural finishes including Kynar 500® and polyester-coated substrates.

Adjustable roller pressure settings allow quick changeover between material types. You maintain production flow without extensive downtime.

Technical Specifications of the 16″ Standing Seam Panels Machine

Industrial Applications

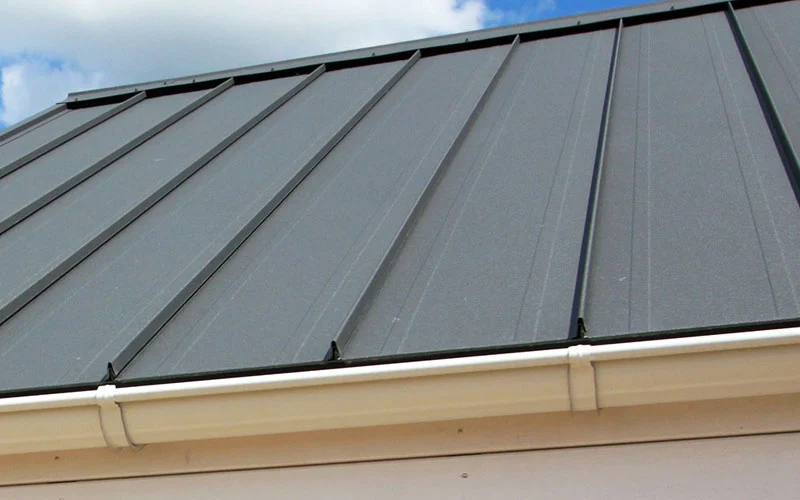

Commercial Roofing Projects

High-rise buildings require superior wind uplift resistance. Our 16″ Standing Seam Panels Machine produces profiles compliant with UL 580 Class 90 standards. Mechanical seaming creates structural integrity for coastal installations and skyscraper applications.

The system supports panel lengths exceeding 50 feet. Single-piece installation eliminates vulnerable end-laps that compromise weatherproofing.

On-Site Fabrication Solutions

Portable configurations bring production directly to your construction site. Run continuous panels that match exact roof dimensions without transportation damage. This capability proves essential for complex architectural retrofits and custom residential projects.

Pre-Engineered Building Manufacturing

Factory production lines benefit from consistent output speeds. The machine serves as backbone equipment for warehousing and agricultural structure manufacturers. Standard 16-inch coverage panels meet volume requirements while maintaining tight tolerances.

Advanced Manufacturing Backed by Research

Zhongtuo collaborates with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. Our R&D team utilizes finite element analysis (FEA) to optimize roller profiles.

This partnership has produced two patented technologies including innovative roller designs. These advancements directly improve your panel quality and reduce setup time.

Virtual commissioning through Siemens platforms enables remote diagnostics. You receive faster technical support regardless of geographic location.

Quality Assurance Systems

Every 16″ Standing Seam Panels Machine undergoes rigorous testing before shipment. Our ISO 9001 certified processes ensure dimensional accuracy and component durability.

CE certification confirms compliance with European safety standards. CAS certification validates suitability for North American markets.

We've exported to over 150 countries including demanding markets in Europe and North America. This global experience informs our design improvements and customer service protocols.

Maintenance and Longevity

Simplified Upkeep Procedures

Inspect shear blades every 50,000 linear feet of production. Adjust or sharpen when burrs appear on panel edges. This prevents profile deformation that complicates installation.

Lubricate chain drives according to the provided maintenance schedule. Monitor roller alignment to preserve coating integrity on painted substrates.

Component Accessibility

Critical wear parts are readily accessible without disassembling major frame sections. Replacement rollers and shear blades ship globally to minimize production interruptions.

Our technical team provides remote troubleshooting support. Virtual debugging capabilities reduce the need for on-site service calls.

FAQ

Q：What material thicknesses can your machine handle reliably?

A：The system processes 0.3-0.5mm steel consistently. This range covers standard 26-gauge to 24-gauge roofing substrates used in most commercial and residential applications.

Q：How do you prevent panel scratching during forming?

A：Quenched 45# steel rollers feature smooth surfaces. Proper tension settings and chain drive systems eliminate slippage that causes surface damage to pre-painted materials.

Q：Can I switch between steel and aluminum coils?

A：Yes, provided thickness remains comparable. You may need to adjust roller clearances to compensate for different material yield strengths and spring-back characteristics.

Q：What power requirements does the machine need?

A：Standard configurations require 3-phase electric power for the 5.5kw motor. Portable versions can utilize generator power for on-site operations.

Q：How accurate is panel length control?

A：Our systems achieve ±1/16″ length accuracy with rotary encoder feedback. Regular calibration maintains precision across different coil textures and surface finishes.

Q：What is your typical delivery timeline?

A：Production and shipping usually complete within 45-60 days depending on customization requirements. We provide detailed progress updates throughout manufacturing.

Contact Us

Ready to enhance your metal roofing production capabilities with the 16″ Standing Seam Panels Machine? Contact our technical team at zhongtuorollforming@gmail.com  for detailed specifications and customization options tailored to your requirements.
