Kr18 Portable Standing Seam Machine - Professional Onsite Roofing Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. presents the Kr18 portable standing seam machine, an industrial-grade mobile roll forming system engineered for onsite fabrication of double-lock standing seam roofing profiles. This specialized equipment transforms 0.3-0.8mm coil stock into continuous 18-inch coverage panels, eliminating transportation length restrictions and horizontal end-laps that cause water infiltration.

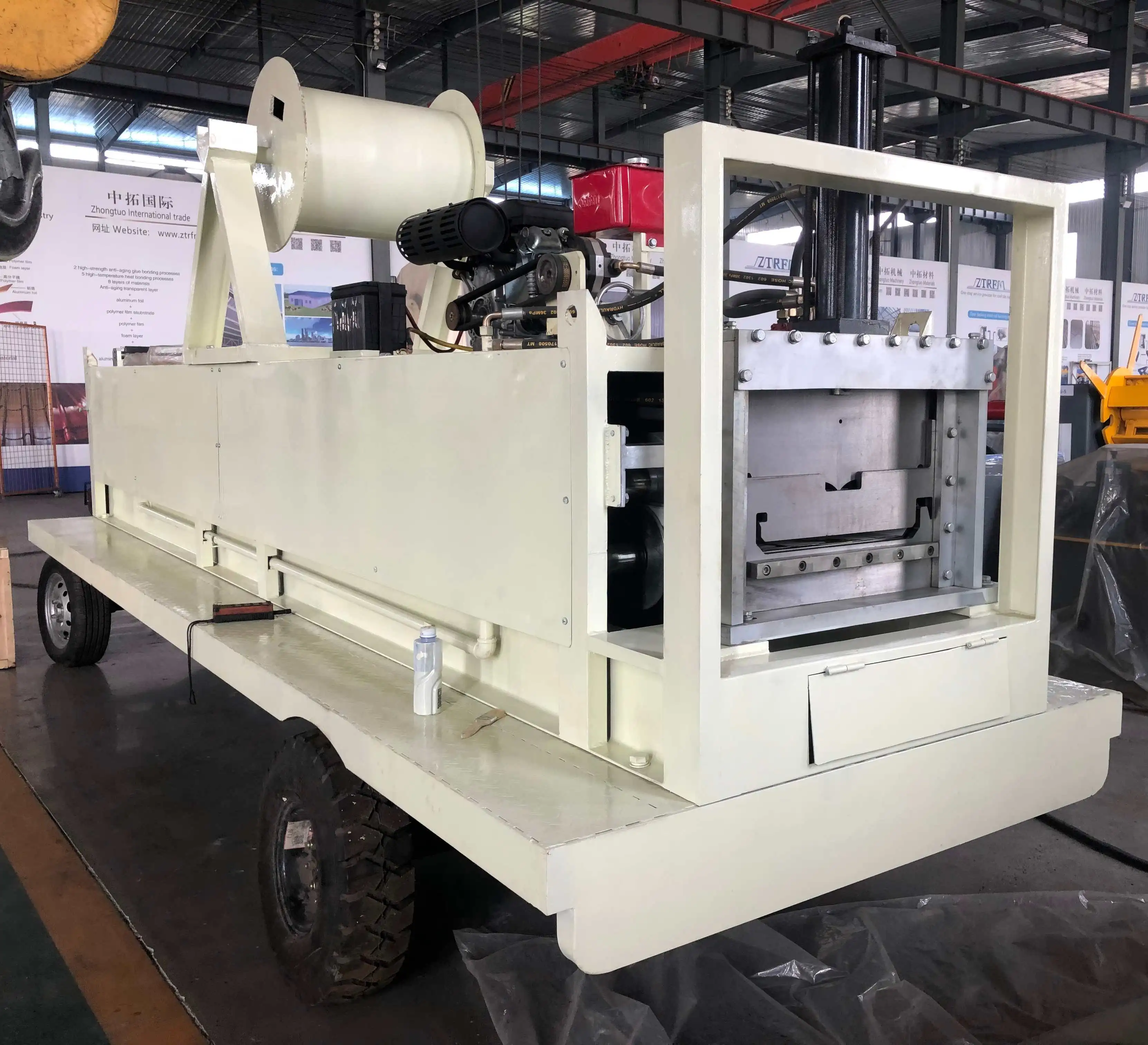

With compact dimensions of 2300×1500×1600mm and a weight of just 2.2 tons, this machine delivers 10-15m/min forming speed powered by dual 3kW motors. Developed by a national-level high-tech enterprise with ISO 9001 and CE certifications, our portable roll former serves over 150 countries, backed by university-research collaboration with Yanshan University's Cold Rolled Strip Equipment Engineering Center.

What Makes This Machine Essential for Modern Roofing Projects?

Traditional factory-formed panels face severe length limitations during transportation. Our portable standing seam former solves this critical industry challenge by producing ultra-long continuous panels directly at your construction site.

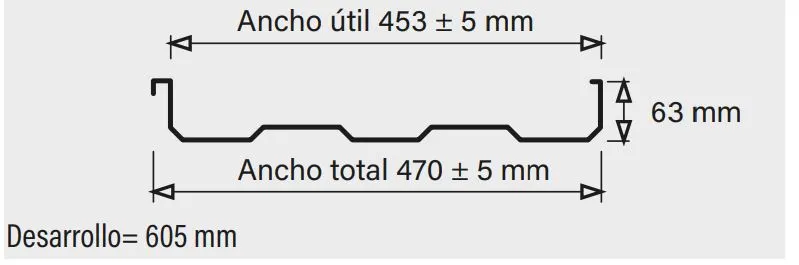

The machine creates a structural profile with 2.5-inch high ribs, designed specifically for hidden clip floating systems. This allows proper thermal expansion management without compromising weatherproofing integrity.

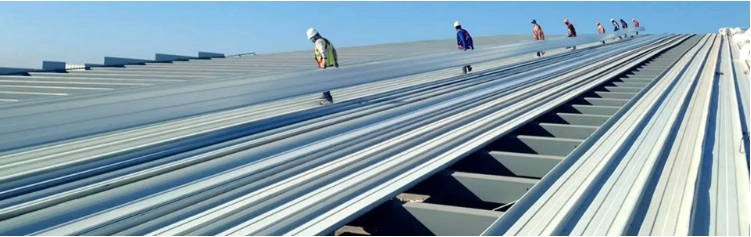

For contractors handling large-span industrial warehouses, airports, or commercial centers, this equipment eliminates costly horizontal joints. You can roll single-piece panels exceeding 50 meters, creating a monolithic roof shield that dramatically reduces leak points.

Technical Specifications

Key Performance Advantages with the Kr18 portable standing seam machine

Mobile Flexibility

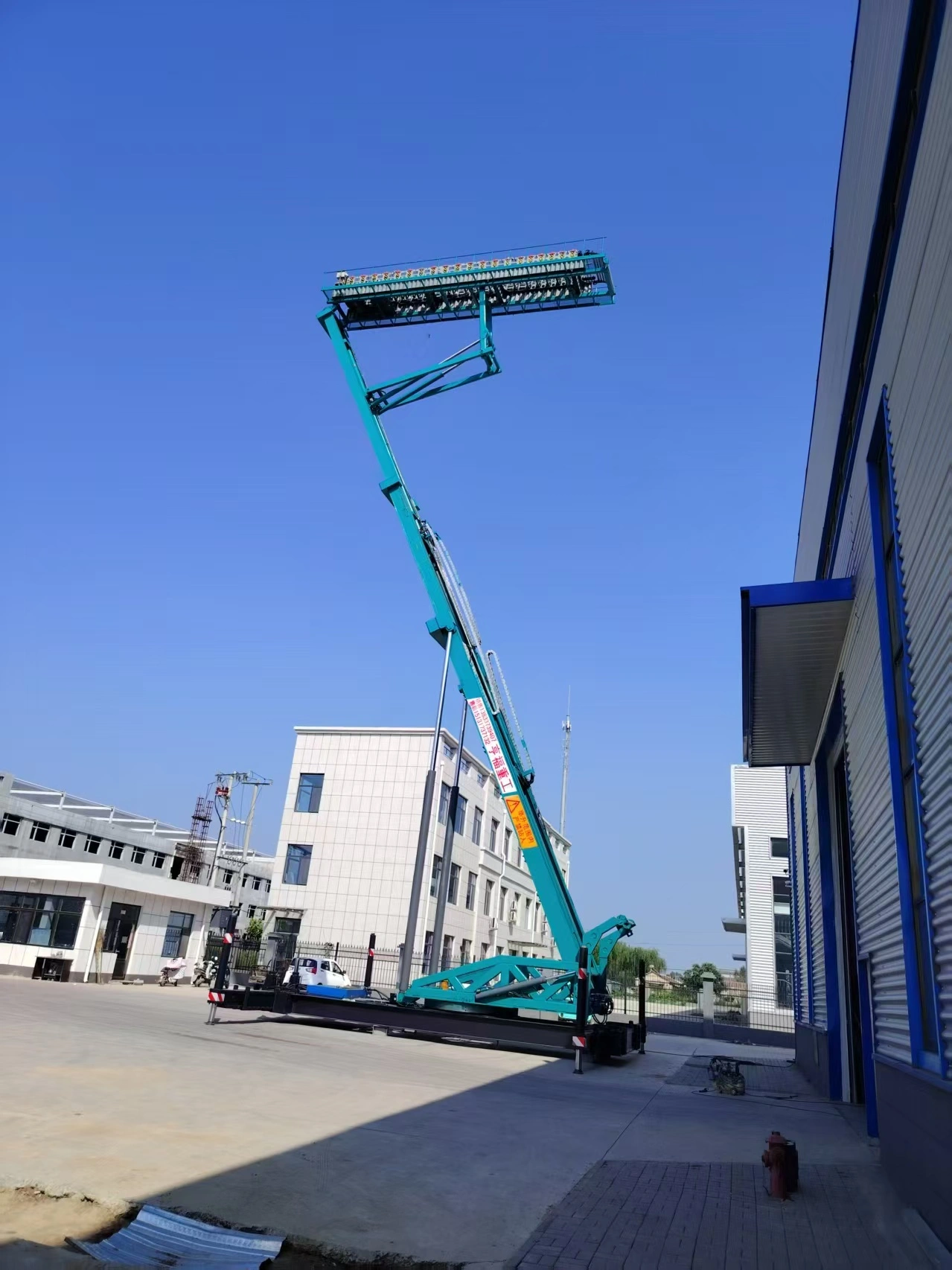

Your roofing crew can transport this compact unit directly to rooftops or position it alongside buildings. The trailer-mounted design means you're not limited by factory location or panel delivery schedules.

Continuous Panel Production

Produce panels matching exact building lengths without seams. This capability is crucial for low-slope roofs (down to 2% pitch) where water ponding risks increase at transverse joints.

Professional-Grade Construction

Precision-machined forming stations ensure consistent profile geometry across thousands of linear meters. The hydraulic cutting system delivers clean, burr-free edges that facilitate proper seam engagement.

Adaptable Power Solutions

While standard 380V three-phase power is optimal, you can operate this Kr18 portable standing seam machine using diesel generators rated 20-30KW. This feature proves invaluable at remote construction sites without grid access.

Application Scenarios for Maximum Value

Industrial Warehouse Complexes

Distribution centers and manufacturing facilities require expansive leak-free roofing. Our machine produces the continuous panels needed for buildings spanning 30-60 meters without intermediate supports.

High-Wind Coastal Structures

The double-lock seam profile created by this equipment achieves mechanical interlock ratings suitable for hurricane-prone regions. When properly seamed, panels resist uplift pressures exceeding standard screw-down systems.

Architectural Commercial Projects

Retail centers and corporate campuses demand aesthetic excellence. The machine can integrate longitudinal stiffening ribs into panel flats, preventing oil-canning (visible waviness) that degrades appearance on large roof planes.

Agricultural and Storage Buildings

Cost-conscious farm structures benefit from onsite fabrication efficiency. You eliminate middleman markup on pre-formed panels while maintaining professional weather-tightness standards.

Advanced Engineering Behind the Design

Zhongtuo's research partnership with Yanshan University's National Engineering Center brings cutting-edge technology to this portable platform. Our team applies finite element analysis to optimize roller geometry, reducing material stress during forming.

The machine incorporates AI-assisted process simulation results. This ensures consistent profile accuracy across varying steel grades and thicknesses, compensating for springback characteristics in high-tensile materials.

Virtual commissioning technology allows remote diagnostics and parameter adjustment. Your technical team receives cloud-based support, minimizing downtime during critical project phases.

Operational Considerations for Your Team

Material Selection Guidance

The Kr18 portable standing seam machine performs optimally with Grade 33-50 steel in the 22-26 gauge range. If your project specifications require Grade 80 high-tensile steel, consult our engineering team for station modifications addressing increased springback.

Complementary Equipment Requirements

This roll former produces the panel profile. You'll need a separate electric seaming tool (roof robot) to mechanically crimp the 90° or 180° double-lock seams after panel installation on roof clips.

Maintenance Protocols

Daily hydraulic oil level checks prevent system failures. The Cr12MoV cutting blades typically handle 3,000-5,000 cuts before requiring rotation or sharpening, depending on material thickness processed.

Global Support and Certification

As a verified national high-tech enterprise, Zhongtuo maintains ISO 9001 quality management certification and European CE safety compliance. Our equipment meets North American CAS standards, demonstrating readiness for demanding international markets.

With successful installations across 150+ countries, our technical support team understands regional building code variations. We provide tailored guidance ensuring your machine configuration meets local structural and weather-resistance requirements.

Packaging and Delivery Protection

Your machine ships in reinforced export-grade packaging with moisture barriers and shock-absorbing materials. Critical components receive individual protection to prevent transit damage.

We provide detailed unpacking and setup documentation in multiple languages. Remote video commissioning support is available to verify proper installation before your first production run.

FAQ

Q：Can this machine produce panels from varying coil widths?

A：Standard configurations utilize fixed 24-inch coil width to produce 18-inch coverage. Variable-width capability requires specialized cassette systems not typically included in portable models.

Q：What power supply works best for remote jobsites?

A：While 380V three-phase is standard, quality diesel generators rated 20-30KW handle the hydraulic motor surge loads effectively. Ensure voltage stability to protect control systems.

Q：How do you prevent visible waviness on long panels?

A：Our machine can integrate ribbing stations that add longitudinal stiffening beads to panel flats. This feature significantly reduces oil-canning on spans exceeding 15 meters.

Q：Does the profile work with all clip systems?

A：The Kr18 profile is engineered for standard concealed floating clip designs. Verify clip height and engagement specifications match the 2.5-inch rib geometry before installation.

Q：What maintenance schedule ensures optimal performance?

A：Check hydraulic fluid daily during active production. Inspect forming rollers weekly for coating buildup. Perform comprehensive system service every 50,000 linear meters or annually, whichever comes first.

Q：Can the machine handle aluminum coil stock?

A：Yes, the product processes aluminum within the 0.3-0.8mm thickness range. Adjust forming speed slightly lower than steel to prevent surface marking.
