Standing Seam Forming Machine – Professional Metal Roofing Panel Production Equipment

Cangzhou Zhongtuo's standing seam forming machine delivers enterprise-grade performance for your metal roofing needs. Our hardware forms 0.3-0.5mm galvanized and pre-painted steel through 18 accuracy roller stations, fueled by a vigorous 5.5kw engine framework. Built on a 350H steel welded outline with 80mm distance across shafts and Cr12MoV heat-treated rollers, this machine guarantees steady yield for commercial and mechanical applications. With water powered cutting frameworks and chain transmission, you get precise board creation supported by our ISO 9001 certification and over 10 a long time of fabricating skill serving 150+ countries.

What Makes Our Metal Panel Forming Equipment Different

You require gear that works dependably day after day. That's precisely what we've built.

Our machines highlight 45# steel rollers with extinguished treatment. This implies way better strength and longer benefit life. The 80mm shaft breadth gives solidity amid high-volume generation runs.

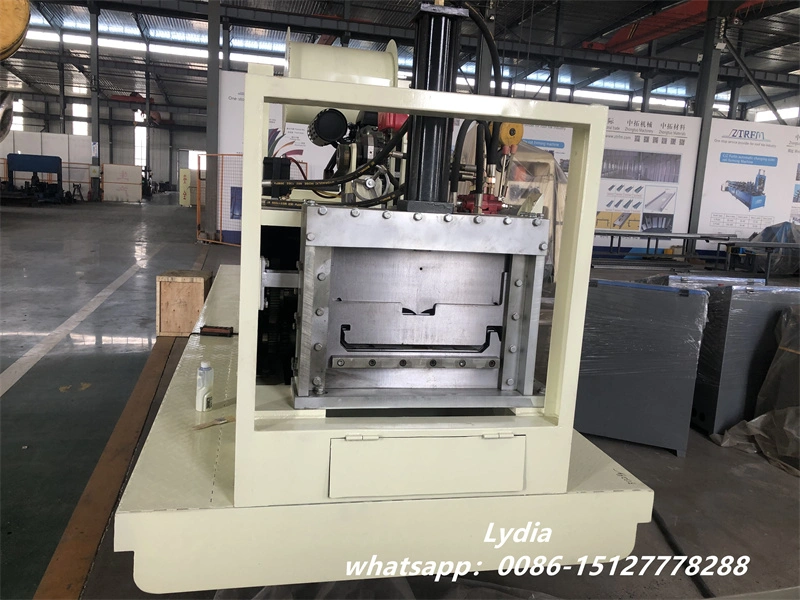

We utilize water powered cutting frameworks. Clean cuts. No manual alterations required between panels.

The 5.5kw motor delivers consistent power. You won't experience slowdowns during operation.

Key Benefits You'll Notice:

·  Handles both galvanized and pre-painted materials

·  18-station roller system ensures gradual, stress-free forming

·  Heavy-duty 350H steel frame minimizes vibration

·  Chain transmission system reduces maintenance needs

Technical Specifications

How This Equipment Transforms Your Roofing Projects？

Traditional roofing systems have a problem. Exposed fasteners create leak points. Thermal expansion causes panel buckling.

The standing seam forming machine solves both issues.

Weather-Tight Performance:

Your panels feature vertical ribs raised above the drainage plane. Side laps interlock mechanically. No exposed fastener holes means no water penetration points.

Thermal Movement Accommodation:

Metal expands and contracts with temperature changes. Our concealed fastener system uses floating clips. Panels move freely without stress fractures or oil canning.

On-Site Flexibility:

Need custom lengths? Our equipment can be configured for site-roll forming. Produce continuous panels over 100 meters long. Eliminate horizontal lap joints on low-slope roofs.

Applications Across Industries

Pre-Engineered Metal Buildings:

Airport terminals, convention centers, and manufacturing facilities require long-span coverage. Our machines produce continuous sheets that reduce lap joints and installation time.

Architectural Projects:

High-end residential and commercial buildings demand aesthetic appeal. Process premium materials like PVDF-coated aluminum or copper without compromising coating integrity.

Retrofit Solutions:

Existing roofs need upgrades without operational disruption. Metal-over-metal retrofit systems install directly over deteriorating roofs, adding insulation and extending service life.

Agricultural & Industrial Structures:

Warehouses, storage facilities, and livestock buildings benefit from durable, low-maintenance roofing. Our equipment produces cost-effective panels that withstand harsh environments.

Why Zhongtuo Equipment Stands Out

Research-Backed Innovation:

We partner with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This collaboration brings advanced finite element analysis and AI-assisted simulation into our designs.

Our research team has developed two patented technologies. These innovations improve roller design and automated slitting precision.

Quality Manufacturing Standards:

Every machine meets ISO 9001 quality management requirements. We hold European CE certification and North American CAS certification. These aren't just badges—they represent rigorous testing and compliance.

Global Experience:

Since 2014, we've exported to over 150 countries. We understand regional building codes, climate requirements, and material preferences. Our team provides tailored solutions that align with both international standards and local needs.

Comprehensive Service:

We offer ODM, OEM, and one-stop service. Source raw materials, machinery, and accessories from a single supplier. Simplify your supply chain and reduce coordination headaches.

Operational Advantages

Precision Control:

Adjust panel length with ±1mm tolerance. Our PLC systems use rotary encoders for accurate measurements. Set batch quantities through intuitive touch screens.

Material Versatility:

Process various coated steels and aluminum alloys. Switch between galvanized and pre-painted materials without extensive reconfiguration.

Maintenance Efficiency:

Chain transmission systems require minimal lubrication. Heat-treated rollers resist wear. Hydraulic cutting blades maintain sharpness over thousands of cuts.

Production Speed:

Standard operation achieves 15-20 meters per minute. This speed balances quality with output efficiency for most commercial applications.

Investment Protection

Buying equipment is a significant decision. You want assurance it'll perform for years.

Durability by Design:

We use 45# steel components throughout the machine structure. Welded 350H steel frames provide rigid support. These materials withstand continuous industrial use.

Technical Support:

Our engineering team provides remote diagnostics and troubleshooting. Cloud-based monitoring helps prevent downtime through predictive maintenance alerts.

Parts Availability:

Replacement components ship globally. We maintain inventory for critical wear parts so you're never waiting weeks for repairs.

Frequently Asked Questions

Can this machine produce both snap-lock and mechanical seam profiles?

Standard machines are optimized for one profile type. The locking geometries differ fundamentally between snap-lock and mechanical seam designs. Snap-lock uses friction clips, while mechanical seams require secondary folding equipment. We recommend dedicated tooling for each application to ensure consistent quality.

How do you prevent waviness (oil canning) on finished panels?

We incorporate several design features: First, 18 forming stations distribute stress gradually across the material. Second, precise alignment of the entry guide and straightener assembly maintains material flatness. Third, proper roller clearance adjustment for your material thickness prevents excessive compression that causes buckling.

Can the equipment handle different material thicknesses?

Yes, within the 0.3-0.5mm range specified. Adjustment requires changing vertical clearance between rollers. Running material outside tolerance can damage roller surfaces or produce twisted profiles. We provide detailed adjustment procedures for your specific material range.

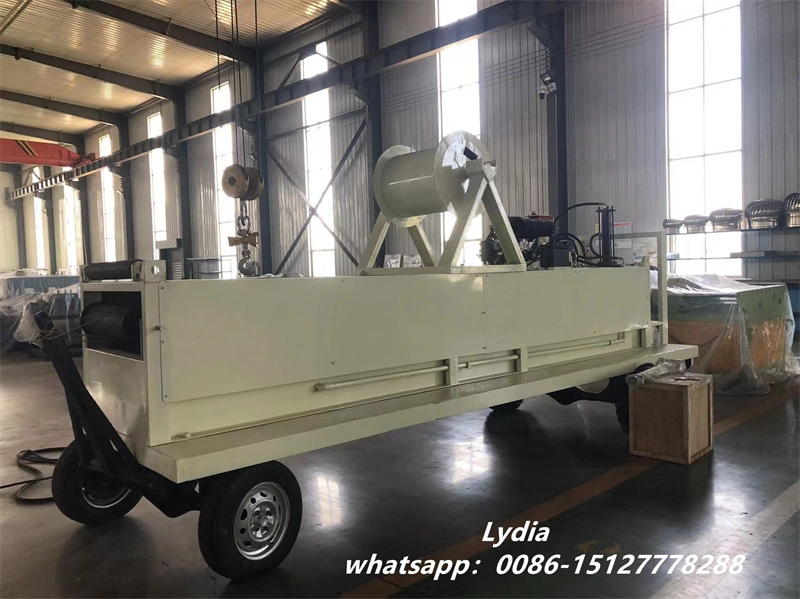

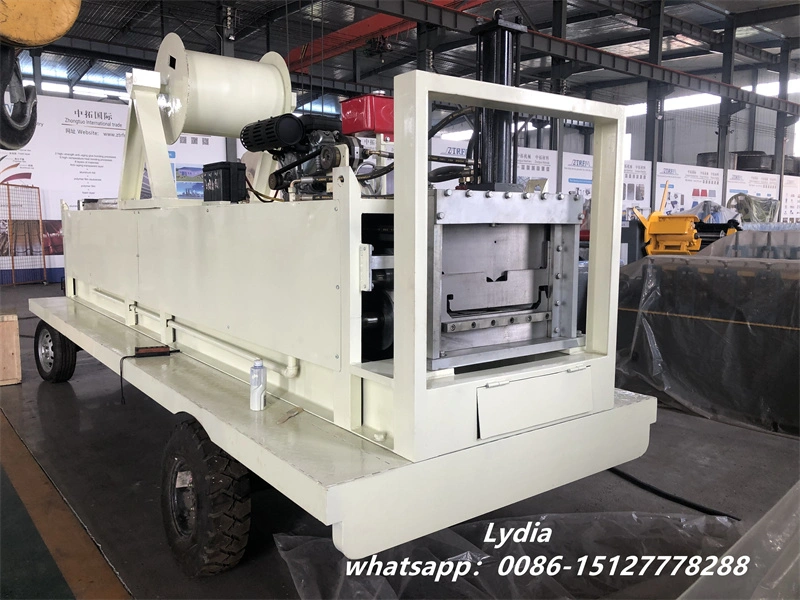

Is portable operation possible for on-site projects?

Our standard configuration is designed for shop installation. However, we can customize machines for mobile applications. This includes rigid base frames with lifting points, compact hydraulic systems, and flexible power options. Discuss your site requirements with our engineering team.

What determines production speed?

Several factors influence output: Drive type affects consistency—our chain systems provide reliable 15-20m/min operation. Cutting method impacts cycle time—hydraulic stop-to-cut systems pause briefly between panels. Profile complexity also matters—simpler geometries form faster than elaborate designs with multiple bends.

How do you ensure consistent panel quality?

Quality starts with material preparation. Our 5T hydraulic decoilers maintain consistent tension. The 18-station roller progression forms profiles gradually without material stress. Heat-treated rollers won't mar your coated materials. Finally, hydraulic cutting produces clean edges without burrs.

What training is required for operators?

Basic machine operation training takes 2-3 days for experienced metalworking personnel. We provide comprehensive manuals and video guides. Remote support helps troubleshoot initial production challenges. Most customers achieve full proficiency within two weeks of regular operation.

Your Next Steps

Ready to improve your roofing panel production? Our team at Zhongtuo Roll Forming Machinery is here to help.

Get in touch: zhongtuorollforming@gmail.com – We'll discuss your specific standing seam forming machine requirements and provide detailed technical guidance.
