Kr24 Portable Standing Seam Metal Roof Machine

Kr24 Portable Standing Seam Metal Roof Machine

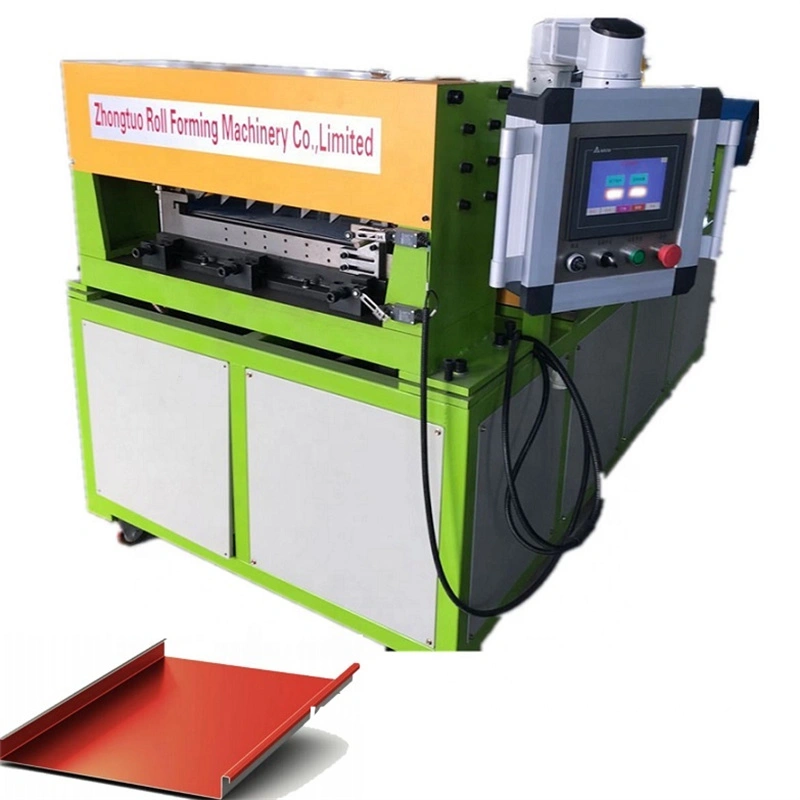

The Kr24 Portable Standing Seam Metal Roof Machine is your mobile solution for producing high-performance standing seam roofing panels directly on-site. This specialized cold-roll shaping hardware disposes of transport confinements by making nonstop boards surpassing 50 meters without level laps. Our machine forms PPGI, GI, and aluminum materials (0.3-0.6mm thickness) through 7 accuracy roller stations, conveying 15-25 meters per miniature shaping speed. With programmed water-powered decoiling, PLC-controlled length estimation (±1mm resilience), and a strong 60mm shaft transmission framework, you get factory-grade exactness wherever your venture demands.

Why Choose Our Portable Standing Seam Solution?

On-Site Production Advantages

You face real challenges with pre-formed panels. Shipping damage scratches your materials. Transport costs spike for custom lengths. Panel shortages delay your projects.

Our portable machine changes that completely.

You roll panels to exact specifications right at the job site. No more 12-meter shipping restrictions. No end-lap leak points. No freight damage headaches.

Enterprise-Grade Engineering

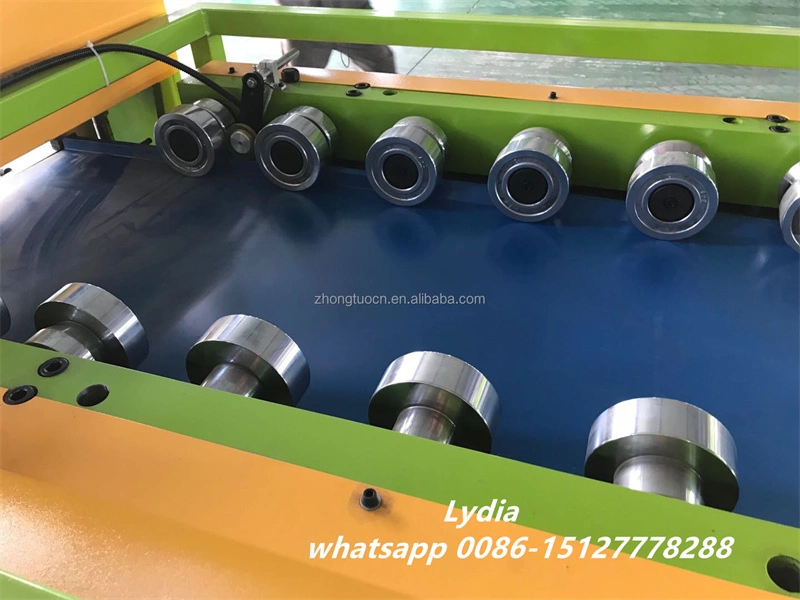

We've built this machine with components that last. The roller stations use hardened 45# steel with hard chrome plating. This protects your pre-painted surfaces from marring.

The square tube welded frame withstands job site vibrations. Gear transmission delivers consistent power across all forming stations.

Your panels come out straight. Every time.

Material Versatility

You're not locked into one material type. Process Galvalume, galvanized steel, or aluminum with thicknesses from 0.3mm to 0.6mm.

The adjustable system handles different yield strengths. You adapt to project specifications without switching equipment.

Technical Specifications

How It Solves Your Roofing Challenges

Eliminate Transport Restrictions

Traditional manufacturing limits you to 12-14 meter panels. Our Kr24 Portable Standing Seam Metal Roof Machine produces single-span sheets covering your entire roof run.

You reduce installation time. No horizontal seams mean fewer leak points. Your building envelope stays watertight.

Real-Time Adjustments

Project changes happen. Panel counts shift. Measurements get updated.

On-site production lets you respond immediately. Cut waste from estimation errors. Adjust quantities without reordering delays.

Superior Weather Protection

The double-lock standing seam profile offers structural advantages over screw-down systems. Vertical legs create mechanical locks that resist wind uplift.

You meet ASTM E1592 standards for structural integrity. Your clients get roofs that perform in extreme weather.

Understanding the Manufacturing Process

The machine transforms flat coil through multiple forming stages. Material feeds from the hydraulic decoiler into the first roller station.

Each of the 7 stations gradually shapes the profile. This progressive forming prevents metal stress. Your panels maintain consistent dimensions.

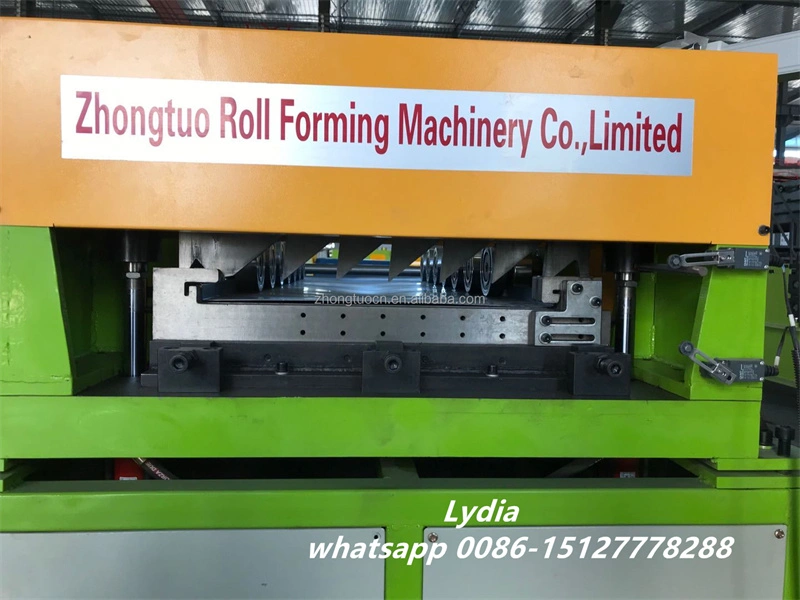

The PLC system monitors length continuously. When panels reach specified dimensions, the automatic cutting system engages. Hydraulic pressure delivers clean cuts.

You stack finished panels for immediate installation. The process runs continuously while material remains loaded.

What Sets Zhongtuo Apart

Decade of Manufacturing Excellence

Since 2014, we've specialized in cold roll forming machinery. Our national-level high-tech enterprise status reflects genuine innovation capability.

We hold ISO 9001, CE, and CAS certifications. These aren't just badges—they represent tested quality systems.

Research-Backed Development

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings academic rigor to practical manufacturing.

Graduate researchers work directly in our facility. They optimize roll design using finite element analysis. AI-assisted simulation reduces trial costs.

You benefit from technology that's tested both theoretically and practically.

Global Export Experience

We've shipped equipment to over 150 countries. That experience teaches us about diverse requirements.

European clients need CE compliance. North American customers expect specific voltage configurations. Middle Eastern operations demand dust-resistant components.

We've solved these variations repeatedly. Your machine arrives configured for your environment.

Installation and Operation Considerations

Portability Design

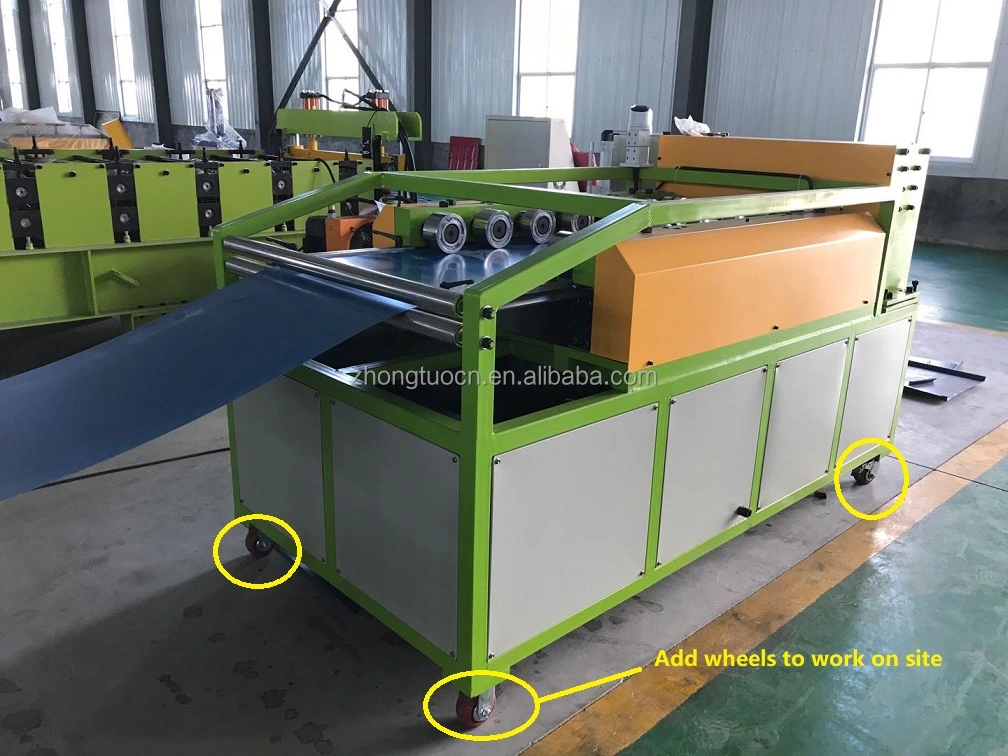

The heavy-duty steel chassis includes lifting lugs for overhead crane handling. You can mount the unit on a trailer for towing between job sites.

Built-in leveling supports ensure stable operation on uneven ground. Vibration dampening protects precision components during transport.

Power Requirements

The machine operates on standard industrial three-phase power. Voltage configurations adapt to regional standards (220V, 380V, 440V, or 480V).

Hydraulic systems use 46# hydraulic oil. The reservoir capacity supports extended production runs without overheating.

Operator Training

Basic operation requires understanding material loading, PLC interface navigation, and safety protocols. We provide comprehensive operation manuals with your equipment.

Your team typically achieves production-ready proficiency within 2-3 days of hands-on practice.

Maintenance and Longevity

Roller Station Care

Hard chrome plating extends roller life significantly. High-quality rollers process over 1,000,000 meters before tolerances degrade.

Clean metal dust from roller surfaces weekly. This simple maintenance prevents surface buildup that could mark materials.

Hydraulic System Maintenance

Change hydraulic oil every 6 months or after 2,000 working hours. Replace filters to protect solenoid valves controlling the cutting mechanism.

Monitor oil temperature during operation. Overheating indicates potential blockages requiring immediate attention.

Drive System Inspection

Check gear transmission lubrication monthly. The enclosed gear case protects components but requires periodic oil level verification.

Listen for unusual sounds during operation. Early detection of bearing wear prevents catastrophic failures.

Common Application Scenarios

Commercial Roofing Projects

Shopping centers, warehouses, and office buildings benefit from continuous panel runs. You eliminate mid-roof seams on structures with 30-60 meter spans.

The structural profile meets commercial building codes. Architects specify standing seam systems for both performance and aesthetics.

Agricultural Buildings

Barn and equipment storage structures often feature simple roof geometries with long runs. On-site production means you're not paying to ship air space.

You adapt panel counts as building plans evolve during construction. Agricultural clients particularly value this flexibility.

Industrial Facilities

Manufacturing plants and distribution centers require durable roofing that handles thermal expansion. The floating clip system (used with panels you produce) accommodates metal movement.

Your panels integrate with insulation systems for energy-efficient building envelopes.

Frequently Asked Questions

Can this machine handle different coil widths?

The standard configuration processes 24-inch (610mm) feed width for specific Kr24 profile coverage. Different input widths require roller station adjustments. We can configure machines for alternative widths during manufacturing, but field changes involve mechanical modifications.

Does the equipment perform the seaming operation?

No. This machine forms the panel profile. The actual seaming (locking the adjacent panels together) happens after installation using separate electric seaming robots or manual crimpers. These are distinct tools from the roll former.

What maintenance does the hydraulic system need?

Replace hydraulic oil every 6 months or 2,000 operating hours with fresh 46# hydraulic oil. Clean filters regularly to prevent debris from damaging solenoid valves. This prevents cutting mechanism failures and maintains consistent operation.

Can I produce tapered panels for curved roofs?

Standard machines produce straight, uniform-width panels. Conical or curved roofs require additional tapering equipment that adjusts width during forming. For tight-radius applications, you'll also need a separate curving machine to bend panels post-forming.

How long do the forming rollers last?

With proper maintenance, rollers hardened to HRC 58-62 and chrome-plated process over 1,000,000 meters of coil before profile tolerances degrade. Lifespan depends on regular cleaning to remove metal dust and appropriate lubrication. Aggressive materials or improper operation reduce this significantly.

What happens if I need technical support during installation?

We provide detailed operation manuals and video resources. For complex issues, our technical team offers remote diagnostics via video call. We've supported installations across 150 countries, so we're experienced with distance troubleshooting.

Is the machine suitable for aluminum roofing?

Yes. The system handles aluminum coils up to 0.6mm thickness. Aluminum's softer properties actually reduce roller wear compared to steel. Ensure rollers are clean before switching materials to prevent cross-contamination.

Your Next Step

Ready to bring factory capabilities to your job site? Contact our team at zhongtuorollforming@gmail.com to discuss your specific Kr24 Portable Standing Seam Metal Roof Machine requirements today.
