Hat Channel Machine: High-Precision Cold Roll Forming Solution for Structural Framing

Cangzhou Zhongtuo's hat channel machine delivers enterprise-grade precision with 14 progressive forming stations, processing 0.3-1.0mm galvanized steel at speeds up to 25-50 meters per minute. Our gear keeps up dimensional resistances inside ±0.5mm over each profile, guaranteeing steady basic execution. Built with 50mm strong shafts and Cr12MoV chrome-plated rollers appraised to HRC 58-62, this framework combines gearbox transmission soundness with water powered mechanization. As a national-level high-tech endeavor certified beneath ISO 9001 and CE measures, we've traded to over 150 nations since 2014.

Why Choose a Professional Hat Channel Roll Forming System?

Traditional metal manufacturing strategies battle with three basic challenges in advanced development. Manual bowing makes profiles with conflicting web statures, leading to uneven drywall establishment. Press brakes constrain generation speed and produce intemperate fabric squander. Standard collapsing hardware cannot give the basic inflexibility required for load-bearing applications.

Our cold roll shaping innovation understands these torment focuses efficiently. You get ceaseless generation that changes level coils into exact omega profiles without halting. The dynamic shaping prepare work-hardens the fabric, expanding surrender quality by up to 15% compared to crude stock. This implies your ceiling trusses stand up to drooping indeed in high-humidity environments.

The machine handles galvanized steel, aluminum, and stainless steel with break even with accuracy. You can handle materials extending from light 0.3mm enhancing channels to heavy-duty 1.0mm auxiliary profiles. Each component exits the framework prepared for quick establishment, with no auxiliary operations required.

Technical Specifications That Drive Performance

Advanced Engineering Behind Every Profile

Your production quality depends on roller design precision. We utilize finite element analysis (FEA) in collaboration with Yanshan University's National Cold Rolled Strip Equipment Research Center. This partnership allows us to simulate forming stress patterns before manufacturing a single component.

Each roller set undergoes vacuum heat treatment to achieve uniform hardness. The chrome plating applies a 0.05mm protective layer that prevents zinc buildup when processing galvanized coils. This extends roller life to over 2 million meters of production before requiring refurbishment.

The hat channel machine frame employs welded H-beam construction rather than bolted assemblies. This structural approach eliminates vibration that causes profile waviness. You'll notice the difference when installing 6-meter sections that remain perfectly straight without manual adjustment.

Our gearbox transmission system replaces chain drives in critical sections. This upgrade reduces maintenance intervals by 60% while delivering superior torque stability during high-tensile steel forming. The system automatically compensates for material spring-back through calculated over-bending angles at stations 10-12.

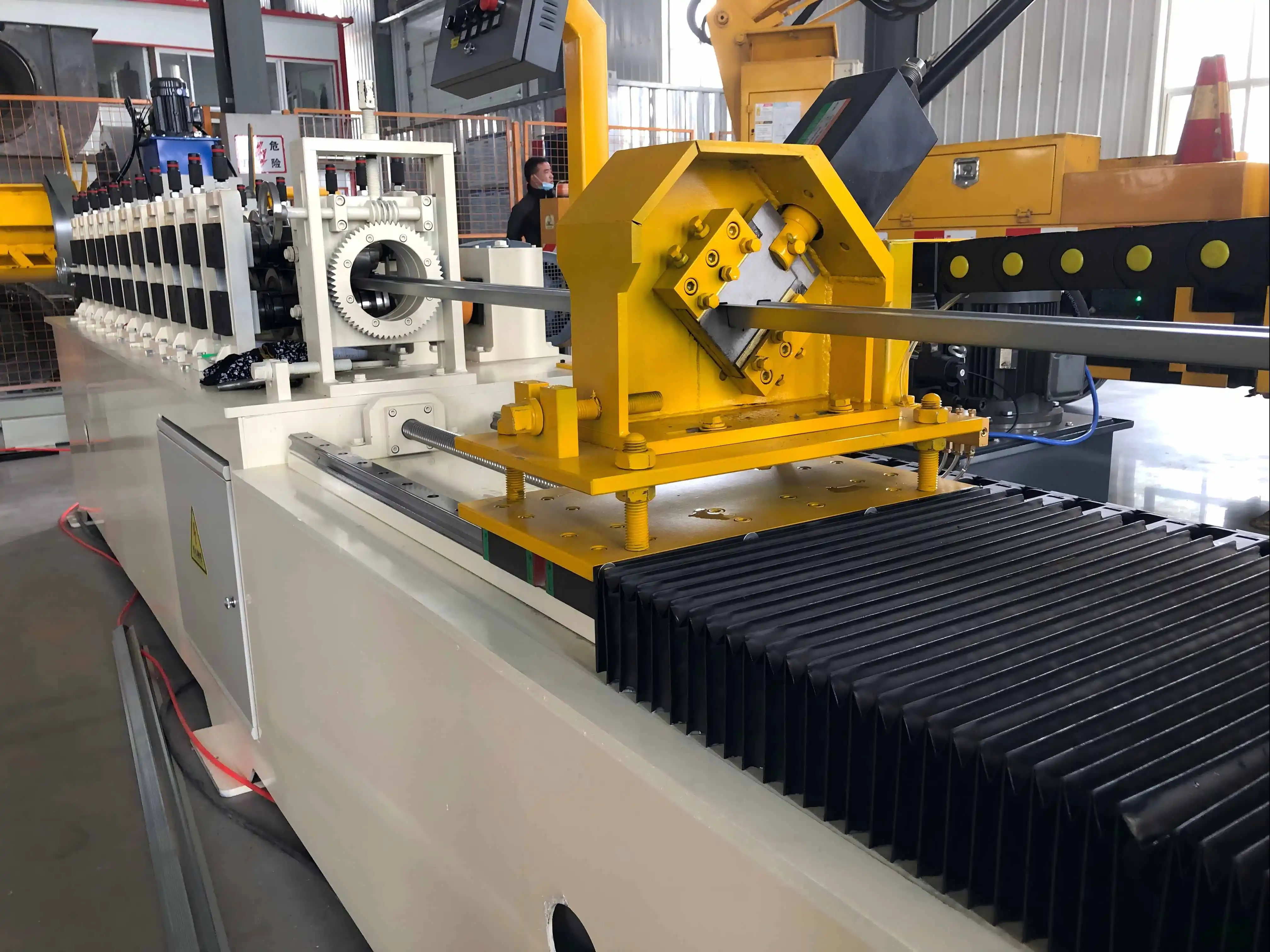

Complete Production Line Integration

The system arrives with a hydraulic automatic decoiler designed for 5-ton coils. The pneumatic expansion mandrel grips the coil interior, allowing smooth unwinding at consistent tension. A manual backup decoiler comes included at no additional cost for handling lighter materials or emergency situations.

The entry section features a leveling unit with five adjustable rollers. This component removes coil set memory that causes feeding misalignment. Properly leveled material enters the forming stations perfectly centered, eliminating the primary cause of profile twisting.

After forming, the hydraulic cutting system uses Cr12MoV blades that maintain sharpness for 500,000 cuts. The stop-to-cut design ensures dimensional accuracy within ±2mm on lengths up to 6 meters. For higher speeds, we offer servo flying shear upgrades that cut without stopping production flow.

A PLC control panel manages all operations from a central touchscreen. You can store 50 different length presets and switch between them with a single button press. Real-time diagnostics alert operators to jam conditions or pressure anomalies before they cause defects.

Applications Across Multiple Industries

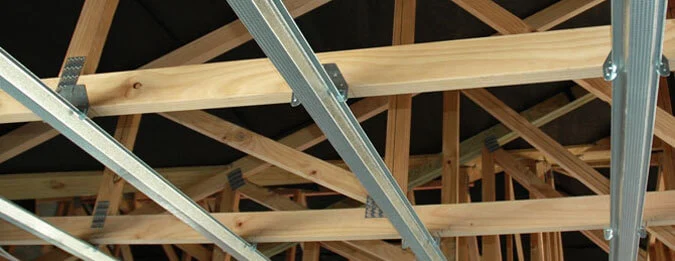

Commercial ceiling contractors use these profiles as the primary suspension system for acoustic tiles and gypsum boards. The consistent cross-section allows for snap-lock installation that reduces labor costs by 30% compared to traditional furring strips.

Steel building manufacturers incorporate them as roof purlins in warehouses and agricultural structures. The hat shape provides exceptional moment of inertia for its weight, creating efficient load distribution across rafter spans.

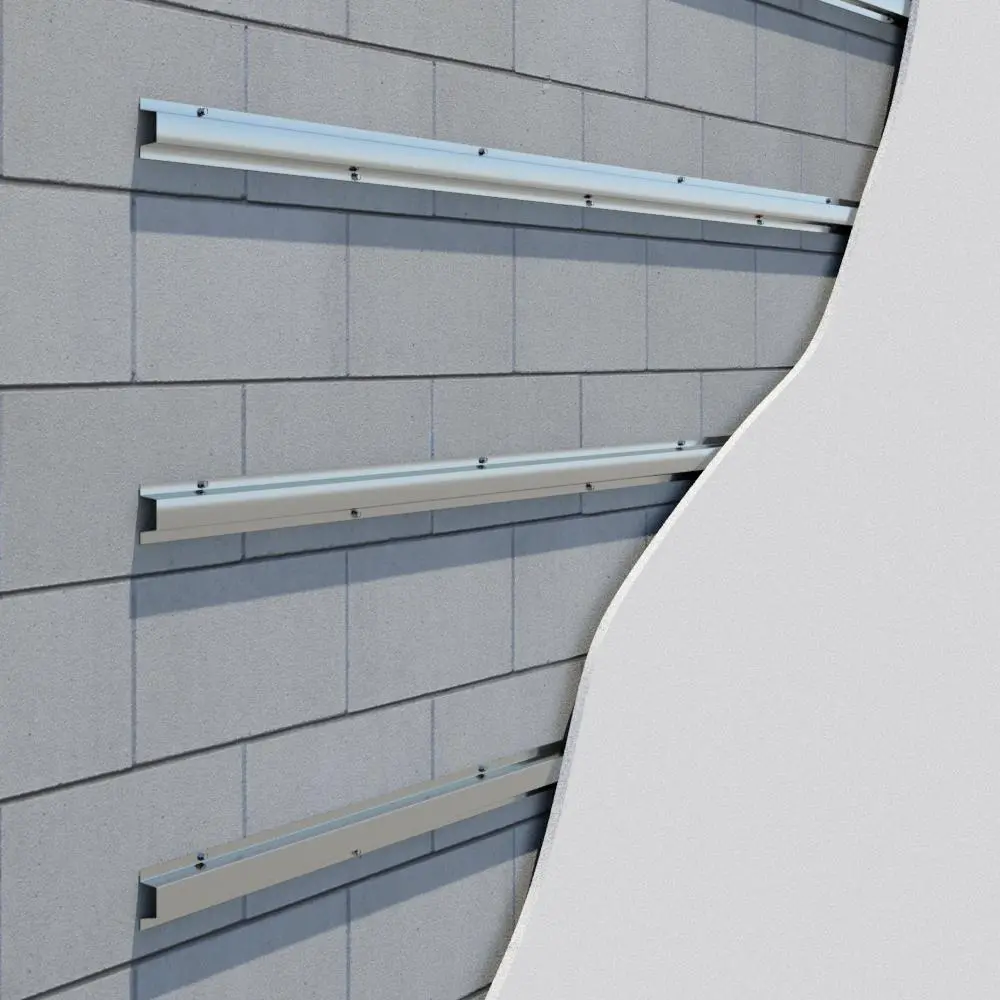

Drywall framing specialists rely on these channels for resilient channel installations that isolate sound transmission between floors. The precision flanges ensure proper fastener seating without splitting the metal.

Container modification workshops use heavier gauge profiles as structural reinforcement when cutting wall sections. The cold-formed strength maintains structural integrity without welding additional supports.

Certification and Quality Assurance

As a verified ISO 9001 manufacturer, every machine undergoes 72-hour continuous operation testing before shipment. We document roller concentricity, cutting blade parallelism, and drive system load factors in your quality certificate.

Our CE certification confirms compliance with European machinery safety directives. Emergency stop systems, protective guards, and electrical isolation meet EN 60204 standards. North American customers benefit from our CAS certification that addresses UL electrical requirements.

The company's national-level high-tech enterprise status reflects our commitment to innovation. We hold two patents related to roller design optimization and automated slitting technology. These advancements directly improve your production quality and equipment longevity.

Research-Backed Innovation

Our partnership with Yanshan University brings PhD-level expertise to practical manufacturing challenges. Graduate researchers work directly in our factory, testing new roller geometries and control algorithms on production equipment.

Recent developments include AI-assisted forming path optimization that reduces trial runs when producing custom profiles. The system analyzes material properties and desired geometry, then calculates the ideal station positions automatically.

We've implemented virtual commissioning technology using Siemens simulation platforms. This allows remote debugging and parameter adjustment before the machine arrives at your facility. You benefit from reduced installation time and immediate production capability.

Cloud-based monitoring systems provide real-time equipment diagnostics accessible from any device. The platform tracks roller wear patterns and recommends maintenance schedules based on actual usage rather than arbitrary time intervals. For overseas customers, this enables our technical team to diagnose issues remotely and guide your operators through adjustments.

Frequently Asked Questions

Can I produce different profile sizes with one machine?

The standard configuration produces one specific profile dimension for maximum accuracy. However, we offer adjustable systems using precision spacers that allow width variations of ±20mm. Changing web height requires roller set replacement, which takes approximately 4 hours with proper tooling.

How do you prevent coating damage on pre-painted steel?

Our chrome-plated rollers feature a mirror-polished surface finish below 0.4 Ra. The synchronized drive system eliminates speed mismatches between stations that cause scraping. Material contact pressure stays below 150 MPa, well within the elastic limit of typical coating systems.

What causes profile twisting and how is it prevented?

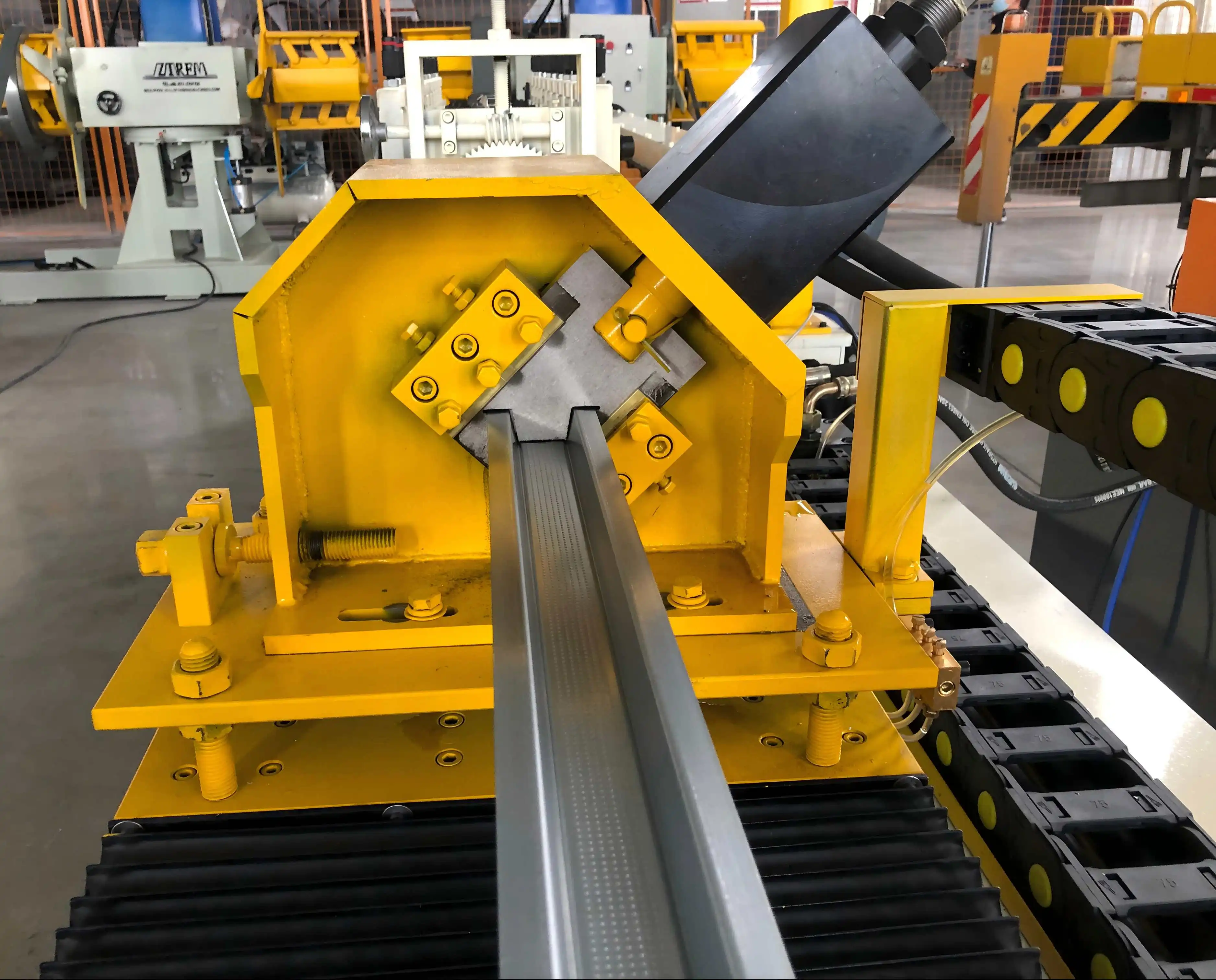

Twisting occurs from three sources: uneven roller pressure, coil internal stress, or misaligned entry guides. We address this through precise roller gap adjustment (documented in setup manuals), a five-roller leveling system, and laser-aligned guide rails. The final forming station includes a Turk's head straightener that corrects any residual twist.

How often does the cutting blade need maintenance?

Blade life depends on material hardness and production volume. For 0.6mm galvanized steel, expect 100,000-150,000 cuts before resharpening. We recommend keeping a spare blade set on hand to minimize downtime. Our technical team can train your maintenance staff on proper sharpening procedures during installation.

What's the realistic production speed for my application?

Speed balances with complexity and material thickness. For standard 0.5mm profiles without punching, expect 25-30 meters per minute with our hydraulic cutting system. Adding embossing patterns or multiple punching operations reduces this to 15-20 m/min. Flying shear systems achieve 40-50 m/min but require higher initial investment.

Do you provide operator training?

Yes. Our installation team spends 3-5 days at your facility covering machine operation, routine maintenance, and troubleshooting procedures. We provide English-language manuals with step-by-step adjustment guides. Video call support remains available throughout your equipment's service life.

Why Zhongtuo Stands Apart？

You're not just buying a machine—you're partnering with a manufacturer that's invested over a decade in cold forming technology. Our strategic cooperation with Siemens ensures access to cutting-edge automation components. The verified supplier status on Alibaba.com reflects consistent positive feedback from customers across 150 countries.

We maintain raw material inventory for critical wear parts, ensuring replacement rollers ship within 48 hours of your order. Our one-stop service model means you can source auxiliary equipment like coil cars, run-out tables, and stacking systems from a single vendor with guaranteed compatibility.

The company's development vision focuses on becoming a global influence supplier. This commitment translates to continuous product improvement based on real-world feedback from contractors, fabricators, and building manufacturers worldwide.

Get Started With Your Custom Solution

Every construction project has unique requirements. Our engineering team analyzes your profile drawings, production volume targets, and facility constraints to recommend the optimal configuration.

Ready to discuss how a hat channel machine can transform your production capability? Contact our technical sales team at zhongtuorollforming@gmail.com for detailed specifications and quotations.
