V Keel Suspended Profile Roll Forming Machine – Precision Ceiling Grid Manufacturing Solution

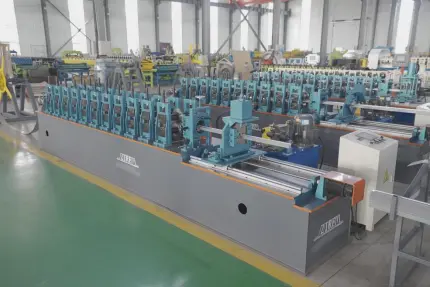

Cangzhou Zhongtuo's V keel suspended profile roll forming machine delivers enterprise-grade performance for manufacturers demanding precision and efficiency. Our system transforms galvanized steel coils into flawless V-shaped ceiling grids at speeds up to 25 m/min, with ±0.5mm dimensional accuracy across 9 progressive forming stations. Powered by Delta or Siemens PLC control systems and equipped with Cr12 hardened steel rollers, this automated production line eliminates manual bending inconsistencies while boosting output by 300% compared to traditional press-brake methods. Backed by ISO 9001 and CE certifications, our machine integrates hydraulic cutting and gear-chain transmission for reliable, long-term operation in high-volume manufacturing environments.

Why Choose Our V Keel Profile Forming Solution?

Modern construction projects demand ceiling systems that combine structural integrity with rapid installation. You need equipment that handles the complex geometry of V-profiles without compromising on quality or speed.

Our machine addresses three critical challenges you face:

Geometric Consistency

Manual bending creates angle variations that lead to loose ceiling tiles. Our 9-station progressive forming system applies controlled pressure at each stage. This gradual shaping process minimizes internal stress. You get profiles that maintain their V-angle throughout the entire production run.

Production Speed

Traditional fabrication methods cap your output at 5-8 meters per hour. This automated system runs continuously at 25 meters per minute. Your team can produce 1,500 linear meters per shift. That's enough material for a 10,000-square-meter ceiling project in just three days.

Material Durability

Cheap rollers wear out after 100,000 cycles, causing dimensional drift. We use Cr12 steel rollers paired with heat-treated 45# steel shafts. This combination withstands millions of forming cycles. Your tolerances stay consistent from the first profile to the millionth.

Technical Specifications

How the Machine Works

The production process follows five integrated stages:

Stage 1: Material Feeding

Your steel coil mounts on the decoiler. The feeding system pulls material through leveling rollers. This removes coil memory and ensures flat entry into the forming stations.

Stage 2: Progressive Forming

Nine consecutive roller stations gradually bend the flat strip into the V-shape. Each station applies a small incremental bend. This method prevents material stress that causes twisting or cracking.

Stage 3: Profile Stabilization

The final forming stations include over-bending compensation. This counteracts spring-back, ensuring your V-angle meets specification after the metal relaxes.

Stage 4: Precision Cutting

The hydraulic shear cuts profiles to your programmed length. The flying cut happens while material moves, maintaining continuous production flow.

Stage 5: Output Collection

Finished profiles exit onto a runout table. Your operators can stack them immediately or feed them into packaging systems.

Real-World Applications

Commercial Office Buildings

Architects specify V keel systems for modern ceiling designs. The profiles create clean lines with minimal visible joints. Your machine produces the long-span pieces these projects require, reducing installation time by 40%.

Healthcare Facilities

Hospital clean rooms need sealed ceiling grids. The precise V-angle your machine creates ensures ceiling tiles lock tightly. This prevents dust accumulation and maintains sterility standards in operating rooms and pharmaceutical production areas.

Transportation Infrastructure

Airport terminals and metro stations use heavy-duty V keels. These environments experience constant vibration and air pressure changes. Profiles from our machine maintain their clip-in integrity, preventing tiles from loosening over time.

Retail Spaces

Shopping centers need ceiling systems that combine aesthetics with acoustics. Your machine can produce V keels that support both decorative panels and sound-dampening materials, giving architects the flexibility modern retail spaces demand.

Quality Assurance You Can Measure

Every V keel suspended profile roll forming machine undergoes rigorous testing before shipment:

Dimensional Verification

We run 100-meter test batches and measure samples every 10 meters. V-angle accuracy must stay within ±0.3 degrees. Profile width tolerance stays at ±0.5mm across the entire run.

Roller Hardness Testing

Portable hardness testers confirm all forming rollers meet HRC 58+ specifications. This ensures your machine maintains precision even after producing millions of linear meters.

Hydraulic System Inspection

We conduct 8-hour continuous operation tests. The cutting and punching systems must maintain pressure without leaks or fluctuations. This prevents blade misalignment that causes rough edges.

Load Testing

Your machine runs at maximum speed while forming the thickest material it's rated for. All structural welds and transmission components must show zero stress indicators.

Our Manufacturing Advantage

Since 2014, Cangzhou Zhongtuo has specialized in cold roll forming technology. We've grown into a national-level high-tech enterprise with strategic partnerships spanning six universities and collaboration with Siemens on automation systems.

Research-Backed Innovation

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Research Center brings advanced simulation technology to your production floor. We use finite element analysis to optimize roller profiles before manufacturing. This means your machine produces accurate profiles from day one, without the trial-and-error period that plagues generic equipment.

Global Reach

We've shipped roll forming systems to over 150 countries. This international experience means we understand voltage requirements, shipping logistics, and installation support for your location. Whether you're in Southeast Asia, Europe, or South America, we've solved the challenges your region presents.

Comprehensive Certifications

ISO 9001 quality management ensures consistent manufacturing processes. CE certification confirms our machines meet European safety standards. These aren't just certificates on our wall—they're your assurance that every component meets international benchmarks.

Frequently Asked Questions

How do you prevent spring-back in the sharp V-angle?

Our machine includes dedicated over-bending stations near the end of the forming line. These apply slightly more bend than the final specification requires. When the material relaxes, it settles into the exact angle you need. The system also features adjustable straightener heads that fine-tune the profile as it exits.

Can this machine handle different V keel sizes?

The standard configuration produces one specific profile size. However, we can design cassette-changeable roller systems for your machine. This allows you to switch between two or three common sizes within 30 minutes by replacing the roller cassettes, rather than purchasing separate machines.

What's the typical lifespan of cutting components?

With GCr12MoV blade material and proper lubrication, your cutting blades last approximately 800,000 cuts before requiring sharpening. Punching dies typically reach 1 million cycles. We provide maintenance schedules that help you plan replacements before quality degradation occurs.

Does the punching process deform the profile?

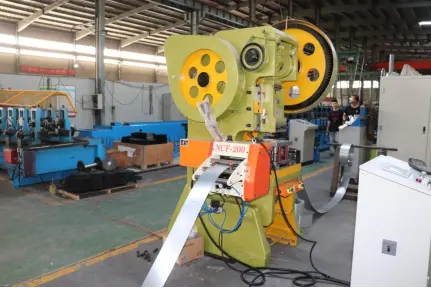

Not with our system design. We perform hole punching before the final forming stations complete the V-shape. This sequence means the flat or partially formed material is easier to punch cleanly. The 3D-shaped cutting dies also match your profile geometry exactly, preventing collapse during the cut.

What power requirements should I prepare?

Standard configuration runs on 380V three-phase power at 50Hz. We can customize for 440V/60Hz systems if that matches your facility. For locations with unstable power grids, we recommend installing a voltage stabilizer. This protects the servo motor accuracy and prevents dimensional variations caused by power fluctuations.

How quickly can I start production after installation?

Our technical team provides complete installation support and operator training. Most customers begin test production within three days of machine arrival. You'll reach full production speed within one week as your operators become familiar with material loading and length programming.

Service and Support

You're not just buying equipment—you're gaining a manufacturing partner. Our support includes:

·  Detailed English operation manuals with step-by-step procedures

·  Video training materials covering setup, operation, and maintenance

·  Remote diagnostic support via cloud-based monitoring systems

·  Spare parts inventory with global shipping capabilities

·  Annual maintenance recommendations based on your production volume

When you have questions, our engineers respond within 24 hours. For urgent issues, we can remotely access your machine's control system (with your permission) to diagnose problems and guide your team through solutions.

Ready to Transform Your Production?

The V keel suspended profile roll forming machine from Cangzhou Zhongtuo gives you the precision, speed, and reliability your ceiling grid manufacturing demands. Let's discuss your specific requirements and production goals.
