Fast Speed:the machine speed is about 20-60 pieces/min,if material very thin,can make 3 pieces at the same time.

Forming Thin Material:Thin material such like 0.12-0.5mm thickness very popular in Africa market, so this machine is very popular in that market.

Feeding width: ≤1250mm

Length of the sheet:5000mm

Coil material: galvanized sheet

Material thickness: 0.13mm-0.50mm

1 Roller station:2 sets (4 pieces)

2 Roller diameter:450mm,Material:45# steel

3 Speed :2-3 seconds per piece

4 Size: 4000mm*1800mm*1400mm

5 Weight: 12 T

6 Voltage:380v,50hz,3ph

7 Motor: 7.5kw

8 The feeding platform width:1 meter

9 The crest height is adjustable in a limited range

The feeding platform moving distance:750-1200 mm

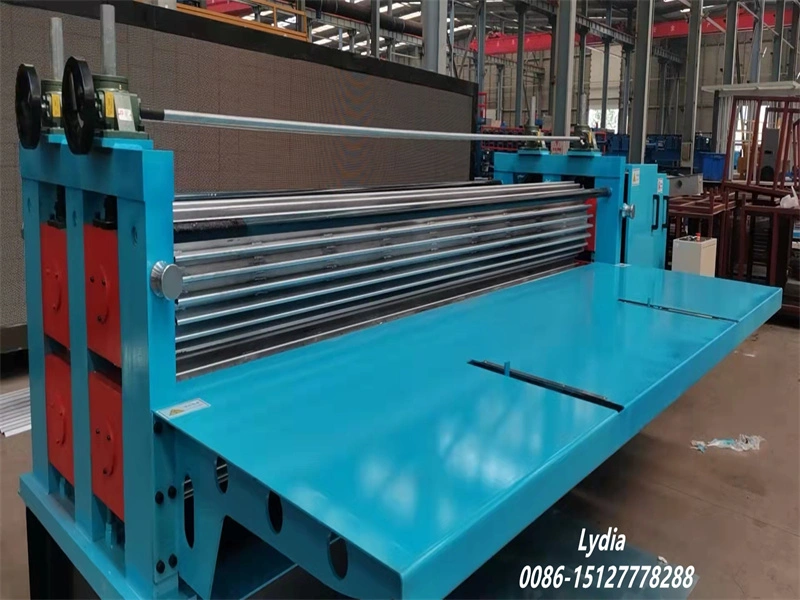

Control type: Electric control with button on it to control turn forward and backward, and adjust working speed.The roller distance will be adjust by hand wheel as the below photo, just need to adjust one side, and then another side can keep in a same level.

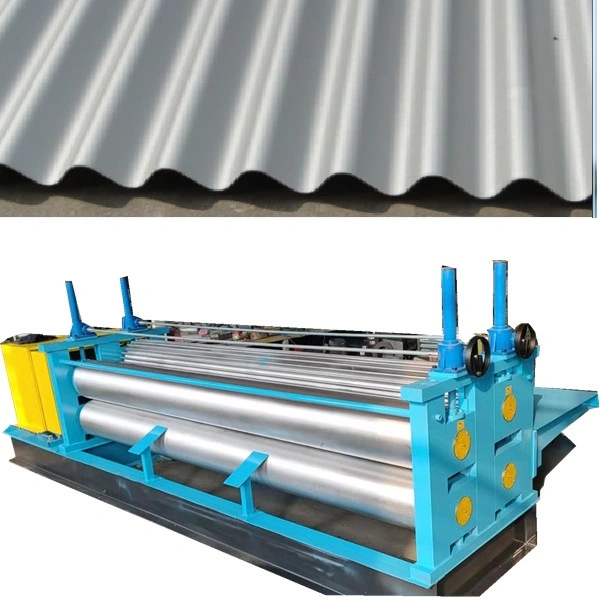

Profile design of corrugated roofing sheet:​​​​​​​

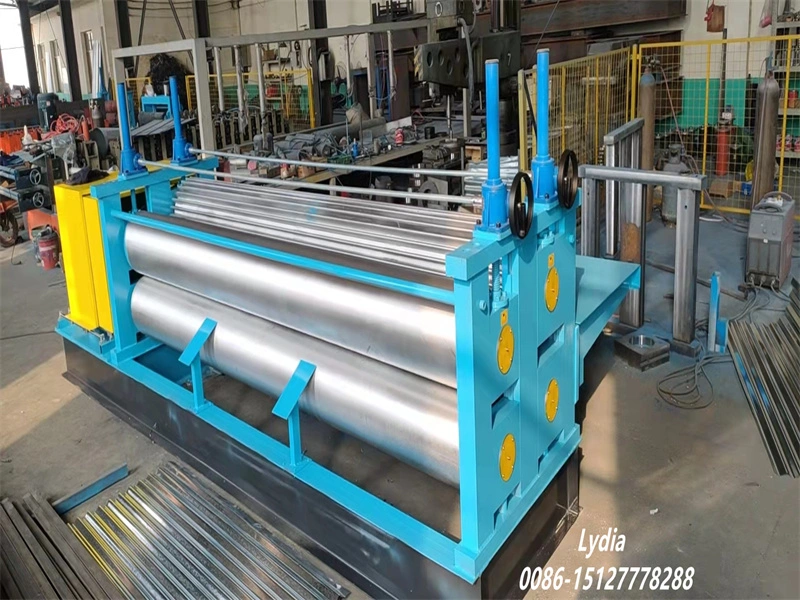

The ZTRFM Barrel Type Steel Roof Sheet Making Machine, also known as a metal sheet roll forming machine, differs from traditional roll forming equipment by featuring only two large rollers. Before the forming process begins, a running table is used to feed the metal sheet into these rollers. As the sheet passes through, it is transformed into a round wave shape. This machine typically processes metal sheets with a thickness range of 0.15 to 0.45 mm. The standard configuration of the machine includes the roll forming device, a pinch roller mechanism, and two product collection tables. This type of roofing material is widely used in regions such as Dominica, Ethiopia, South Africa, Vietnam, and other areas, owing to its durability and cost-effectiveness.
