7/8” Corrugated machine

7/8" Corrugated Machine: Professional Solution for Heavy-Duty Metal Roofing

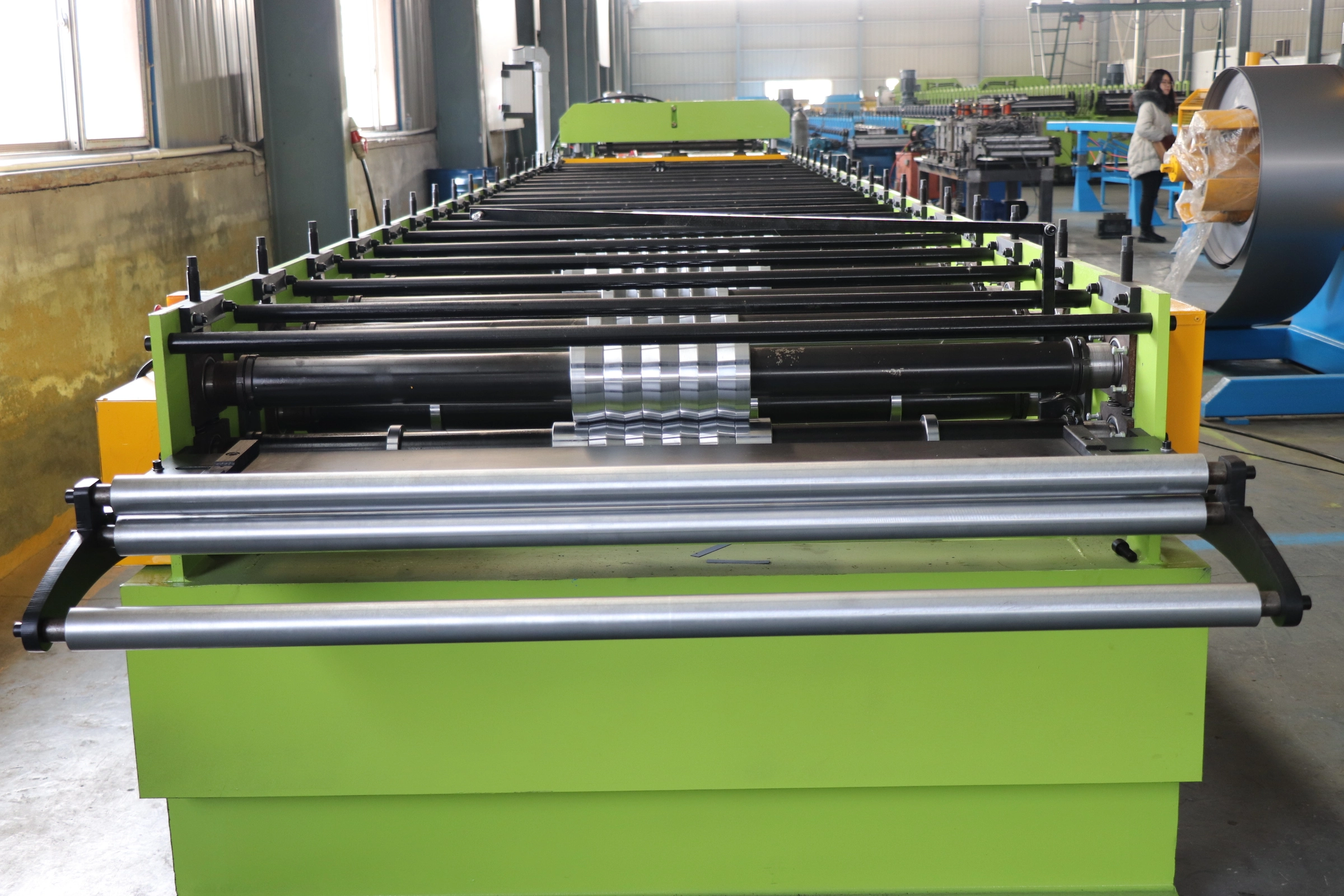

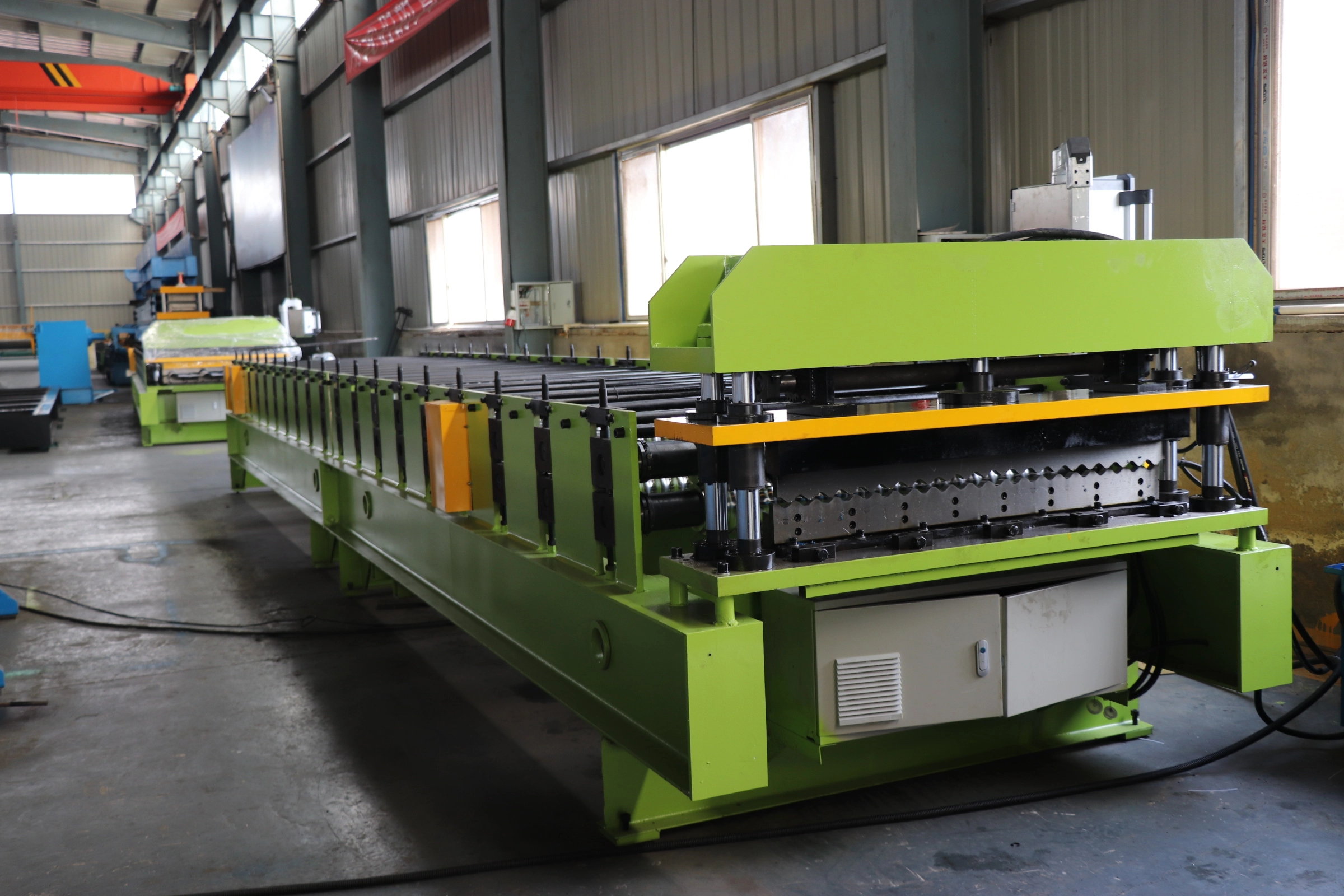

Our 7/8" Corrugated machine delivers exceptional performance for industrial-grade applications. This progressed shaping framework highlights 18-station accuracy roller plan, preparing 0.3-0.5mm galvanized and pre-painted steel with surprising exactness. Fueled by a vigorous 5.5kw engine and prepared with pressure driven cutting innovation, it accomplishes cutting resiliences inside ±1.5mm. The 350H steel welded outline guarantees steadiness amid high-volume generation, whereas our 45# steel rollers with extinguished treatment ensure solidness surpassing 100,000 cycles. With gearbox transmission and 80mm shaft distance across, this machine handles requesting generation plans efficiently.

Why Choose Our Corrugated Panel Forming System?

You need equipment that works as hard as you do. Our forming solution combines proven engineering with practical design.

Superior Build Quality

The machine outline employs heavy-duty 350H steel development. This isn't fair around strength—it's around reliable execution over a long time of operation. Your boards will keep up exact measurements indeed amid amplified generation runs.

Intelligent Processing Control

Integrated PLC frameworks donate you total control. Set your craved board length through the touchscreen interface. The computerized cutting framework reacts immediately, conveying exactness you can check on.

Versatile Material Handling

Whether you're working with standard galvanized steel or premium pre-painted coatings, this hardware adjusts to your needs. The chrome-plated roller surface ensures fragile wraps up whereas shaping culminate corrugations.

Technical Specifications

Key Advantages for Your Business

Extended Equipment Lifespan

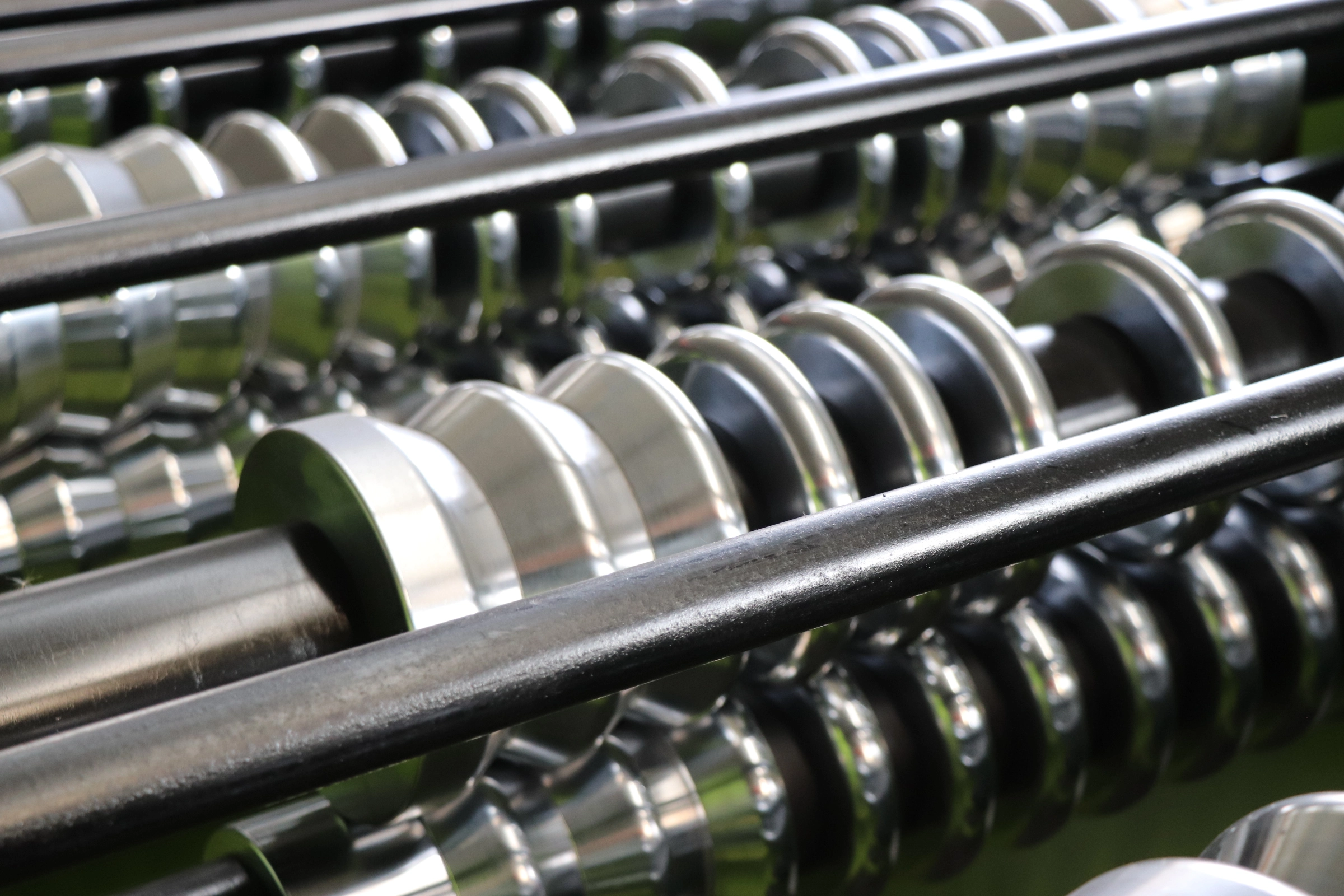

Our heat-treated rollers resist wear exceptionally well. This means fewer replacements and lower maintenance costs over the machine's operational life.

Faster Production Cycles

The 18-station forming process creates smooth, consistent corrugations without material stress. You'll produce more panels per shift while maintaining quality standards.

Reduced Operational Complexity

Simple controls mean your operators get up to speed quickly. Less training time translates to higher productivity from day one.

Lower Cost Per Panel

Efficient power usage and minimal waste keep your production costs competitive. The 7/8" Corrugated machine helps you maximize profit margins on every project.

Applications Across Industries

Commercial Construction

Large warehouses and distribution centers require robust roofing solutions. The deep corrugation profile provides excellent load-bearing capacity across wide spans, reducing structural support requirements.

Agricultural Buildings

Farm structures face harsh environmental conditions. Panels produced by this system shed water effectively and resist corrosion, protecting valuable equipment and livestock.

Industrial Facilities

Manufacturing plants need durable exterior cladding. The formed panels deliver reliable weather protection while accommodating thermal expansion in high-temperature environments.

Architectural Projects

Modern commercial facades benefit from the distinctive shadow lines created by 7/8" corrugations. The system processes premium coatings like PVDF without surface damage, maintaining aesthetic appeal.

Why Zhongtuo Stands Apart

Since 2014, we've focused exclusively on cold roll forming technology. Our national-level high-tech enterprise status reflects genuine innovation, not just marketing claims.

Research-Backed Development

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings academic rigor to practical manufacturing. PhD researchers work directly in our production facility, solving real-world challenges.

Certified Quality Standards

ISO 9001 certification governs our quality management processes. CE marking confirms compliance with European safety requirements. These aren't just certificates on the wall—they're commitments to your success.

Global Experience

We've shipped equipment to over 150 countries. This experience has taught us how to support customers across different regulatory environments and operational requirements.

Comprehensive Support Services

Need customization? Our designing group plans arrangements custom fitted to your particular generation objectives. From establishment direction to administrator preparing, we're with you all through the hardware lifecycle.

Smart Manufacturing Integration

Modern generation requests brilliantly frameworks. Our machines join progressed mechanization highlights that improve operational efficiency.

The PLC control framework screens shaping parameters persistently. If fabric thickness changes somewhat, the framework alters weight naturally. This avoids absconds some time recently they occur.

Remote checking capabilities permit our specialized group to analyze issues rapidly. Numerous issues can be settled without on-site visits, minimizing your downtime.

Cloud-based information logging makes a difference you track generation measurements. Understanding your throughput designs empowers superior planning and asset allocation.

Maintenance and Longevity

You've made a noteworthy speculation. Securing it requires negligible but reliable care.

Check water powered liquid levels month to month utilizing ISO 46 review oil. Review cutting edge sharpness each 1,000 working hours—dull edges make burrs that compromise board quality.

The gearbox transmission requires oil review quarterly. Legitimate support here anticipates exorbitant adapt substitution down the line.

Our chrome-plated rollers regularly require no overhauling for the to begin with three a long time beneath ordinary working conditions. When inevitable re-plating gets to be essential, we give point by point guidance.

Frequently Asked Questions

What fabric grades can this machine handle effectively?

The standard setup handles Review 50 (345 MPa) steel productively. For higher malleable qualities up to Review 80 (550 MPa), we suggest engine and roller updates to oblige fabric spring-back characteristics.

How quick does generation run?

Typical line speed ranges from 15 to 25 meters per miniature. This equalizations throughput with reliable profile quality. Servo-driven overhaul choices can reach 40 meters per miniature for high-volume operations.

Can I switch between distinctive corrugation profiles?

The item is purpose-built for this particular profile measurement. Changing to distinctive profundities like 1/2" or 3/4" requires total roller tooling substitution, not basic alterations. We plan each framework for ideal execution at its assigned profile.

How do you ensure pre-painted materials amid forming?

Multiple shields avoid surface harm. Mirror-polished chrome plating on rollers disposes of contact focuses. Synchronized roller speeds avoid fabric drag. Passage guides utilize delicate contact materials that won't scratch premium coatings.

What establishment prerequisites ought to I prepare?

The machine mounts on standard fortified concrete flooring—no establishment pit required. Guarantee satisfactory electrical supply (380V three-phase is standard). Permit workspace of around 15 meters length by 2 meters width for operation and fabric handling.

How regularly does the water powered cutting framework require service?

Blade honing regularly happens after 100,000 to 150,000 cuts when handling clean fabric. Cutting corroded or sullied coils quickens wear. Standard assessment of pressure driven hoses and weight settings anticipates unforeseen failures.

Do you give administrator training?

Yes. We incorporate comprehensive preparing covering setup methods, day by day operations, quality checks, and fundamental investigating. This can be conveyed at your office or our manufacturing plant, depending on your preference.

What guarantee scope do you offer?

Standard scope incorporates one year for auxiliary components and electrical frameworks. Consumable things like cutting edges take after partitioned wear plans. Expanded guarantee alternatives are accessible for long-term peace of mind.

Get Started Today

Ready to enhance your metal roofing production capabilities? Contact our team at zhongtuorollforming@gmail.com to discuss your specific 7/8" Corrugated machine requirements.

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. - Your trusted partner in cold roll forming technology since 2014.
