Metal Wall Cladding Panel Roll Forming Machine

Metal Wall Cladding Panel Roll Forming Machine

Precision-Engineered for Industrial-Scale Façade Production

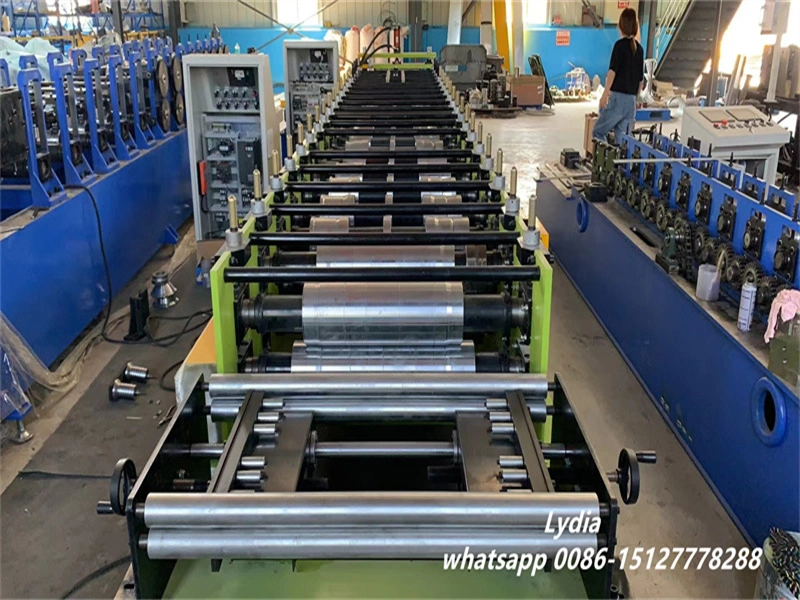

Our Metal Wall Cladding Panel Roll Forming Machine delivers enterprise-grade performance with 18 roller stations, precision-controlled shaping precision inside ±1mm, and a strong 350mm H-beam welded outline structure. Built to handle PPGI and PPGL materials from 0.3-0.6mm thickness, this framework highlights 80mm strong shafts and high-grade 45# produced steel rollers with 0.05mm thick chrome plating. With generation speeds coming to 15-30 meters per miniature and PLC-controlled robotization, you'll accomplish reliable profile quality while minimizing fabric squander and labor costs over large-volume projects.

Why Choose Our Wall Cladding Panel Forming System?

Built for Long-Term Industrial Reliability

Your generation line needs hardware that runs reliably year after year. Our machine outline employs thick 350mm H-beam development with 18mm welded steel center back plates. This heavy-duty plan dispenses with vibration amid high-speed operation.

The strong 80mm distance across shafts stands up to avoidance indeed when handling high-tensile materials. You won't involvement profile twisting or dimensional float over amplified generation runs.

Superior Surface Protection Technology

Scratched boards, cruel rejected orders, and misplaced benefits. We've tended to this basic concern with chrome-plated rollers, including 0.05mm defensive coating thickness. This surface treatment anticipates zinc picking and coating damage on your prepainted materials.

The synchronized drive framework keeps up steady speed over all roller stations. This dispenses with slippage that causes unattractive marks on sensitive PVDF or SMP coatings.

Versatile Material Processing Capability

Your project specifications vary, and your equipment should adapt accordingly. This Metal Wall Cladding Panel Roll Forming Machine processes both PPGI and PPGL materials effectively. The 18-station roller configuration gradually shapes metal without creating stress points that lead to cracking.

Whether you're producing corrugated wave patterns, standing seam profiles, or interlocking siding panels, the machine maintains geometric accuracy across different profile designs.

Core Applications Across Building Sectors

Industrial & Commercial Building Envelopes

Pre-engineered buildings request weather-tight divider frameworks that withstand cruel conditions. Your created boards require exact interlocking edges to avoid water entrance and discuss leakage.

Our shaping framework produces trapezoidal and box-profile divider sheets with tight resistances. The reliable profile measurements guarantee appropriate cover during installation, a necessity for huge distribution center and production line projects.

Architectural Façade Solutions

High-rise commercial buildings require faultless outside aesthetics. Planners indicate premium materials like aluminum and pre-coated steel for visual impact.

The machine's tender shaping prepare jam surface astuteness on these high-value materials. You can certainly deliver flush boards and uncover boards that meet strict building details without surface defects.

Residential Siding Production

Homeowners increasingly choose metal siding for its fire resistance and minimal maintenance requirements. The challenge lies in producing long, straight panels that install flat against walls.

Our equipment's precision leveling and forming stations eliminate waviness and oil canning. Your residential siding products will install smoothly, creating clean visual lines that satisfy quality-conscious homeowners.

Technical Specifications That Drive Performance

Quality Assurance Through Rigorous Testing

Pre-Delivery Inspection Protocol

Before shipment, we test each Metal Wall Cladding Panel Roll Forming Machine through comprehensive quality checks:

Dimensional Accuracy Verification: We measure formed panel profiles using digital calipers against design templates. Effective width, rib depth, and lip dimensions must fall within specified tolerances.

Roller Hardness Testing: Our quality team verifies that all rollers meet HRC 58+ specifications. This prevents premature grooving that would damage your panel surfaces.

Continuous Operation Stress Test: We run the machine for 8+ hours under load conditions. This confirms hydraulic system stability and control system reliability before it reaches your facility.

Surface Quality Inspection: Sample panels undergo bright-light visual examination. We ensure rollers haven't created any marks that would compromise architectural-grade finish requirements.

Manufacturing Standards Certification

As a national-level high-tech enterprise established in 2014, Cangzhou Zhongtuo maintains internationally recognized quality certifications:

·  ISO 9001 quality management ensures consistent manufacturing processes

·  CE certification confirms compliance with European safety standards

·  CAS certification validates North American technical requirements

These credentials reflect our commitment to producing equipment that meets global industrial standards.

Advanced R&D Capabilities Through Strategic Partnerships

University Collaboration Drives Innovation

We've established deep research cooperation with the National Cold Rolled Strip Equipment and Process Engineering Research Center at Yanshan University. This partnership brings cutting-edge technology directly into our manufacturing processes.

Finite Element Analysis (FEA): Our engineers use AI-assisted simulation tools to optimize roller designs before physical production. This reduces trial-and-error costs and improves forming precision.

Virtual Commissioning Systems: We integrate Siemens simulation platforms for remote debugging and cloud-based maintenance. This technology benefits you through faster installation support and reduced downtime.

Intelligent Control Development: PhD researchers contribute to our PLC programming and predictive maintenance algorithms. Your equipment benefits from data-driven production optimization that wasn't available in older machine generations.

Patented Technology Implementation

Our development team has secured two significant patents including innovative pattern roller designs and automated slitting mechanisms. These proprietary technologies are integrated into current production models, giving you competitive advantages in panel quality and production efficiency.

Global Export Experience You Can Trust

Since 2014, we've successfully exported roll forming equipment to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. This extensive international experience means we understand varying electrical standards, shipping logistics, and regional installation requirements.

Our expert team provides tailored design solutions that align with both international manufacturing standards and your local market preferences. We don't just sell equipment—we deliver complete solutions backed by technical support that spans time zones and languages.

Strategic partnerships with Siemens and recognition as a Verified Pro Supplier on Alibaba.com demonstrate our industry standing and commitment to reliable business practices.

Frequently Asked Questions

Can this machine produce multiple profile designs?

Standard configurations produce one optimized profile for maximum precision. However, if you need flexibility, we offer double-layer machines or cassette quick-change systems. These allow switching between different cladding profiles while maintaining forming accuracy.

How do you prevent oil canning on flat wall panels?

We address this through three engineering approaches: roller design with over-bend allowance, optional stiffening rib integration during the profile design phase, and precision leveling units that remove coil set before forming begins. These combined measures ensure flat panels stay visually smooth after installation.

What production speed should I expect?

Standard stop-to-cut systems operate at 15-20 meters per minute. If you need higher throughput, we offer flying cut configurations with servo motors that reach 30-40 meters per minute. Speed depends on your profile complexity and cutting method preferences.

Will the machine handle high-tensile steel like G550?

Yes, but you must specify this requirement during the ordering phase. Processing G550 requires adjustments to forming station quantity and motor power to overcome springback without material cracking. We'll engineer the system specifically for your material specifications.

What ongoing maintenance does the equipment require?

Routine care includes weekly hydraulic fluid checks, chain and bearing lubrication, and roller cleaning. You'll also need to maintain cutting blade gap adjustments and tighten sensor brackets periodically. These simple procedures ensure long-term accuracy and reliability.

How quickly can you customize a machine for specific profiles?

Our engineering team typically completes custom roller design within 2-3 weeks after receiving your profile drawings. Total production time depends on machine configuration complexity, but we maintain clear communication throughout the manufacturing process.

Partner With Proven Manufacturing Excellence

Ready to upgrade your wall panel production capabilities? Cangzhou Zhongtuo Roll Forming Machinery delivers the engineering precision, quality certifications, and global support your business deserves.

Contact us today: zhongtuorollforming@gmail.com – Let's discuss your specific profile requirements and Metal Wall Cladding Panel Roll Forming Machine goals.
