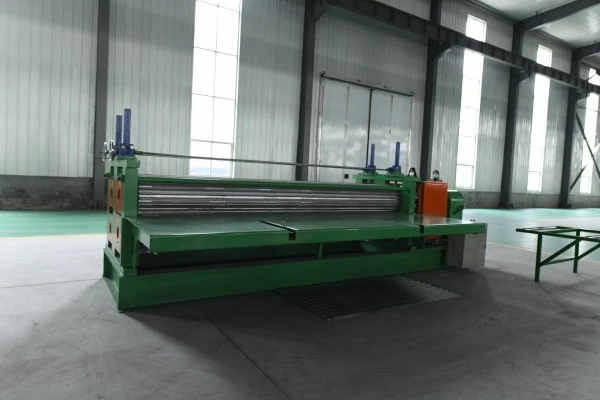

Barrel corrugated roof sheet machine

Barrel Corrugated Roof Sheet Machine - Professional Manufacturing Solution

Our Barrel corrugated roof sheet machine delivers enterprise-level performance with 15pcs/min working speed, accommodating 0.12-0.48mm material thickness across PPGI, GI, and aluminum substrates. With 2 sets of exactness roller stations (4pcs add up to), 300mm distance across rollers made from high-grade 45# steel, and a most extreme 3000mm bolstering length, this framework guarantees reliable profile exactness for industrial-scale material generation. Supported by ISO 9001 certification and CE compliance, our machine combines decade-proven innovation with cleverly control frameworks for worry-free operation.

What Makes This Roofing Equipment Stand Out?

You need equipment that doesn't just form metal—it solves real production challenges.

Our machine creates continuous, rounded barrel curves that traditional trapezoidal formers can't achieve. The sinusoidal wave pattern offers superior structural strength per unit weight. Water sheds naturally off the curved profile.

Here's what makes the difference in your daily production:

Precision Engineering That Prevents Common Problems

Thin materials (0.18-0.3mm) often buckle during forming. Our precisely distributed roller stations eliminate this "oil canning" effect completely. Edge waves caused by material stress? The progressive forming process releases tension gradually. Your sheets come out flat and ready to install.

Built for Material Versatility

Switch between galvanized steel, galvalume, or prepainted coils without compromising quality. The roller design protects your coating during forming. No scratches. No micro-cracks. Just clean, professional-looking panels every time.

Speed Without Compromise

Time is money in manufacturing. Our 15pcs/min working speed maintains tight tolerances. The automated length control keeps cuts accurate within ±1.0mm. You get consistent output throughout your production day.

Technical Specifications

Where Your Roofing Panels Make a Real Impact

Coastal Industrial Buildings

Salt spray and high winds demand durable roofing. The barrel profile produced by our machine offers excellent aerodynamics. Your panels resist wind uplift better than box profiles. The smooth forming process preserves the zinc coating integrity, giving your customers long-lasting corrosion protection.

Agricultural Structures

Barns, silos, and storage facilities need sanitary, weather-resistant cladding. The sinusoidal wave prevents debris accumulation. Rain runs off cleanly. Our machine can adjust curvature for specialized applications like curved barn roofs or silo sidewalls.

Residential Roofing Projects

Heritage restoration and traditional-style homes create steady demand. Your customers want that classic corrugated iron look with modern performance. Our soft-touch transmission system leaves zero tooling marks on glossy, prepainted materials. Every sheet maintains aesthetic quality.

Commercial Warehouses

Large-span roofing requires exact overlap pitch consistency. Leaks damage inventory and disrupt operations. Our precision control ensures perfect sheet matching during installation. Your customers get reliable waterproofing for decades.

Why Production Quality Matters

You can't sell second-grade roofing panels. Quality control starts at the machine level.

Geometric Accuracy

Every wave height and pitch distance must match your engineering drawings. Our roller design maintains these tolerances throughout production runs. Sheet overlap areas align perfectly during installation.

Material Stress Management

Running both thick (0.8mm) and thin (0.18mm) materials tests a machine's true capability. Our progressive forming approach prevents twisting or bowing. Internal material stress releases gradually across multiple stations. Your final product stays straight.

Clean Cutting Performance

Burrs and deformed ends waste material and installation time. The hydraulic shear system delivers clean cuts without distorting the barrel profile. Your sheets stack neatly and install smoothly.

Long-Term Reliability

Chrome-plated rollers (0.05mm coating, HRC 55-60 hardness) resist wear for 5-8 years of daily operation. Solid steel shafts (70-90mm diameter) minimize deflection under heavy loads. Regular shaft alignment checks keep everything running true.

Our Manufacturing Excellence

Since 2014, Cangzhou Zhongtuo has specialized in cold roll forming technology. We're not just a Barrel corrugated roof sheet machine supplier—we're your production partner.

Research-Backed Innovation

Our collaboration with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings cutting-edge technology to your factory floor. We use finite element analysis and AI-assisted simulation to optimize roller designs before manufacturing.

Global Trust

Our equipment operates in over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. ISO 9001, CE, and CAS certifications validate our commitment to quality and safety.

Comprehensive Support

Need raw materials? We supply them. Need accessories? We stock them. Our one-stop service means you're never waiting on multiple suppliers. ODM and OEM services accommodate your specific requirements.

Frequently Asked Questions

Can this machine handle both aluminum and galvanized steel?

Yes, absolutely. You'll need to adjust the roller gap when switching materials. Aluminum is softer and has different springback characteristics than G550 steel. Our machines feature adjustable spacer mechanisms. You can switch between materials without losing profile accuracy.

How do you prevent wavy edges during high-speed production?

Wavy edges indicate uneven pressure on sheet edges. We solve this by adjusting forming pressure at the initial breakdown stations. Also verify that your coil width matches the machine design exactly. Proper tension during feeding is essential.

What maintenance does the hydraulic cutter need?

Change hydraulic oil every 6 months to prevent valve clogging. Cutter blades are made from Cr12Mov material. They typically need sharpening or replacement every 1-2 years, depending on your production volume and the yield strength of your steel.

Why does length accuracy drift over time?

This usually happens from encoder wheel slippage or PLC signal interference. Clean the encoder wheel regularly. Make sure your coil feeds under consistent tension. These simple steps keep your cuts accurate.

Does installation require a special foundation?

Our standard machines mount on rigid steel bases. For high-speed applications, we recommend a leveled concrete foundation with anchor bolts. This absorbs vibration and maintains long-term alignment.

What's the difference between your machine and standard corrugated formers?

Standard machines often create trapezoidal profiles. Ours specializes in sinusoidal (barrel) curves. The rounded profile offers better structural integrity per unit weight. Water shedding is superior. The aesthetic quality matches traditional corrugated iron while delivering modern performance.

How quickly can you customize specifications?

We understand that time is money. Our engineering team responds to customization requests within 24 hours. Common modifications like roller length, voltage requirements, or material thickness ranges integrate quickly into our proven design.

Ready to Upgrade Your Production Capacity?

Get in touch with our technical team today. We'll discuss your specific requirements and provide a customized solution for your Barrel corrugated roof sheet machine needs.

Contact us: zhongtuorollforming@gmail.com
