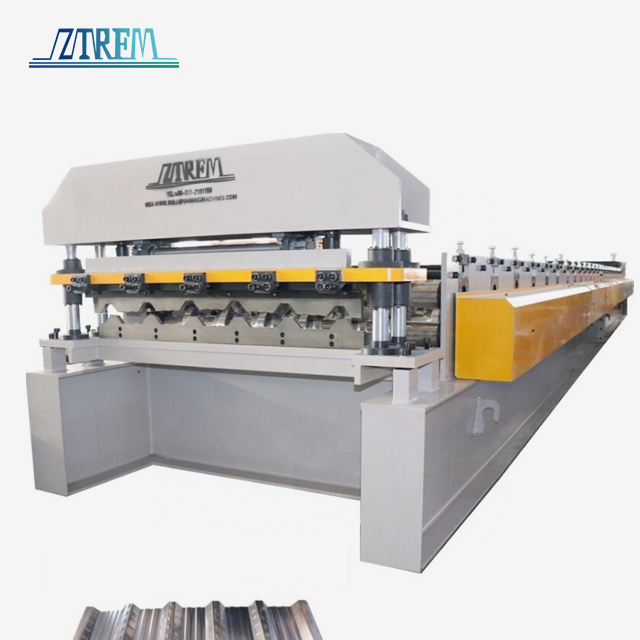

1.5″ Form Deck Roll Forming Machine: Industry 4.0 Smart Manufacturing Solution

Transform your metal forming operations with our advanced 1.5″ Form Deck Roll Forming Machine, engineered for precision and efficiency in modern construction projects. This cutting-edge equipment integrates Siemens digital twin technology and predictive maintenance capabilities to deliver unmatched performance for your composite metal panel production needs. Whether you're manufacturing building envelope systems or structural decking components, our machine ensures consistent quality while reducing operational costs through intelligent automation.

Our product represents the pinnacle of industrial manufacturing technology, combining traditional metalworking expertise with revolutionary Industry 4.0 capabilities.

Advanced Technical Specifications

Core Performance Parameters

• Forming Material: High-strength galvanized steel strips (0.8-1.5mm thickness)
• Production Speed: 15-25 meters per minute for optimal efficiency
• Drive System: Siemens servo motor with PLC intelligent control
• Compatibility: Full MCD mechatronic integration support
• Data Interface: OPC UA protocol for direct Siemens MindSphere cloud connectivity

Precision Engineering Features

Our machine delivers exceptional forming accuracy with tolerances maintained within ±0.1mm. The robust roller assembly, manufactured from Cr12 heat-treated steel, ensures durability exceeding 5 years of continuous 24/7 operation. Advanced servo control systems provide precise material positioning and consistent profile geometry.

Industry 4.0 Smart Manufacturing Benefits

Digital Twin Technology Integration

Experience revolutionary manufacturing efficiency through real-time synchronization between your physical equipment and digital models. Our product connects seamlessly with Siemens MindSphere platform, enabling remote debugging that improves operational efficiency by 50%.

Predictive Maintenance Excellence

Eliminate unexpected downtime with integrated vibration and temperature sensors coupled with AI-powered diagnostic algorithms. The system provides 14-day advance warning for bearing failures and critical component maintenance needs, reducing unplanned stops by over 30%.

Energy Optimization Analytics

Cloud-based big data analysis monitors energy consumption patterns for each production batch. Users typically achieve annual electricity cost savings exceeding $12,000 through optimized operation parameters and intelligent power management systems.

Global Success Stories

Saudi JISCO Metal Group Achievement: Six consecutive months of zero unplanned downtime achieved through MindSphere implementation, enabling coordinated production across three global manufacturing facilities with unprecedented efficiency.

German HILTI Building Systems Case Study: Customized Form Deck production line delivered 22% efficiency improvement, pushing annual production capacity beyond 450,000 tons while maintaining exceptional quality standards.

Comprehensive Quality Assurance

International Certifications

• ✓ CE/ISO dual certification compliance
• ✓ Siemens Industrial Cloud security certification
• ✓ Global warranty coverage for 3 years including predictive maintenance systems

Manufacturing Excellence

Every machine undergoes 100% pre-delivery testing with actual material runs. Our quality control process eliminates defective deliveries while ensuring optimal performance from day one of installation.

Complete Production Line Configuration

Upstream Equipment Integration

• 5-ton hydraulic uncoiler with 650mm width capacity
• Pre-leveling device with servo motor automation
• Optional hydraulic pre-shearing system
• Sheet feeding guide with width variation control

Core Forming Technology

The heart of our product features 18-step forming process with gear/sprocket drive system. H-beam base construction with precision leveling bolts ensures stable operation. Dovetail slot structure enables rapid size changes through PLC control.

Downstream Processing

Hydraulic post-cutting system with innovative cutting technology handles both C and Z profile configurations. Automatic stacking equipment completes the production line for maximum efficiency.

Technical Resources and Support

Digital Documentation Library

• Equipment 3D digital twin models (JT format)
• Siemens MCD integration operation manual
• Energy optimization whitepaper with ROI calculation templates

Global Service Network

Our worldwide support infrastructure provides 72-hour technical response times with Siemens-certified engineers offering on-site services. Multi-language technical consultation available in English, Arabic, and German ensures comprehensive customer support.

Frequently Asked Questions

How does digital twin technology integrate with the 1.5″ Form Deck Roll Forming Machine to optimize forming precision?

Digital twin technology creates a real-time virtual replica of your physical machine, enabling continuous monitoring of forming parameters. This integration allows for dynamic adjustment of roller pressure, feed speed, and material tension to maintain optimal precision throughout production runs.

Can Siemens cloud platform synchronize real-time data with the product for remote monitoring?

Yes, our machine features native OPC UA protocol support for seamless Siemens MindSphere integration. This enables real-time data streaming, remote parameter adjustment, and comprehensive production analytics from any connected device worldwide.

What sensor data is required for predictive maintenance deployment on the product?

Key sensor inputs include vibration analysis from roller bearings, temperature monitoring of drive systems, hydraulic pressure readings, and motor current signatures. MCD mechatronic integration provides algorithmic processing of this data for accurate failure prediction.

How is the mechanical wear prediction model constructed for the product?

Our wear prediction model utilizes machine learning algorithms trained on historical performance data from similar installations. Siemens provides pre-configured algorithm templates specifically designed for roll forming equipment, reducing implementation complexity.

What hardware and software upgrades are needed to retrofit existing machines with Industry 4.0 capabilities?

Typical retrofits require IoT gateway installation, sensor integration packages, and cloud connectivity modules. Most existing machines can be upgraded with minimal production interruption, though compatibility assessment is recommended for optimal results.

How does digital twin simulation optimize energy efficiency for the product?

Digital twin models analyze power consumption patterns across different operating conditions, identifying optimal parameter combinations for minimum energy usage while maintaining production quality. This typically results in 10-15% energy reduction.

Does Siemens MCD support complex motion control logic simulation for the product?

MCD provides comprehensive simulation capabilities for multi-axis coordination, acceleration profiles, and synchronized operations. This enables virtual commissioning and logic validation before physical implementation.

How can predictive maintenance ROI be quantified for the product?

ROI calculation considers reduced unplanned downtime, optimized maintenance scheduling, extended component life, and improved overall equipment effectiveness. Typical implementations show positive ROI within 12-18 months through operational savings.

What are the key factors for successful digital twin implementation on existing Form Deck Roll Forming Machines?

Success factors include proper sensor placement, reliable network connectivity, staff training programs, and phased implementation approach. Our technical team provides comprehensive implementation support throughout the process.

How does the predictive maintenance system handle varying production loads and environmental conditions?

Advanced algorithms continuously adapt baseline parameters based on actual operating conditions. The system learns from environmental factors like temperature fluctuations and production variations to provide accurate predictions regardless of external conditions.

Ready to Transform Your Manufacturing Operations?

Experience the future of metal forming with our 1.5″ Form Deck Roll Forming Machine. Contact our technical specialists today to discuss your specific requirements and receive a customized Industry 4.0 solution proposal.
