Trapezoidal Roofing Sheet Making Machine - Industrial Cold Roll Forming Solution

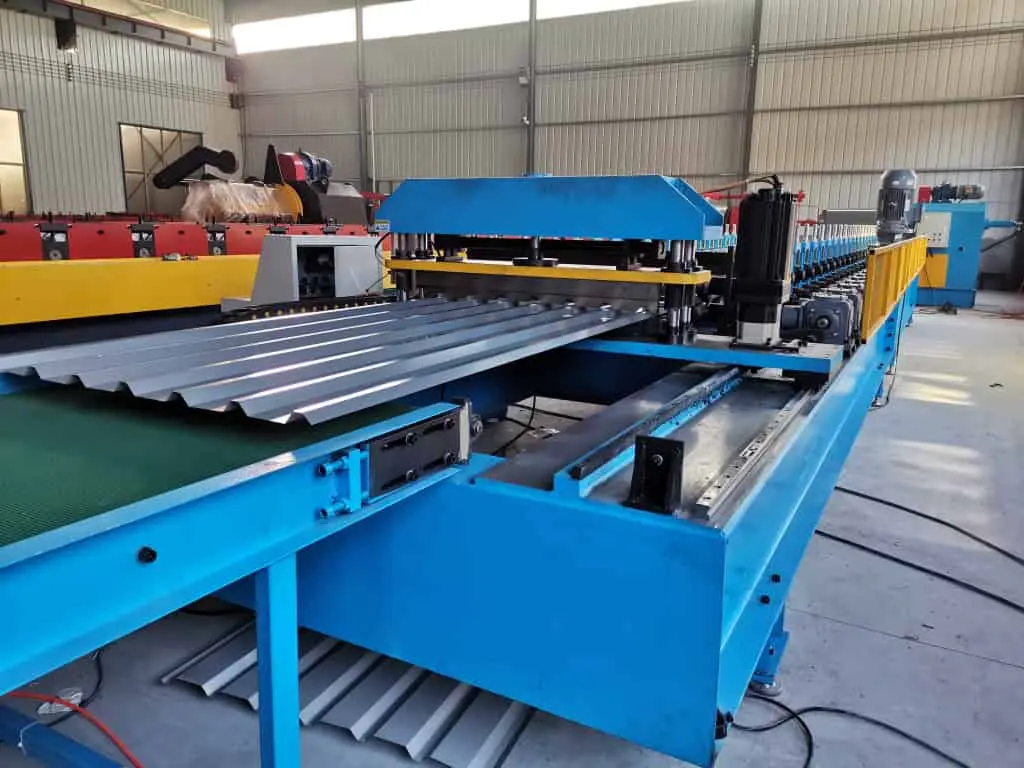

Our trapezoidal roofing sheet making machine transforms flat metal coils into precision-engineered profiles through progressive cold roll forming technology. Since 2014, Cangzhou Zhongtuo has delivered industrial-grade equipment featuring 18-24 forming stations with ±1mm width tolerance and ±0.5mm height accuracy. Our machines process materials from 0.3-0.8mm thickness at speeds up to 20m/min, equipped with chrome-plated rollers to protect pre-painted surfaces and PLC control systems that reduce material waste by 15-20% compared to traditional methods.

What Is a Trapezoidal Roofing Sheet Making Machine?

This specialized industrial equipment converts flat metal coils into structural profiles through cold forming.

You get consistent trapezoidal shapes without changing material thickness. The process uses 18 to 24 roller stations that gradually bend your metal strip into the desired geometry.

Key materials processed:

·  Galvanized Steel (GI)

·  Pre-painted Galvanized Iron (PPGI)

·  Galvalume (GL)

·  High-strength composite materials

The machine solves three critical production challenges for you:

Profile consistency - Every sheet maintains identical dimensions. Manual bending creates variations that cause installation problems. Our automated system ensures precise overlap interlocking for leak-proof roofing.

Material efficiency - Advanced PLC controls minimize cutting errors. You'll see significantly less scrap waste compared to traditional fabrication.

Surface protection - Chrome-plated rollers prevent damage to your pre-painted coatings during high-pressure forming. This protects your investment in premium materials.

Why Choose Our Manufacturing Solution

Research-Backed Engineering

We partner with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center.

This collaboration brings you:

·  Finite element analysis for roll design optimization

·  AI-assisted simulation tools that reduce trial costs

·  Virtual debugging systems for precise profile formation

Our PhD researchers work directly on your production challenges. They've developed two patented technologies already applied in machines exported globally.

Proven Global Performance

Your equipment comes from a national-level high-tech enterprise with certifications that matter:

·  ISO 9001 Quality Management

·  European CE Safety Standards

·  North American CAS Compliance

We've shipped to over 150 countries. Your neighbors in Europe, North America, the Middle East, Southeast Asia, and South America already trust our equipment.

Intelligent Production Control

Modern manufacturing demands smart systems. You get:

Remote monitoring - Cloud-based diagnostics let you track performance from anywhere. This reduces downtime and speeds up troubleshooting.

Predictive maintenance - Data-driven alerts warn you before problems occur. You'll avoid costly unexpected shutdowns.

Virtual commissioning - We test your machine digitally before shipping. This ensures smooth startup when it arrives at your facility.

Applications That Drive Your Business

Industrial Warehousing

Large-scale Pre-Engineered Buildings need your roofing sheets. The high strength-to-weight ratio makes trapezoidal profiles the industry standard.

Mobile forming units let you produce long-span sheets on-site. This eliminates transport restrictions and reduces leak points by using single-sheet runs.

High-Drainage Roofing Systems

Tropical and heavy-rain environments demand efficient water management. Deep troughs in your profiles handle high-volume runoff effectively.

Precise forming creates tight side-laps. Water can't penetrate even during wind-driven rain scenarios.

Composite Wall Cladding

Beyond roofing, you can manufacture sandwich panel skins and standalone wall cladding. Agricultural and commercial facilities need this versatility.

Our trapezoidal roofing sheet making machine handle high-yield-strength steel (>500MPa) without cracking or spring-back. Your vertical siding maintains rigidity throughout its service life.

Technical Specifications

Quality Control Process

You deserve equipment that performs reliably from day one.

Dimensional accuracy testing - We verify effective cover width and rib height on every machine. Tolerances stay within specified ranges to ensure your sheets overlap correctly.

Roller surface inspection - Visual and tactile checks confirm smoothness. Any roughness would scratch your PPGI material and cause rust rejection.

Hydraulic system validation - Full-load testing ensures consistent pressure for cutting operations. We check every connection for potential oil leaks.

Material trial runs - We process 1-2 tons of coil through your machine before shipping. This identifies any end flare or profile twisting issues.

Electrical safety audit - Grounding verification, emergency stop response testing, and PLC logic reliability checks protect your operators.

Frequently Asked Questions

Can your machine handle high-tensile steel like G550?

Yes, through customization. Standard machines work with G250-G350 steel. For G550, we upgrade motor power, increase shaft diameter, and adjust forming station gaps to compensate for higher spring-back.

How do you protect paint when forming PPGI coils?

We use highly polished, hard chrome-plated rollers with synchronized linear speed across all stations. Perfectly adjusted roller clearance matching your material thickness prevents friction-induced scratches.

What maintenance does the cutter blade require?

The Cr12MoV steel blade typically needs sharpening or replacement after 1-2 years depending on volume. Regular lubrication of sliding components and gap clearance checks between upper and lower blades prevent burrs.

Can one machine produce multiple profile types?

Generally, one machine produces one specific profile due to fixed roller geometry. For flexibility, we offer double-layer machines (two roller levels) or cassette-type machines (changeable roller bases) that produce different profiles on a single frame.

What determines your machine speed?

The cutting system is key. Fly-saw or non-stop cutting systems reach 40-60m/min. Standard stop-to-cut hydraulic systems operate at 15-20m/min. Higher speeds require advanced servo motor controls.

Do you provide installation and training?

Absolutely. Our technical team offers on-site installation guidance and comprehensive operator training. We ensure your staff can run and maintain the equipment confidently.

What's your typical lead time?

Standard configurations ship within 45-60 days. Custom specifications may require additional time. We'll provide a precise timeline based on your requirements.

What after-sales support do you offer?

Remote diagnostics through cloud monitoring, video troubleshooting, spare parts supply, and annual maintenance packages. Our support team responds within 24 hours.

Ready to Upgrade Your Production?

Get a customized solution that matches your trapezoidal roofing sheet making machine goals and material specifications. Contact our technical team at zhongtuorollforming@gmail.com today.
