0.6″ Form Deck Machine: Professional Steel Decking Production Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in manufacturing the 0.6″ Form Deck Machine, an advanced cold roll forming system engineered for producing 9/16-inch deep structural steel deck profiles. This industrial-grade equipment features 18-24 forming stations equipped with GCr15 or Cr12MoV steel rollers (hardness HRC 58-62), delivering exceptional durability for galvanized coating processing. With robust 70mm-90mm solid steel shafts and a cast iron stand structure, the machine operates at high speeds up to 25-30m/min while maintaining SDI-compliant tolerances of ±0.5mm profile depth. Available in standard 35″ and 30″ cover widths, it processes 22-28 gauge galvanized or painted steel with G60/G90 finishes, ensuring precise male/female interlocking side-laps for zero grout loss during concrete pouring.

What Makes This Steel Deck Forming System Essential

The machine solves critical construction industry challenges through precision engineering. It eliminates manual shuttering by producing permanent steel forms, accelerating concrete pouring schedules significantly.

Traditional wooden formwork requires labor-intensive removal after curing. This equipment creates stay-in-place structures that remain integrated with the finished slab.

Advanced nesting designs within the forming stations optimize material usage. You reduce steel width consumption while maintaining structural rigidity for Lightweight Insulating Concrete applications.

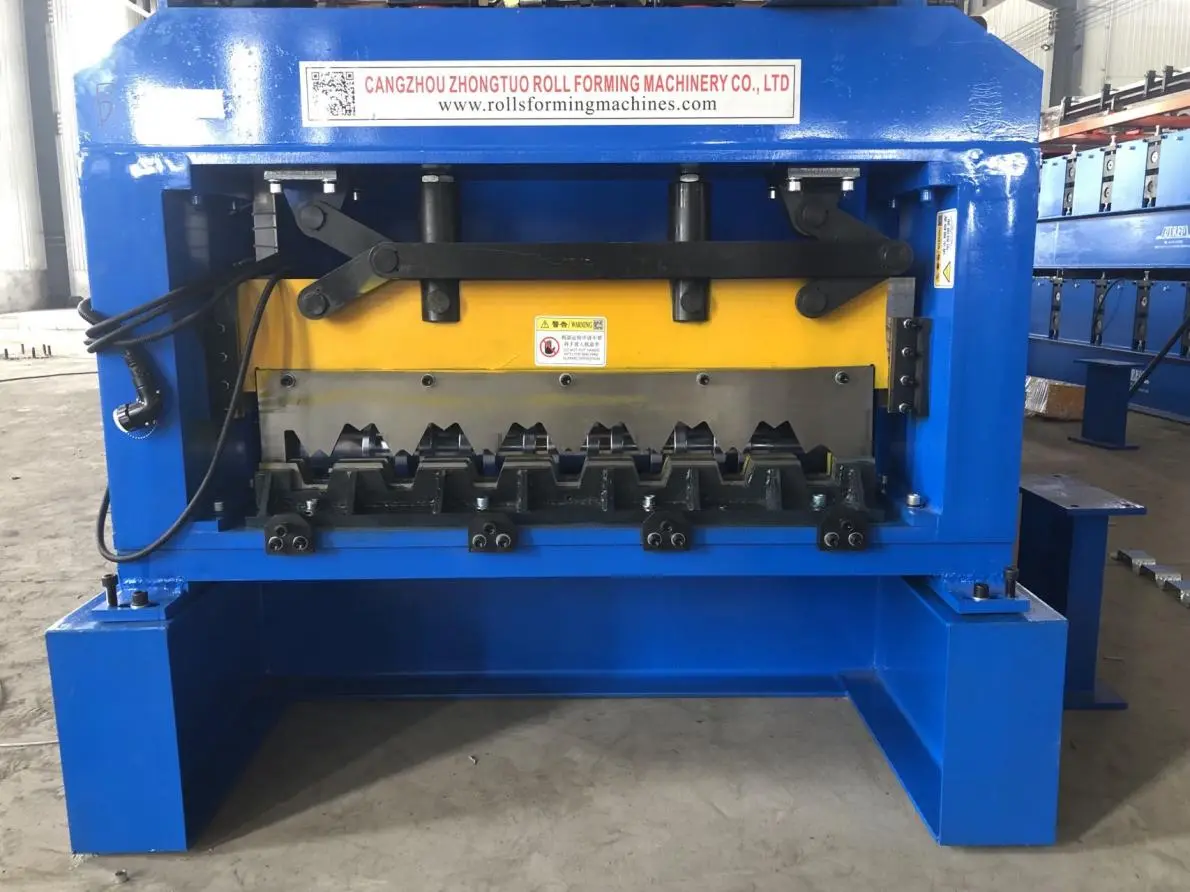

The hydraulic flying shear system features Cr12MoV blades that deliver burr-free cuts without halting production. This continuous operation improves Overall Equipment Effectiveness dramatically.

Each profile undergoes multi-pass forming that prevents material spring-back, especially when processing high-yield-strength steel ranging from 33ksi to 80ksi.

Technical Specifications of the 0.6″ Form Deck Machine

Core Industrial Applications

Lightweight Insulating Concrete roof systems represent the primary application area. The galvanized profiles serve as structural bases for insulating concrete in commercial and industrial buildings.

Your steel-framed residential projects benefit from stay-in-place floor slab forms. These profiles hold wet concrete during curing, eliminating the labor expense of stripping wooden forms afterward.

Mezzanine construction accelerates when using these permanent forms. The interlocking side-laps prevent concrete slurry leakage during pours, a common failure point in generic equipment.

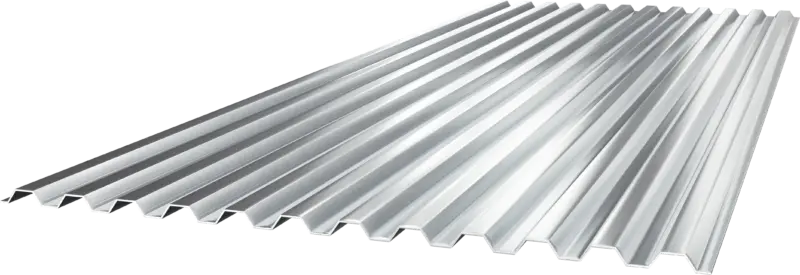

Specific architectural designs utilize the 0.6″ profile vertically as exterior wall cladding for industrial facilities. The low profile combined with high coverage width makes it ideal for siding applications.

When processing pre-painted steel, the machine handles PPGI materials without scratching aesthetic surfaces. This capability expands your product offerings into architectural markets.

Quality Assurance & Inspection Standards

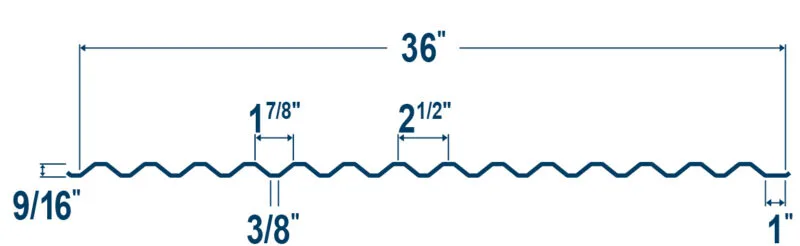

Profile depth verification uses precision Go/No-Go gauges to confirm exact 9/16″ measurements. Coverage width must meet strict dimensions to prevent installation misalignment on construction sites.

Side-lap interlock testing involves sampling two cut sheets to ensure proper overlap. The connection must prevent concrete slurry leakage while allowing easy manual installation by workers.

Flying shear tolerance measurements check diagonal differences on finished sheets. Industry-accepted standards require squareness within ±1mm per 3 meters of length.

Surface inspection protocols identify roll marks or zinc flaking on profile ribs. These defects indicate improper roller clearance or speed synchronization issues requiring immediate adjustment.

Hydraulic system load testing runs the equipment at full speed with maximum gauge material for four continuous hours. This monitors oil temperature stability and cutter pressure consistency.

Our ISO 9001 Quality Management System certification ensures consistent production quality of the 0.6″ Form Deck Machine. Every machine undergoes rigorous testing before shipment to your facility.

Advanced Engineering Features

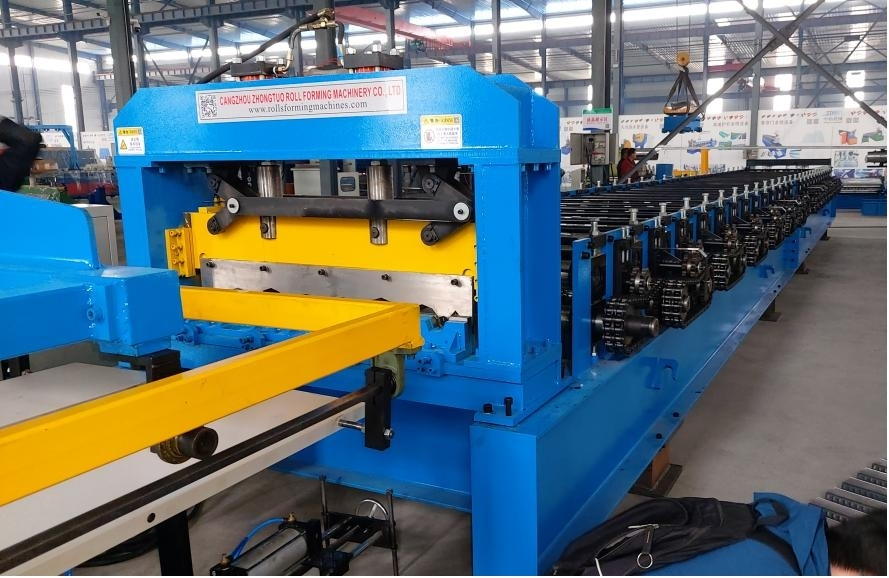

The cast iron stand structure provides superior stability during high-speed operation compared to wall-panel plate designs. This rigid foundation minimizes vibration that could compromise profile accuracy.

A dedicated Turk's head straightening component with 3-axis adjustment corrects vertical, horizontal, and twist defects. This addresses camber issues caused by residual coil stress in the raw material.

CNC-machined rollers undergo vacuum heat treatment for uniform hardness distribution. This extends operational lifespan when processing abrasive galvanized coatings continuously.

The PLC control system synchronizes all forming stations with the hydraulic cutting mechanism. You achieve precise length control without material waste or production stops.

Servo motor systems provide the necessary power to overcome high yield strength materials. This prevents spring-back deformation in finished profiles made from Grade 80 steel.

Why Choose Cangzhou Zhongtuo

Since 2014, we've specialized in cold roll forming machinery design and manufacturing. Our national-level high-tech enterprise status reflects commitment to innovation and technical excellence.

Strategic partnerships with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center bring cutting-edge research into production. Graduate researchers work on-site developing AI-powered FEA optimization systems.

We've successfully exported the product to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. Long-term client relationships demonstrate our reliability.

CE certification confirms compliance with stringent EU safety standards. North American CAS certification validates adherence to advanced technical requirements in those markets.

You receive comprehensive support including installation guidance, operator training, and remote diagnostics through cloud-based monitoring systems. Our technical team responds quickly to any operational questions.

One-stop service capabilities mean you can source raw materials, machinery, and replacement parts directly from us. This streamlines your procurement process and ensures component compatibility.

FAQ

Q：Can this equipment process high tensile Grade 80 steel?

A：Yes, but the configuration requires 24+ forming stations and upgraded servo motors. This handles the increased yield strength without causing spring-back or edge rippling in finished profiles.

Q：What blade lifespan should I expect from the hydraulic cutter?

A：Cr12MoV cutting blades properly heat-treated typically achieve 500,000 to 1 million cuts before sharpening. Actual lifespan depends on the galvanized steel thickness you're processing.

Q：How do you prevent finished deck bowing or camber?

A：The integrated Turk's head straightening component allows 3-axis adjustment. Operators correct vertical, horizontal, and twist defects caused by residual stress in the coil material.

Q：Does installation require special foundation preparation?

A：While smaller than heavy structural mills, a level reinforced concrete floor is necessary. Proper anchoring prevents vibration-induced misalignment that would compromise the precise 0.6″ profile tolerances.

Q：Can hole punching be integrated into the production line?

A：For standard 0.6″ Form Deck applications, punching is rarely needed since it functions as non-composite formwork. If venting holes are required for specific roof applications, we can integrate a pre-forming hydraulic punch press synchronized through the PLC system.
