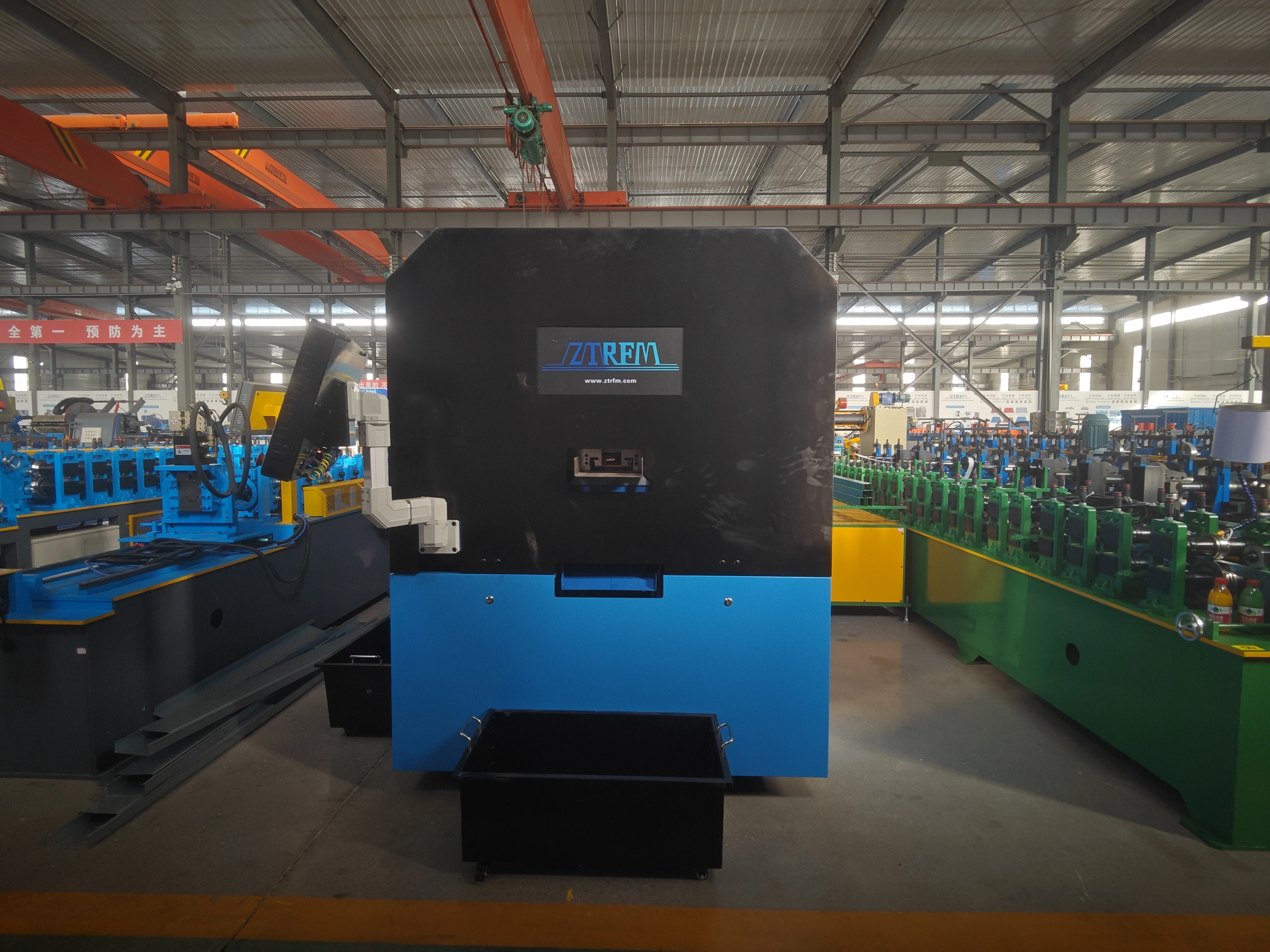

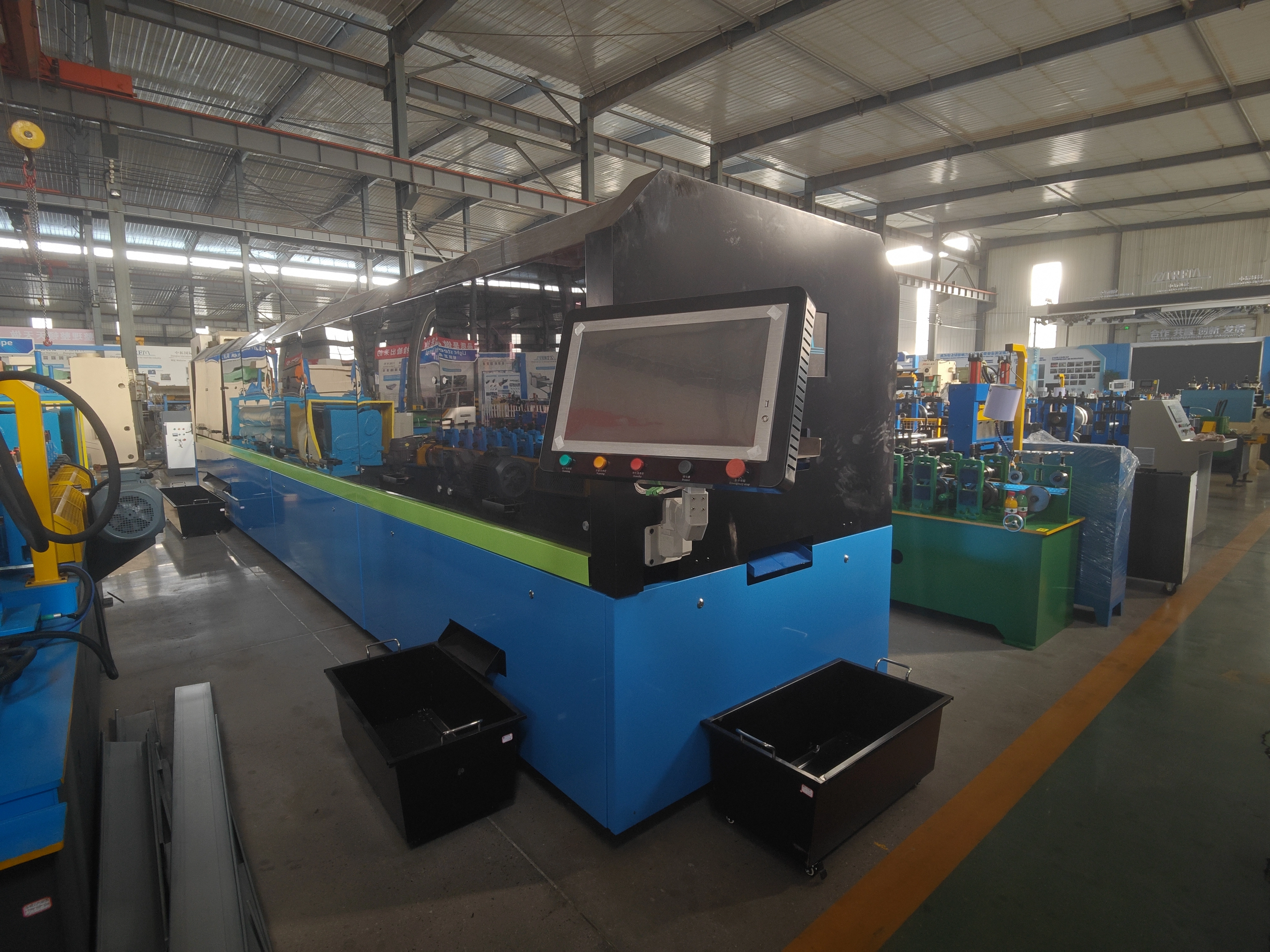

C89 Villa Frame Machine: Precision Light Gauge Steel Framing Solution

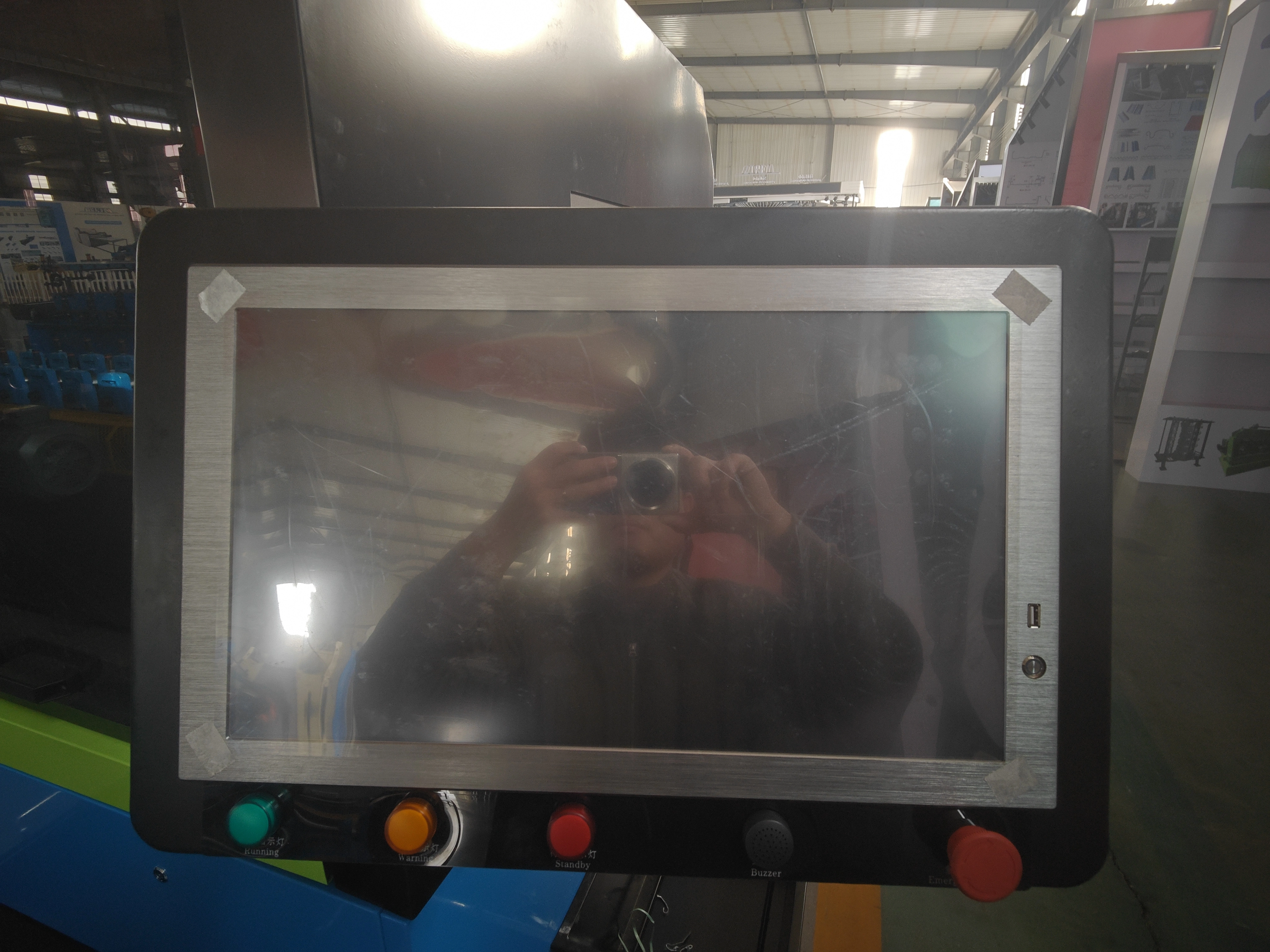

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. presents the C89 Villa frame machine, an enterprise-grade cold roll forming system engineered for automated Light Gauge Steel framing production. This machine processes G300-G550 zinc-aluminum steel coils with thickness ranges of 0.7-1.2mm, delivering profile sizes including C89, C140, and C150mm configurations. Operating through our proprietary FrameMac LGS controlling software on a 17-inch touchscreen interface, the system achieves forming speeds of 40-70 meters per minute with geometric precision within ±0.5mm.

Equipped with Cr12MoV vacuum-hardened roll tooling and servo-driven hydraulic systems (5.5-7.5KW), this product integrates punching, dimpling, swaging, and shearing operations in a continuous production flow. The machine sustains die lifespans exceeding 500,000 strokes while maintaining material waste below 1% through optimized nesting algorithms.

Key Technical Advantages of C89 Villa frame machine

Digital Manufacturing Integration

The system accepts standard CSV, XML, and TXT files directly from BIM software including Vertex BD, StrucSoft, and FrameCAD platforms. This Design-to-Production workflow eliminates manual measurement errors and accelerates project timelines.

Automated part labeling through integrated inkjet printing assigns unique identification codes to each component. This feature transforms on-site assembly into a streamlined puzzle-solving process, reducing construction time by 40-60% compared to traditional methods.

Material Processing Capabilities

High-tensile galvanized steel with Az150 coating undergoes precision forming without surface damage. The multi-stage roll forming sequence maintains material properties while creating complex geometries.

Adjustable roll gaps and straightening rollers accommodate various steel grades. While optimized for G550 high-tensile applications, the machine adapts to G300/G350 specifications through recalibration protocols.

Technical Specifications

Application Scenarios

Seismic-Resistant Residential Construction

In earthquake-prone regions, the lightweight high-strength profiles enable complex truss designs and multi-slope roofing structures. Precision notching supports intricate geometric requirements while maintaining structural integrity under seismic loads.

Modular Prefabrication Operations

Mass production of standardized wall panels and floor joists for volumetric construction projects requires absolute consistency. Tolerance control prevents stacking errors during module assembly, crucial for hotel, student accommodation, and multi-family housing developments.

Commercial Interior Systems

High-rise buildings benefit from rapid MEP installation capabilities. Pre-punched service holes accommodate electrical conduits and plumbing runs without field modifications, accelerating commercial fit-out schedules significantly.

Quality Assurance Framework

Dimensional Verification Protocols

Web, flange, and lip measurements undergo continuous monitoring against AISI and AS/NZS 4600 standards. Lip angle precision directly affects screw retention strength in assembly connections.

Servo feeder synchronization with hydraulic punchers ensures service hole positioning matches CAD specifications within 0.5mm. Burr-free punching protects electrical wiring during installation phases.

Structural Performance Testing

Full-speed production cycles with the C89 Villa frame machine verify twist and camber limits remain below 1mm per meter in extended studs. This precision ensures wall plumbness during drywall installation, critical for finishing quality.

Advanced Manufacturing Support

University-Industry Collaboration

Partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center drives continuous innovation. Finite element analysis and AI-assisted simulation optimize roll designs and forming paths.

Virtual commissioning through Siemens Simicas platforms reduces trial costs while enabling remote diagnostics for global installations. Cloud-based monitoring systems provide predictive maintenance capabilities across 150+ countries.

Thermal Management Systems

Continuous 24-hour operation requires hydraulic cooling infrastructure. Air or water-cooled chiller systems maintain oil viscosity and pressure stability during multi-shift production schedules, preventing downtime from thermal degradation.

Packaging and Delivery

Equipment undergoes comprehensive protection protocols for international shipping. Main  machine components receive fumigation-treated wooden crate packaging with moisture barriers.

Control systems and precision components ship in foam-lined cases with shock absorption. Complete installation documentation and training materials accompany each shipment to facilitate rapid commissioning.

FAQ

Q: Which design software formats is the product compatible with?

A：Professional machines support standard CSV, XML, or TXT production files generated by major BIM software like Vertex BD, various StrucSoft solutions, and FrameCAD environments, ensuring a seamless Design-to-Production workflow.

Q: Can the machine handle G300 grade steel if G550 is unavailable?

A：While optimized for G550 high-tensile steel, most C89 machines accommodate G300/G350 grades. Roll gaps and straightening rollers require recalibration to prevent profile deformation, as softer steel exhibits different forming behavior.

Q: What is the expected lifespan of punching dies and cutting blades?

A：Using industry-standard Cr12MoV material, dies typically sustain 500,000 to 1,000,000 strokes before requiring maintenance. Lifespan varies with galvanized coating thickness due to abrasive dust generation.

Q: How does automated part labeling function?

A：Integrated industrial inkjet printers apply unique part IDs post-forming. Each stud receives identification codes derived from CAD files, enabling rapid on-site assembly and reducing installation errors.

Q: Does continuous operation require hydraulic cooling?

A：High-volume production environments benefit from cooling systems for hydraulic stations. Temperature regulation maintains optimal oil properties during extended multi-shift operations.
