Metal Panel Roll Former Automation: From Coil Feed to Stack Unload

Metal panel roll former automation is a huge step forward in making things more efficient. It uses advanced Roll Forming Machine technology, from feeding coils to placing finished products. This end-to-end automation gets rid of bottlenecks in manual handling and delivers consistent panel profiles at speeds of 15 to 20 meters per minute. It also keeps the dimensions of panels made of PPGI, GI, Aluzn, stainless steel, and aluminium.

Understanding the Roll Forming Automation Process

What Defines a Modern Roll Forming System

Through progressive bending at multiple stations, a roll forming system shapes flat metal coils into specific shapes. At ZTRFM, our systems have 18 forming stands that use hardened and chromed 40CR roller material. This makes sure that each progressive bend stays accurate and doesn't damage the surface of the material. The 75 mm diameter 42CR shaft material is rigid enough to work with coil widths ranging from 0.3 mm to 0.8 mm, and it keeps its shape even when it's being used continuously.

Sequential Workflow: From Raw Material to Finished Product

The first step toward automation is coil loading, which involves placing heavy material loops on hydraulic uncoilers. Then, levelling units straighten the natural curve of the coil before material is fed into the forming section. Integrated Omron encoders keep track of the progress of the material and work with a Siemens PLC to organise the engagement of the rollers, the operation of the 4kW hydraulic cutting system, and the stacking mechanisms further down the line. This sensor-driven coordination gets rid of the need to measure things by hand and lowers the rate of scrap to less than 2% across all production runs.

Critical Role of Control Systems in Process Consistency

Automation that works well is different from simple mechanisation because it uses advanced control design. The Siemens PLC on a Roll Forming Machine controls changes in roller speed, cutting timing, and hydraulic pressure in real time based on sensors that measure the thickness of the material and the speed requirements for production. Touch-screen HMIs show live feed rates, cut lengths, and troubleshooting alerts, which lets operators act right away when things go wrong. This combination makes sure that the process can be repeated, which is very important for companies that make roofing panels for big building projects where the regularity of the panels directly affects how quickly they can be installed.

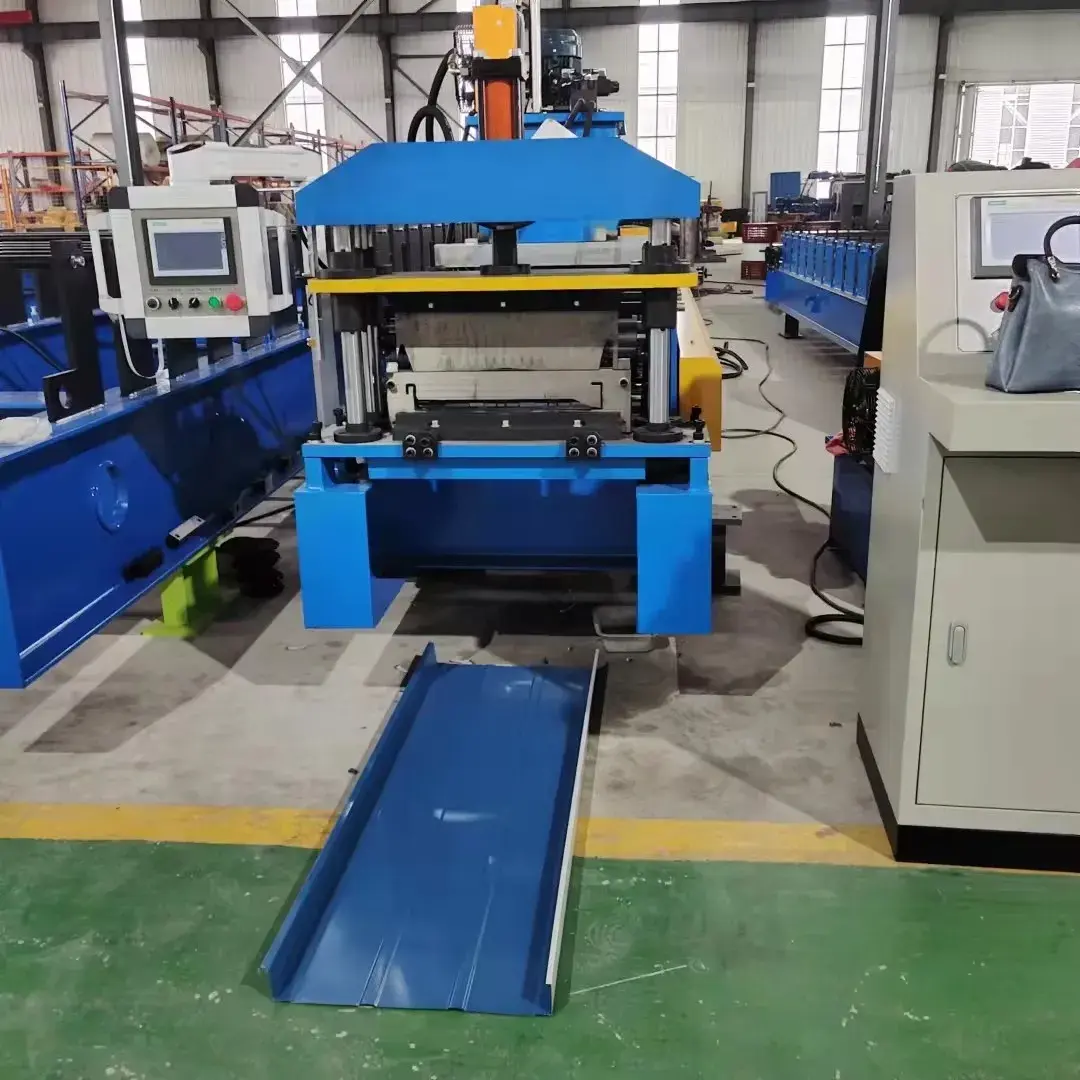

standing seam roof tile machine (3)

Core Components & Design Principles of Automated Metal Panel Roll Formers

Coil Feeding and Material Handling Innovations

Feeding systems that work well can handle coils that weigh more than 5 tonnes and keep the tension constant during the forming process. Pneumatic or hydraulic expansion mandrels hold the inside diameters of the coils and rotate at the same speed as the line speed downstream. Controlling tension with dancer arms or load cells stops materials from stretching, which would change the size of the final panel. This is especially important when working with thinner gauge aluminium, which easily deforms elastically.

Roll Station Tooling: Engineering for Precision and Longevity

The design of the forming station strikes a balance between the need for slow production speeds and gentle bent angles. At each of the 18 stations, small amounts of deformation are applied, usually 3 to 5 degrees per stand. This keeps the work from getting too hard and the surface from cracking. The chain and gear transmission system evenly distributes the 7.5kW motor power across all stations. This keeps the roller speeds in sync so that the material doesn't slip. Abrasive coatings on pre-painted steel don't wear down rollers that are hardened and chromed. This means that tools can last longer than 500,000 linear meters between refurbishment cycles.

This design theory puts more weight on slow shaping than on harsh bending. When manufacturers want to make trapezoidal profiles for industrial warehouses, they need machines with wider roller spacing. This lets deeper rib forms happen, which are necessary for spreading structural load across purlin lengths. This customisation feature lets you meet a wide range of product requirements without having to replace all of the equipment.

Cutting Mechanisms and Stacking Automation

Hydraulic shearing systems use servo-driven blades that track the movement of the material while cutting to cut formed profiles to programmed lengths with accuracy of +/-1.5 mm. In contrast to stationary shears, which slow down throughput by 30 to 40 percent, this flying cut technology keeps production going without stopping the flow of materials. Afterwards, stacking units use air grippers or conveyor tracking to arrange finished panels, putting foam pads between layers to protect the coatings while they're being moved.

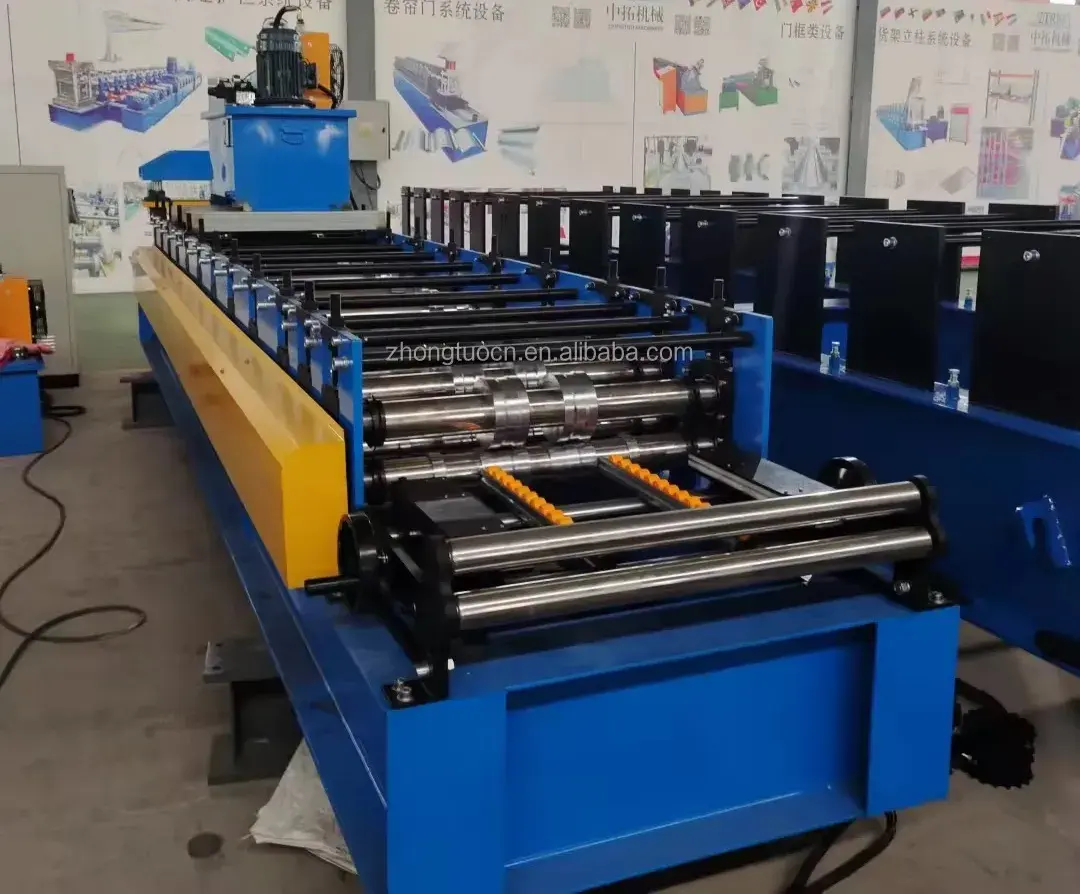

standing seam roof tile machine (3)

Selecting the Right Roll Forming Machine for Your Metal Panel Production

Automation Levels: Matching Technology to Production Scale

Startups or factories that make 200 to 500 panels a day can use semi-automatic setups, which include automated forming and cutting but need human coil loading and stacking. When compared to fully automated lines, these systems require about 35% less capital, but they still produce panels with the same shape. Fully automated systems include robotic coil handling, in-line quality inspection, and automatic bundling. These systems can produce more than 2,000 panels per shift, which is necessary for companies that make roofing systems to meet large commercial contracts.

Material Compatibility and Machine Configuration

For making steel panels, roller hardening must be strong to keep high-strength substrates from wearing them down. For processing aluminium, however, contact pressure must be lowered to keep the surface from getting dents. Machines that work with both materials have wheel pressure systems that can be changed and cutting sets that can be swapped out. Specialty uses, like composite sandwich panels, need custom designs because the multilayer structures need softer forming processes and temperature-controlled environments to keep the core material from compressing.

Energy efficiency calculations for the Roll Forming Machine show changes in running costs over the lifecycles of different pieces of equipment. Modern inverter-driven motor systems use 40% less power when they're not in use than fixed-speed options. This means that each machine saves $3,000 to $5,000 a year on energy costs in the US. These gains in efficiency add up across multiple lines of business, making companies more competitive in roofing markets that care a lot about price.

Evaluating Supplier Credentials and Support Infrastructure

Choosing a supplier is more than just looking at the equipment specs; it's also about how well the partnership will work in the long term. Certifications like ISO9001, CE, and CAS make sure that safety rules and quality management are followed during production. This is especially important for international engineering firms that need paperwork for project approvals. Delivery experience in more than 150 countries shows that the company is good at logistics and knows how to follow rules, which cuts down on delays in commissioning that can affect project timelines.

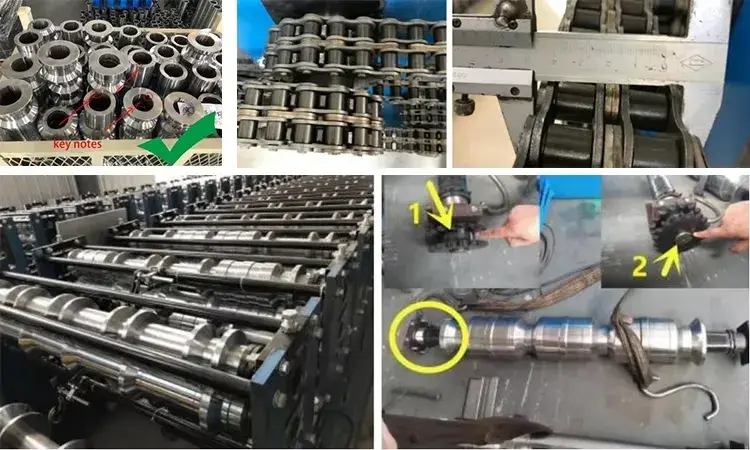

standing seam roof tile machine (3)

Maintenance, Troubleshooting, and Safety Guidelines for Automated Roll Forming Lines

Preventive Maintenance Routines for Maximum Uptime

Maintenance intervals that are planned ahead of time keep unexpected failures from messing up production plans. Every 40,000 linear meters, roller surfaces need to be checked for wear patterns that show they aren't aligned correctly or are wearing down too quickly. Chain drives and gear reducers should be oiled according to the manufacturer's instructions. Synthetic oils should be changed every three months for normal production levels. Hydraulic systems need to have their fluids analysed once a year to find contamination before it damages any of the parts.

Common Operational Issues and Diagnostic Approaches

Feeding problems are often caused by problems with the tension control or the uncoiler brake. Roller misalignment can cause mistakes in the sizes of finished panels, which can be found by measuring continuously at each making station. PLC diagnostic connections show error codes that pinpoint sensor failures or changes in hydraulic pressure. This lets techs find the source of the problem without having to take the whole thing apart. With this diagnostic feature, the average time to repair goes from hours to minutes, keeping production going, which is important for meeting just-in-time delivery commitments.

Safety Protocols and Regulatory Compliance

At 5-meter intervals along production lines, emergency stop systems allow the lines to be shut down right away if operators notice dangerous conditions. Safety guards that are interlocked keep people from getting to the moving rollers while they are in use, which is in line with OSHA rules that are common in US factories. Noise-cancelling booths lower working sound levels below 85 decibels, so workers don't have to wear hearing protection, which makes it harder for them to talk to each other on the production floor.

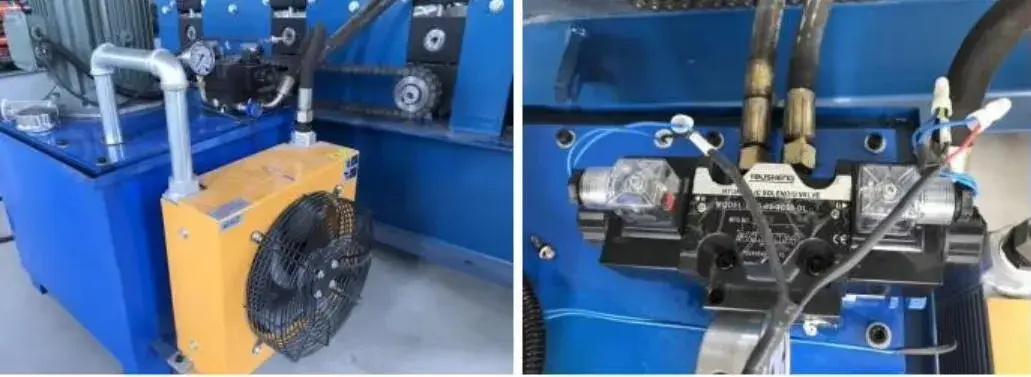

standing seam roof tile machine (3)

Future Trends and Innovations in Metal Panel Roll Former Automation

Smart Manufacturing Integration and Predictive Analytics

IoT-enabled sensors built into the forming lines send information to cloud analytics tools about sound, temperature, and power use. Machine learning algorithms find patterns that happen before parts break, which sets off maintenance alerts two to three weeks before the breaks happen. Recent industry studies show that this predictive capability changes maintenance from reactive to strategic, which cuts unplanned downtime by 60%.

Modular System Designs for Rapid Product Changeover

New flexible designs make it possible to change tools in 15 minutes, compared to two to three hours for traditional systems. With quick-release roller cassettes and pre-calibrated tooling sets, makers can switch between C-purlins, Z-purlins, and roofing shapes during the same production shift. This lets them deal with changes in demand without having to keep up different lines. This adaptability is especially helpful for companies that make light steel structures for custom building projects with changing design needs.

Sustainability Advances in Energy and Material Efficiency

When a vehicle slows down, regenerative braking systems collect its kinetic energy and send it back to the facility's electricity lines. This lowers the net energy use by 15 to 20 percent. The Roll Forming Machine uses precision forming to cut material waste from the average of 5% in the industry to less than 2%. This saves a lot of money on expensive substrates that have already been coated. These improvements to the environment are in line with LEED certification requirements that are becoming more and more strict in commercial construction. This makes finished panels easier to sell.

Conclusion

Automation of metal panel roll formers has real benefits for production efficiency, quality control, and managing operating costs. Manufacturers can compete well in the tough roofing and building markets by using modern systems that include advanced control technology, long-lasting parts, and a lot of safety features. Businesses can continue to grow if they choose the right amount of automation for their production rates and form partnerships with reliable suppliers that offer global support infrastructure. As the trends toward smart manufacturing and modular design pick up speed, early users gain a competitive edge by being able to be more flexible and having less downtime.

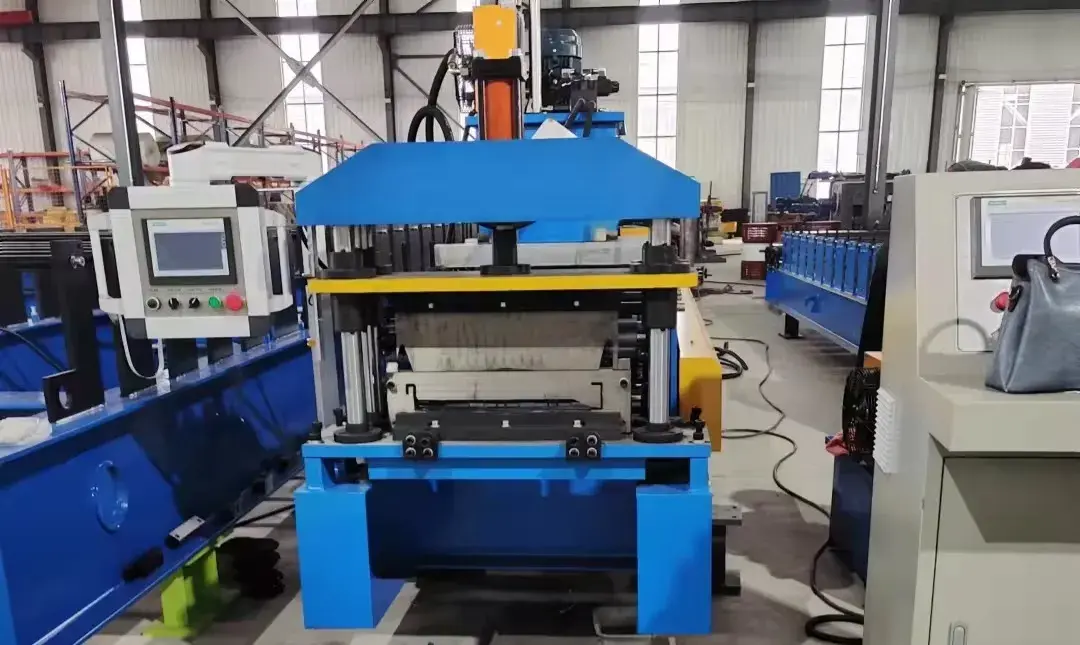

standing seam roof tile machine (3)

FAQ

Q1: How does automation improve roll forming efficiency compared to manual operations?

With automated systems, there are no breaks in the flow of production at 15 to 20 meters per minute for moving materials from one step to the next. Integrated control systems cut setup time by 50–70% by changing cut lengths automatically and letting you switch between production orders quickly without having to re-calibrate by hand.

Q2: What factors determine whether semi-automatic or fully automatic systems suit my production needs?

The main thing that determines the choice is the amount of production. For operations with less than 500 panels per day, semi-automatic setups give the best return on investment, while for operations with more than 1,500 panels per day, fully automated systems are the best choice. The cost of wages and the number of workers that are available also affect the calculations, since automated stacking gets rid of two to three operator positions per shift.

Q3: Are financing options available for capital equipment purchases?

Leasing equipment spreads out the costs over three to seven years, which keeps operating cash available for things like inventory and running costs. Many wholesalers work with industrial finance partners that offer payment plans that are based on when the project makes money. This is especially helpful for new companies that want to start making metal panels.

Partner with ZTRFM for Advanced Roll Forming Machine Solutions

With ten years of experience, ZTRFM has created automatic forming systems that are perfect for roofing panel, purlin, and structural profile uses. Our engineering team works directly with clients to set up machines that meet their unique needs for materials, output volumes, and space limitations. Email our experts at zhongtuorollforming@gmail.com to talk about the details of your project and get full technical offers. As a certified Roll Forming Machine manufacturer with a track record of delivery in 150 countries, we offer full installation support, operator training, and quick technical support to make sure you meet your production goals.
