Upright Pillar Rolling Forming Machine

Upright Pillar Rolling Forming Machine Introduction​​​​​​​

Upright Pillar Applications

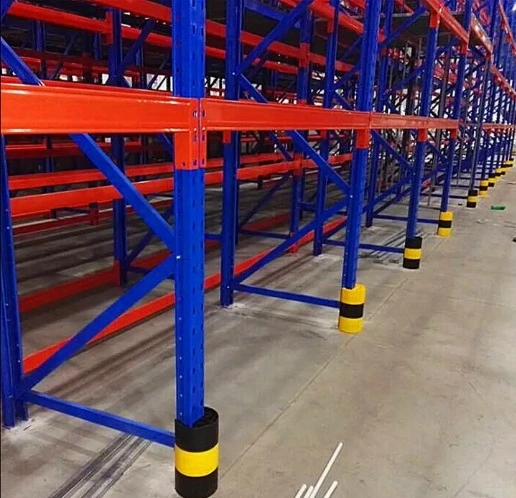

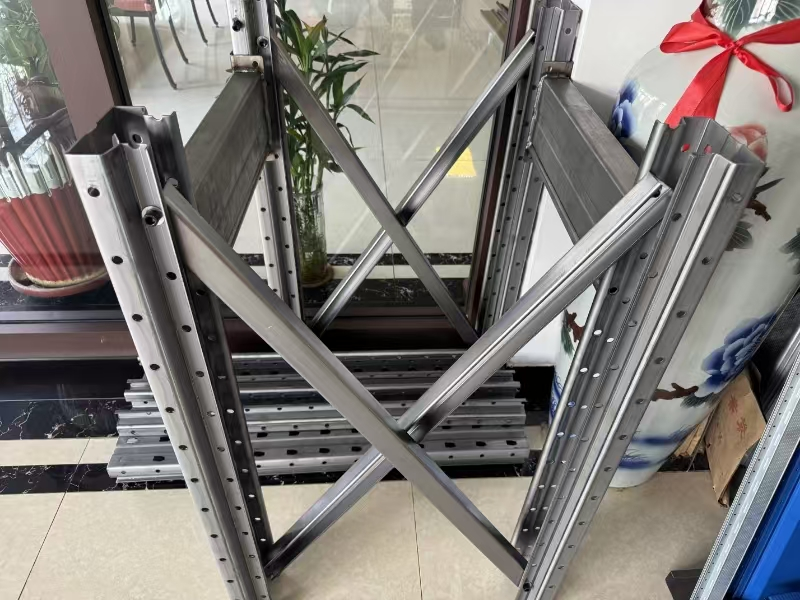

Upright pillars are essential components in modern construction and industrial equipment, commonly used in warehouse racking, garage racking, supermarket racking, automated warehouses, and industrial racking systems. They bear the weight of cargo, ensuring overall stability and safety. Due to their high load-bearing requirements, pillars are typically produced using a cold roll forming process to ensure strength, precision, and consistency.

Upright Pillar Rolling Forming Machine Applications

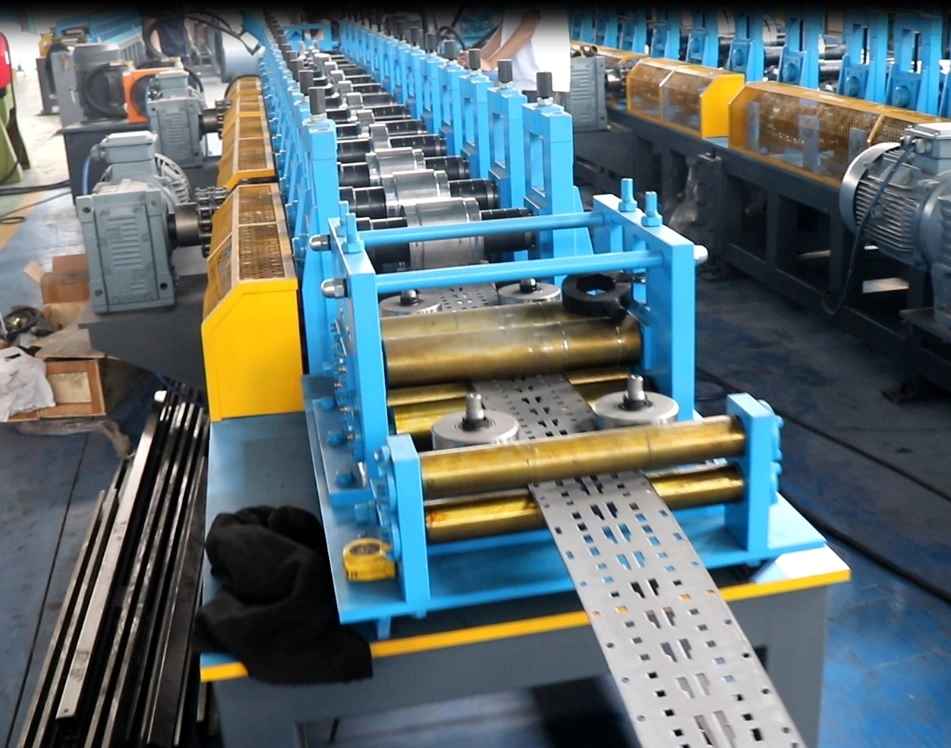

The Upright Pillar Rolling Forming Machine is an automated machine specifically designed for the production of warehouse racking pillars. Its main functions include:

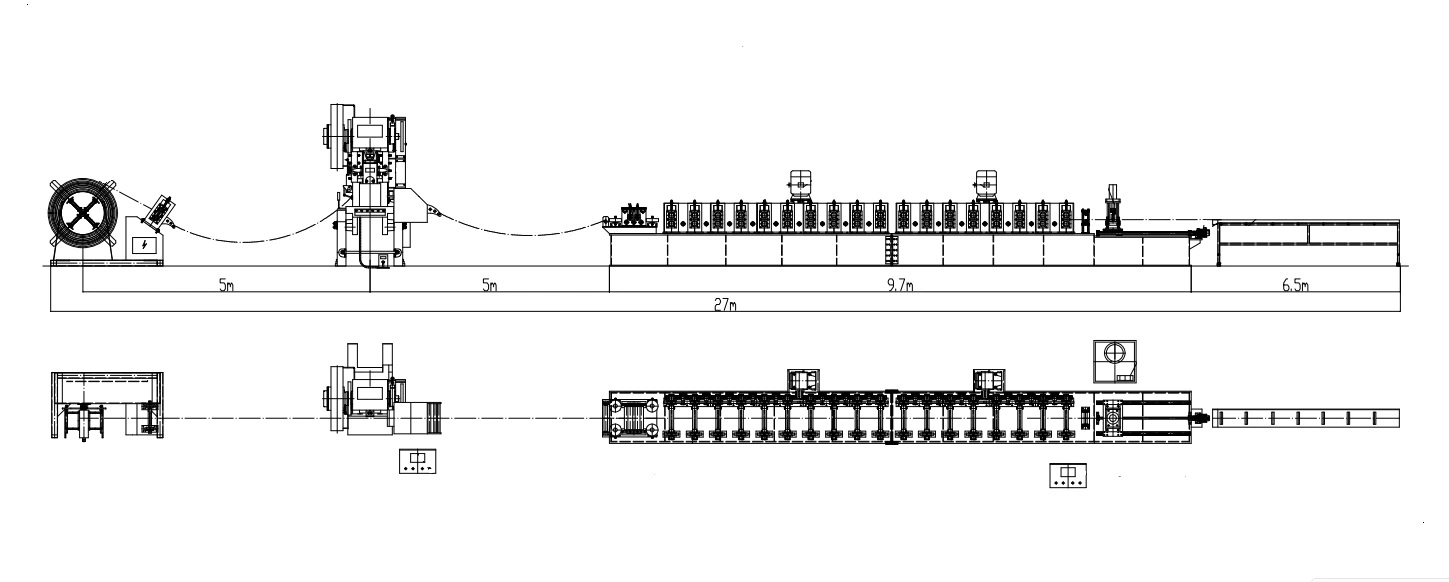

Automatic loading, roll forming, punching, and cutting are integrated into one production process;
Production of racking pillars with various hole shapes and specifications based on different design requirements;
Guaranteed high strength, aesthetically pleasing appearance, and precise dimensions to meet the needs of modern warehousing and logistics industries.

Main Parameters
Applicable Materials: Cold-rolled Steel Coil, Hot-dip Galvanized Steel Coil
Material Thickness: 1.5 – 2.5 mm
Material Width: 100 – 500 mm (customizable)
Forming Speed: 10 – 25 m/min
Forming Passes: 16 – 28 (depending on design)

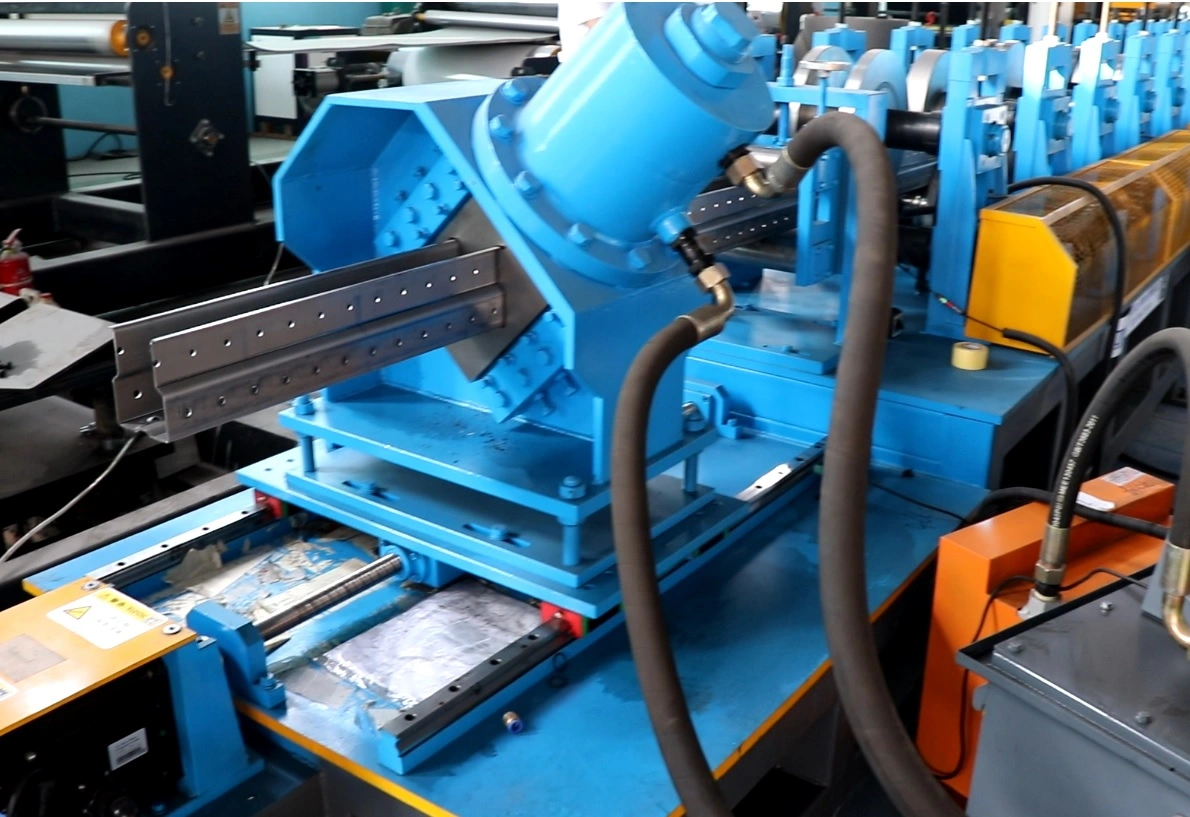

Cutting Method: Hydraulic Cutting / Servo Tracking Cutting
Control System: PLC Automation with Touchscreen Operation
Punching System: Servo Feeding + Hydraulic Punching, Customizable Hole Patterns

Technical Advantages
High-Precision Forming: Utilizes a high-quality roller design to ensure dimensional accuracy and stability of the columns.
Modular Design: Enables quick die changes to meet production needs of various specifications.
High Level of Automation: Integrates loading, punching, forming, and cutting into one machine, significantly improving production efficiency.
Energy-Saving and Environmentally Friendly: Optimized transmission system ensures low energy consumption and low noise.
Durable and Reliable: The machine features a sturdy structure and key components made of high-strength alloy steel for a long lifespan.

Best-selling Countries and Regions
Zhongtuo's Upright Pillar Rolling Forming Machine, with its superior performance and stable quality, has been exported to dozens of countries and regions, including Southeast Asia (Vietnam, Thailand, Indonesia), the Middle East (UAE, Saudi Arabia), Europe (Poland, Russia), South America (Brazil, Chile), and Africa (Egypt, South Africa), and is widely used in the warehousing and logistics industry.

Zhongtuo's R&D Capabilities
Zhongtuo boasts a professional technical R&D team with extensive experience in the design and manufacturing of roll forming equipment. Through continuous investment in R&D, the company has mastered core technologies such as CAD/CAM automated design, finite element simulation analysis, and intelligent control system development. We can provide customized solutions based on customer needs, enabling the production of rack columns with varying hole shapes and strength grades.

After-Sales and Technical Support
Zhongtuo adheres to the principle of "Customer First, Service First" and provides comprehensive after-sales and technical support services:
Installation and Commissioning: Engineers are dispatched to install and commission equipment on-site;
Training: Operation and maintenance training is provided to customers;
Remote Support: Quickly resolve customer issues through video and remote diagnosis;
Spare Parts Supply: Long-term supply of wearing parts and accessories to ensure uninterrupted production;
Regular Follow-up Visits: Track equipment operating status and provide optimization and upgrade recommendations.
