Pbr Roll Former for Metal Panel Manufacturing Plants

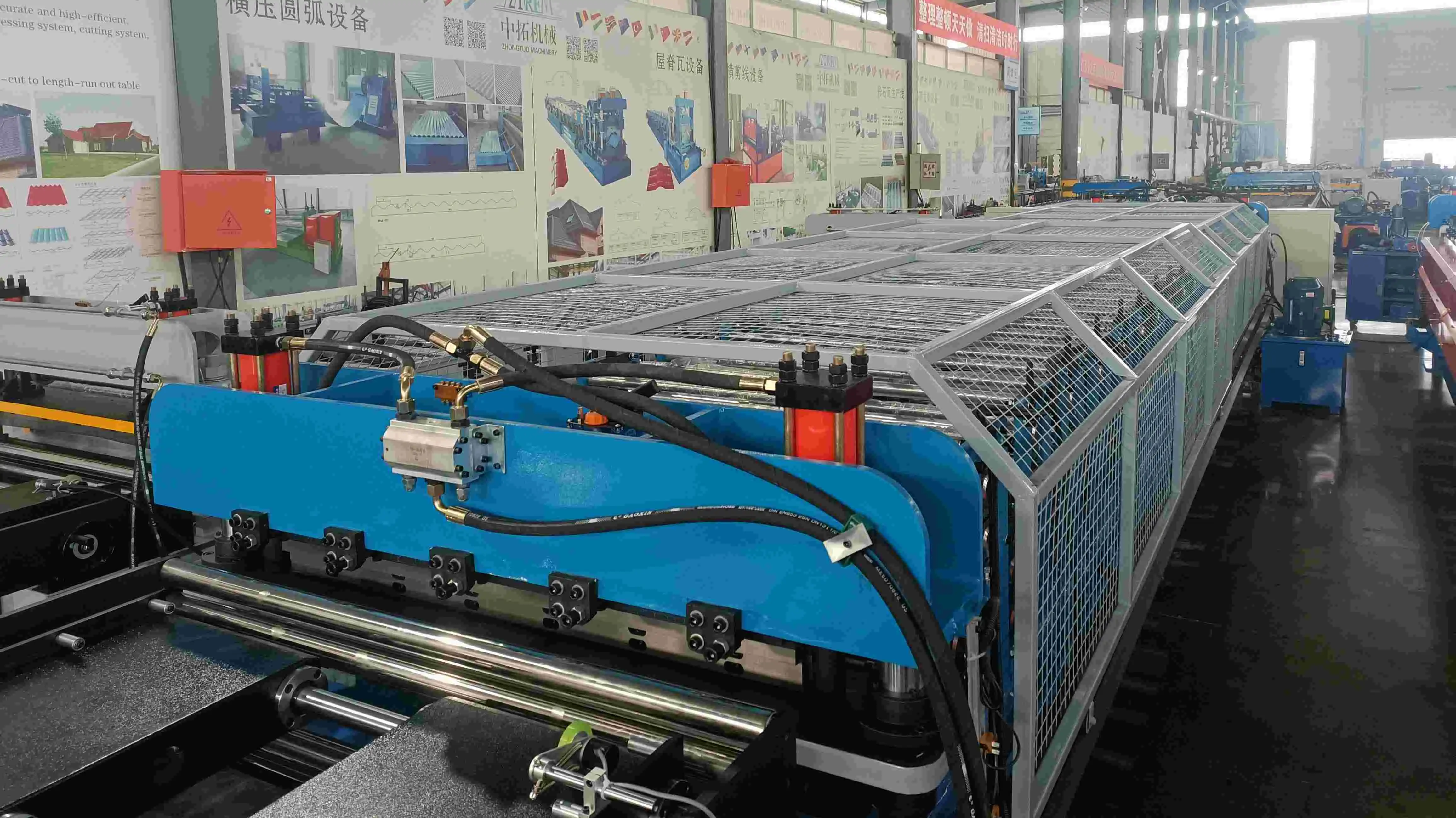

The PBR roll former is the most reliable option for metal panel makers who want to keep their production speed and size accuracy stable. This specialized cold-roll forming equipment produces Purlin Bearing Rib panels, which have a shape with an extra support leg that makes them more stable and weather-tight than regular corrugated panels. These tools are made to work with galvanized steel, Galvalume, and pre-painted aluminum coils. They fix typical roof leak issues and increase output to 15 to 20 meters per minute. The technology cuts down on worker costs and waste, which makes it essential for big industrial warehouses, farming infrastructure, and business retrofitting projects all over the United States.

Understanding PBR Roll Formers and Their Manufacturing Applications What Defines a PBR Roll Former

When making metal panels, you need tools that can work quickly and accurately, especially when structural stability is very important. There are constant cold-forming stations in a PBR roll former that slowly shape flat metal coils into panels with unique trapezoidal ribs that are usually 1-1/4 inches high. The purlin bearing leg is what makes this type of panel unique. It is an extra support flange on one side of the panel that ensures it makes full contact with the roof's structural systems during overlapping installation. This approach fixes some of the most important problems we've seen in manufacturing. Traditional corrugated panels often fail because water leaks through uneven gaps, which costs a lot to fix and causes downtime. The engineered shape of the PBR profile stops these problems by keeping the exact overlap tolerances that current roll forming machines keep up during production runs. In our normal setup, the forming process uses 19 roller stations. Each station gradually bends the material without putting too much stress on the protected covering or making tiny cracks that shorten its life.

Core Components That Drive Performance

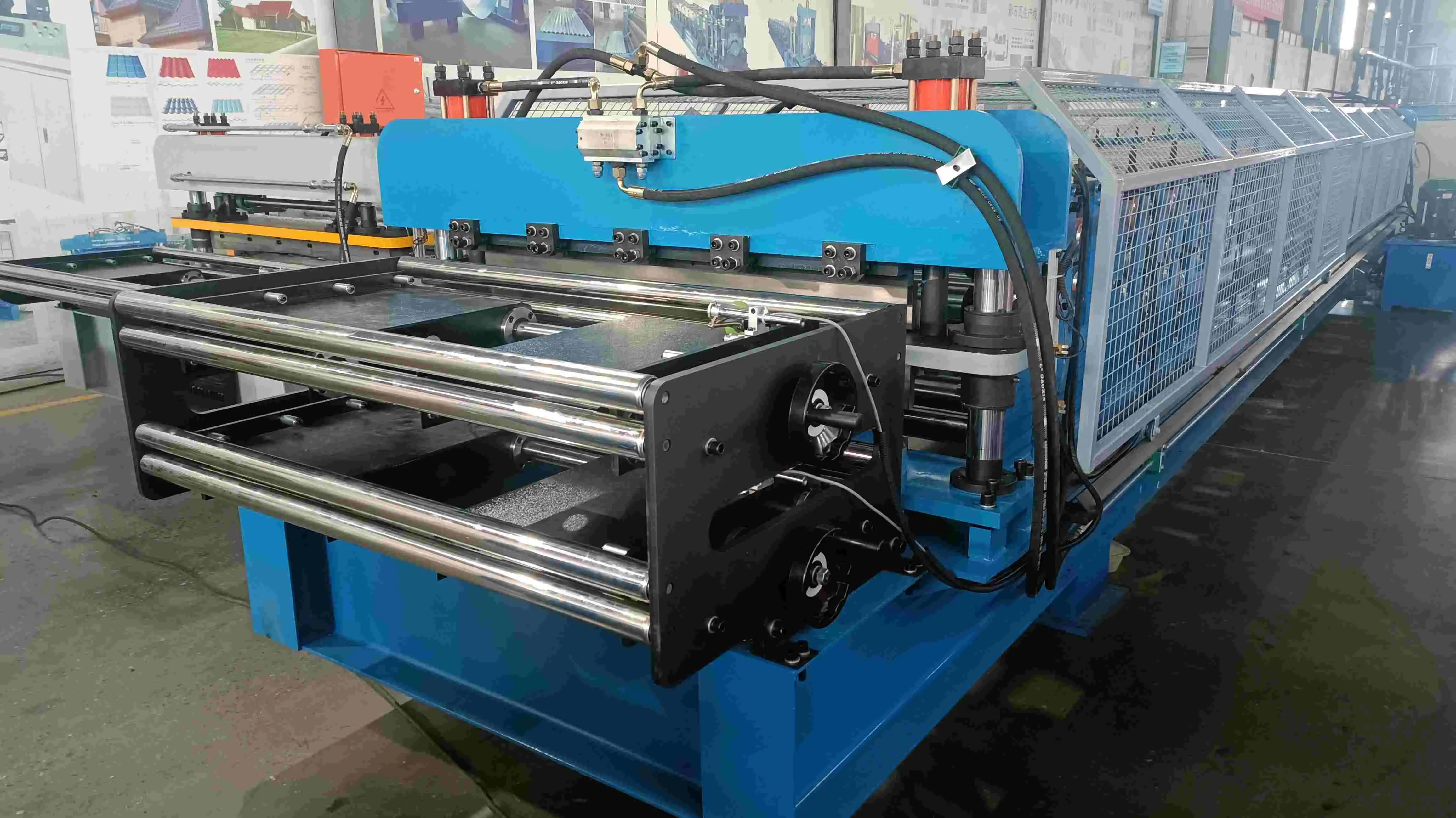

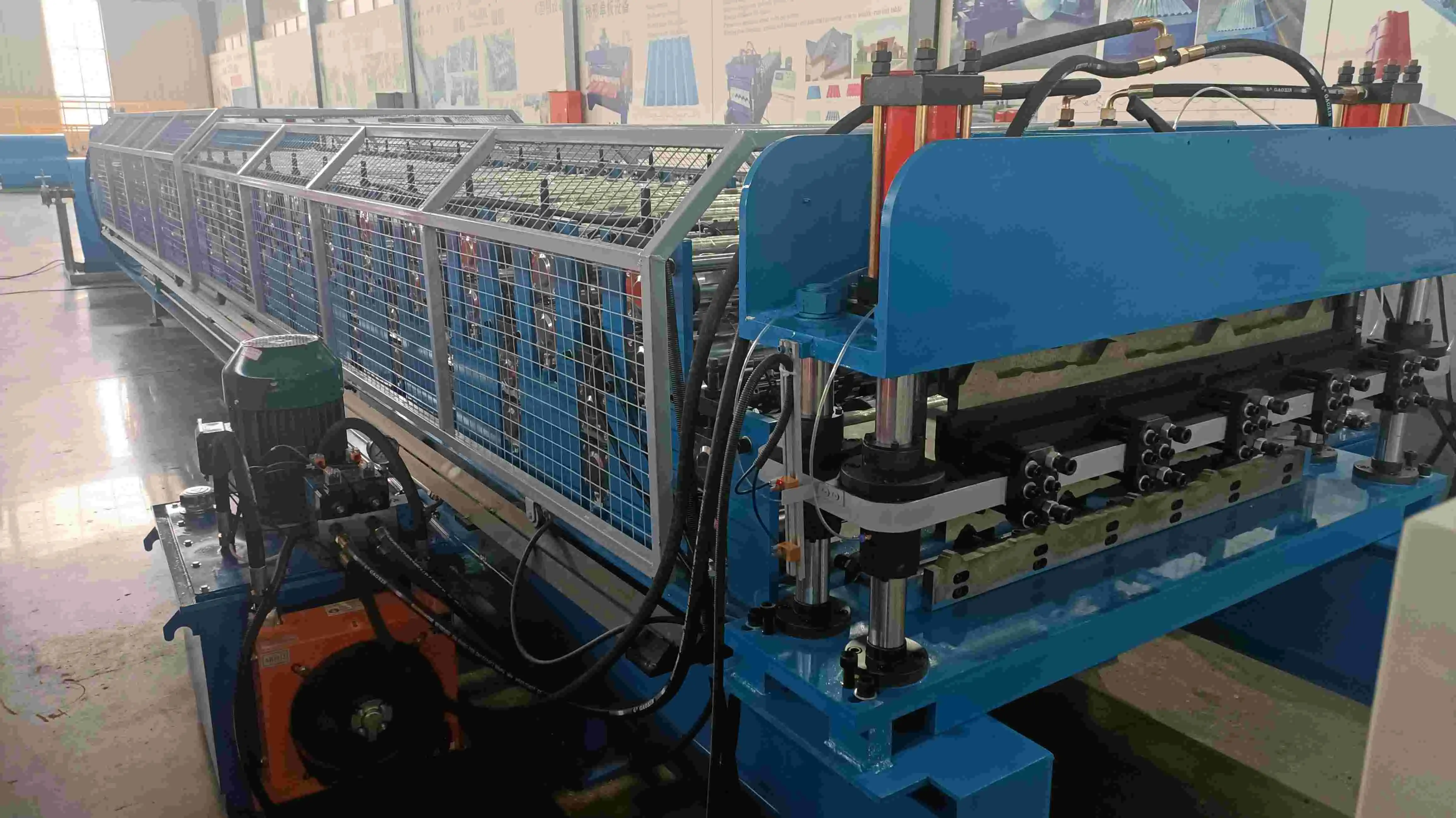

The base of the machine is where quality starts, and it continues through every technical part. Our tools have a 350mm H-beam frame that is strengthened with 20mm welded steel middle support plates. This strong design stops shaking and bending when running at high speeds, keeping the tight specs needed for accurate panel contact. The shaping rollers are the most important part of the production process. These parts are made from high-quality 45# forged steel and are hard chrome-plated to avoid wear. They also meet standards for surface finish that keep coated materials from getting scratched. When working with high-tensile steel up to 550 MPa yield strength, the rigid 80mm solid shafts keep the machine from bowing. A gear and double chain transmission system drives these stations and spreads power evenly. This keeps all the forming steps moving in sync with each other, without any slippage or changes in speed. The material capacity spans 24-26 gauge thickness, which gives makers of building roofing systems the range they need to work on both light residential projects and heavy business projects. Cr12MoV blade material is used in the automatic cutting system. This is a tool steel that was chosen because it can keep its sharp edges after thousands of cuts and make clean panel ends without warping or leaving burrs.

Comparing PBR Roll Formers with Traditional and Alternative Roll Forming Solutions

Operational Efficiency and Automation Advantages

When managers of manufacturing plants look at new equipment purchases, they always look at how much it will make and how many workers will be needed. PBR roll former technology is better than older generations of metal forming tools in both of these areas. A traditional brake press might make 8–12 panels per hour, but the user had to be there all the time. Modern roll formers, on the other hand, can make 15–20 meters per minute without much help. The amount of technology changes the costs of production in a big way. Although standing seam roll formers work well for building uses, they need to be adjusted often when changing profiles or making room for different coil sizes. Our equipment maintains consistent setup parameters across all normal 36-inch cover width panels. This cuts the time it takes to switch between panels from hours to minutes. Integrated control systems keep an eye on hydraulic pressure, forming speed, and cut length all at the same time. If there is a variation, the workers are warned before quality problems happen, rather than after a lot of scrap has been made. This operating steadiness is especially helpful for companies that make light steel structures. When making C/Z purlins, the specifications change often, which means that the machinery needs to be adjusted. But when making PBR panels, the parameters usually stay the same over thousands of linear feet. This consistency means less waste during setup, fewer skills needed to operate machines, and more regular production schedules, all of PBR panel making machine which make the plant more efficient as a whole.

Cost-Effectiveness and Return on Investment Analysis

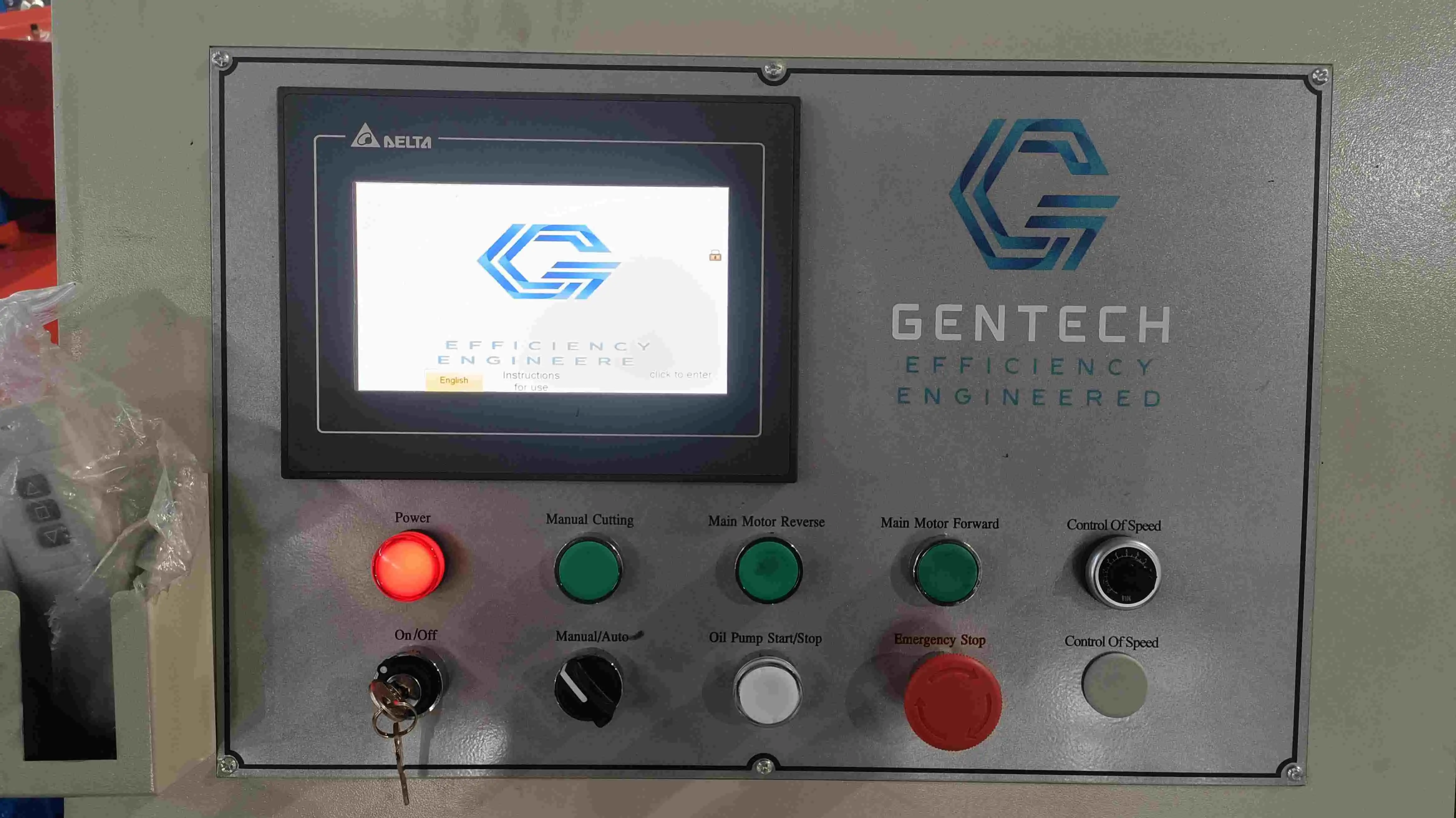

Initial equipment investment varies a lot depending on how automated the system is and how much it can make. Entry-level PBR roll formers that are good for small metal product makers and new businesses usually cost between $45,000 and $75,000. With human measuring and semi-automatic cutting, these systems can do the necessary shaping for businesses that make 5,000 to 10,000 square feet of products every day. Mid-range tools for companies that make roofing systems for buildings cost between $85,000 and $150,000 and have PLC control systems, automatic length measurement, and built-in stacking systems. The increase in production at this level allows for daily output of 15,000 to 30,000 square feet, which means that the investment will be paid for within 18 to 24 months for businesses that run on two shifts. High-capacity lines made for international engineering companies and EPC contractors exceed $200,000 but deliver fully automated operation, including coil loading, inline quality inspection, and robotic stacking. These systems justify their premium through consistent 24-hour operation capability, minimal scrap rates below 1%, and production volumes supporting large-scale projects. The return calculation hinges on labor savings—replacing 6 to 8 hand-forming operators with 1 to 2 machine supervisors—and the quality consistency that eliminates costly field callbacks from panel fit issues.

Maintenance, Safety, and Troubleshooting for PBR Roll Formers

Essential Maintenance Protocols for Consistent Production

Equipment longevity and output quality depend directly on systematic maintenance practices. Daily inspection routines should verify roller alignment, check hydraulic fluid levels, and examine drive chain tension. These quick checks, requiring approximately 15 minutes at shift start, prevent the majority of unplanned downtime incidents we've observed across customer installations. Lubrication protocols require attention to both frequency and product selection. The forming stations need high-pressure grease application every 40 operating hours, focusing on roller bearings and shaft ends where rotational stress concentrates. Using incorrect lubricant viscosity causes premature wear—too thin allows metal-to-metal contact under load, while too thick prevents proper distribution through bearing races. We recommend ISO VG 220 gear oil for enclosed drive systems and NLGI Grade 2 lithium-complex grease for roller bearings, specifications that maintain performance across the temperature ranges typical in US manufacturing environments. Parts replacement schedules prevent quality degradation before it affects production output. Forming rollers require inspection every 500 operating hours, examining the chrome plating for wear indicators, including discoloration or surface roughness. Proactive replacement at 2,000 hours maintains panel surface quality, whereas reactive replacement after coating failure often means 200 to 300 panels require rework due to scratching. Cutting blades show performance decline around 15,000-20,000 cuts, depending on material gauge and hardness, indicated by increased burr formation on panel ends. Scheduled blade replacement during planned maintenance windows costs substantially less than emergency replacement during production runs.

Safety Guidelines and Operator Training Requirements

Roll forming equipment poses specific hazards that require procedural controls and operator awareness. The material feed zone presents pinch point risks where coil entry meets the first forming station. Properly installed safety curtains and emergency stop systems positioned within arm's reach of the operator station mitigate these risks, but organizational safety culture determines whether guards remain in place or get removed for "convenience" during operation. Electrical components require qualified personnel for any service beyond basic operation. The control cabinet houses 480V three-phase power systems and PLC modules sensitive to static discharge and moisture contamination. We've documented incidents where untrained maintenance staff attempting repairs caused PLC failures requiring $8,000-$12,000 in replacement costs plus production downtime. Establishing clear protocols limiting electrical work to certified technicians prevents these expensive failures. Operator training investment pays dividends through reduced accident rates and improved troubleshooting capability. Our standard training program requires 16 hours covering machine operation, quality verification procedures, and first-level troubleshooting. This investment seems modest compared to equipment cost, yet we observe that inadequately trained operators generate 3-4 times more scrap during the learning curve period and miss early warning signs that could prevent major mechanical failures. Building roofing system manufacturers benefit particularly from training skilled operators who can cross-function across equipment and mentor new personnel effectively.

Procurement Guide: How to Select and Purchase the Right PBR Roll Former

Defining Technical Requirements Based on Production Goals

Panel manufacturing capacity planning begins with realistic volume projections, not aspirational figures. A plant producing 500,000 square feet annually requires substantially different equipment than one targeting 2 million square feet. Under-sizing equipment leads to constant maintenance issues from overwork and inability to meet delivery commitments, while over-sizing wastes capital on capacity that remains idle. We guide customers through historical order analysis and growth projections to match equipment capability with actual demand patterns, including seasonal variation. Material specification drives technical requirements in ways that significantly impact equipment selection. Pre-painted steel demands rollers with superior surface finish and precise clearances to avoid coating damage, while bare Galvalume tolerates slightly more aggressive forming parameters. Gauge range flexibility matters when customer specifications vary—equipment capable of processing 24-26 gauge materials provides versatility for residential and light commercial projects, whereas operations focused exclusively on industrial applications might optimize around 24 gauge capacity to achieve lower equipment cost and simplified operation. Profile complexity affects machine configuration needs. Standard PBR profiles with 1-1/4 inch rib height require 18-19 forming stations to achieve proper geometry without material stress. Custom profiles featuring deeper ribs or modified leg configurations may demand additional PBR panel-making machine stations or specialized roller designs. International engineering firms pursuing multiple geographic markets benefit from equipment capable of producing both imperial and metric panel widths through adjustable tooling, though this flexibility adds cost and complexity compared to dedicated single-profile machines.

Evaluating Suppliers and Support Infrastructure

Supplier selection criteria extend far beyond initial purchase price to encompass technical capability and long-term support commitment. Composite sandwich panel manufacturers particularly need suppliers with engineering resources capable of advising on material handling challenges and production optimization. We encounter procurement teams focused solely on acquiring the lowest-cost equipment, then discovering their supplier lacks the technical depth to assist when production issues arise or modifications become necessary. Geographic proximity to parts inventory and service technicians impacts the total cost of ownership substantially. Equipment sourced from suppliers without North American parts distribution faces 3-4 week lead times for replacement components and $500-$1,500 in expedited international shipping charges during breakdowns. Our established US inventory locations deliver critical wear parts within 48 hours via standard ground shipping, minimizing production disruption and emergency freight expense. This infrastructure advantage offsets moderate equipment price premiums within the first 2-3 years of operation. Warranty terms reveal supplier confidence in equipment quality and commitment to customer success. Standard 12-month parts warranties represent the industry baseline, covering manufacturing defects but excluding wear items and damage from improper operation. Extended warranties reaching 24-36 months indicate suppliers willing to back their equipment's reliability, though coverage details matter—a warranty requiring return shipment to the origin country for repair provides minimal practical PBR roll former value compared to on-site service or replacement part shipment.

Future Trends and Innovations in PBR Roll Former Technology

Industry 4.0 Integration and Smart Manufacturing

Manufacturing equipment increasingly incorporates connectivity features that transform production monitoring and optimization. Modern roll formers equipped with IoT sensors track roller bearing temperatures, hydraulic pressures, and drive motor current consumption in real-time. This data streams to cloud platforms where analysis algorithms identify patterns indicating impending failures days or weeks before breakdown occurs. Predictive maintenance represents a significant advancement over reactive repair approaches, reducing unplanned downtime by 30%-40% according to implementations we've observed across customer installations. Remote diagnostics capability allows equipment manufacturers to support customers more effectively than traditional phone-based troubleshooting. When production issues arise, our technical team accesses machine performance data through secure connections, examining actual operating parameters rather than relying on operator descriptions that may miss critical details. This visibility speeds problem resolution and reduces on-site service calls, particularly valuable for customers in remote locations where technician travel time adds cost and delay. Production data integration with enterprise resource planning systems closes the loop between manufacturing execution and business management. When roll forming equipment reports actual panel production quantities and material consumption to inventory systems automatically, manufacturers gain real-time visibility into job costs and material efficiency. This transparency supports better pricing decisions and identifies optimization opportunities—perhaps revealing that specific panel lengths generate excessive scrap or that production scheduling changes could reduce setup time and improve throughput.

Advanced Materials and Forming Technologies

Material science advances continue to expand the range of substrates suitable for roll forming applications. High-strength low-alloy steels now available at 80ksi yield strength allow thinner panel gauges while maintaining structural performance, reducing material cost per square foot. Forming these advanced materials requires equipment with precise control over bend radius and spring-back compensation—capabilities that differentiate modern machines from equipment designed around conventional 50ksi steel specifications. Coating technology evolution impacts forming equipment requirements in subtle but significant ways. Next-generation paint systems achieving 40-year warranties demand even gentler handling than current products to avoid micro-cracking that compromises long-term durability. Forming roller materials and surface treatments continue advancing to address these requirements, with ceramic coating options emerging as alternatives to traditional chrome plating for applications requiring extreme scratch resistance. Hybrid panel designs combining metal with polymer or composite elements represent emerging market segments. While traditional PBR panels consist of homogeneous steel throughout, new products integrate foam-backed variants or panels with bonded acoustic damping layers. These composite structures require modified forming approaches and equipment capable of processing multi-layer materials without delamination. Metal structure manufacturers pursuing specialty markets benefit from equipment designed with this flexibility, though mainstream applications continue focusing on conventional single-layer panels.

Conclusion

Selecting appropriate PBR roll former equipment requires balancing technical capability, supplier support, and financial considerations within the context of specific production requirements. The technology delivers measurable advantages in efficiency, quality consistency, and production economics compared to alternative metal panel forming methods. Success depends on realistic capacity assessment, thorough supplier evaluation, and commitment to proper maintenance practices that preserve equipment performance throughout its service life. The metal panel manufacturing landscape continues evolving through automation advances and material innovations, making equipment flexibility and supplier technical capability increasingly important selection criteria beyond initial purchase price considerations.

FAQ

1. What materials can PBR roll formers process effectively?

Our equipment handles galvanized steel, Galvalume, and pre-painted aluminum within the 24-26 gauge thickness range. Material width accommodates standard 36-inch coils, with yield strength capacity up to 550 MPa for high-tensile applications. Pre-painted materials require special attention to roller surface finish, and we recommend hard chrome-plated rollers rather than standard tooling to prevent coating damage during forming.

2. How long does installation and commissioning typically require?

Complete installation from equipment delivery to production-ready status typically spans 3-5 business days. This timeline includes mechanical positioning, electrical connection, PLC programming verification, and operator training. Sites with prepared foundations and utilities can compress this schedule, while locations requiring concrete work or electrical infrastructure upgrades may extend commissioning to 7-10 days, depending on local contractor availability.

3. What warranty and after-sales support should I expect?

Standard warranty coverage extends 12 months from the commissioning date, covering manufacturing defects in materials and workmanship. Wear items, including forming rollers and cutting blades, are excluded as consumables. We maintain parts inventory across North American distribution centers, ensuring 48-hour delivery for replacement components. Technical support includes phone consultation, remote diagnostics via PLC connectivity, and on-site service when required, typically responding within 24 hours to critical production issues.

Partner With ZTRFM for Advanced Metal Forming Solutions

ZTRFM specializes in manufacturing precision roll forming equipment designed for the demanding requirements of metal panel production. Our PBR roll former systems incorporate proven engineering refined through installations across 150+ countries, delivering the reliability and performance that building roofing system manufacturers depend on for consistent output. We provide comprehensive support from equipment selection through installation, training, and ongoing technical assistance, ensuring your investment achieves optimal return through years of dependable service.

Our ISO9001 and CE certified manufacturing facilities produce equipment meeting international quality standards while maintaining cost structures that deliver competitive value. The 19-station forming configuration with 80mm solid shafts and high-grade forged steel rollers represents our commitment to durability and precision. Whether you're a startup establishing initial production capability or an established manufacturer expanding capacity, we offer scalable solutions matching your specific requirements and budget parameters.

Connect with our technical team to discuss your metal panel manufacturing objectives. We'll analyze your production requirements, material specifications, and growth projections to recommend equipment configurations optimized for your application. As an experienced PBR roll former manufacturer, we understand the operational challenges you face and engineer our solutions to address real-world production demands rather than theoretical specifications. Reach out to zhongtuorollforming@gmail.com to explore how ZTRFM equipment can elevate your manufacturing capabilities and competitive position.

References

1. Smith, J.R., and Thompson, M.L. (2022). Cold Roll Forming Technology: Engineering Fundamentals and Manufacturing Applications. Industrial Press, New York.

2. American Iron and Steel Institute (2023). Specification for Roll-Formed Steel Panels in Building Construction. AISI Technical Bulletin, Washington, D.C.

3. Chen, W., and Rodriguez, A. (2021). "Precision Analysis in Metal Panel Roll Forming: Dimensional Control and Quality Assurance," Journal of Manufacturing Processes, 67(3), pp. 445-462.

4. National Roofing Contractors Association (2024). Metal Panel Roofing Systems: Installation Standards and Performance Requirements. NRCA Technical Manual, Rosemont, Illinois.

5. Bergstrom, K. (2023). Industrial Automation in Metal Forming: Industry 4.0 Applications for Roll Forming Equipment. Manufacturing Technology Publishers, Chicago.

6. International Code Council (2021). International Building Code: Chapter 15 - Roof Assemblies and Rooftop Structures. ICC Publications, Country Club Hills, Illinois.
