Pbr roll former

High-Performance PBR Roll Former from Cangzhou Zhongtuo

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers industrial-grade pbr roll former systems engineered to produce Purlin Bearing Rib panels with exceptional precision. Established in 2014 as a national-level high-tech enterprise, our machines feature 19-station forming configurations with 80mm solid shafts and 350mm H-beam construction frames. Processing 24-26 gauge materials at speeds reaching 15-20 meters per minute, our product employs high-grade 45# forged steel rollers with hard chrome plating and Cr12MoV hydraulic cutting blades. With CE and ISO 9001 certifications, our equipment serves over 150 countries, combining research partnerships with Yanshan University's National Cold Rolled Strip Equipment Engineering Center to deliver reliable metal forming solutions.

What Makes Our PBR Roll Former Different

The product produces metal roofing panels with an extended purlin bearing leg that distinguishes it from standard corrugated machines. This specialized profile ensures complete structural support at overlap points, eliminating common failure issues in commercial construction.

The machine transforms metal coils through continuous forming stations that shape trapezoidal ribs typically 1-1/4 inches high. This design enables panels to span longer distances between support structures while maintaining weather-tight sealing.

Our equipment handles galvanized steel, Galvalume, and pre-painted aluminum with consistent quality. The precision tooling creates exact overlaps that prevent water infiltration problems common in generic panel systems.

Technical Specifications

Key Applications Across Industries

Heavy Industrial Construction

Our pbr roll former serves pre-engineered metal building projects requiring high-volume production. The structural bearing leg supports insulation installation and withstands industrial wind loads critical for warehouse facilities.

Agricultural Infrastructure

Processing heavy-gauge steel up to 22 gauge, the machine produces corrosion-resistant panels for barns and silos. Tight tolerances ensure effective sealing against moisture and pests in animal confinement environments.

Commercial Retrofitting

For roof recovery projects, our equipment manufactures panels that install directly over existing metal roofing. The precise rib geometry nests correctly over old substrates, reducing preparation work in renovation scenarios.

Architectural Metal Cladding

The machine accommodates pre-painted coils for aesthetic applications while maintaining structural performance standards required in visible building facades.

Advanced Quality Control Process

Roller Precision Verification

Every forming station undergoes dial indicator testing to ensure shaft run-out remains below 0.05mm. This prevents camber and twist defects in finished panels that compromise installation quality.

Hydraulic Shear Testing

We inspect blade gap clearance through full-hard steel cutting tests at maximum thickness. Proper adjustment eliminates burrs and end deformation that reduce panel value.

Material Hardness Confirmation

Portable hardness testers verify roller heat treatment reaches HRC 58-62 standards. This ensures tooling maintains dimensional stability after processing thousands of meters without replacement.

Profile Accuracy Assessment

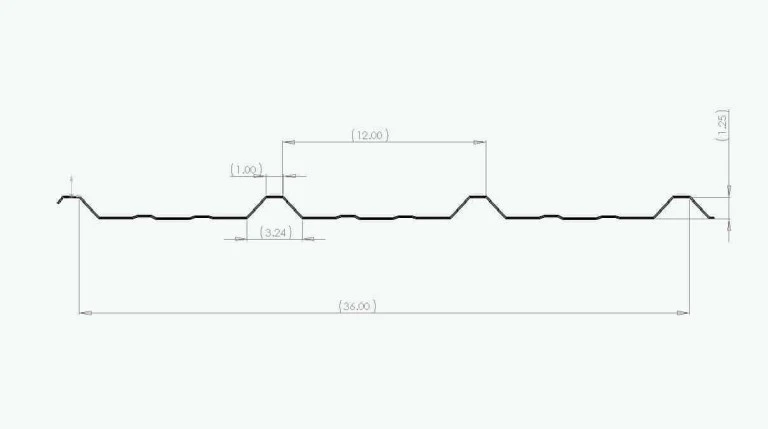

Finished panels are cross-referenced against CAD templates to verify rib height, 36-inch cover width, and pitch dimensions meet ASTM A792 tolerances (width ±1mm, length ±2mm).

Intelligent Manufacturing Technology

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Center integrates AI-powered optimization into production. Finite element analysis tools continuously refine forming accuracy based on simulation feedback.

Virtual debugging systems enable remote commissioning and maintenance, reducing downtime for international installations. Cloud-based monitoring supports long-distance diagnostics, particularly valuable for overseas customers requiring immediate technical assistance.

Graduate researchers contribute ongoing innovation in automation control systems. Their work in virtual PLC programming and predictive maintenance enhances equipment stability across diverse operating environments.

Installation and Operation Advantages

Quick Setup Configuration

Modular design allows installation within 3-5 days with basic foundation requirements. Turnbuckle adjustment systems enable gauge changes from 29ga to 22ga without specialized tools.

Multi-Voltage Compatibility

Equipment operates on 220V/380V/480V three-phase power at 50/60Hz frequencies, adapting to electrical standards across global markets.

Reduced Maintenance Requirements

Cr12MoV cutting blades handle 100,000-200,000 cuts before regrinding. Chrome-plated rollers resist wear from coated materials, extending service intervals compared to untreated tooling.

Operator-Friendly Controls

Touchscreen PLC interfaces provide multilingual operation with preset programs for common profiles. Emergency stop systems and safety guards meet international workplace standards.

FAQ

Q：How does this differ from standard R-panel machines?

A：Our product includes specialized tooling to form an extra bearing leg on the under-lap side. This provides structural support at lap joints that standard R-panels lack, preventing crushing during installation and improving weather resistance.

Q：Can the machine process high-tensile steel coils?

A：Yes, the 19-station configuration handles Grade 50 (345 MPa) and Grade 80 (550 MPa) steel. The progressive forming design manages spring-back effects that occur with high-strength materials.

Q：What power supply does the equipment require?

A：Standard installations need three-phase power at your regional voltage (220V/380V/480V, 50/60Hz). The main motor draws 5.5-7.5kW with an additional 4kW hydraulic station ensuring consistent forming torque and cutting pressure.

Q：How often do cutting blades need replacement?

A：Cr12MoV blades typically process 100,000-200,000 cuts before requiring professional regrinding. Actual lifespan depends on material thickness and tensile strength being processed.

Q：Does gauge switching require manual adjustment?

A：Minor turnbuckle adjustments on forming stands may be necessary when changing between extreme gauges (29ga to 22ga). This maintains profile definition without damaging pre-painted coatings during processing.

Contact Us

Ready to enhance your metal panel production capabilities with a pbr roll former? Our technical team provides tailored equipment specifications meeting your project requirements. Contact us at zhongtuorollforming@gmail.com  for detailed quotations and engineering support.
