Tr4/ Tr5 Roof Sheet Machine for Industrial Roofing Panels

When makers of roofing systems hit production snags because of uneven panel quality, slow forming speeds, or a lot of broken equipment, the right roll forming machine turns into more than just a tool; it becomes a competitive edge. For making trapezoidal roofing shapes with great accuracy and dependability, the Tr4/ Tr5 roof sheet machine is a specialised cold roll forming option. Through a continuous multi-station forming process, this equipment turns galvanised steel, galvalume, or pre-painted metal coils into structurally rigid roofing panels. This directly addresses the inefficiencies that plague traditional fabrication methods while ensuring consistent quality across large-scale production runs.

Understanding TR4 and TR5 Roof Sheet Machines: Features and Specifications

Core Machine Architecture and Profile Capabilities

Today's trapezoidal forming tools can handle TR4, TR5, and TR6 profiles. Ribs across the panel width are represented by each number. TR5 has a greater section modulus, making it superior for wind uplift resistance and snow load capacity. The machine can work with materials that are between 0.3 and 1.0 mm thick, and it can handle both normal construction-grade steel and high-tensile G550 alloys that are often used in coastal systems.

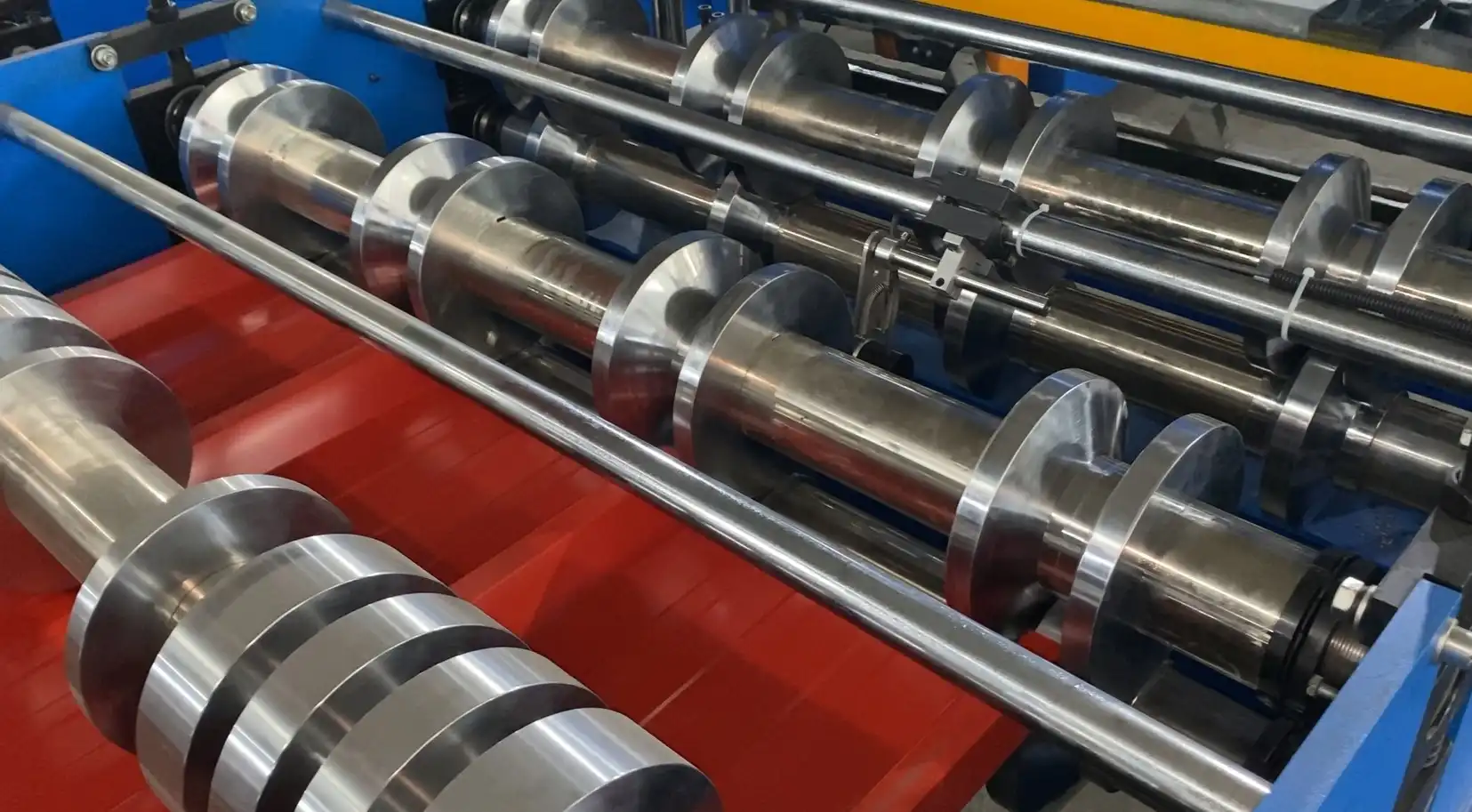

The producing procedure uses 13–15 precise stations. Hard chrome-plated 45# steel wheels reach HRC 58-62 surface hardness at each location. This layer protects precise pre-painted finishes during formation. Even at 15–25 m/min, the 80 mm roller shafts stay aligned. This ensures consistent production batch sizes.

Material Processing and Control Integration

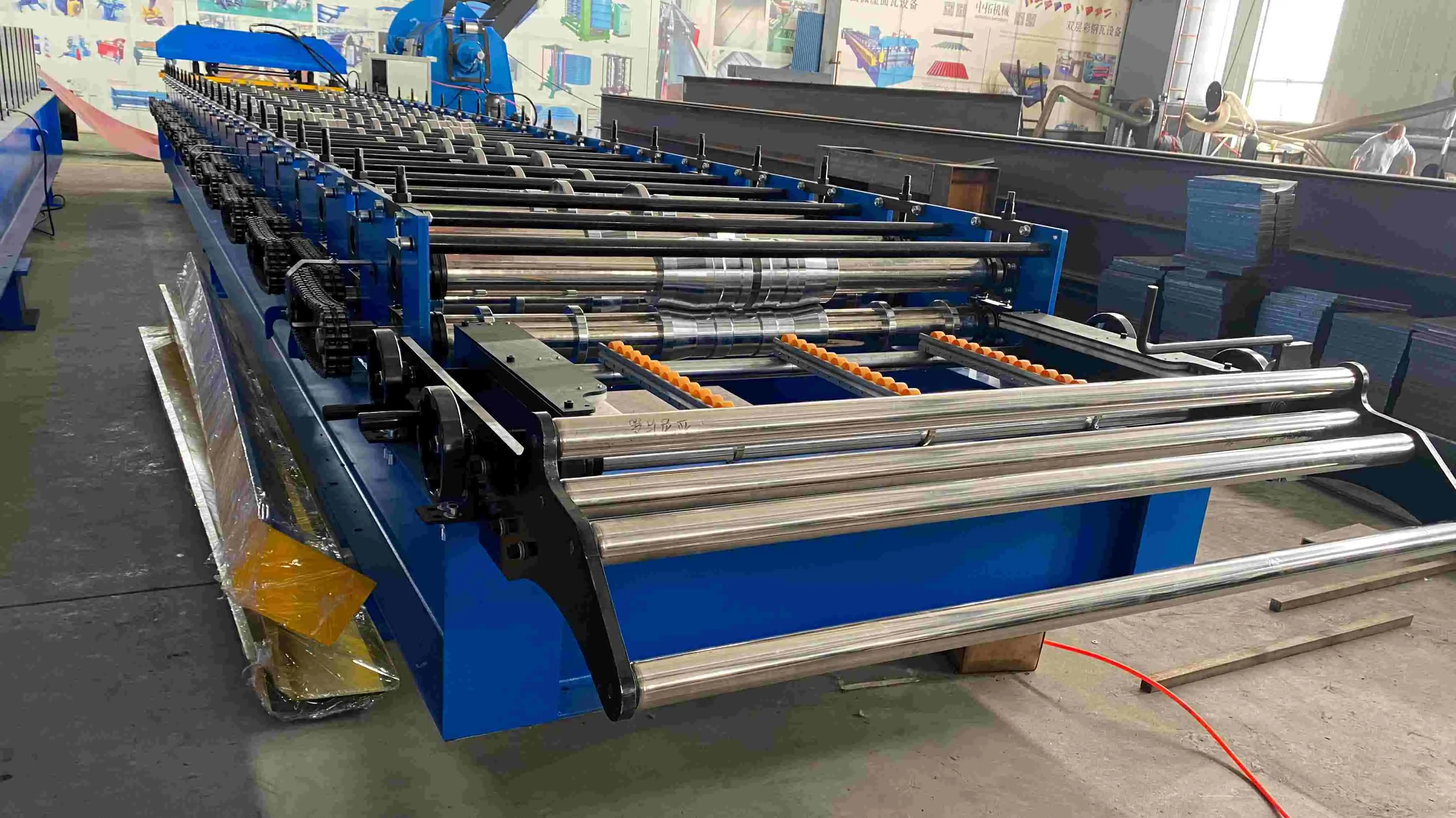

Manual decoiler stands or hydraulic unwinding devices, are used to handle coils, depending on the workload and operator preference. Before going into the progressive forming process, the material goes through levelling stations. Each station bends the metal profile more toward its final shape. This approach decreases material stress and prevents full-hard steel springback.

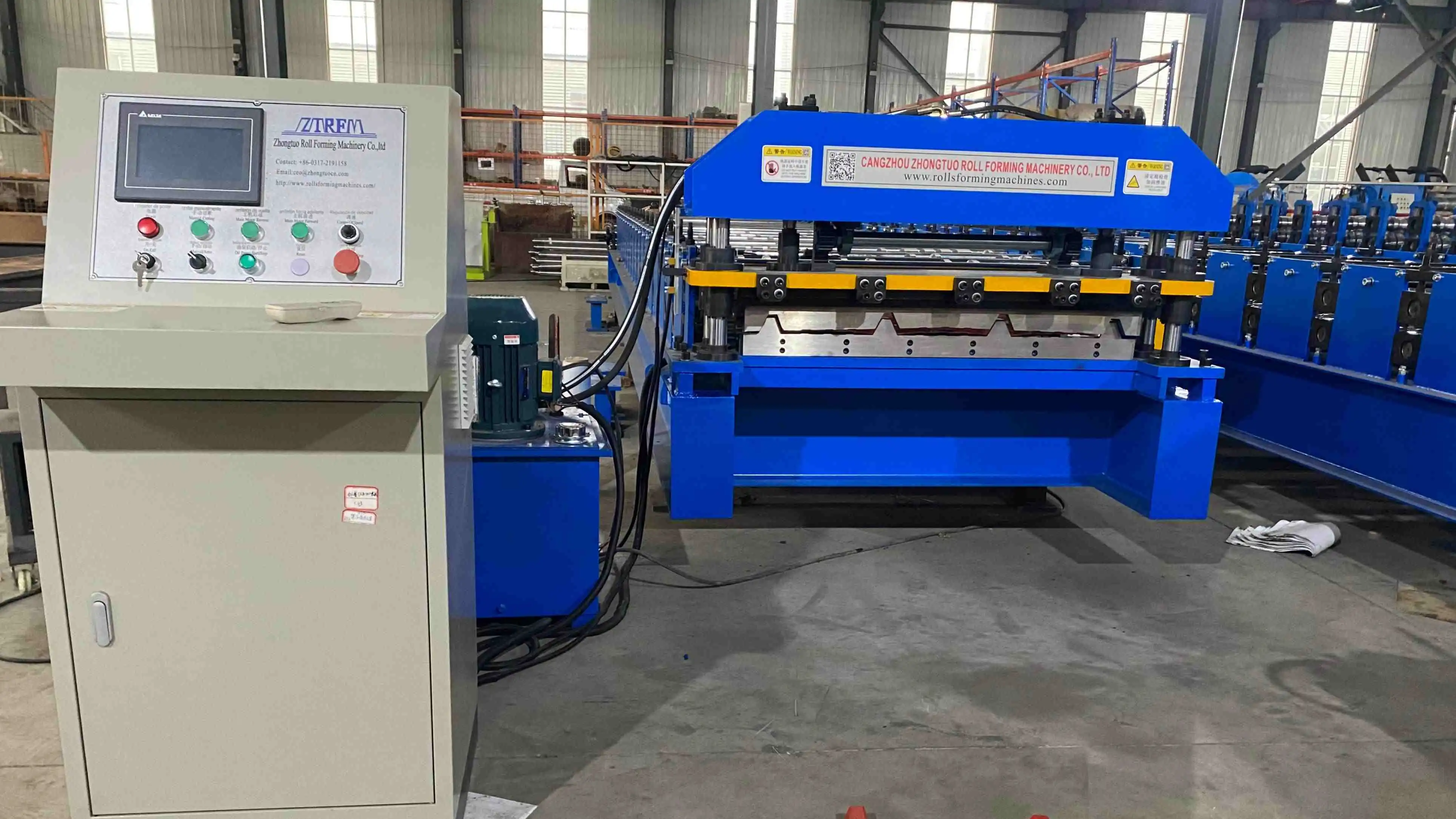

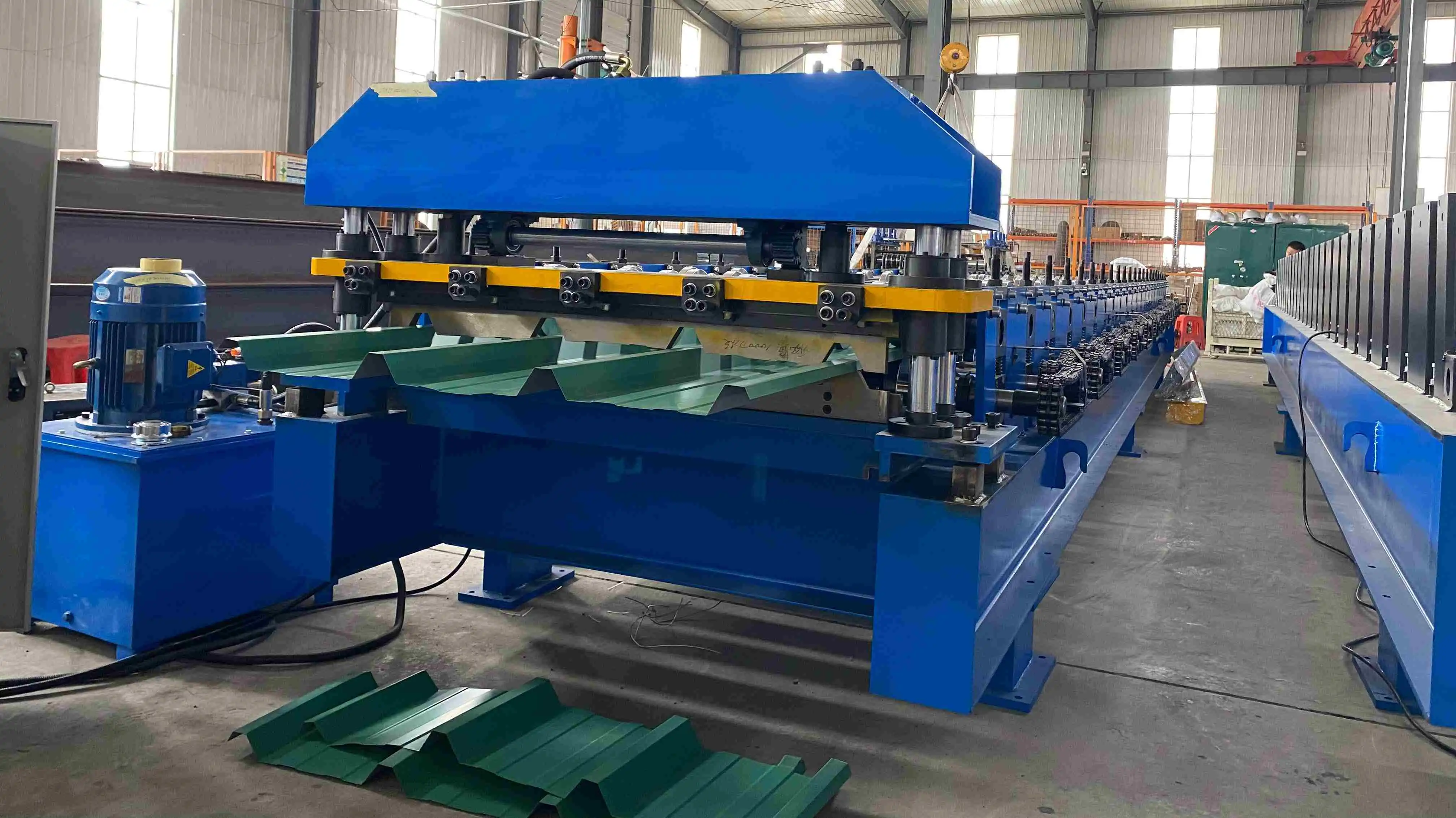

The whole apparatus is controlled by a touchscreen PLC. The technology uses precision encoders to quantify material movement when operators enter panel lengths. The 4 kW hydraulic cutting machine activates at predefined periods. The cutting precision is typically ±1.0 mm for most production runs. The hydraulic cut uses heat-treated Cr12MoV blades for durability. In single-shift work, blades last two to three years before sharpening.

Operational Safety and Maintenance Protocols

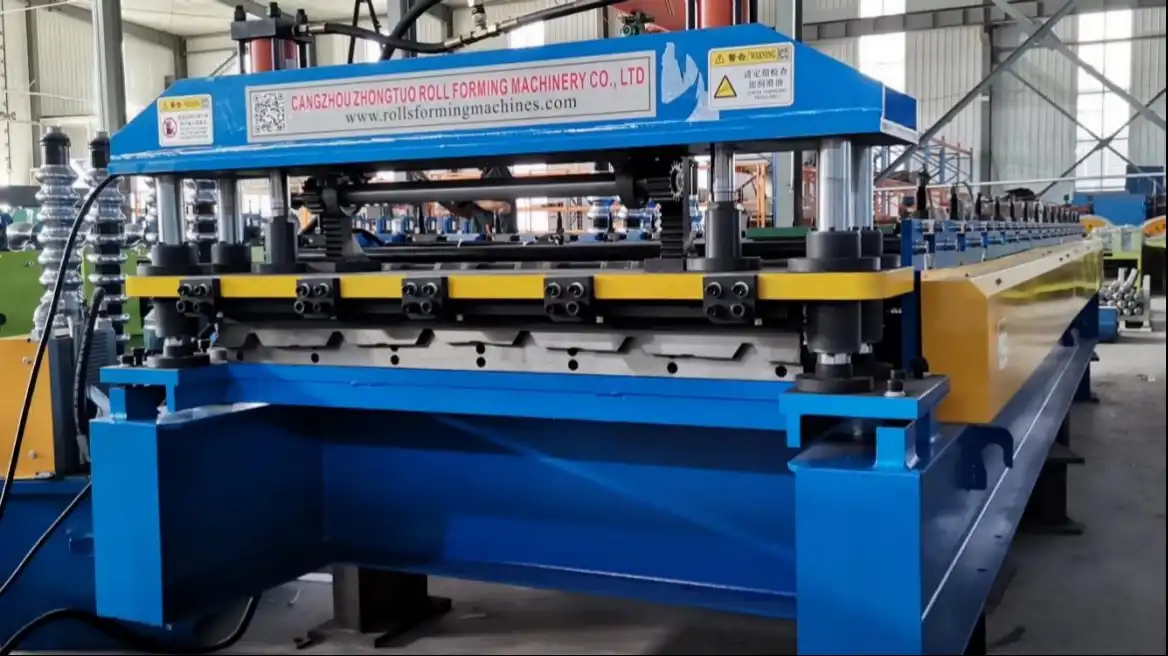

Before each manufacturing run of the Tr4/ Tr5 roof sheet machine, check hydraulic fluid, safety interlocks, and roller alignment. The 350-400 mm structural steel H-beam main structure is welded together to dampen vibration and maintain tolerances at maximum forming speeds. Every 200 hours of use, the drive chains should be oiled, and the state of the cutting blades should be checked once a month. Check for wear on the roller chrome finish that could damage the coil coatings.

TR4 vs TR5 Roof Sheet Machine: Comparison for Industrial Use

Performance Characteristics and Material Compatibility

The distance between ribs and coverage breadth are the key differences between TR4 and TR5 designs. TR4 forms typically cover 950–1000 mm from a 1200 mm coil stock. TR5 designs have less coverage but greater structural performance. TR5 panels are ideal for warehouse roofs with more than 10 meters between purlins because their extra center rib makes them 30% less likely to bend than TR4 panels.

Both profile types can work with the same materials, but G550 high-tensile steel machines need tighter station spacing and stronger shafting to prevent springback. Standard tools for grades G300-G450 may not keep full-hard metal dimensions within acceptable limits without engineering adjustments. Every setup uses about the same energy. Including hydraulic and pneumatic equipment, active forming cycles utilize 25–30 kW.

Investment Analysis and Operating Economics

First-time single-profile machine purchases cost between $28,000 and $45,000, depending on automation and decoiler size. Dual-layer machines that rotate between TR4 and TR5 profiles cost 25-35% more but eliminate the need for several manufacturing lines for different customers. When you have to make several specification changes during manufacturing, the clutch system that allows profile switching makes things more complicated, but gives you the freedom that saves money.

Operating costs are largely energy, repair materials, and blade replacement frequency. When recommended repair plans are followed, monthly maintenance costs for two-shift facilities range from $800 to $1,200. Material costs are directly determined by the amount of scrap that is produced. Equipment with correct calibration can achieve waste factors < 2% after setup and test runs. When replacing hand-made processes or obsolete, breakable equipment, roofing panel manufacturers predict a return on investment in 18 to 24 months.

Real-World Reliability Metrics

Production facilities with preventive maintenance have over 95% uptime across all industries. Hydraulic seals that wear out after 18–24 months of continuous usage and drive chains that test and need tensioning are common problems. Roller sets should be replaced every 5–7 years under typical working circumstances, advise manufacturers. However, facilities that process rough or unclean coil stock may wear faster and need replacement sooner.

Customer feedback always stresses how important it is to have quick technical support, especially during the installation and training phases for operators. Facilities without roll forming experts benefit from comprehensive setup, troubleshooting, and quality control training. When switching from handiwork, it takes two to three weeks to master consistency.

How to Choose the Best Roof Sheet Machine for Your Industrial Roofing Needs?

Aligning Specifications with Production Requirements

Start the selection process by reviewing output volumes, panel specs, and material grades. Manufacturers who make many standard profiles should use single-profile machines optimized for specific geometries. However, firms with many clients need dual-layer or quick-changeover systems. Production capacity planning should consider realistic operating speeds. Technical specifications may specify the fastest speed is 25 m/min; however, manufacturing is kept at 18-22 m/min to meet quality standards and reduce mechanical stress.

Material thickness handling is also crucial. Most roofing projects may be done by machines rated for 0.3 to 0.8 mm, although facilities that operate with larger gauge material must sometimes request 1.0 mm equipment to prevent shaft bending and part breaking. Trying to make material stronger than it was supposed to be using regular techniques invariably results in uneven dimensions and faster wear.

Supplier Evaluation and Certification Verification

Reputable manufacturers maintain ISO 9001:2015 quality management certification and provide CE marking documents to demonstrate worldwide safety requirements. These credentials prove the products were created with quality and electrical safety in mind. Current customers using similar equipment in similar production environments should provide recommendations for purchasing teams. The speed of installation assistance and spare part availability should be prioritized.

Customization distinguishes good sellers from great partners. Engineers can modify roller shapes to fit unique panel designs, add cutting stations for drainage holes or fastener slots, and adjust control systems to suit each facility's production tracking. This demonstrates their skills beyond catalogues. Operations teams may easily acquire new technologies from suppliers with multilingual technical documentation.

Warranty Coverage and After-Sales Infrastructure

Standard warranties cover workmanship defects and early component failure in regular operation for 12–24 months from installation. Options for longer warranties give more protection for important parts like hydraulic systems and control platforms. Insurance should specify what it doesn't cover, especially for frequently worn parts like cutting blades and hydraulic seals.

International installations of the Tr4/ Tr5 roof sheet machine require global after-sales assistance. Suppliers with multi-country service networks can swiftly deploy professionals to remedy equipment breakdowns, keeping production going smoothly. Remote diagnostics allows video-assisted troubleshooting, which can fix issues without visiting the location. Spare parts kept around the country allow crucial parts to be shipped within 48 to 72 hours, instead of manufacturing lead times.

Procurement Process: From Inquiry to Installation for TR4 and TR5 Roof Sheet Machines

Sourcing Channels and Pricing Dynamics

Buyers might interact with producers through direct plant sales, authorized distributors, or overseas trade platforms. Direct factory partnerships offer the best rates and customization options, but they need additional study to ensure they can manufacture and are financially secure. Authorized distributors might charge 10-15% more than factory direct rates since they provide local assistance and store extra parts.

As of 2024, material and supply chain costs are still affecting market prices. Well-known companies sell single-profile machines for $32,000–$42,000. More modern dual-layer systems that can change over automatically cost between $48,000 and $65,000. A rudimentary hydraulic decoiler and manual runout table provided these numbers. A powered stacking system and heavy-duty hydraulic unwinder cost $5,000 to $12,000. Payment plans typically require 30% upon order confirmation, 60% before shipment, and 10% after installation.

Logistics Planning and Installation Coordination

From order approval to plant readiness, simple setups take 45–60 days and highly customized equipment takes 75–90 days. Shipping times vary per destination. Foreign ocean freight reaching North American ports takes 25-35 days, whereas local trucking takes 5-10 days. Dual-layer systems may need shipping parts too large to fit on pallets, while standard machines can fit in 40-foot high-cube containers.

Professional installation prepares the foundation, connects the electricity, and calibrates the system. Installation teams usually finish setting up in three to five days, which includes putting together the mechanical parts, starting up the hydraulic system, and programming the control platform. Operators learn basic functions, safety standards, and maintenance throughout this time. Roll forming facilities can install themselves with remote technical support. This reduces installation costs by 40–50%.

Establishing Parts Supply and Maintenance Support

Buy spare parts to avoid protracted downtime when a component fails. Your first inventory should include hydraulic seals, drive chain links, cutting blade sets, and electrical contactors. Replace these frequently worn parts regularly. Preparing components supplier accounts before equipment arrives simplifies emergency orders.

Maintenance contracts may involve preventative maintenance and frequent checks from manufacturers or third parties. An annual agreement usually includes two full-service visits that check the machine's mechanics, check the hydraulic system, fix any problems with the control platform, and give the operators new training. These planned maintenance plans prolong equipment life, maintain it, and honor warranties. They assist in operating cost budgeting.

Summary and Future Outlook of TR4 and TR5 Roof Sheet Machines in Industrial Roofing

Strategic Equipment Selection Recommendations

The choice between TR4 and TR5 configurations comes down to structural needs and where the car is positioned in the market. Manufacturers that work with residential buildings, where material cost is a big factor in buying choices, find that TR4 profiles offer the best mix of performance and cost. When working on large commercial buildings, industrial roofers can use TR5's structural advantages to get wider purlin spacing and lower support framework costs, which balance out the slightly higher material consumption per square metre.

Investing in new roll forming technology has a direct effect on a company's ability to compete by increasing production efficiency, ensuring consistent quality, and lowering the need for labour. When facilities use old equipment that breaks down often, the problems get worse: unplanned downtime hurts customer trust, repair costs go up, and quality problems lead to warranty claims. Making strategic decisions about replacing equipment while the business is making money is much less disruptive than having to make emergency purchases when equipment fails catastrophically.

Emerging Technology Integration Trends

The industrial roofing panel market is still changing as it moves toward more automation and smarter monitoring of production. Modern machines use servo-driven feeding systems instead of the old chain-and-sprocket systems. This makes the machines more accurate at measuring length and requires less mechanical upkeep. Real-time production tracking systems keep track of the number of panels, cycle times, and materials used. They do this by collecting performance data that helps operators make choices about how to improve operations.

For the Tr4/ Tr5 roof sheet machine, increasing energy efficiency is mostly about using variable-frequency drives, which change the speed of the motor based on production needs instead of leaving it going at full speed all the time. These methods cut the amount of electricity used by 15 to 20 percent and make motors last longer by reducing heat stress. Automated lubrication systems get rid of the need to grease things by hand and make sure that key bearing surfaces always get lubricated. This stops premature wear caused by poor upkeep.

Environmental concerns are becoming more and more important when it comes to equipment specs. Manufacturers are prioritising designs that make the least amount of noise and allow for efficient scrap metal recovery. Using cartridge valve technology in quiet hydraulic systems lowers noise levels in the workplace to below 80 decibels, making it more comfortable for workers during long production runs. Because of these improvements, modern roll forming tools can be seen as long-term investments that will pay off in the long run. They are also in line with changing government rules and business responsibility efforts.

Conclusion

Trapezoidal roof sheet forming equipment is a basic technology used by companies that make metal building parts. It turns raw coil stock into precisely designed structure panels. The TR4 and TR5 configurations are made for different types of markets. The TR4 is better for residential construction projects that want to save money on materials, while the TR5 is better for commercial installations that need better structural performance. Modern machines can cut at speeds of 15 to 25 m/min and are accurate to within 1 mm. They do this with the help of PLC control platforms and hydraulic cutting systems that are designed to last longer between repairs. To choose the right equipment, you need to make sure that the machine's specs match the amount of work that will be done, check the supplier's abilities beyond the price they quote, and set up complete maintenance and parts supply systems. The industrial roofing industry is still moving toward more automation and energy efficiency, which means that the money being spent on new tools can be used to add to the industry's capabilities in the future.

FAQ

Q1: Can double-layer machines produce both TR4 and TR5 profiles simultaneously?

In double-layer machines, both profile configurations are housed in the same frame, but only one layer is worked on at a time. The chosen profile's drive system is turned on by a clutch device or an electric switch, while the inactive layer stays still. This design saves power and floor space compared to having two separate production lines. However, because the motor and gearbox system is shared, it is still not possible to do dual-profile production at the same time.

Q2: What material thickness ranges prevent equipment damage?

Standard machines that are set up to work with materials that are 0.3 to 0.8 mm thick shouldn't be able to handle materials that are thicker than 1.0 mm without engineering changes. When you force too thick a material through normal roller sets, the shafts can bend, the cutting blades can crack, and frame parts can get damaged. When buying new equipment, facilities that sometimes work with heavy gauge material need to make sure that it is rated for a wider range of thicknesses. This is to avoid having to pay for expensive fixes and having to stop production.

Q3: How does the machine handle high-tensile G550 steel?

To deal with the strong springback properties of G550 steel, new configurations are needed with closer station spacing and stronger shafting. If you don't make these changes, standard tools that are designed for G300-G450 grades might make panels that aren't the same size when they're formed from full-hard steel. When buying tools, manufacturers should make sure to include G550 compatibility to make sure that the right technical provisions are made.

Partner with a Trusted Tr4/ Tr5 Roof Sheet Machine Manufacturer

At ZTRFM, we know that choosing industrial forming equipment is a big decision that needs careful thought about technical specs, source dependability, and the ability to provide long-term support. Since 2014, our company has focused on designing and building cold roll forming machinery. This has given us a lot of experience dealing with the problems that manufacturers of roofing panels face. We are committed to quality control and product safety standards, as shown by our ISO9001, CE, and CAS certificates. Our Tr4/ Tr5 roof sheet machine for sale is based on tried-and-true engineering principles that have been improved by setups in over 150 countries around the world.

We offer full OEM and ODM services, so you can change the roller profiles, control interfaces, and other equipment to exactly meet your production needs. Our one-stop service plan includes more than just selling equipment. It also includes technical training, overseeing the installation process, and quick help after the sale through our global service network. Our team is ready to come up with solutions that fit your operational goals and budget, whether you run an established roofing production plant that wants to increase its capacity or a new business that wants to start making metal building components. Email us at zhongtuorollforming@gmail.com to talk about your unique needs and get detailed technical proposals that are made to fit your production setting.
