PLC Automatic Ceiling T Grid Roll Forming Machine

A ceiling T grid roll forming machine is a specialised industrial equipment line designed to manufacture the metal framework components used in suspended ceiling systems. These automated production lines transform galvanised steel (GI) and pre-painted galvanised steel (PPGI) coils into precision-engineered main tee, cross tee, and wall angle profiles through a continuous cold-forming process. By integrating PLC (Programmable Logic Controller) technology, modern systems achieve exceptional dimensional accuracy, high-speed production, and consistent quality—eliminating the inefficiencies and structural inconsistencies associated with manual fabrication methods in commercial ceiling installations.

Understanding the PLC Automatic Ceiling T Grid Roll Forming Machine

Ceiling grid manufacture has advanced with the switch from human to machine roll forming. In the past, profiles were manufactured by hand or using semi-automatic machines that required human input and produced inconsistent profiles. PLC-controlled systems transformed this picture.

What Makes PLC Automation Different？

Smart PLC technology controls the whole production line. PLCs can precisely regulate every stage of the production process, from feeding and rolling materials to punching, stamping, and cutting, unlike relay-based systems. This coordinated control ensures that every design fulfils modular ceiling system criteria for acoustic tile installation, which requires errors of less than 0.5 mm.

At ZTRFM, we've seen technology immediately tackle metal structure builders' challenges. Our clients previously experienced manufacturing delays, high scrap rates, and laborious changeovers. PLC-controlled lines allow them to produce at 15-20 m/min while maintaining quality. Companies that create construction materials for large business initiatives that value volume and precision will benefit from this capability.

Core Components and Their Functions

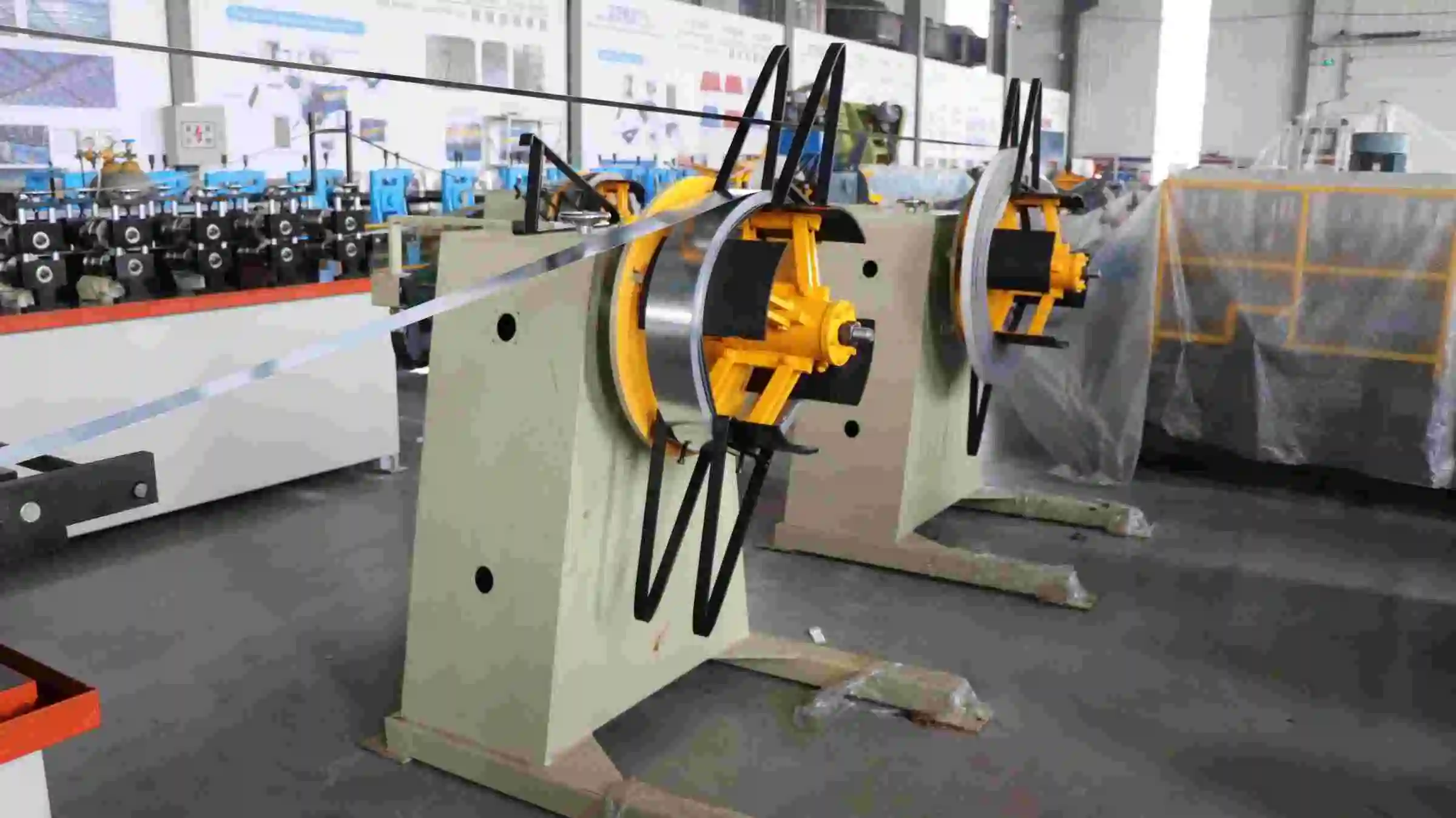

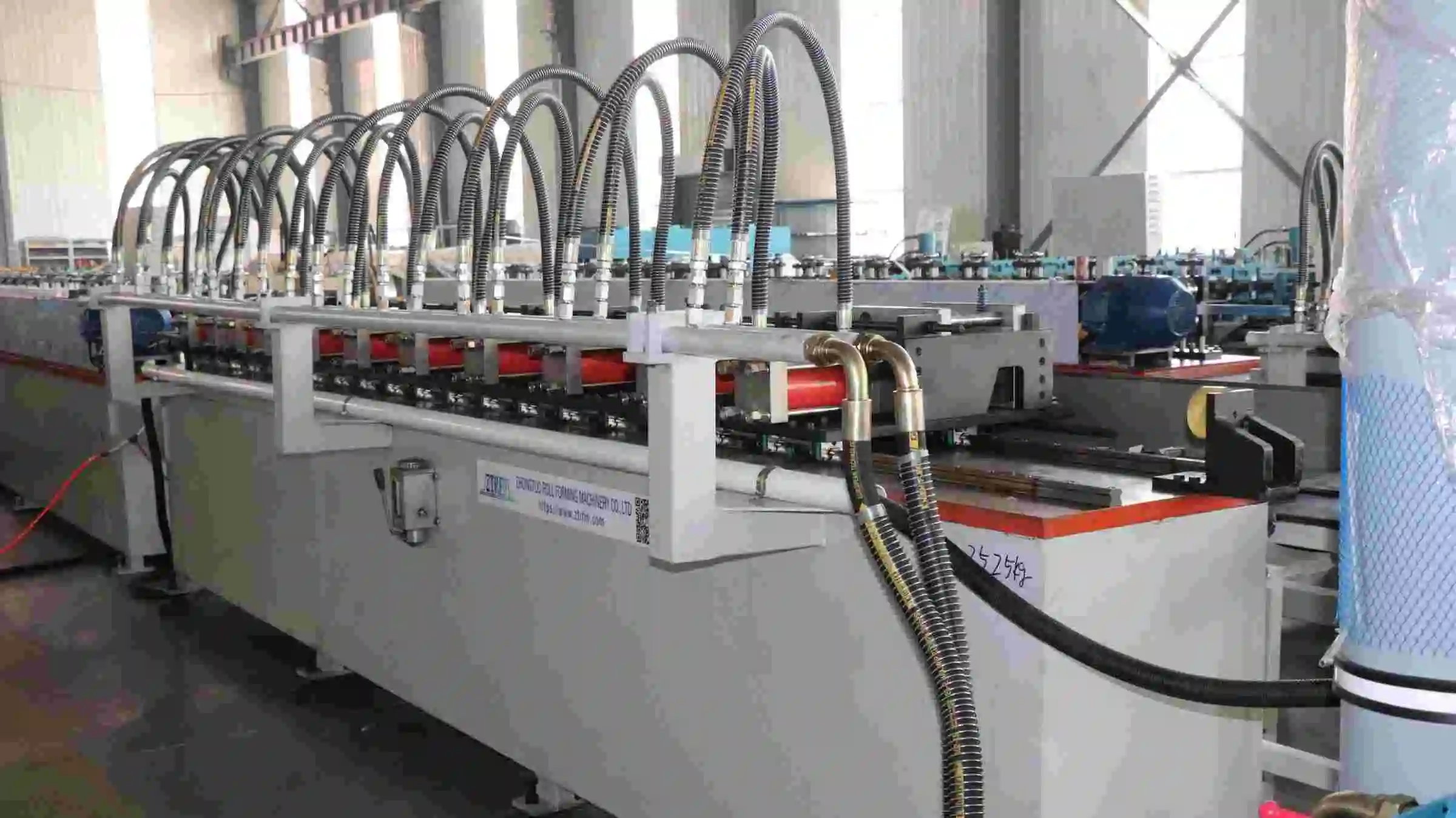

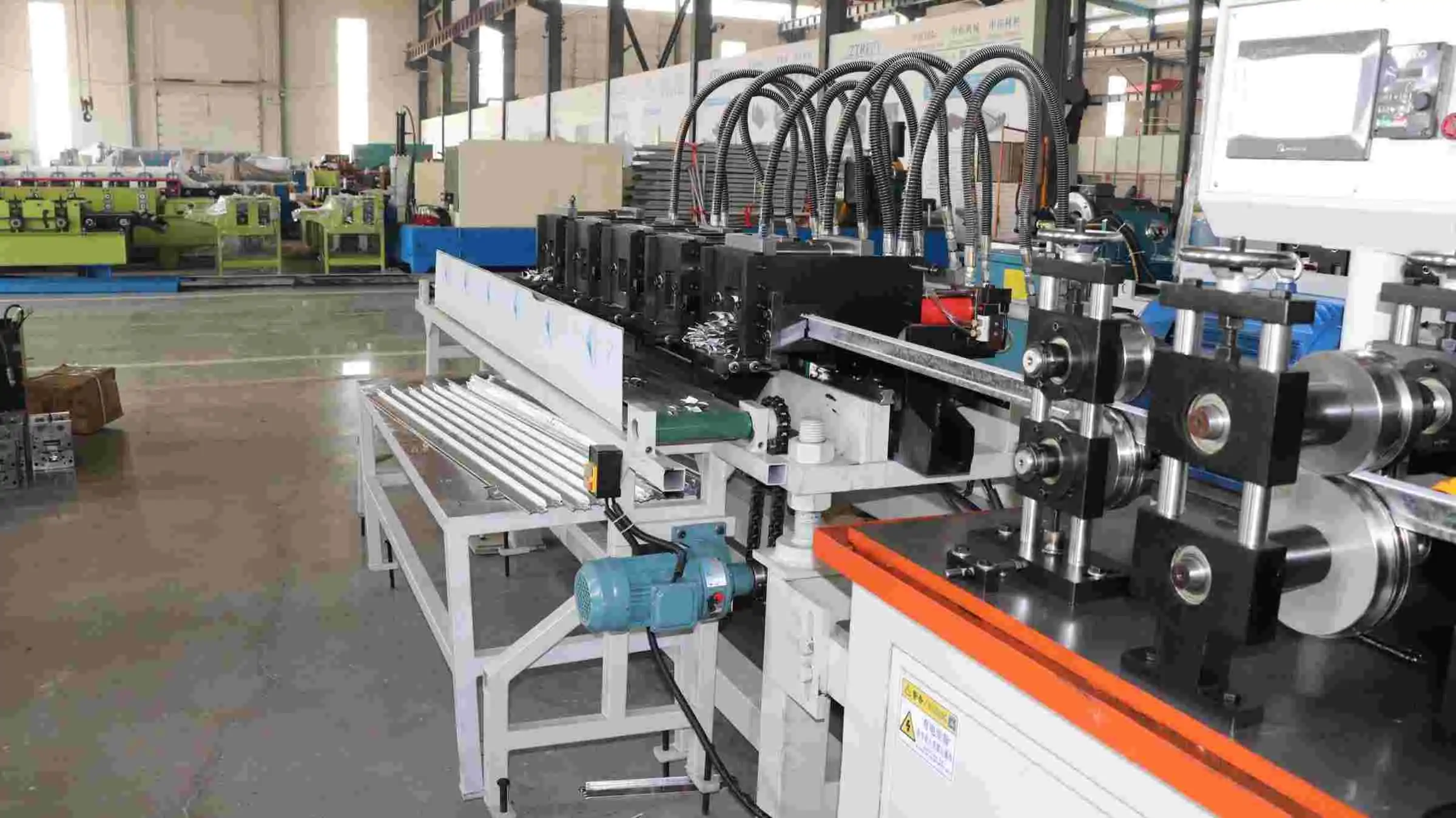

A standard automated ceiling t-grid roll forming machine includes built-in stations that function together. The 1.5-tonne decoiler can handle 450–550 mm coils. Material speed and tension are regulated by servo-controlled feeding devices. The brain has 18 roll-forming stations for main tees and 16 for cross tees. Each station contains precision-machined GB-Cr12 steel rollers for durability and performance.

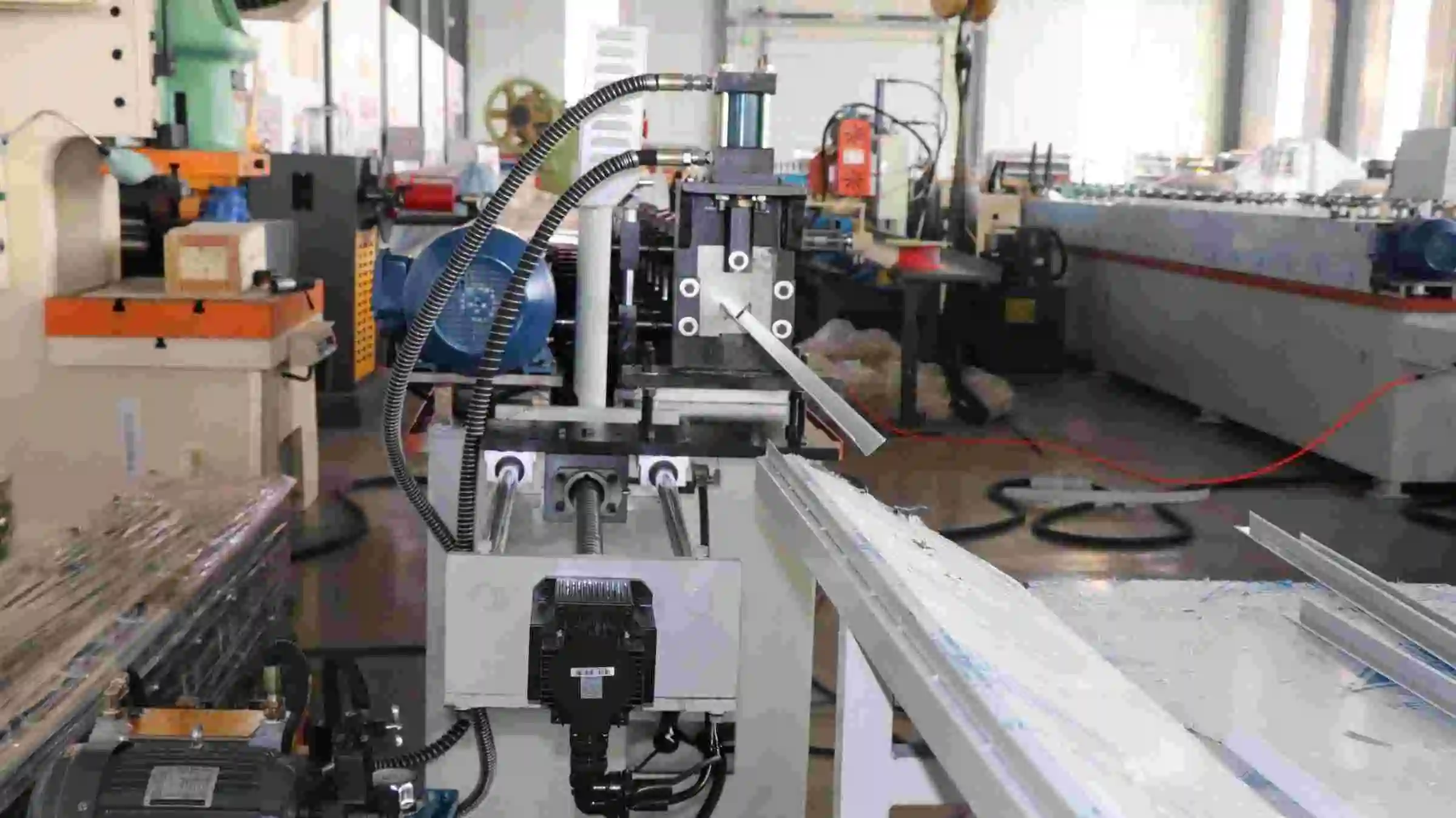

PLC-controlled punching and cutting devices distinguish advanced systems. End profiles, connecting holes, and embossing patterns are made without pausing production with these instruments. Flying cut technology uses line speed to trim profiles to length. This reduces waste and processing.

Key Features and Benefits of PLC Automatic Ceiling T Grid Roll Forming Machines

Material adaptability is a big asset for organisations selling to many clients. Our equipment uses 0.1–0.3 mm PPGI for obvious tops. For structural bottoms, it uses 0.2–0.4 mm thick GI steel. Manufacturers can achieve stylistic and load-bearing demands in one manufacturing cycle by using two materials.

High-performance PLC ceiling t grid roll forming machines address manufacturer concerns regarding dependability and efficiency with these features:

• Precision Engineering for Consistent Quality: 45# steel rolling rods with a 50mm diameter are sturdy and don't bend much at high speeds. With controlled roller gap modifications, this system can produce thousands of metres of consistent cross-section output. Manufacturers estimate garbage rates have fallen by almost 40% compared to prior technology. In high-volume procedures, material costs are greatly reduced.
• Automated Changeover Capabilities: The PLC's memory stores numerous profile settings for speedy main tee, cross tee, and wall angle manufacturing. With programmed roller settings, hand-adjusting takes 15–20 minutes, compared to 2–3 hours. Companies selling their goods in countries with differing ceiling grid standards, such as those using metric instead of imperial, benefit from this versatility.
• Integrated Quality Control Systems: Newer lines contain sensors that measure material width, shaping pressure, and form size in real time. The PLC automatically adjusts settings for material variances, preventing issues. This proactive solution eliminates manual inspection system quality issues and protects manufacturers' names in competitive marketplaces.
• Reduced Labour and Operating Costs: Fully automated systems require one qualified expert instead of four or five controllers, saving time and money. The PLC interface's touchscreen controls and clear feedback make training new personnel easier. Maintenance timing features notify workers when lubrication is needed, and parts are wearing out, reducing breakdowns and extending equipment life.

These advantages alter the ceiling grid manufacturing economics. By improving productivity, reducing waste, and paying workers less, our manufacturers generally recover their costs in 18–24 months. Industrial equipment providers should have reliable equipment to maintain long-term supply chain partnerships, according to procurement specialists.

How to Choose the Right PLC Automatic Ceiling T-Grid Roll Forming Machine for Your Business?

To pick the proper ceiling t-grid roll forming machine, consider your existing demands and future expansion objectives. We've assisted hundreds of makers through this process and identified important decision variables to ensure success.

Assessing Production Capacity Requirements

See what your target market wants and how many orders you have. In an eight-hour shift, a 15–20-metre-per-minute line creates 7,200–9,600 metres, enough to cover 12,000–16,000 square metres. Compare this skill to your sales and growth strategies. Startups and small firms may seek flexible, low-investment equipment, whereas older manufacturers need high productivity to retain their contracts.

Consider product mix as well. Manufacturers that just create basic industrial grid profiles don't require as much intricacy as architects who need custom profiles, colours, and finishes. We've seen firms that don't consider future change acquire pricey new equipment within three years.

Evaluating Technical Specifications

Material appropriateness transcends thickness. Make sure the roller strength and station count match your items. For simple grid manufacturing, simpler designs may work, while systems with 16 to 18 forming stations may handle complex geometries with multiple bends and stiffening ribs. Roller material—especially GB-Cr12 or a related tool steel—affects maintenance frequency and long-term measurement accuracy.

Ceiling T grid roll forming machine: the PLC brand and control should be carefully considered. Trustworthy Siemens, Mitsubishi, or comparable controllers provide system reliability and simple access to professional aid. The control system should keep profile recipes, identify issues, and log output. These properties are crucial for quality control and process improvement.

Scrutinising Supplier Credentials

Equipment reliability depends on how successfully the manufacturer fixes issues after sale. Look beyond low pricing to analyse providers' role-producing technology track record. ISO9001 and CE certifications demonstrate that a corporation maintains quality control and safety criteria for global tool shipping.

Global after-sales support is crucial for organisations without significant IT teams. Well-established suppliers can promptly repair, provide spare parts, and provide professional training on-site. ZTRFM's shipping experience in over 150 countries has shown us that complete assistance is more vital for long-term client satisfaction than equipment cost.

Balancing Investment and Scalability

Budget limits are vital, but focusing on the first acquisition price might lead to regret. Calculate the total cost of ownership, including installation, training, maintenance, energy usage, and product lifespan. Higher-quality equipment with increased automation reduces unit manufacturing costs over 10–15 years.

Consider flexible extension options if growth is expected. Some systems allow you to add coating lines, cutting patterns, or stamping stations without replacing the primary equipment. This upgrading strategy saves capital and grows the firm.

Installation, Operation, and Maintenance Best Practices for PLC Ceiling T Grid Roll Forming Machines

Years of steady production depend on precise placement. The ceiling t-grid roll-forming machine should be mounted on reinforced concrete supports, level within 0.5 mm per metre to prevent damage. Powering sensitive PLC parts requires local regulations and proper grounding and shock protection.

Calibration and System Commissioning

The initial setting requires calibrating each manufacturing station. Roller spacing, punching alignment, and cutting time must be adjusted carefully. Experienced personnel complete commissioning in 5–7 days, including test runs with genuine production materials. This allows parameters to be fine-tuned for different steel kinds and thicknesses, creating the optimum PLC recipes for future production.

Operator Training and Safety Protocols

Comprehensive training reduces accidents and quality concerns. Operators must know how to load materials, operate the PLC interface, and make frequent modifications. Before operating something alone, someone should be taught about emergency stops, jam clearing, and easy repairs. Safety elements, including light shades, emergency stops, and protection, must operate correctly. Regular safety assessments ensure OSHA compliance and safeguard people and tools.

Preventive Maintenance Guidelines

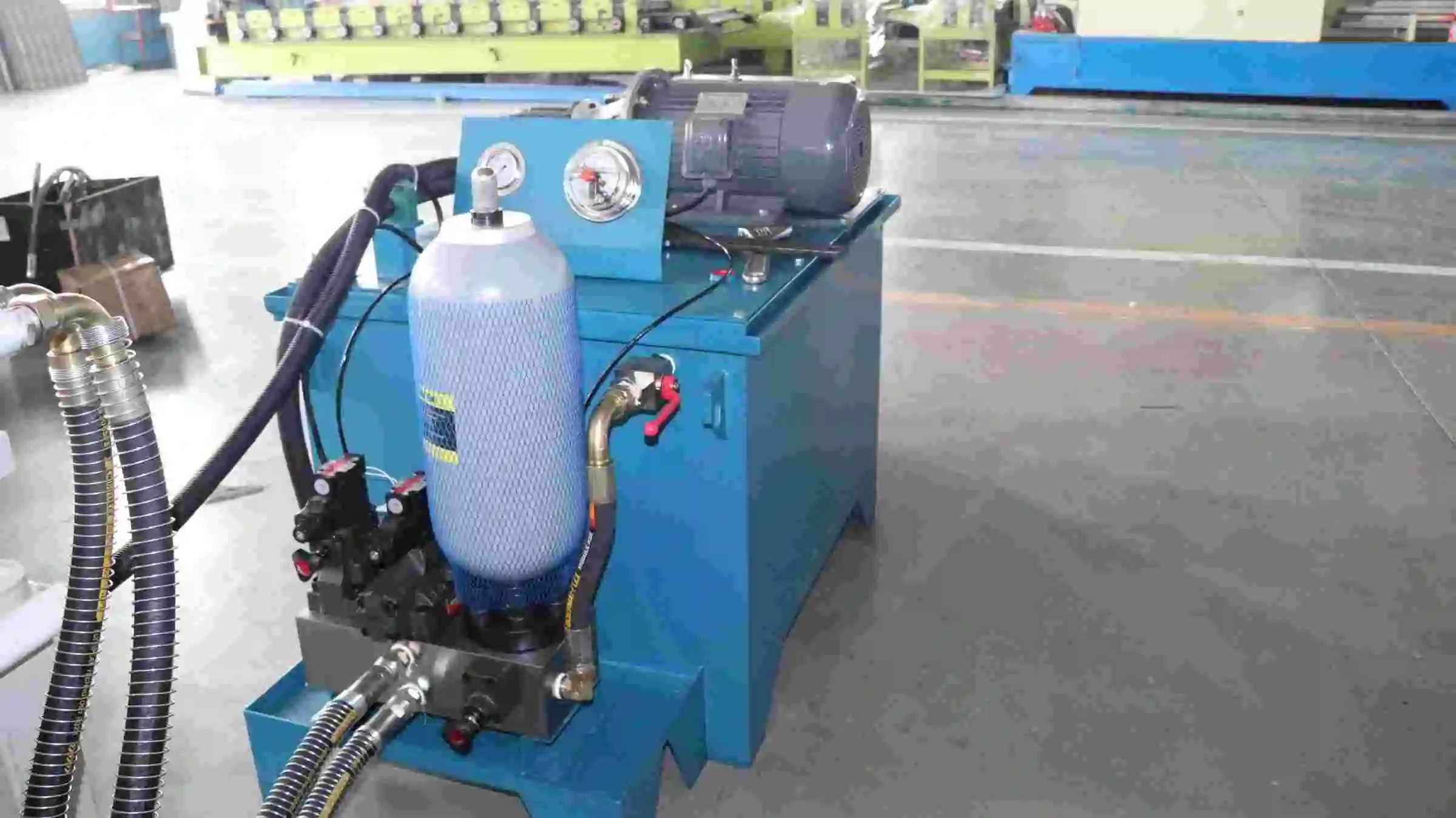

Scheduled repair extends equipment life and prevents costly breakdowns. You must oil chain drives and roller bearings, align material feeds, and sharpen cutting blades daily. Weekly maintenance includes PLC backups, hydraulic fluid levels, and air pressure checks. Roller wear patterns and uneven touch that indicate balance issues should be checked monthly. High-volume operations require bearing replacement every 12–18 months, depending on use. The PLC diagnostic system monitors working parameters and alerts personnel before a breakdown.

Case Studies and Success Stories: Real-World Applications of PLC Automatic Ceiling T Grid Roll Forming Machines

A mid-sized Midwest metal product manufacturer was under pressure from faster-shipping competitors. Their previous semi-automatic line struggled to meet demand spikes, and consumers complained about quality. They saw significant benefits in six months after implementing a ZTRFM PLC-controlled ceiling t grid roll forming machine in 2022. They were able to take on larger projects since their manufacturing capacity increased 160% without expanding floor space. Computerised quality control reduced problems from 8% to 2%. The firm recouped its investment in 20 months.

A global engineering business needs standard ceiling grid manufacture for three nations' project sites. Machines that could create ASTM and European forms easily during the conversion were needed. ZTRFM supplied their North American and European locations with identical PLC-controlled lines with grid-specific coding. Standardised equipment simplified supply chain management and equipment maintenance. Operators trained at one location may work at others, giving the workforce additional alternatives when demand increases.

A new ceiling grid manufacturer launched with limited money and technical know-how. They required inexpensive instruments that wouldn't reduce their quality or hinder their progress. ZTRFM carefully built up a system with all automation features and provided thorough training. Within three weeks of receiving the tools, the firm began production. By delivering low costs and efficient production, they immediately led the market. The modular architecture allowed them to add features later, protecting their investment and growing the business.

Conclusion

PLC automated ceiling t-grid roll forming machines are excellent investments for building supply firms that wish to compete. Metal structure producers of all sizes may employ this technology to improve efficiency, consistency, and scheduling flexibility. From startups to production increases, choosing the correct tools and dealing with reliable suppliers is crucial to long-term business success. Companies that seek long-term success should prepare and make educated decisions to migrate to automated roll forming systems. The practical and financial benefits are worth it.

FAQ

1. What materials can PLC ceiling grid roll forming machines process?

PLC-controlled systems can handle today's galvanised and pre-painted steel bars. The device uses 0.1 to 0.3 mm PPGI for conspicuous portions and 0.2 to 0.4 mm GI for structural sections. The number of forming stations and roller design determine material compatibility. In North America, ASTM A653 steel is popular, and the correct tools can handle it.

2. How does PLC automation improve production efficiency compared to manual systems?

Automation eliminates manual modifications between manufacturing cycles, increasing speeds from 5 to 8 to 15 to 20 m/min. The PLC controls all manufacturing phases, reducing waste and processing. Most manufacturers report efficiency has increased 150–200%, quality has improved, and labour costs have decreased for the ceiling T-grid roll-forming machine.

3. What maintenance requirements should manufacturers expect?

Daily maintenance includes 30 minutes for lubrication and eye exams. Weekly device backups and fluid checks are required. Rollers and bearings are inspected monthly for maintenance. The PLC monitoring system monitors operational parameters and warns of potential issues. This lets you schedule maintenance instead of fixing things immediately. Well-maintained equipment reaches 95% efficiency in most workplaces.

4. Can equipment be customised for non-standard ceiling grid profiles?

Reputable manufacturers can adjust profile shapes, cutting patterns, and embossing designs. Roller tools can be customised for certain building projects' grid patterns. The PLC system stores multiple product formulations, making it easy to switch between conventional and customised settings. Customisation adds three to four weeks to delivery timeframes, but it helps niche market enterprises stand out.

Partner with ZTRFM for Advanced Ceiling T-Grid Roll Forming Solutions.

ZTRFM can assist manufacturers in finding reliable ceiling T grid roll forming machines. They've done cold roll shaping for ten years. In 2014, we began offering entire manufacturing solutions to clients in over 150 countries. These technologies have helped startups create their first capabilities and worldwide corporations standardise production. Our ISO9001, CE, and CAS certificates demonstrate our commitment to quality.

We realise industrial equipment selection goes beyond specifications. Working with vendors that can give continuous professional assistance, easy-to-find spare parts, and speedy answers to workplace issues is also important. Our tech team collaborates with customers to provide unique manufacturing solutions within budget. Whether you require a complete line or modular improvements to existing equipment, we offer the freedom and experience to help you maximise ceiling grid production operations.

Talk to our technical staff at zhongtuorollforming@gmail.com about your production demands and obtain a complete tool quote. We give extensive presentations on capacity planning, technical specs, installation, and operator training. You can be confident your investment will be worth the most right away.
