What is a roll forming machine？

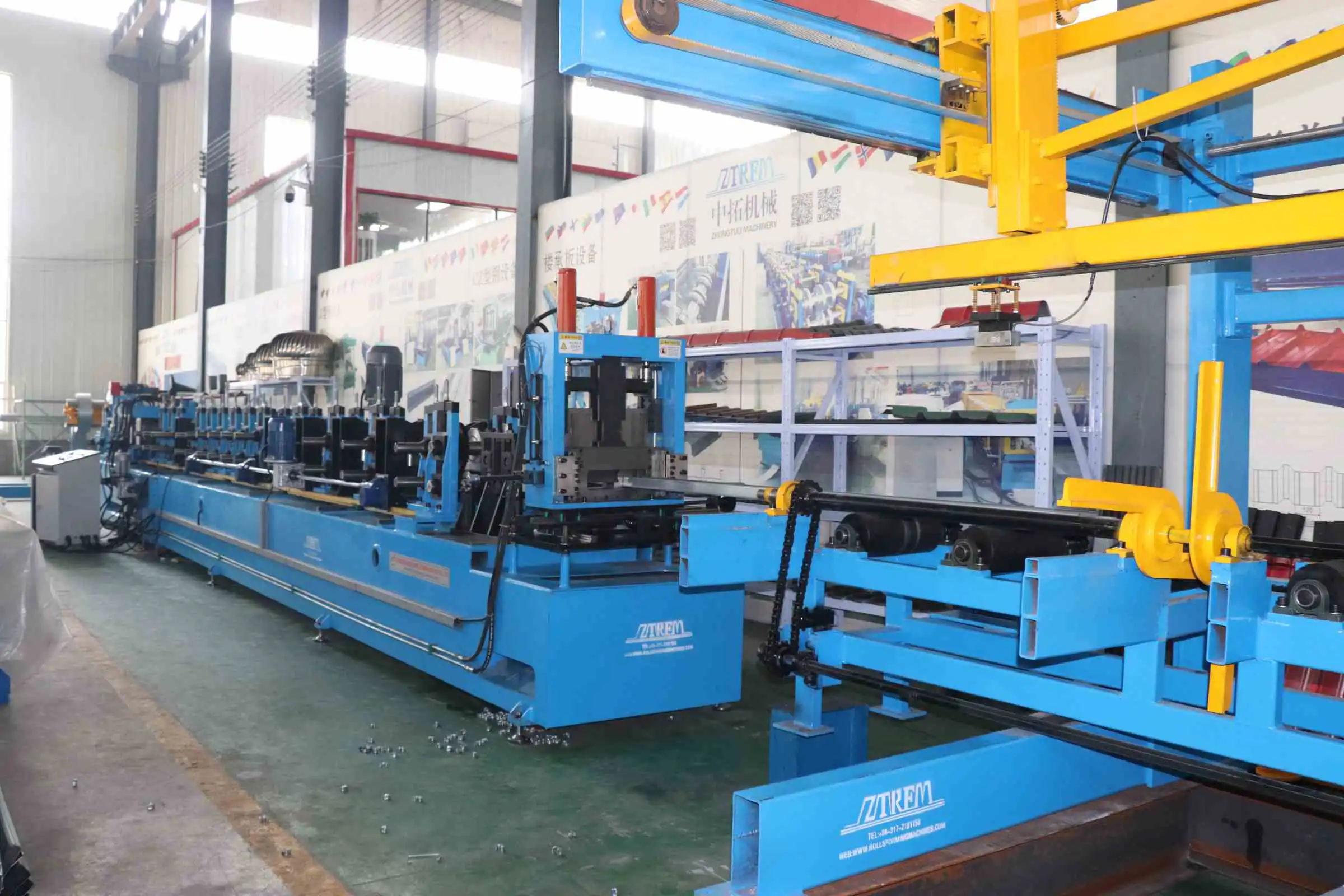

A Roll Forming Machine is a piece of industrial equipment that bends flat metal coils into complicated shapes over and over again.  This advanced manufacturing process uses a series of rollers that are carefully placed to slowly mold metal strips into the desired cross-sectional shapes.  The method involves putting metal coils through several shaping stations. Each station bends the material a little more until the final shape is reached.  Roll forming machines are particularly important in modern manufacturing. They create everything from roofing panels to structural pieces very quickly and accurately.

Understanding Roll Forming Technology

The Fundamental Principles of Roll Forming

Roll forming represents one of the most efficient metal shaping processes in modern manufacturing. A Roll Forming Machine operates on the principle of progressive bending, where metal strips pass through a series of roller dies arranged in sequence. Each forming station contributes a small amount of deformation, allowing the material to gradually transform without causing stress concentrations or material failure. Compared to standard stamping or press brake operations, this meticulous technique ensures that the dimensions and surface quality are better. The continuous nature of roll forming enables high-volume production while maintaining consistent profile geometry throughout the entire length of the formed product.

Material Compatibility and Specifications

Modern Roll Forming Machines demonstrate remarkable versatility in processing various metal materials. These systems efficiently handle Pre-Painted Galvanized Iron (PPGI), Galvanized Iron (GI), Aluminum-Zinc alloy coated steel, stainless steel, and aluminum coils with thicknesses ranging from 0.3mm to 0.8mm. The material compatibility extends beyond basic metals to include composite materials and specialty coatings. The Roll Forming Machine maintains consistent forming quality regardless of material type, thanks to precision-engineered rollers manufactured from high-grade materials like 40CR and HRD steel. This material's adaptability lets producers change their production processes to meet different market needs and uses.

Advanced Control Systems and Automation

Contemporary Roll Forming Machines integrate sophisticated control technologies to ensure precise operation and consistent output quality. Siemens PLC control solutions let operators keep the best forming parameters throughout production runs by fully monitoring and adjusting processes.  Omron encoders make it possible to measure and cut lengths accurately, while automated feeding systems keep the material flowing smoothly.  These advanced control features make it less likely that operators will need to step in, which improves product uniformity and production efficiency.  The automation features of current Roll Forming Machines are a big part in improving the quality and productivity of production as a whole.

Applications and Product Types

Architectural and Construction Applications

Roll Forming Machines are great at making important parts for a wide range of construction projects.  These technologies make the parts that go into the roof tiles, wall panels, purlins, and structural frame, which are the building blocks of modern buildings. The AG Panel Roll Forming Machine manufactures agricultural panels with special ribbed designs that are great for roofs, storage buildings, and buildings in rural locations.  Roll-formed panels are great for tough weather since they are strong and can withstand the elements.  Construction workers like roll-formed parts because they are always the same quality, have exact measurements, and work reliably.

Industrial and Commercial Manufacturing

Roll forming machines can be used in many other industries, not just in construction.  These systems make door frames, ceiling systems, floor decking profiles, and other pieces that are needed for machinery housing. Metal embossing can make surfaces seem nice and work well, and high-frequency welding can make structural tubes and pipes.  These days, roll forming machines are very flexible and can make many things, from car parts to furniture hardware. Manufacturers who serve more than one market sector will find these systems to be good investments because they may be used in a variety of ways.

Specialized Product Lines and Custom Solutions

Advanced Roll Forming Machines accommodate specialized production requirements through customizable configurations and tooling options. Color stone tile production lines combine roll forming with coating technologies to create premium roofing materials. Shelf system forming capabilities support retail and warehouse storage solutions, while metal composite panel production addresses modern architectural demands for lightweight, high-strength building materials. The ability to process both traditional materials and innovative composites positions Roll Forming Machines at the forefront of manufacturing technology evolution. Custom tooling and specialized forming sequences enable unique product development and market differentiation.

Technical Specifications and Performance

Mechanical Design and Construction

The robust construction of Roll Forming Machines ensures reliable operation under demanding production conditions. Forming stands typically utilize 42CR steel shafts with 75mm diameter for exceptional stability and longevity. The chain and gear transmission systems provide smooth, consistent power delivery throughout the forming process. Hydraulic cutting systems with 4kW power capacity deliver clean, precise cuts with minimal material waste. The overall mechanical design puts durability and ease of maintenance first, making sure that the system will keep working well for a long time.  These systems are very reliable since they are made using high-quality materials and precise fabrication.

Production Capabilities and Efficiency

Modern Roll Forming Machines achieve impressive production speeds of 15-20 meters per minute while maintaining stringent quality standards. The uncoiling systems accommodate up to 5 tons of material, supporting extended production runs without frequent material changes. The 7.5kW motor configuration provides adequate power for various material types and thicknesses while maintaining energy efficiency. Production versatility extends to length capabilities, with cutting systems providing precise dimension control for custom applications. The combination of speed, capacity, and precision makes Roll Forming Machines ideal for high-volume manufacturing operations.

Quality Control and Precision Features

Integrated quality control systems ensure consistent product specifications throughout production runs. Thickness gauges monitor material consistency, while alignment sensors verify proper positioning during the forming process. Surface inspection systems detect potential defects before final cutting and stacking operations. The precision-engineered tooling maintains tight dimensional tolerances, typically within ±0.5mm for standard profiles. These quality control features minimize waste and ensure that finished products meet or exceed customer specifications. The comprehensive monitoring capabilities support continuous improvement initiatives and quality certification requirements.

Conclusion

Roll forming machines are important tools for making high-quality metal profiles for many different industries. These high-tech systems use advanced engineering, precision control, and strong construction to get the same results every time, even in tough industrial settings. Modern roll forming technology is a must-have for producers who want to go ahead in today's industry since it is flexible, efficient, and dependable.

As a leading Roll Forming Machine factory with over a decade of global experience, Cangzhou Zhongtuo specializes in designing and manufacturing cutting-edge roll forming solutions. Our expertise as a trusted Roll Forming Machine supplier extends to ODM, OEM, and comprehensive one-stop services. Whether you need standard equipment or custom solutions, our team of Roll Forming Machine manufacturer professionals is ready to help you achieve your production goals. Contact us today at coo@zhongtuocn.com to discuss your specific requirements and discover how our innovative technology can enhance your manufacturing capabilities.
