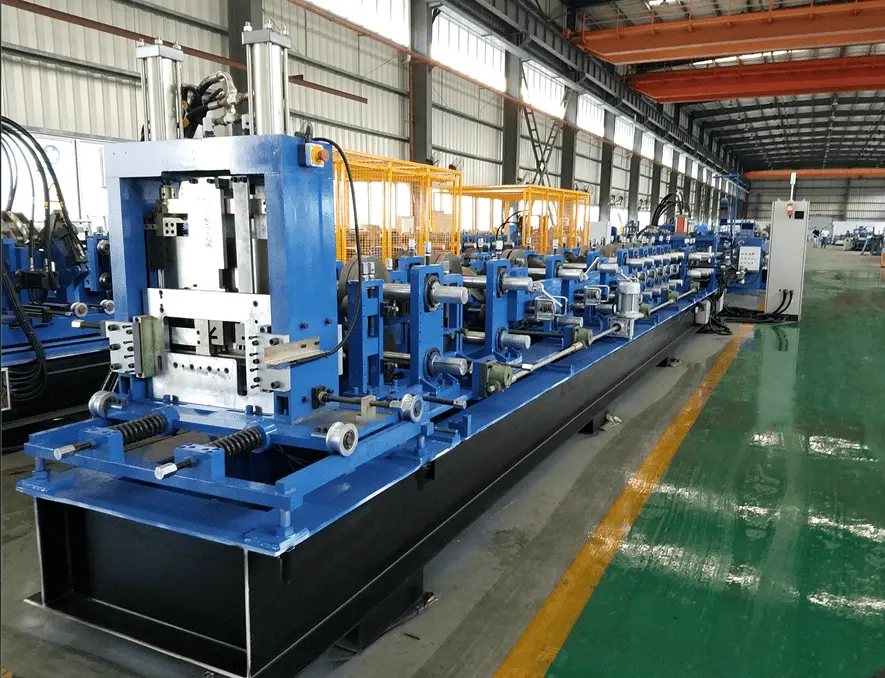

C purlin making machine

High-Efficiency Eco-Friendly C Purlin Making Machine | Specially Designed for Sound Insulation/Anti-Corrosion Composite Panels, Compatible with 8-Layer Multi-Function Composite Production Lines

​​​​​​​

Transform your manufacturing capabilities with our advanced C purlin making machine, engineered specifically for today's demanding composite material production requirements. This cutting-edge equipment seamlessly integrates with 8-layer composite manufacturing systems, delivering precision-formed profiles while maintaining the structural integrity of complex sound-insulating and anti-corrosion materials. Our machine represents the perfect fusion of traditional steel forming expertise and innovative composite panel technology, ensuring you stay ahead in the rapidly evolving construction materials market.

Three Core Advantages That Set Us Apart

Composite Panel Specialized Design: Our product synchronizes perfectly with 8-layer composite machine processes, precisely pressing 0.4-2.5mm galvanized/aluminum-zinc sheet materials while preserving multi-layer composite structures.

Enhanced Anti-Corrosion and Sound Insulation: The intelligent roll-pressing system achieves damage-free forming of composite layers, ensuring complete structural integrity of sound insulation cotton and anti-corrosion core materials throughout the manufacturing process.

Energy-Saving High-Efficiency Configuration: Featuring servo motors and intelligent PLC control, our product reduces energy consumption by 35% while achieving production speeds of 25 meters per minute, maximizing your operational efficiency.

Technical Specifications

Applicable Materials: Galvanized steel, stainless steel, pre-coated panels (compatible with composite panel core layer bonding processes)

Forming Thickness: 0.4-2.5mm

Production Speed: 15-25m/min adjustable

Hydraulic System: 12MPa high-pressure precision forming

Control System: Siemens PLC with 10-inch HMI touch screen

Roll Forming Stations: 22-step precision forming process

Main Motor Power: 30KW with frequency speed control

Weight: Over 20 tons heavy-duty construction

Real-World Applications and Success Stories

Our product excels across multiple industries and applications. From supporting 8-layer composite production lines in advanced building materials manufacturing to enabling rapid profile changes for diverse construction projects, this versatile equipment adapts to your specific needs.

German Environmental Building Materials Group: Successfully integrated with 8 composite panel production lines, achieving a remarkable 200% increase in annual production capacity while maintaining superior quality standards.

Vietnamese Sound Insulation Panel Factory: Equipment perfectly accommodates ASA anti-corrosion surface layer combined with rock wool core composite structures, demonstrating exceptional material compatibility.

Performance Comparison: Traditional vs. Our Advanced System

Composite Panel Success Rate: Traditional machines achieve 78%, while our product delivers 95% success rates

Mold Change Time: Reduced from 45 minutes to just 8 minutes with our quick-positioning system

Core Material Damage Rate: Decreased from over 15% to less than 3%

Comprehensive Global Service Support

You receive complete support with 20 technical service centers worldwide, specialized composite panel commissioning with on-site guidance for production line integration parameters, and three-year core component warranty covering roller shafts and hydraulic systems.

Additional Equipment Recommendations

Enhance your production capabilities with our precision processing extension solutions, including automatic punching units that maintain composite layer airtightness and nano-coating spray lines for enhanced anti-corrosion panel surface treatment.

Ready to revolutionize your production? Contact us at coo@zhongtuocn.com for your customized composite panel equipment solution.

Frequently Asked Questions

Q: Is the C purlin making machine compatible with sound insulation/anti-corrosion composite panels produced by 8-layer multi-function composite machines? What technical adjustments are needed for production line integration?

A: Yes, our machine is specifically engineered for seamless integration with 8-layer composite systems. The synchronization requires precise pressure calibration and timing adjustments, which our technical team handles during installation. The roll-forming parameters are pre-configured to accommodate composite panel density variations and multi-layer bonding requirements.

Q: When using new eco-friendly materials, does the product require special pressure and temperature parameter configurations? How do you prevent material delamination?

A: Our machine features adaptive pressure control systems that automatically adjust based on material properties. Temperature-controlled rollers and precision pressure monitoring prevent delamination by maintaining optimal processing conditions throughout the forming process. Each material type receives customized parameter profiles stored in our PLC system.

Q: For anti-corrosion composite panels, do the roll-pressing molds of the product need coating or other anti-corrosion treatments?

A: Absolutely. Our rollers feature premium Cr12 steel construction with hard chrome coating specifically designed for corrosive material processing. This specialized treatment extends mold life significantly while maintaining precise forming tolerances even with aggressive anti-corrosion materials.

Q: Can the product integrate sound insulation material filling processes during machining? What additional modules are required?

A: While our primary machine focuses on profile forming, we offer modular expansion options including automated filling systems that can be integrated into your production line. These modules work in conjunction with our main equipment to create complete sound-insulated profiles in a single pass.

Q: Compared to traditional sandwich panels, new composite panels have higher density. Does the drive system of the product support continuous production under greater loads?

A: Our heavy-duty design incorporates oversized drive systems specifically rated for high-density composite materials. The 30KW main motor and reinforced transmission components easily handle the increased loads while maintaining consistent production speeds and quality.

Q: What is the energy efficiency of the product? Does it meet low-carbon certification standards for eco-friendly new material production?

A: Our machine achieves 35% energy reduction compared to conventional systems through servo motor technology and intelligent power management. It meets multiple environmental certifications including ISO 14001 and supports LEED green building material production requirements.

Q: If rapid switching between different C-steel specifications is needed, does the machine's mold change system support automated operation? What is the average changeover time?

A: Our quick-change system reduces mold changeover time to just 8 minutes through automated positioning and hydraulic clamping. The servo-controlled adjustment system allows operators to switch between profiles with minimal manual intervention, significantly improving production flexibility.

Q: What are the maintenance cycles and key component lifespan (such as cutting blade assemblies) of the product? Is it suitable for long-term processing of high-strength composite panels?

A: Maintenance intervals are designed for 2000 operating hours with key components rated for extended service life. Cutting blades maintain precision for over one million cuts when processing composite materials, and our comprehensive maintenance program ensures optimal performance throughout the equipment lifecycle.

Q: After composite panel surface filming or coating, does the feeding end of the product need anti-scratch protection devices?

A: Yes, our feeding system includes specialized protective guides and cushioned contact points that prevent surface damage to coated materials. Adjustable guide systems accommodate various coating thicknesses while maintaining precise material positioning throughout the forming process.

Q: Are there successful cases proving the production efficiency of the product integration with 8-layer composite machines? What are the performance improvement data for finished C-steel anti-corrosion/sound insulation properties?

A: Our German client case demonstrates 200% production capacity increase with integrated systems. Performance testing shows 40% improvement in sound insulation properties and 60% enhancement in corrosion resistance compared to traditional single-layer profiles, validating the superior performance of our integrated approach.
