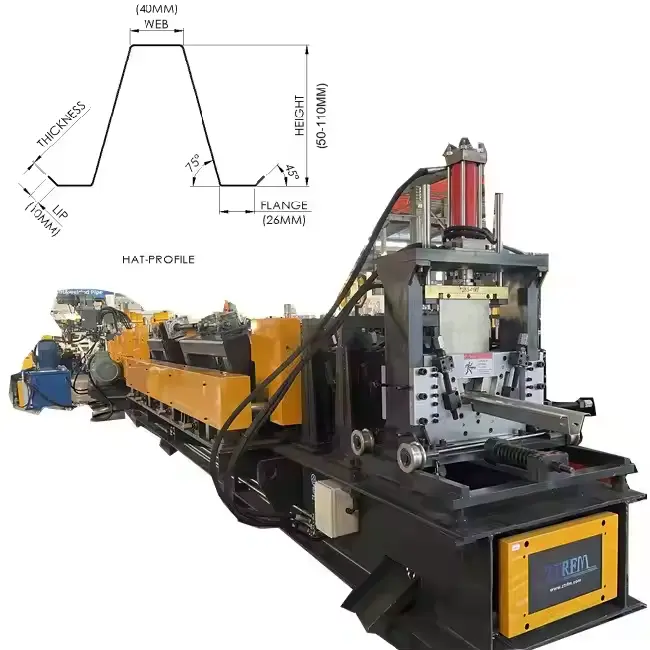

Omega Purlin Machine - High-Precision Steel Profile Forming Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd., established in 2014 as a national-level high-tech enterprise, manufactures advanced cold roll forming equipment for global construction and solar industries. Our Omega Purlin machine delivers industrial-grade precision with automatic size adjustment ranging from 100-300mm, processing steel thickness between 0.8-2.0mm at forming speeds of 15-20m/min. Equipped with Cr12MoV hardened rollers (HRC 58-62) and PLC-controlled automation, this system produces structurally consistent hat channel profiles with ±1mm length tolerance. ISO 9001 certified and CE compliant, our machinery integrates hydraulic punching systems synchronized with cut-to-length logic, reducing material waste to under 1% while maintaining zinc coating integrity on galvanized steel.

What Makes Our Omega Profile Former Superior

The specialized cold roll forming system eliminates common manufacturing defects found in press-braked profiles. Through continuous multi-pass rolling across 12-18 forming stations, it prevents camber and twist issues that compromise structural integrity.

Your production benefits from synchronized servo feeding technology. This precision control minimizes scrap rates significantly compared to manual fabrication methods.

The integrated Turk's head straightening unit at the exit adjusts for internal stresses released during forming. This ensures perfectly straight profiles even when processing high-tensile G550 steel with 550Mpa yield strength.

Technical Specifications of Omega Purlin machine

Key Industrial Applications

Solar Photovoltaic Mounting Systems require corrosion-resistant structural rails. The machine produces profiles with wide attachment faces ideal for solar clamps. Non-scratch forming process protects galvanized coating for 25+ year outdoor durability.

Steel Structure Roofing Projects utilize top hat sections as cladding battens. The Omega profile creates essential air gaps preventing thermal bridging and moisture accumulation. Elongated punch slots accommodate thermal expansion requirements.

Modular Ceiling Grid Systems in cleanroom environments benefit from the closed semi-tubular design. This configuration prevents dust accumulation better than open C-sections while supporting heavy HVAC ducting loads.

Our Omega Purlin machine serves these sectors through integrated pre-punching stations. Hydraulic systems deliver exact hole positioning for installation efficiency across diverse construction applications.

Quality Assurance Process

Every production unit undergoes rigorous factory testing before shipment. Profile geometry verification uses precision gauges to confirm EN 10162 standard compliance.

Full-load material stress testing runs G550 high-tensile steel through complete cycles. This validates frame rigidity and motor capacity without overheating or deformation.

Hydraulic stations receive 4-hour pressure tests at 15-20 Mpa. This identifies potential seal or valve leaks ensuring consistent cutting and punching performance.

Zinc coating preservation checks verify that roll forming hasn't stripped galvanized layers. Microscopic inspection protects your end-product's corrosion resistance warranty.

Our Yanshan University research partnership brings FEA simulation and AI-assisted optimization to quality control. Virtual commissioning reduces on-site debugging time while ensuring equipment meets exact specifications.

Advanced Customization Options

Spacer adjustment systems enable size changes within 2-4 hours for flexible production scheduling. Automated cassette-change configurations reduce profile switching to under 15 minutes for high-mix operations.

Choose between hydraulic post-punching or pre-punching configurations. While rotary systems offer speed, hydraulic precision suits variable hole patterns in custom solar racking designs.

Control interfaces support multiple languages through our programmable PLC systems. CAD drawing input allows batch production with preset length and quantity parameters.

Your voltage and frequency requirements receive full accommodation. Whether you need European, North American, or Asian power specifications, we configure equipment accordingly.

Operational Advantages

The continuous forming process maintains superior surface integrity compared to press-brake methods. Chromium-plated rollers prevent damage to protective coatings during profile creation.

Synchronized cut-to-length logic eliminates manual measurement errors. Cumulative accuracy across 6-meter runs maintains industry-leading ±0.5mm punch position tolerance.

Remote monitoring capabilities through cloud-based platforms support overseas operations. Our Siemens partnership enables virtual diagnostics reducing downtime for international installations.

With equipment exported to over 150 countries, we understand regional compliance requirements. CE certification for European markets and CAS certification for North American clients demonstrate our global manufacturing standards.

FAQ

Q：How does the machine handle high-tensile steel without spring-back issues?

A：Gradual forming across 12-18 roller stations distributes stress evenly. Cr12MoV hardened rollers maintain precise pressure throughout the forming sequence, preventing deformation.

Q：What determines cutting blade longevity?

A：SKD11 blade material with proper heat treatment performs approximately 500,000 cuts before regrinding. Maintaining 0.02-0.05mm clearance gaps prevents burrs and extends blade life.

Q：Can one system produce multiple profile sizes?

A：Yes. Spacer-adjustment configurations accommodate different web heights from 20mm to 100mm without complete roller replacement, offering production flexibility.

Q：How is punching accuracy maintained over long production runs?

A：Hydraulic systems with servo-controlled positioning ensure consistent hole placement. PLC programming stores patterns eliminating cumulative error across batch operations.

Q：What after-sales support do international customers receive?

A：We provide remote commissioning through virtual debugging platforms. Cloud-based monitoring enables real-time diagnostics with multilingual technical support via video conferencing.

Contact Us

Ready to enhance your steel profile production capabilities? Our engineering team designs tailored Omega Purlin machine configurations meeting your specific requirements. Contact zhongtuorollforming@gmail.com  for technical consultations and quotations today.
