CZ Purlin Roll Former: High-Performance Steel Forming Solution

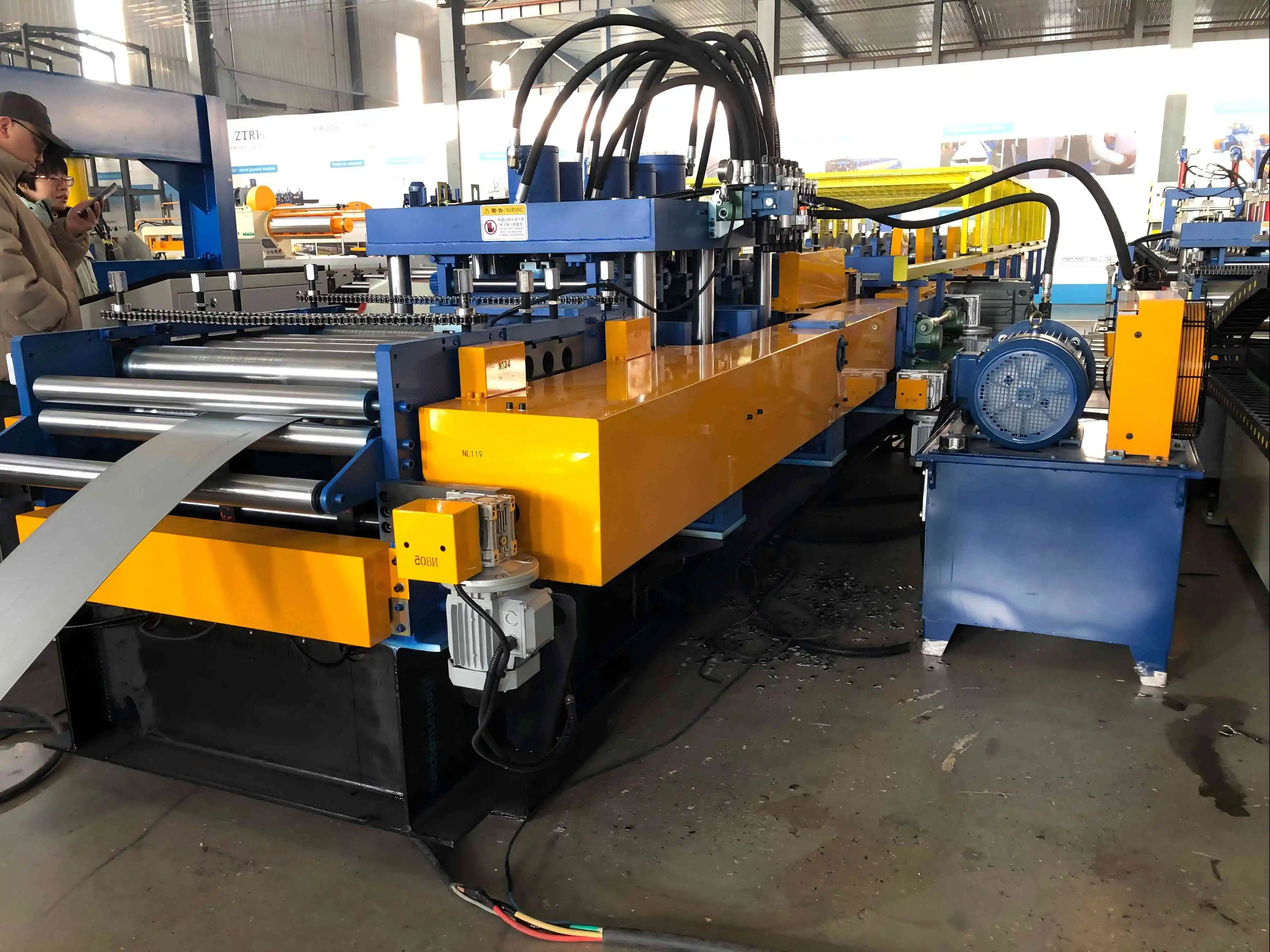

Our cz purlin roll former is engineered to deliver precision and flexibility for modern steel structure manufacturing. With quick profile changeovers in under 10 minutes through PLC control, this advanced framework eliminates the conventional 4-8 hour downtime that tormented more seasoned hardware. Built with GCr15 extinguished rollers (HRC 58-62) and fueled by servo engine innovation, it forms galvanized steel at speeds of 15-22m/min. The flexible measuring framework suits statures from 40-100mm, making it perfect for pre-engineered buildings, solar mounting structures, and rural framework projects.

What Makes Our CZ Purlin Roll Former Different?

You require hardware that works as hard as you do. That's precisely what you get here.

Our machine coordinating cleverly control frameworks with strong mechanical plan. The strong 40Cr steel shafts (70-90mm distance across) anticipate avoidance beneath overwhelming loads. You won't encounter the twisting issues common in lighter-duty machines.

The programmed operation framework employs computer control to oversee the whole shaping prepare. You essentially input your craved measurements through the HMI touchscreen. The machine alters itself.

No manual recalibration. No mystery. Fair, steady results.

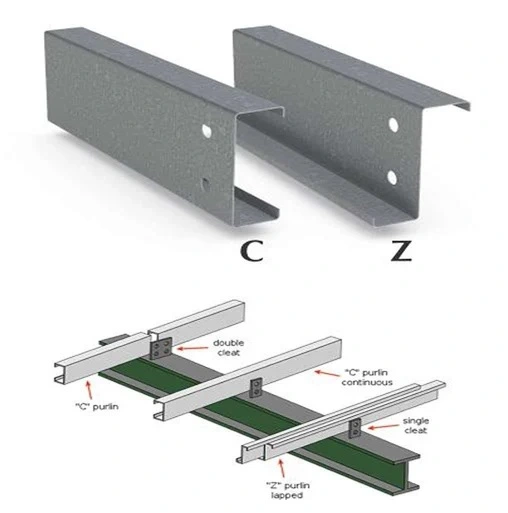

Dual-Profile Capability

Switch between C-sections and Z-sections without changing tooling. The rotating station mechanism handles this transition seamlessly.

Why does this matter? Z-purlins create lapping joints that distribute loads more effectively across wide bay spacings. C-purlins work better for simpler roof applications.

Having both options on one machine means you can respond to different project requirements immediately. Your production line stays flexible.

Speed and Precision Combined

At 15-22 meters per minute, you're looking at serious throughput. But speed means nothing without accuracy.

Our system maintains dimensional tolerances of ±1mm on web width and flange measurements. The servo motor feeding system ensures positioning accuracy within ±1.0mm.

Twist or torsion? Less than 1mm per meter over a 6-meter length. Your installation teams will notice the difference when everything aligns perfectly on-site.

Technical Specifications

Where You'll Use This Machine

Pre-Engineered Building Projects

Warehouses, factories, and distribution centers need reliable secondary framing. Our cz purlin roll former produces the roof and wall purlins that support these large-span structures.

The Z-purlin capability becomes essential when you're dealing with buildings that require continuous beam support. Those lapping joints handle higher structural loads without additional columns.

Solar Installation Frameworks

Ground-mounted solar arrays need corrosion-resistant support structures. The machine processes hot-dip galvanized coils with zinc coatings up to 600g/m² without surface damage.

This coating protection matters when your structures sit outdoors for 25+ years. The forming process doesn't compromise the protective layer.

Agricultural Buildings

Poultry houses, barns, and livestock facilities often require non-standard dimensions. The adjustable sizing capability lets you customize profile dimensions quickly.

Modern agricultural ventilation systems demand precise framing. You get that precision with our automated measurement systems.

Smart Manufacturing Features

We've partnered with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This collaboration brings advanced research directly into your production line.

Finite Element Analysis Integration

The machine design uses FEA optimization to perfect the forming process. Each roll station is positioned based on simulation results that minimize material stress.

You see this benefit in two ways: less material spring-back and longer roller life.

Virtual Debugging Technology

Before your machine leaves our facility, we run complete virtual commissioning. The PLC logic gets tested in simulated production scenarios.

This means fewer surprises during installation. The system works correctly from day one.

Remote Monitoring Capability

Cloud-based diagnostics let our technical team monitor your machine's performance from anywhere. If something needs adjustment, we can often resolve it remotely.

This reduces your downtime significantly. Especially valuable if you're operating in remote locations.

Quality Control That Matters

Since 2014, we've focused on manufacturing excellence. Our national-level high-tech enterprise status reflects that commitment.

Certifications You Can Trust

·  ISO 9001 Quality Management System

·  European CE Safety Certification

·  North American CAS Certification

These aren't just certificates on the wall. They represent audited processes that ensure consistent quality in every machine we build.

Testing Before Delivery

Every machine undergoes rigorous testing:

Profile geometry checks verify that web and flange dimensions meet specifications. We measure twist over 6-meter lengths to confirm it stays under 1mm/m.

Punching accuracy tests ensure hole positions align within ±1mm. Your bolt holes will line up during assembly.

Material stress tests run the machine with full-specification high-tensile steel (Q345, G450, G550). We verify that frame components don't deform under load.

Endurance runs operate the machine continuously for 8+ hours. We monitor for hydraulic overheating or control system errors.

Common Questions Answered

How long does profile changeover actually take?

On our fully automatic system, you're looking at 5-10 minutes. The PLC adjusts the roller positions automatically based on your input dimensions. Semi-automatic versions take 30-45 minutes with some manual adjustment.

Can this machine handle high-tensile G550 steel?

Yes, but it requires proper specification during ordering. The rollers need design adjustments to account for spring-back in high-tensile materials. Tell us your material specifications upfront.

What's the difference between pre-cutting and post-cutting?

Pre-cutting happens before forming. It's faster but can leave slightly distorted ends. Post-cutting uses a flying shear after forming. You get perfectly shaped profile ends, though the cutter mechanism is more complex.

Will the punching system slow down production?

Traditional stop-to-punch systems do reduce speed. For maximum throughput, choose our servo-driven continuous punching option. It maintains the 15-22m/min speed without stopping.

How do you fix wavy flanges?

Flange waves usually indicate incorrect roll gaps or excessive forming pressure. We adjust the gap settings on finishing passes. Sometimes adding a straightening unit at the exit solves it completely.

What maintenance schedule should we follow?

Lubricate moving parts weekly. Check roller alignment monthly. Inspect hydraulic fluid levels and electrical connections quarterly. We provide detailed maintenance manuals with every machine.

Do you provide training?

Absolutely. We include on-site installation and operator training with every purchase. Your team learns proper operation, basic troubleshooting, and maintenance procedures.

Why Choose Zhongtuo?

With over 10 years of manufacturing experience, we've exported roll forming equipment to more than 150 countries. Europe, North America, Middle East, Southeast Asia, South America—our machines operate successfully in diverse conditions.

We're not just a machinery supplier. We're your manufacturing partner.

Strategic partnerships with Siemens and our university research collaborations mean you benefit from cutting-edge technology. Our two patented technologies in roller design and automatic slitting systems came from real production challenges.

Complete Service Package

We offer ODM and OEM services tailored to your specific requirements. Need custom sizing ranges? We'll engineer that. Require integration with existing production lines? We'll make it work.

Raw materials, machinery components, and accessories—we supply everything you need. One supplier, complete solution.

After-Sales Support That Works

Technical support doesn't end at delivery. Our cloud-based monitoring system lets us diagnose issues remotely. Phone support connects you with engineers who understand the equipment intimately.

Replacement parts ship quickly. We maintain inventory specifically for international customers to minimize your downtime.

Ready to Upgrade Your Production?

Get in touch with our technical team to discuss your specific requirements. We'll help you configure a cz purlin roll former that matches your production goals perfectly.

Contact us at zhongtuorollforming@gmail.com to start the conversation.
