IBR Roof Sheet Forming Machine - Precision Metal Roofing Production Line

Cangzhou Zhongtuo's ibr roof sheet forming machine delivers enterprise-grade performance with 18-22 precision forming stations, processing 0.3-0.8mm PPGI/GI/Aluzinc coils at speeds of 15-25m/min. Our machines highlight 70mm strong steel shafts, Cr12 hard-chromed rollers (HRC 58-62), and Delta/Mitsubishi PLC frameworks guaranteeing ±1.0mm length precision. With ISO 9001, CE, and CAS certifications, we've traded to over 150 nations since 2014. Supported by national high-tech undertaking status and Yanshan College R&D collaboration, we give total ODM/OEM administrations and one-stop crude fabric supply.

What Makes Our IBR Roof Sheet Forming Machine Different?

Built for Industrial-Scale Efficiency

Your generation requests consistency. That's why our machine replaces moderate manual twisting with persistent computerized rolling.

You'll dispose of the common "spring-back" impact that plagues high-tensile steel handling. Our slow shaping stations disseminate stretch equitably over the metal. This implies cleaner profiles and less fabric waste.

The square-fluted IBR profile it makes offers something layered sheets can't coordinate: prevalent basic inflexibility. You can space your purlins more extensively, which cuts your steel costs altogether on huge distribution center projects.

Engineered to Stop Water Ingress

Water spillage ruins reputations.

Our shaping innovation makes exact anti-capillary grooves in the covering ribs. This plan include tackles the diligent issue of water entrance amid overwhelming rainfall—especially basic for low-pitch material applications down to 5 degrees.

Long ceaseless sheets from our machine cruel less flat laps. Less laps rise to less potential spill focuses. It's that straightforward.

Technical Specifications That Deliver Results

Standard Machine Components

Where This Machine Solves Real Problems

Large Industrial Warehouses

You're building a 20,000 sqm logistics center. Standard profiles require purlins every 1.2 meters.

Our IBR profiles change that equation. The deep flutes provide higher section modulus, letting you space purlins at 1.5-1.8 meters. That's 20-30% less structural steel. On a large project, those savings add up fast.

Coastal Construction Projects

Salt air destroys ordinary roofing within years.

Our ibr roof sheet forming machine processes Aluzinc-coated materials without damaging the protective layer. The polished rollers ensure your corrosion-resistant coating stays intact through the entire forming process.

The self-draining flute design prevents water pooling—critical in high-humidity coastal environments where standing water accelerates corrosion.

Modern Residential Developments

Architects love clean lines. Builders love leak-proof installations.

The machine produces custom-length sheets up to your transport limits. This eliminates mid-roof horizontal joints that compromise both aesthetics and weatherproofing. For residential projects with complex roof valleys, this flexibility is invaluable.

Commercial Retail Spaces

Shopfronts and carports often require low-pitch roofing. Traditional profiles fail below 7 degrees.

IBR profiles work reliably down to 5-degree pitches. The angular flutes channel water aggressively, preventing the capillary action that causes leaks in shallow slopes.

Technology That Sets Industry Standards

University-Backed Innovation

We're not just manufacturers. We're researchers.

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings PhD-level expertise to your production floor.

Our graduate researchers work on-site, focusing on:

·  AI-assisted roll design using finite element analysis

·  Virtual commissioning that reduces your setup time

·  Cloud-based monitoring for remote diagnostics

These aren't marketing buzzwords. They're systems already integrated into our machines.

Smart Manufacturing Features

Remote Operation Capability: Our cloud platform lets your technicians monitor machine status from anywhere. When you're running multiple shifts or managing installations across regions, this visibility is essential.

Predictive Maintenance Alerts: The system tracks roller wear patterns and hydraulic pressure deviations. You get advance warning before problems cause downtime.

Data-Driven Production Tuning: Historical production data helps optimize your forming speed and cutting rhythm for different material grades.

Quality You Can Verify

We hold certifications that matter:

·  ISO 9001 - Consistent quality management across production

·  European CE - Meeting stringent EU safety standards

·  North American CAS - Compliance with advanced technical requirements

These aren't just certificates on a wall. They represent third-party verification of our manufacturing processes.

As a national-level high-tech enterprise in China, we've met rigorous standards for innovation investment and technical capability. We hold two patented technologies specifically related to roll forming and pattern roller design.

Why Manufacturing Partners Choose Zhongtuo

Complete Solution Provider

You need more than just machinery. You need a partner who understands the full supply chain.

We offer:

·  ODM/OEM services for branded machine customization

·  Raw material supply for steel coils and accessories

·  One-stop procurement reducing your vendor management burden

Proven Global Experience

Since 2014, we've shipped to over 150 countries. Our machines run production lines in:

·  European industrial facilities with strict CE compliance requirements

·  Middle Eastern construction markets demanding heat-resistant coatings

·  Southeast Asian regions with high-humidity corrosion challenges

·  South American operations requiring robust support structures

This global footprint means we understand your local requirements—whether that's voltage specifications, metric versus imperial measurements, or regional building code compliance.

Long-Term Partnership Approach

We've established strategic partnerships with Siemens for control systems and six universities for talent development.

Our Alibaba.com Verified Pro Supplier status and Yanshan University Graduate Practice Base designation reflect our commitment to operational excellence.

When you work with us, you're accessing a decade of export experience and engineering refinement.

Frequently Asked Questions

What's the difference between IBR and corrugated profiles?

IBR features angular trapezoidal flutes with square corners, while corrugated sheets have rounded waves. The IBR design provides superior structural strength, allowing wider purlin spacing. It also creates better side-lap weather sealing through its square-edge design.

Can your machine handle high-tensile steel?

Absolutely. Our machines process materials up to G550 grade (550 MPa yield strength). The 18-22 forming stations distribute stress gradually, preventing the metal fatigue and cracking that occurs with fewer stations.

How do you prevent scratching on pre-painted materials?

Our rollers use hard-chromed 45# steel with HRC 58-62 hardness. This creates an ultra-smooth surface that won't damage PPGI coatings. We also polish critical contact points and use precision alignment to eliminate lateral friction.

What's your typical lead time?

Standard machines ship within 45 working days after deposit. Custom configurations may require additional time depending on your specific requirements. We'll provide a detailed timeline during quotation.

Do you provide installation support?

Yes. We offer comprehensive support including machine layout drawings, foundation plans, electrical schematics, and video commissioning guidance. For complex installations, we can arrange on-site technical service (terms negotiable based on location).

What kind of maintenance does the machine require?

Routine maintenance is straightforward: daily lubrication of chain drives, weekly hydraulic oil level checks, and periodic roller alignment verification. Our predictive maintenance system helps schedule major service intervals based on actual usage patterns rather than arbitrary timeframes.

Can you customize the profile width or flute design?

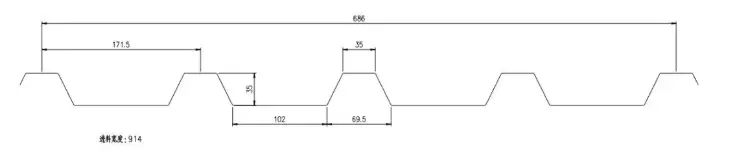

Definitely. While 686mm and 890mm are standard IBR widths, we design custom roller sets for different dimensions. Share your profile drawing or sample, and our engineering team will develop the roller configuration. Custom tooling typically adds 2-3 weeks to production time.

What after-sales support do you provide?

You get lifetime technical consultation, remote diagnostic support via our cloud platform, and spare parts supply. We maintain stock of common wear components like cutting blades and chains for quick shipping. Our technical team responds to inquiries within 24 hours.

How does your pricing compare to other manufacturers?

As a direct manufacturer with our own production base since 2019, we eliminate middleman markups. Our university R&D partnership also reduces development costs that other suppliers pass to customers. You receive enterprise-grade quality at competitive pricing—typically 15-20% below equivalent imported European machines.

What voltage and power requirements should I prepare?

Our machines adapt to your local power supply. Standard configurations work with 380V/50Hz (Europe/Asia) or 440V/60Hz (Americas). Total power consumption typically ranges from 15-22kW depending on configuration. We'll specify exact requirements once you confirm your setup details.

Ready to Upgrade Your Roofing Production?

Let's discuss how our ibr roof sheet forming machine fits your specific production goals. Whether you're expanding capacity, entering new markets, or replacing aging equipment, we'll develop a solution that works.
