ridge cap roll forming machine

Ridge Cap Roll Forming Machine - Professional Roofing Solution

Cangzhou Zhongtuo's ridge cap roll forming machine delivers enterprise-grade precision with 22 roller stations processing 0.3-0.8mm galvanized steel at speeds up to 15m/min. Built on 350# H-steel welded frames, it features 70mm diameter solid steel shafts and 45# steel rollers with quenched treatment for lasting durability. The hydraulic fly cutting system powered by a 3KW motor ensures ±1.0mm length tolerance, while the PLC control system (Delta/Siemens/Mitsubishi options) guarantees consistent profile accuracy. With 5.5KW motor power and double chain transmission, this machine transforms coil strips into weather-tight ridge caps that perfectly seal roof peaks.

What Is a Ridge Cap Roll Forming Machine?

This specialized cold-roll forming equipment automates the production of metal ridge caps. These components seal the peak where two roof slopes meet.

You no longer need manual folding methods. The machine converts coil strips into precise profiles through progressive roller stations.

It handles galvanized, galvalume, and pre-painted steel materials. Multiple forming passes reduce material stress and eliminate spring-back issues common in high-tensile steel.

Your production speeds reach 15-25m/min. This eliminates inconsistent angles that cause water leakage. Labor costs drop significantly compared to manual bending operations.

Key Technical Specifications

Core Technical Features

High-Rigidity Construction

The 70mm solid steel shaft handles your material without deflection. The 350# H-steel welded frame provides stability during high-speed operation.

Advanced Roller Design

Our 45# steel rollers undergo quenched treatment. This prevents scratching on pre-painted surfaces. Your profile edges remain sharp and distinct.

Precision Hydraulic Cutting

The Cr12 blade with quenched treatment delivers clean cuts. The 3KW hydraulic system ensures cutting accuracy within ±1.0mm tolerance.

Intelligent Control System

You get a choice of Delta, Siemens, or Mitsubishi PLC systems. The touch screen interface makes operation simple. Omron encoders track length precisely.

Application Scenarios

Pre-Engineered Buildings & Industrial Warehousing

Your machine creates angular ridge caps for large-span factories. It processes high-tensile Galvalume steel effectively. This provides weather-tight seals against wind-driven rain in industrial environments.

Residential Villa Construction

Produce stepped or bamboo-joint ridge caps for aesthetic appeal. These profiles mimic traditional clay tiles while offering superior durability. Color-coated steel resists UV exposure and prevents moss accumulation.

Agricultural & Coastal Structures

In high-corrosion environments like poultry farms or seaside resorts, the machine handles Aluminum-Magnesium-Manganese alloy coils. Your ridge caps maintain structural integrity against salt spray and ammonia without surface micro-cracking.

Why Choose Zhongtuo's Solution?

Proven Manufacturing Excellence

Since 2014, we've specialized in cold roll forming technology. Our national-level high-tech enterprise status reflects our commitment to innovation.

We hold ISO 9001, CE, and CAS certifications. These validate our quality management and safety standards.

University Research Partnership

Our collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings cutting-edge technology to your production floor.

PhD and Master's researchers work in our factory. They optimize roll design using finite element analysis and AI-assisted simulation tools.

Global Export Experience

Your equipment benefits from our experience in over 150 countries. We understand diverse regional requirements and local preferences.

Our expert team provides tailored design solutions. These align with both international standards and your specific needs.

Comprehensive Service

You receive ODM, OEM, and one-stop service options. Raw materials, machinery, and accessories are available through us.

Remote monitoring and cloud-based maintenance platforms reduce downtime. Virtual commissioning ensures smooth installation.

Production Advantages

The double chain transmission system maintains torque consistency. This matters during pressing and cutting phases.

Your material feeding stays synchronized. The 22 roller stations progressively shape the profile without material stress concentration.

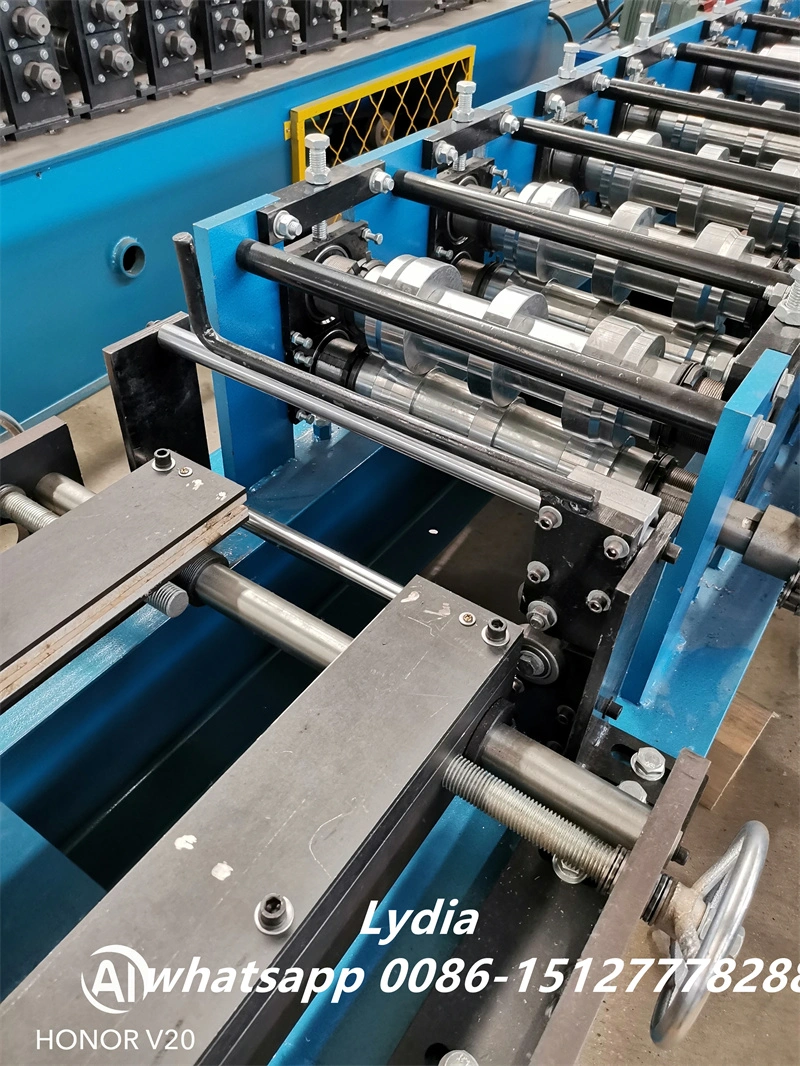

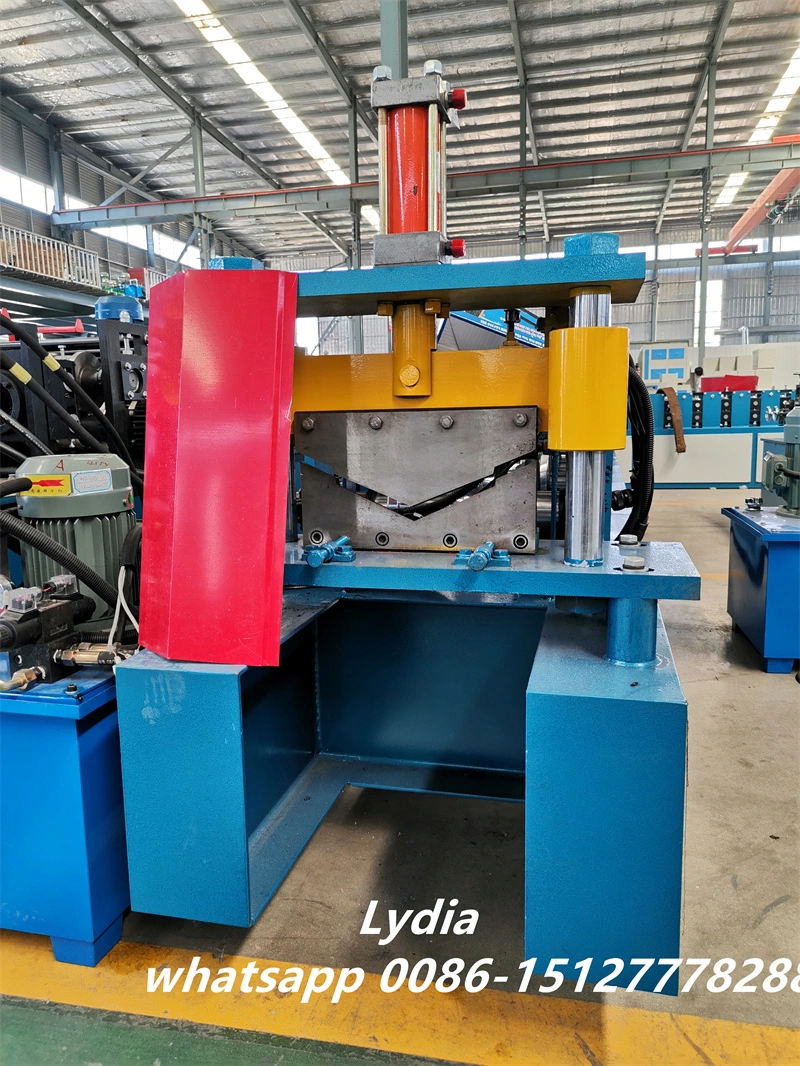

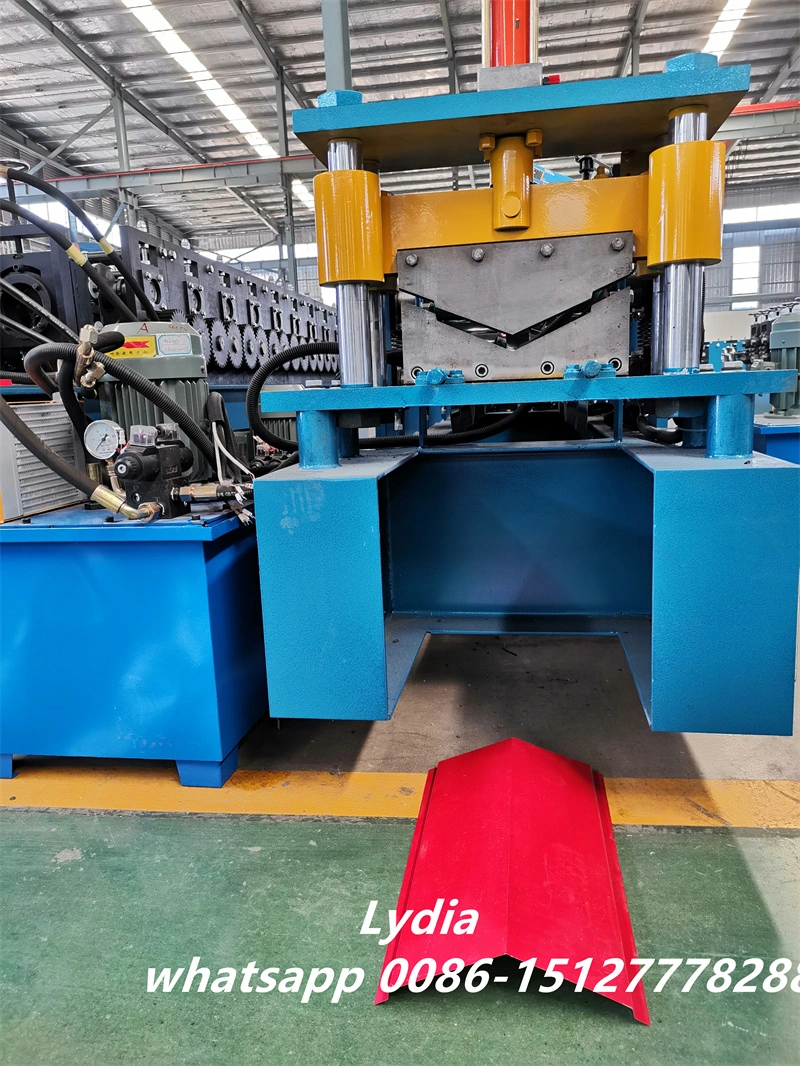

The hydraulic fly cutting system operates smoothly at full production speed. You maintain continuous output without stopping for cuts.

The ridge cap roll forming machine processes various coil widths. Adjustment mechanisms accommodate different profile dimensions within the design range.

Frequently Asked Questions

Can one machine produce different ridge profiles?

Generally, each machine produces one specific profile for maximum precision. However, we offer machines with cassette change systems or adjustable width spacers if you need versatility. These options require higher initial investment but provide production flexibility.

Why does paint crack during forming?

Paint cracking usually indicates mismatched roller speeds or rough roller surfaces. Our machines use Cr12 rollers with hard chrome plating. The clutch system synchronizes upper and lower rollers to protect your coating.

How do you handle high-tensile steel spring-back?

We employ an over-bending strategy in final forming stations. A Turk's Head straightener at the exit counters internal stresses. Your ridge caps retain the targeted angle consistently.

What maintenance does the hydraulic cutter need?

Replace hydraulic oil (46# anti-wear grade) every 6 months or 2000 working hours. Sharpen or replace cutting die blades when burrs exceed 0.2mm. This prevents rust formation on cut edges.

How is cutting length accuracy controlled?

A rotary encoder couples with the PLC system for precise control. If you notice length variance, check for slippage between the measuring wheel and coil. Recalibrate the pulse-per-millimeter setting in your PLC if needed.

Can the machine handle coated materials?

Yes, the chrome-plated rollers protect painted and coated surfaces. Adjust your forming speed based on coating thickness. Softer coatings may require slower speeds to prevent marking.

Quality Assurance Process

Profile Overlay Testing

We cut sample ridge caps and overlay them on engineering drawings. Go/No-Go gauges verify that angles and pressing depth match your roofing sheet valleys perfectly.

Roller Hardness Inspection

Every roller undergoes sclerometer testing. We verify HRC 58-62 hardness to ensure wear resistance over millions of production meters.

Hydraulic System Testing

The cutting and pressing stations complete 72-hour cycle tests. We check for oil leaks, overheating, and cutting die burrs before shipment.

Run-out Tolerance Verification

Main shaft run-out stays below 0.05mm. This guarantees smooth operation without vibration. Vibration causes ripple defects on your ridge cap surface.

Our Manufacturing Capability

Cangzhou Zhongtuo operates a comprehensive production base established in 2019. We manufacture roof tile machines, CZ purlin systems, door forming equipment, and slitting lines.

Our high-speed multi-functional metal composite panel forming machines meet international trends. We've obtained relevant certificates for these innovations.

You benefit from equipment that processes both ordinary PPGI materials and new composite materials. This versatility extends your market opportunities.

Strategic agreements with 6 universities support ongoing talent development. Our Siemens partnership brings advanced automation to your production line.

Technical Support & Training

Your operators receive comprehensive training on the PLC system. We cover routine maintenance, troubleshooting, and parameter adjustment.

Remote diagnostic capabilities let our technicians support you from anywhere. Cloud-based platforms provide real-time equipment monitoring.

Virtual commissioning reduces installation time. You start production faster with fewer on-site adjustment cycles.

Contact Us

Ready to enhance your roofing component production? Contact us at zhongtuorollforming@gmail.com for customized ridge cap roll forming machine solutions and technical consultation.
